2020 HYUNDAI NEXO Owners Manual

D DI
IM
ME
EN
NS
SI
IO
ON
NS
S
8-2
Specifications, Consumer information and Reporting safety defects

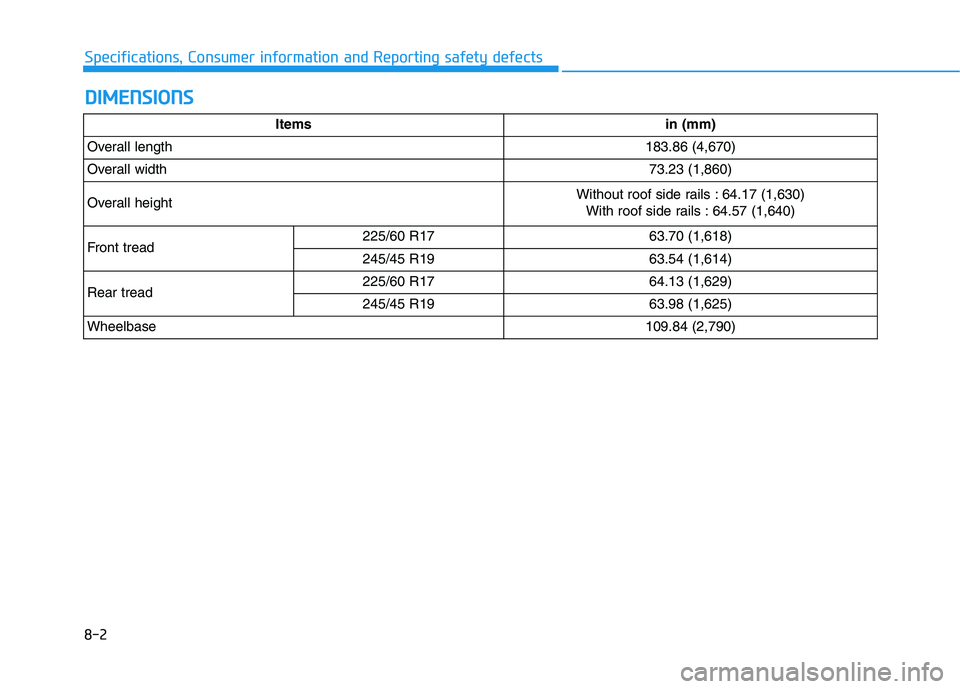

Itemsin (mm)
Overall length183.86 (4,670)
Overall width73.23 (1,860)
Overall heightWithout roof side rails : 64.17 (1,630)
With roof side rails : 64.57 (1,640)
Front tread225/60 R1763.70 (1,618)
245/45 R1963.54 (1,614)
Rear tread 225/60 R1764.13 (1,629)
245/45 R1963.98 (1,625)
Wheelbase109.84 (2,790)

8-3
88
Specifications, Consumer information and Reporting safety defectsB BU
UL
LB
B
W
WA
AT
TT
TA
AG
GE
E

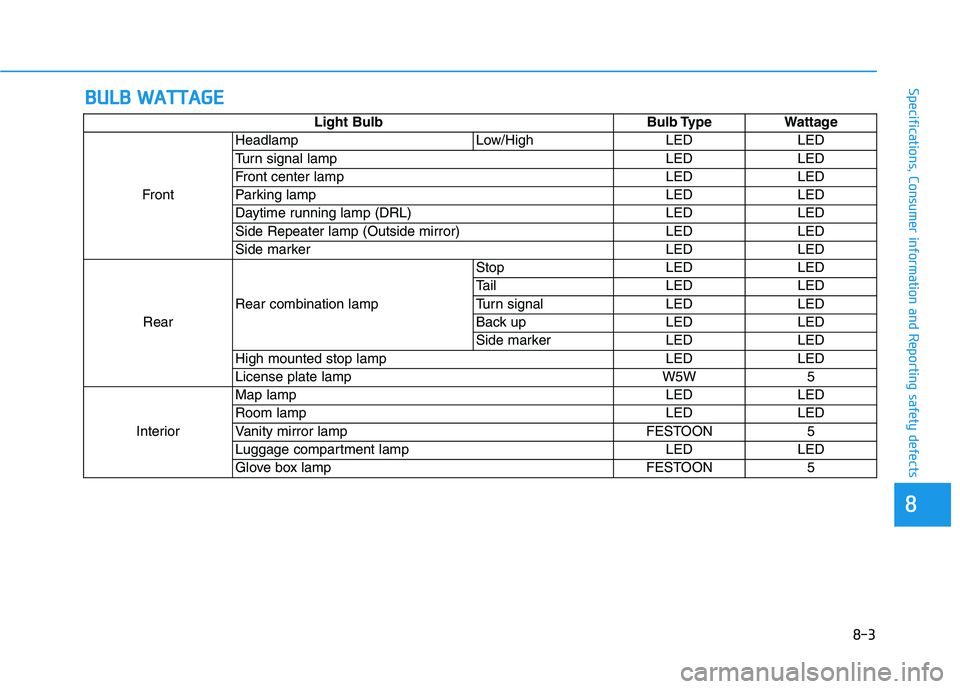

Light Bulb Bulb Type Wattage
FrontHeadlamp Low/High LED LED
Turn signal lamp LED LED
Front center lamp LED LED
Parking lamp LED LED
Daytime running lamp (DRL) LED LED
Side Repeater lamp (Outside mirror) LED LED
Side marker LED LED
RearRear combination lampStop LED LED
Tail LED LED
Turn signal LED LED
Back up LED LED
Side marker LED LED
High mounted stop lamp LED LED
License plate lamp W5W 5
InteriorMap lamp LED LED
Room lamp LED LED
Vanity mirror lamp FESTOON 5
Luggage compartment lamp LED LED
Glove box lamp FESTOON 5

8-4
Specifications, Consumer information and Reporting safety defects
T TI
IR
RE
ES
S
A
AN
ND
D
W
WH
HE
EE
EL
LS
S
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the drivetrain, cause driveability issues, and possibly cause
damage.
CAUTION
If your vehicle is not equipped with a compact spare tire, your vehicle will be equipped with a Tire Mobility Kit.
Items Tire SizeWheel Size
Inflation Pressure kPa (psi)Wheel Lug Nut
Torque kgf
•m
(lbf
ft, Nm)Normal Load *1Maximum Load *2
FrontRearFrontRear
Full size tire225/60 R177.0J X 17250 (36)250 (36)250 (36)250 (36)11~13
(79~94, 07~127)
245/45 R197.5J X 19
It is permissible to add 3 psi to the standard tire pressure specification if colder temperatures are expect-
ed soon.
Tires typically loose 1psi (7kPa) for every 12°F temperature drop. If extreme temperature variations are
expected, recheck your tire pressure as necessary to keep them properly inflated.
An air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you
plan to drive a high-altitude area, check the tire pressures in advance. If necessary, inflate them to a prop-
er level. (Air inflation per altitude : +2.4 psi/1 mile)
NOTICE
*1: Normal load : Up to 3 persons
*2: Maximum load : Up to 5 persons

8-5
88
Specifications, Consumer information and Reporting safety defectsV VO
OL
LU
UM
ME
E
A
AN
ND
D
W
WE
EI
IG
GH
HT
T
A AI
IR
R
C
CO
ON
ND
DI
IT
TI
IO
ON
NI
IN
NG
G
S
SY
YS
ST
TE
EM
M
Contact an authorized HYUNDAI dealer for more details.

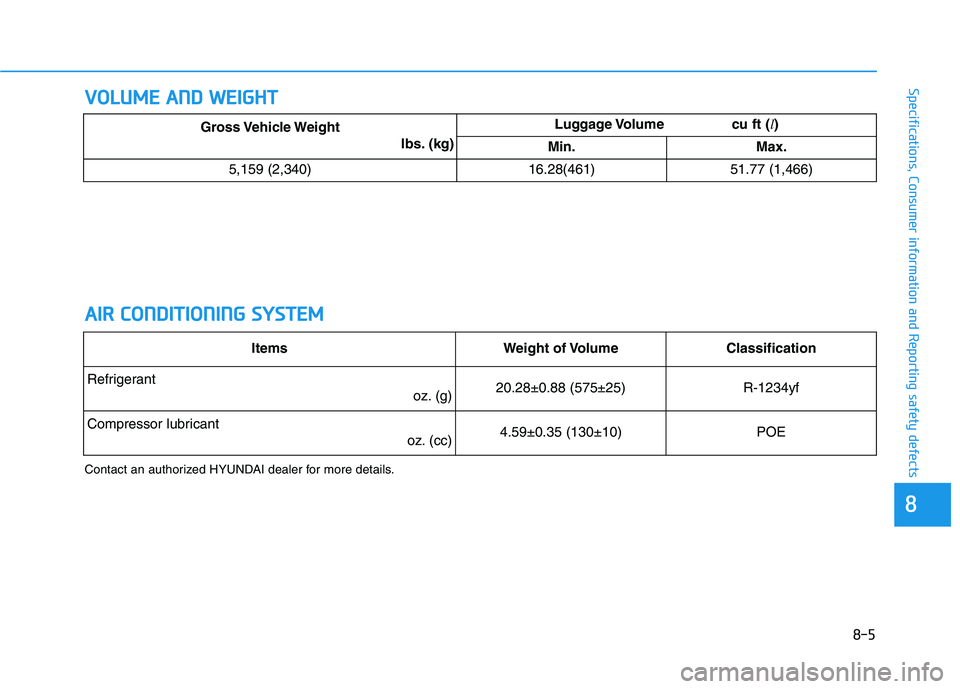

Gross Vehicle Weight
lbs. (kg)Luggage Volume cu ft (l)
Min.Max.
5,159 (2,340)16.28(461)51.77 (1,466)
ItemsWeight of VolumeClassification
Refrigerant
oz. (g) 20.28±0.88 (575±25)R-1234yf
Compressor lubricant
oz. (cc) 4.59±0.35 (130±10)POE

8-6
Specifications, Consumer information and Reporting safety defects
R RE
EC
CO
OM
MM
ME
EN
ND
DE
ED
D
L
LU
UB
BR
RI
IC
CA
AN
NT
TS
S
A
AN
ND
D
C
CA
AP
PA
AC
CI
IT
TI
IE
ES
S

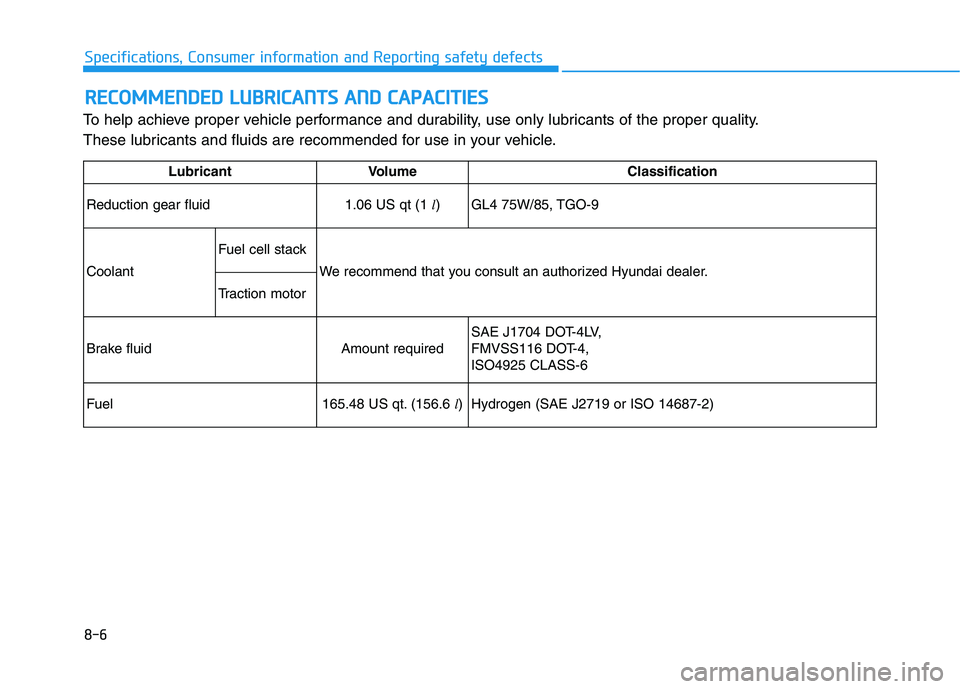

To help achieve proper vehicle performance and durability, use only lubricants of the proper quality.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Reduction gear fluid1.06 US qt (1 l)
GL4 75W/85, TGO-9
CoolantFuel cell stack
We recommend that you consult an authorized Hyundai dealer.
Traction motor
Brake fluid Amount requiredSAE J1704 DOT-4LV,
FMVSS116 DOT-4,
ISO4925 CLASS-6
Fuel165.48 US qt. (156.6 l)
Hydrogen (SAE J2719 or ISO 14687-2)

8-7
88
Specifications, Consumer information and Reporting safety defects

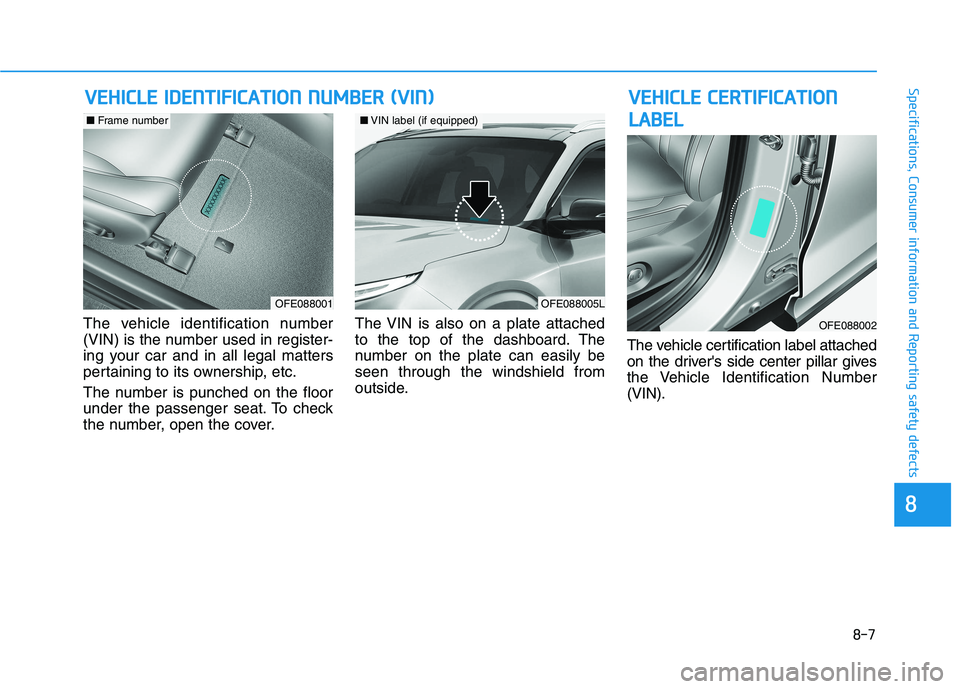

The vehicle identification number
(VIN) is the number used in register-
ing your car and in all legal matters
pertaining to its ownership, etc.
The number is punched on the floor
under the passenger seat. To check
the number, open the cover.The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.The vehicle certification label attached
on the driver's side center pillar gives
the Vehicle Identification Number
(VIN).
V VE
EH
HI
IC
CL
LE
E
I
ID
DE
EN
NT
TI
IF
FI
IC
CA
AT
TI
IO
ON
N
N
NU
UM
MB
BE
ER
R
(
(V
VI
IN
N)
)
OFE088005L
■VIN label (if equipped)
OFE088001
■Frame number
OFE088002
V VE
EH
HI
IC
CL
LE
E
C
CE
ER
RT
TI
IF
FI
IC
CA
AT
TI
IO
ON
N
L LA
AB
BE
EL
L

8-8
Specifications, Consumer information and Reporting safety defects

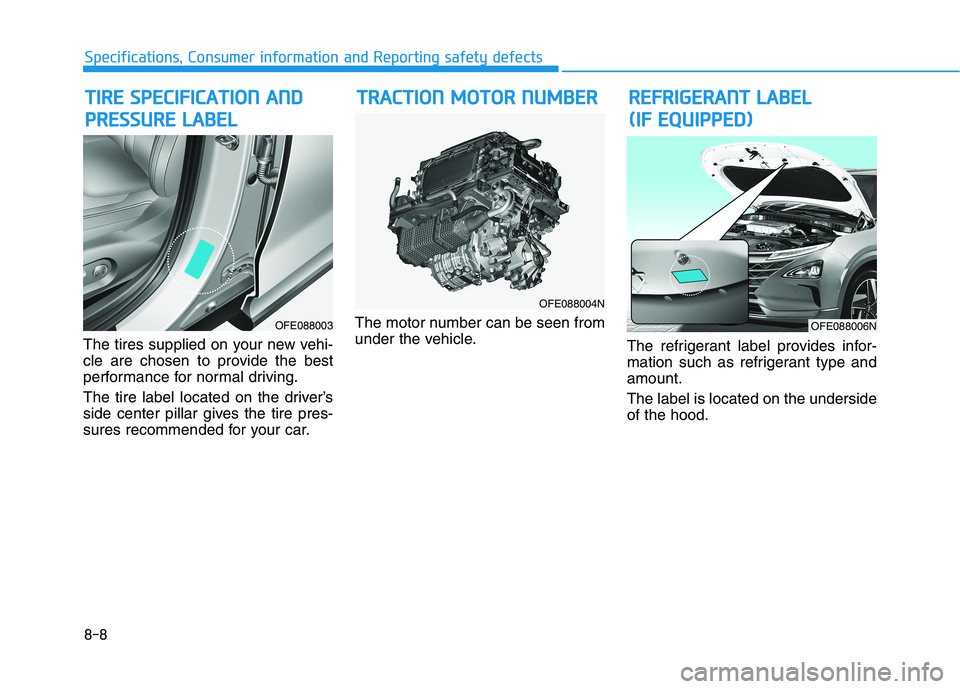

The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver’s
side center pillar gives the tire pres-
sures recommended for your car.The motor number can be seen from
under the vehicle.
The refrigerant label provides infor-
mation such as refrigerant type and
amount.
The label is located on the underside
of the hood.
T TR
RA
AC
CT
TI
IO
ON
N
M
MO
OT
TO
OR
R
N
NU
UM
MB
BE
ER
RR
RE
EF
FR
RI
IG
GE
ER
RA
AN
NT
T
L
LA
AB
BE
EL
L
( (I
IF
F
E
EQ
QU
UI
IP
PP
PE
ED
D)
) T TI
IR
RE
E
S
SP
PE
EC
CI
IF
FI
IC
CA
AT
TI
IO
ON
N
A
AN
ND
D
P PR
RE
ES
SS
SU
UR
RE
E
L
LA
AB
BE
EL
L
OFE088003OFE088006N
OFE088004N

8-9
88
Specifications, Consumer information and Reporting safety defectsC CO
ON
NS
SU
UM
ME
ER
R
I
IN
NF
FO
OR
RM
MA
AT
TI
IO
ON
N

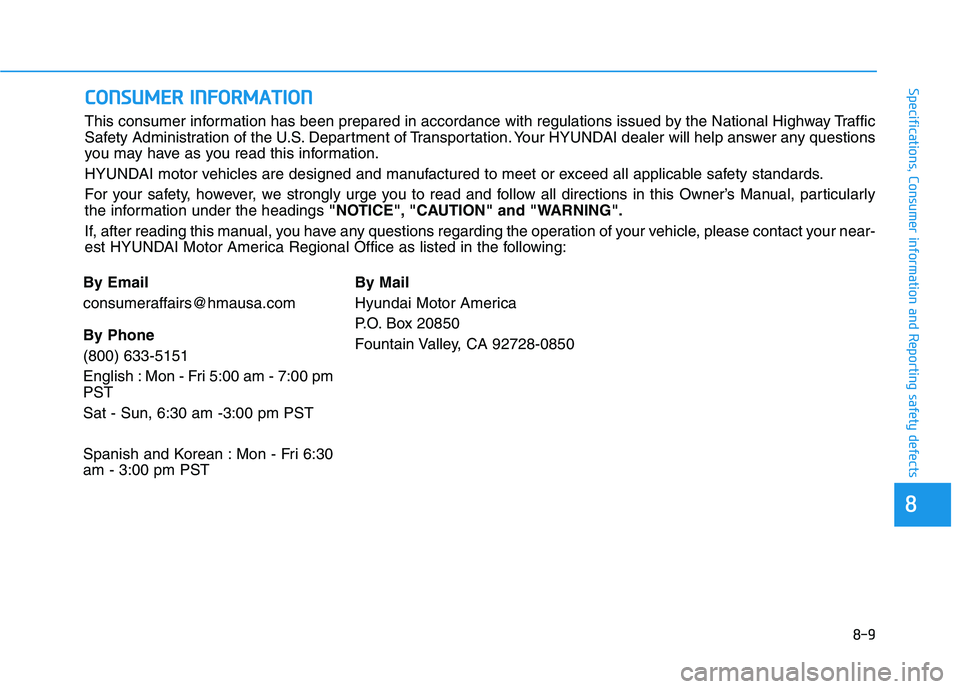

This consumer information has been prepared in accordance with regulations issued by the National Highway Traffic
Safety Administration of the U.S. Department of Transportation. Your HYUNDAI dealer will help answer any questions
you may have as you read this information.
HYUNDAI motor vehicles are designed and manufactured to meet or exceed all applicable safety standards.
For your safety, however, we strongly urge you to read and follow all directions in this Owner’s Manual, particularly
the information under the headings "NOTICE", "CAUTION" and "WARNING".
If, after reading this manual, you have any questions regarding the operation of your vehicle, please contact your near-
est HYUNDAI Motor America Regional Office as listed in the following:
By Email
[email protected]
By Phone
(800) 633-5151
English : Mon - Fri 5:00 am - 7:00 pm
PST
Sat - Sun, 6:30 am -3:00 pm PST
Spanish and Korean : Mon - Fri 6:30
am - 3:00 pm PSTBy Mail
Hyundai Motor America
P.O. Box 20850
Fountain Valley, CA 92728-0850
