2020 HYUNDAI I20 headrest

4-4

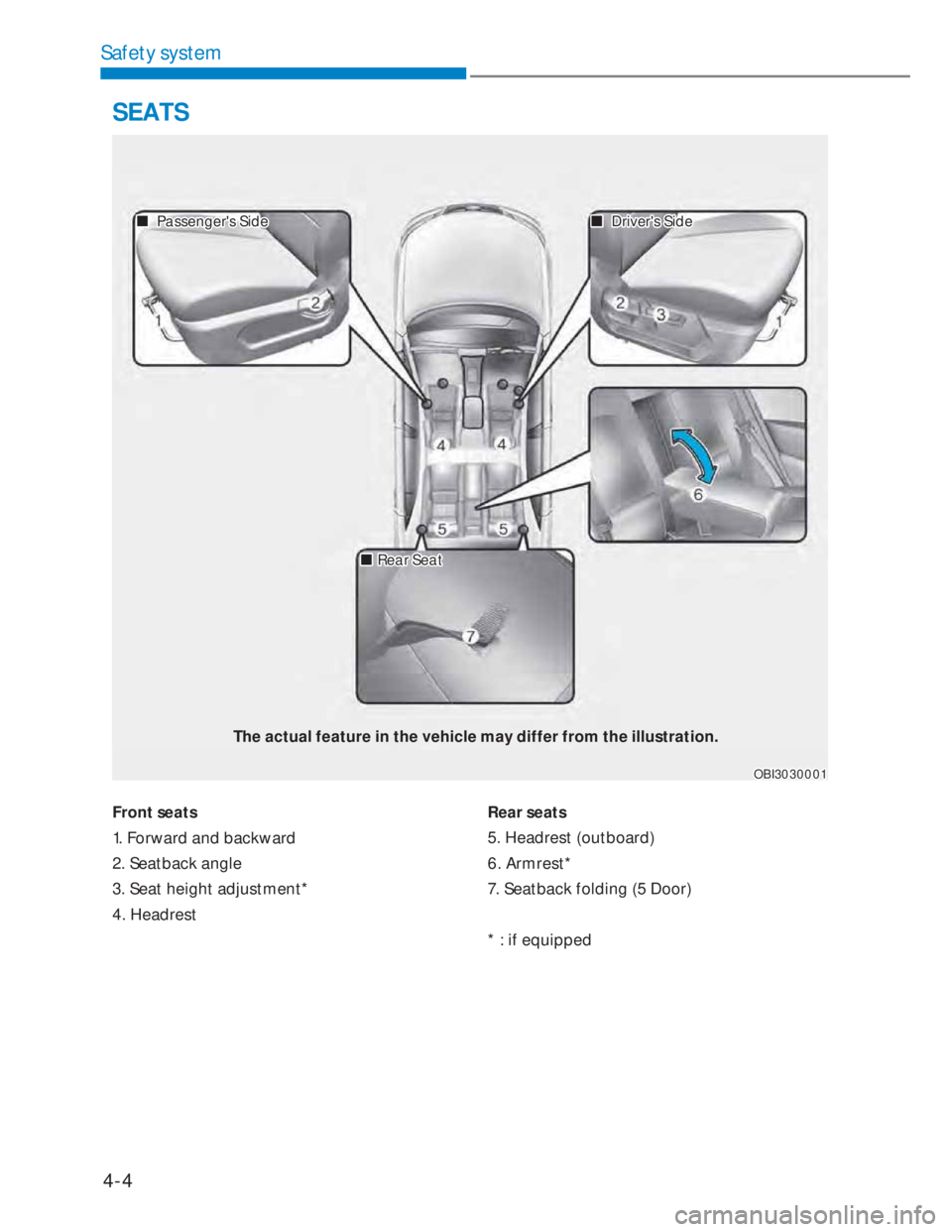

Safety system
Front seats
1. Forward and backward
2. Seatback angle
3. Seat height adjustment*
4. HeadrestRear seats
5. Headrest (outboard)
6. Armrest*
7. Seatback folding (5 Door)
* : if equipped
The actual feature in the vehicle may differ from the illustration.
OBI3030001OBI3030001
SEATS
„„ Passenger's Side Passenger's Side
„„Rear SeatRear Seat
„„ Driver's Side Driver's Side

4-8
Safety system
Headrest
OAH2038004OAH2038004
The driver’s and front passenger’s seats
are equipped with a headrest for the
occupant’s safety and comfort.
The headrest not only provides comfort
for the driver and front passenger, but
also helps to protect the head and neck
in the event of a collision.
WARNING
To reduce the risk of serious injury or
death in an accident, take the following
precautions when adjusting your
headrests:
• Always properly adjust the headrests
for all passengers BEFORE starting
the vehicle.
• NEVER let anyone ride in a seat with
the headrests removed or reversed.
•
OLF034072NOLF034072N
Adjust the headrests so the middle of
the headrests is at the same height as
the height of the top of the eyes.
• NEVER adjust the headrest position
of the driver’s seat when the vehicle
is in motion.
• Adjust the headrest as close to the
passenger’s head as possible. Do
not use a seat cushion that holds the
body away from the seatback.
• Make sure the headrest locks into
position after adjusting it.
NOTICE
To prevent damage, NEVER hit or pull
on the headrests.

4-9
04
OLF034015OLF034015
NOTICE
If you recline the seatback towards the
front with the head restraint and seat
at top most position, the head restraint
may come in contact with the sunvisor
or other parts of the vehicle.
OAI3039005OAI3039005
Adjusting the height up and down (if
equipped)
To raise the headrest, pull it up to
the desired position (1). To lower the
headrest, push and hold the release
button (2) on the headrest support
and lower the headrest to the desired
position (3).
OQXI039006OQXI039006
Removal/Reinstall (if equipped)
To remove the headrest:
1. Recline the seatback (2) with the
recline lever (1).
2. Raise headrest as far as it can go.
3. Press the headrest release button (3)
while pulling the headrest up (4).
WARNING
NEVER allow anyone to ride in a seat
with the headrest removed.

4-10
Safety system
OAI3039032OAI3039032
To reinstall the headrest :
1. Put the headrest poles (2) into the
holes while pressing the release
button (1).
2. Adjust the headrest to the appropriate
height.
3. Adjust the seatback (4) forward using
the recline lever (3).
WARNING
Always make sure the headrest locks
into position after reinstalling and
adjusting it properly.
Seatback pocket (if equipped)
OAI3039033OAI3039033
The seatback pocket is provided on
the back of the driver’s and/or front
passenger’s seatback.
WARNING
Seatback pockets
Do not put heavy or sharp objects in the
seatback pockets. In an accident they
could come loose from the pocket and
injure vehicle occupants.

4-11
04
Rear seats
Headrest
OQXI039009OQXI039009
The rear seats are equipped with
headrests in the outboard seating
positions for the occupant’s safety and
comfort.
The headrest not only provides comfort
for passengers, but also helps to protect
the head and neck in the event of a
collision.
WARNING
To reduce the risk of serious injury or
death in an accident, take the following
precautions when adjusting your
headrests:
• Always properly adjust the headrests
for all passengers BEFORE starting
the vehicle.
• NEVER let anyone ride in a seat with
the headrests removed.
•
OLF034072NOLF034072N
Adjust the headrests so the middle of
the headrests is at the same height as
the height of the top of the eyes.
• NEVER adjust the headrest position
of the driver’s seat when the vehicle
is in motion.
• Adjust the headrest as close to the
passenger’s head as possible. Do
not use a seat cushion that holds the
body away from the seatback.
• Make sure the headrest locks into
position after adjusting it.
NOTICE
To prevent damage, NEVER hit or pull
on the headrests.

4-12
Safety system
OAI3039008OAI3039008
Adjusting the height up and down
(if equipped)
To raise the headrest, pull it up (1).
To lower the headrest, push and hold
the release button (2) on the headrest
support and lower the headrest (3).
OAI3039009OAI3039009
Removal (if equipped)
To remove the headrest, raise it as far as
it can go then press the release button
(1) while pulling upward (2).
To reinstall the headrest, put the
headrest poles (3) into the holes while
pressing the release button (1). Then
adjust it to the appropriate height.
WARNING
Make sure the headrest locks in
position after adjusting it to properly
protect the occupants.
Armrest (if equipped)
OBI3030002OBI3030002
The armrest is located in the center of
the rear seat. Pull the armrest down from
the seatback to use it.
Folding the rear seat
The rear seatbacks (or cushions) may be
folded to facilitate carrying long items or
to increase the luggage capacity of the
vehicle.
WARNING
• Never allow passengers to sit on top
of the folded down seatback while
the vehicle is moving as this is not a
proper seating position and no seat
belts are available for use. This could
result in serious injury or death in
case of an accident or sudden stop.
• Objects carried on the folded down
seatback should not extend higher
than the top of the front seats. This
could allow cargo to slide forward
and cause injury or damage during
sudden stops.

4-13
04
1. Set the front seatback to the upright
position and if necessary, slide the
front seat forward.
2. Lower the rear headrests to the lowest
position (if equipped with adjustable
headrests).
OAI3039010OAI3039010
3. Insert the rear lap/shoulder belt plate
into the holder on the side trim. It will
prevent the lap/shoulder belt from
interfering with the seatback when
folding.
OAI3039011OAI3039011
OBI3030003OBI3030003
4. Pull up both sides of the seatback
lever and fold the seatback toward the
front of the vehicle.
To use the rear seat, lift and push up the
seatback backward. Push the seatback
firmly until it clicks into place. Make sure
the seatback is locked in place.
When returning the rear seatbacks to
the upright position, remember to return
the rear shoulder belts to their proper
position.
i Information
If you are not able to pull out the seat belt
from the retractor, firmly pull the belt out
and release it. Then you will be able to
pull the belt out smoothly.

4-28
Safety system
Installing a Child Restraint
System (CRS)
WARNING
Before installing your Child Restraint
System always:
• Read and follow the instructions
provided by the manufacturer of the
Child Restraint System.
Failure to follow all warnings and
instructions could increase the risk of
the SERIOUS INJURY or DEATH if an
accident occurs.
WARNING
If the vehicle headrest prevents proper
installation of a Child Restraint System
(as described in the Child Restraint
System manual), the headrest of the
respective seating position shall be
readjusted or entirely removed.After selecting a proper Child Restraint
System and checking that the Child
Restraint System fits properly in the rear
of this vehicle, you are ready to install
the Child Restraint System according to
the manufacturer’s instruction. There are
three general steps in installing the Child
Restraint System properly:
• Properly secure the Child Restraint
System to the vehicle. All Child
Restraint Systems must be secured to
the vehicle with the lap belt or lap part
of a lap/shoulder belt or with the top-
tether and/or ISOFIX anchorage.
• Make sure the Child Restraint System
is firmly secured. After installing a
Child Restraint System to the vehicle,
push and pull the Child Restraint
System forward and from side-
to-side to verify that it is securely
attached to the vehicle seat. A Child
Restraint System secured with a seat
belt should be installed as firmly as
possible. However, some side-to-side
movement can be expected.
When installing a Child Restraint
System, adjust the vehicle seat (up
and down, forward and rearward)
so that your child fits in the Child
Restraint System in a comfortable
manner.
• Secure the child in the Child
Restraint System. Make sure the
child is properly strapped in the Child
Restraint System according to the
Child Restraint System manufacturer’s
instructions.
WARNING
A Child Restraint System in a closed
vehicle can become very hot. To
prevent burns, check the seating
surface and buckles before placing
your child in the Child Restraint
System.
