[x] Cancel search: brakesPage 99 of 486
4-9
04
Parking Brake & Brake
Fluid Warning Light
7his warning light illuminates
‡ When you set the ignition switch or
the Engine Start/Stop button to the
ON position.
- It illuminates for approximately 3
seconds
- It remains on if the parking brake
is applied.
‡ When the parking brake is applied.
‡ When the brake fluid level in the
reservoir is low.
- If the warning light illuminates
with the parking brake released, it
indicates the brake fluid level in
the reservoir is low.
If the brake fluid level in the reser-
voir is low
1. Drive carefully to the nearest safe
location and stop your vehicle.
2. With the engine stopped, check
the brake fluid level immediately
and add fluid as required (For
more details, refer to “Brake
Fluid” in chapter 8). After adding
brake fluid, check all brake compo-
nents for fluid leaks. If a brake fluid
leak is found, or if the warning light
remains on, or if the brakes do not
operate properly, do not drive the
vehicle. We recommend that you
have the vehicle inspected by a
HYUNDAI authorised repairer.
'ual-diagonal braking system
Your vehicle is equipped with dual-di-
agonal braking systems. This means
you still have braking on two wheels
even if one of the dual systems should
fail.
With only one of the dual systems
working, more than normal pedal
travel and greater pedal pressure are
required to stop the vehicle.
Also, the vehicle will not stop in as
short a distance with only a portion of
the brake system working.
If the brakes fail whilst you are driv-
ing, shift to a lower gear for additional
engine braking and stop the vehicle
as soon as it is safe to do so.
WARNING
Parking Brake & Brake Fluid
Warning Light
Driving the vehicle with a warning
light ON is dangerous. If the
Parking Brake & Brake Fluid
Warning Light illuminates with the
parking brake released, it indicates
that the brake fluid level is low.
In this case, we recommend that
you have the vehicle inspected by
a HYUNDAI authorised repairer.
Page 105 of 486
4-15
04
Low Tire Pressure
Warning Light
(if equipped)
7his warning light illuminates
‡ When you set the ignition switch or
Engine Start/Stop button to the ON
position.
- It illuminates for approximately 3
seconds and then goes off.
‡ When one or more of your tyres are
significantly underinflated (The
location of the underinflated tyres
are displayed on the LCD display).
For more details, refer to “Tyre
Pressure Monitoring System
(TPMS)” in chapter 7.
7his warning light remains on after
blinking for appro [imately 6 sec-
onds or repeatedly blinks on and off
at appro [imately 3 second intervals
‡ When there is a malfunction with
the TPMS.
In this case, we recommend that
you have the vehicle inspected by a
HYUNDAI authorised repairer as
soon as possible.
For more details, refer to “Tyre
Pressure Monitoring System
(TPMS)” in chapter 7.
WARNING
Safe Stopping
‡ The TPMS cannot alert you to
severe and sudden tyre damage
caused by external factors.
‡ If you notice any vehicle instabil-
ity, immediately take your foot
off the accelerator pedal, apply
the brakes gradually with light
force, and slowly move to a safe
position off the road.
Exhaust System (GPF)
Warning Light
(Petrol Engine,
if equipped)
7his warning light illuminates
Page 257 of 486
Before driving ......................................................................................................6-5
Before entering the vehicle ...........................................................................6-5
Before starting ................................................................................................6-5
Ignition switch..................................................................................................... 6-7
Key ignition switch
......................................................................................... 6-7
Engine Start/Stop button ............................................................................. 6-10
Manual transmission
........................................................................................ 6-15
Manual transmission operation ................................................................... 6-15
Good driving practices ..................................................................................6-17
Automated manual transmission (AMT)
......................................................... 6-18
Automated Manual Transmission (AMT) operation .................................... 6-19
Features of the Automated Manual Transmission (AMT) .......................... 6-19
LCD display for transmission temperature and warning message ............ 6-23
Transmission ranges ......................................................................................6-28
Parking ........................................................................................................... 6-31
Good driving practices ................................................................................. 6-31
Braking system
..................................................................................................6-33
Power brakes ................................................................................................6-33
Disc brakes wear indicator ...........................................................................6-33
Rear drum brakes ..........................................................................................6-34
Parking brake ................................................................................................6-34
Anti-lock Brake System (ABS) .......................................................................6-35
Electronic Stability Control (ESC)................................................................. 6-37
Vehicle Stability Management (VSM) ......................................................... 6-40
Hill-Start Assist Control (HAC) ...................................................................... 6-41
Emergency Stop Signal (ESS) ...................................................................... 6-42
Good braking practices ............................................................................... 6-42
ISG (Idle Stop and Go) system
........................................................................ 6-44
To activate the ISG system ........................................................................... 6-44
To deactivate the ISG system ......................................................................6-47
ISG system malfunction ................................................................................6-47
The battery sensor deactivation .................................................................. 6-48
6. Whilst driving
6
Page 289 of 486
![HYUNDAI I10 2020 Owners Manual 6-33
0606

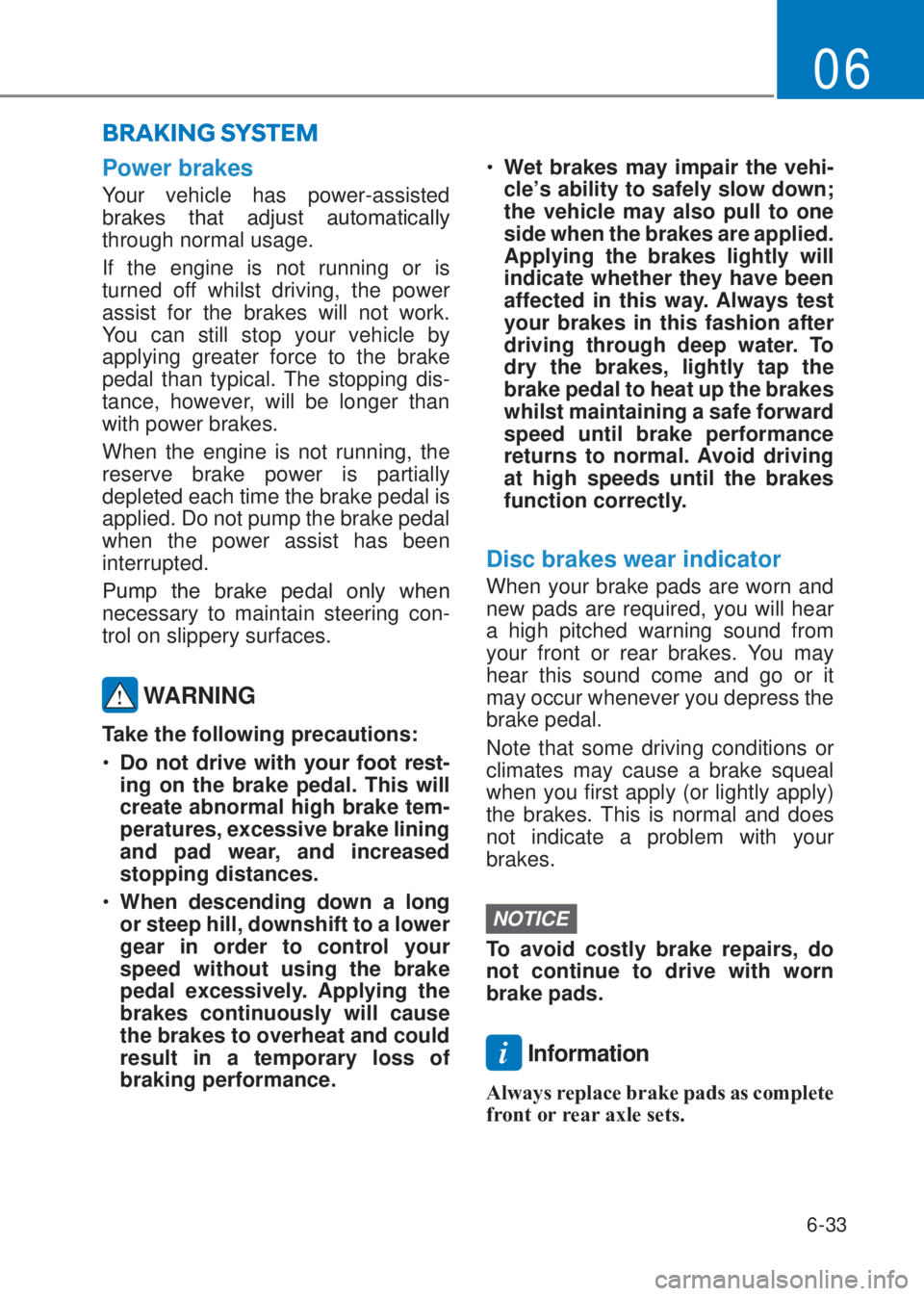

Power brakes
Your vehicle has power-assisted
E U D N H V W K D W D G M X V W D X W R P D W L F D O O \
through normal usage.
If the engine is not running or is
turned off whil](/manual-img/35/56230/w960_56230-288.png "HYUNDAI I10 2020 Owners Manual 6-33
0606
Power brakes
Your vehicle has power-assisted
E U D N H V W K D W D G M X V W D X W R P D W L F D O O \
through normal usage.
If the engine is not running or is
turned off whil")
6-33
0606
Power brakes
Your vehicle has power-assisted
E U D N H V W K D W D G M X V W D X W R P D W L F D O O \
through normal usage.
If the engine is not running or is
turned off whilst driving, the power
assist for the brakes will not work.
You can still stop your vehicle by
applying greater force to the brake
pedal than typical. The stopping dis-
tance, however, will be longer than
with power brakes.
When the engine is not running, the
reserve brake power is partially
depleted each time the brake pedal is
applied. Do not pump the brake pedal
when the power assist has been
interrupted.
3 X P S W K H E U D N H S H G D O R Q O \ Z K H Q
necessary to maintain steering con-
trol on slippery surfaces.
WARNING
Take the following precautions:
Page 290 of 486
6-34
Whilst driving
Rear drum brakes
Your rear drum brakes do not have
wear indicators. Therefore, have the
rear brake linings inspected if you
hear a rear brake rubbing noise. Also
have your rear brakes inspected each
time you change or rotate your tyres
and when you have the front brakes
replaced.

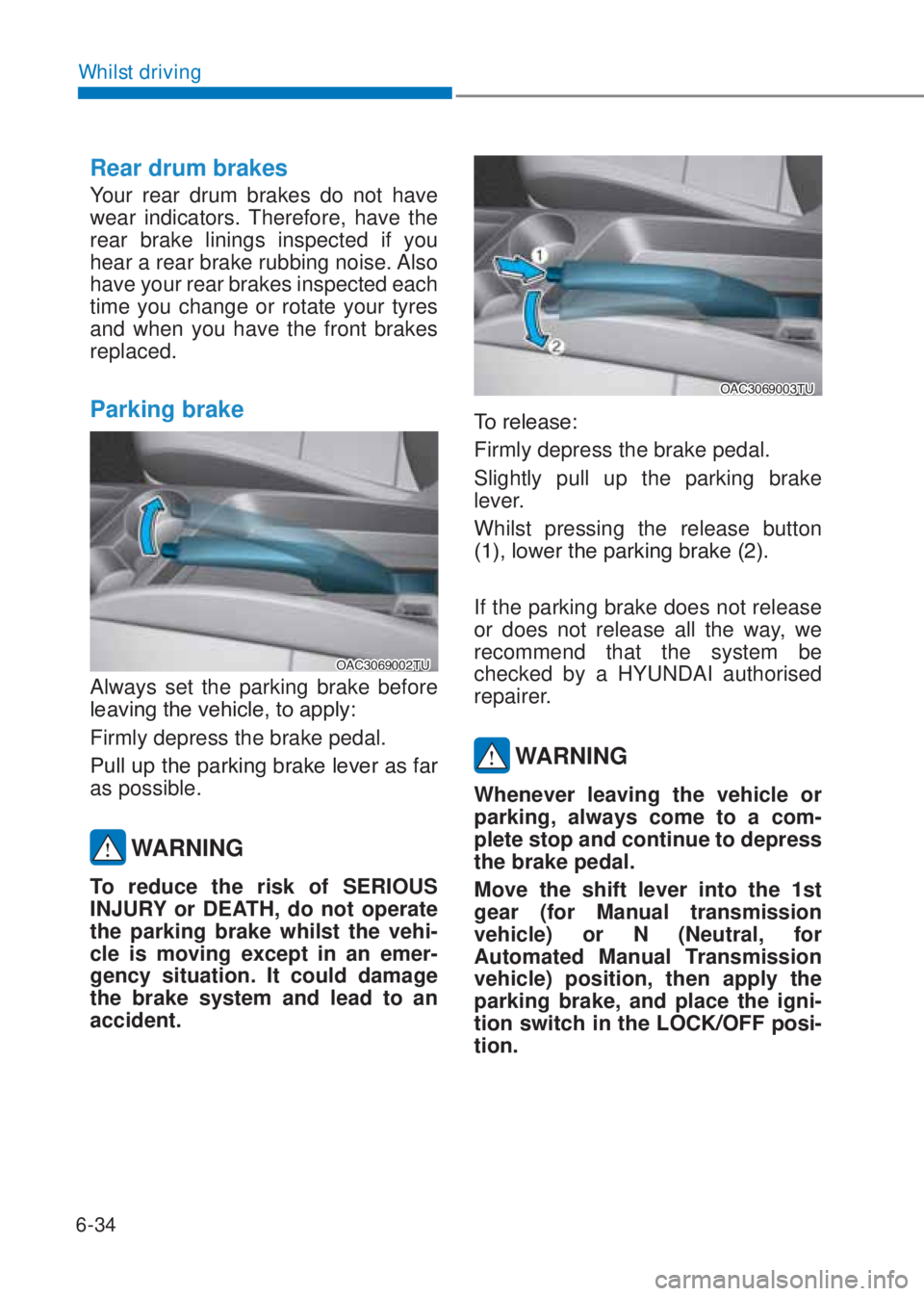

Parking brake
2 $ & 7 8
Always set the parking brake before
O H D Y L Q J W K H Y H K L F O H W R D S S O \
Firmly depress the brake pedal.
3 X O O X S W K H S D U N L Q J E U D N H O H Y H U D V I D U
as possible.
WARNING
To reduce the risk of SERIOUS
INJURY or DEATH, do not operate
the parking brake whilst the vehi-
cle is moving except in an emer-
gency situation. It could damage
the brake system and lead to an
accident.
2 $ & 7 8
7 R U H O H D V H
Firmly depress the brake pedal.
Slightly pull up the parking brake
lever.
Whilst pressing the release button
O R Z H U W K H S D U N L Q J E U D N H
If the parking brake does not release
or does not release all the way, we
recommend that the system be
checked by a HYUNDAI authorised
repairer.
WARNING
Whenever leaving the vehicle or
parking, always come to a com-
plete stop and continue to depress
the brake pedal.
Move the shift lever into the 1st
gear (for Manual transmission
vehicle) or N (Neutral, for
Automated Manual Transmission
vehicle) position, then apply the
parking brake, and place the igni-
W L R Q V Z L W F K L Q W K H / 2 & . 2 ) ) S R V L-
tion.
Page 292 of 486
6-36
Whilst driving
Using ABS
To obtain the maximum benefit from
\ R X U $ % 6 L Q D Q H P H U J H Q F \ V L W X D W L R Q
do not attempt to modulate your
brake pressure and do not try to
pump your brakes. Depress your
brake pedal as hard as possible.
When you apply your brakes under
conditions which may lock the wheels,
you may hear sounds from the
brakes, or feel a corresponding sen-
sation in the brake pedal. This is nor-
P D O D Q G L W P H D Q V \ R X U $ % 6 L V D F W L Y H
$ % 6 G R H V Q R W U H G X F H W K H W L P H R U G L V-
tance it takes to stop the vehicle.
Always maintain a safe distance from
the vehicle in front of you.
$ % 6 Z L O O Q R W S U H Y H Q W D V N L G W K D W U H V X O W V
from sudden changes in direction,
such as trying to take a corner too
fast or making a sudden lane change.
Always drive at a safe speed for the
road and weather conditions.
$ % 6 F D Q Q R W S U H Y H Q W D O R V V R I V W D E L O L-
ty. Always steer moderately when
braking hard. Severe or sharp steer-
ing wheel movement can still cause
your vehicle to veer into oncoming
traffic or off the road.
On loose or uneven road surfaces,
operation of the anti-lock brake sys-
tem may result in a longer stopping
distance than for vehicles equipped
with a conventional brake system.
7 K H $ % 6 Z D U Q L Q J O L J K W
) will stay
on for several seconds after the igni-
tion switch is in the ON position.
' X U L Q J W K D W W L P H W K H $ % 6 Z L O O J R
through self-diagnosis and the light
will go off if everything is normal. If
the light stays on, you may have a
S U R E O H P Z L W K \ R X U $ % 6 : H U H F R P-
mend that you contact a HYUNDAI
authorised repairer as soon as pos-
sible.
WARNING
If the ABS warning light () is on
and stays on, you may have a
problem with the ABS. Your power
brakes will work normally. To
reduce the risk of serious injury or
death, we recommend that you
contact a HYUNDAI authorised
repairer as soon as possible.
NOTICE
When you drive on a road having
poor traction, such as an icy road,
and apply your brakes continuous-
ly, the ABS will be active continu-
ously and the ABS warning light
(
) may illuminate. Pull your
vehicle over to a safe place and
turn the engine off.
Restart the engine. If the ABS
warning light is off, then your ABS
system is normal.
Otherwise, you may have a prob-
lem with your ABS system. We rec-
ommend that you contact a
HYUNDAI authorised repairer as
soon as possible.
i Information
When you jump start your vehicle
because of a drained battery, the ABS
warning light (
) may turn on at the
same time. 7his happens because of the
low battery voltage. It does not mean
your ABS is malfunctioning. +ave the
battery recharged before driving the
vehicle.
Page 293 of 486
6-37
06
Electronic Stability Control
(ESC)
2 $ & 5
2 $ & 5
„ 7 \ S H %
The Electronic Stability Control (ESC)
system helps to stabilize the vehicle
during cornering manoeuvres.
ESC checks where you are steering
and where the vehicle is actually
going.
ESC applies braking pressure to any
one of the vehicle’s brakes and inter-
venes in the engine management
system to assist the driver with keep-
ing the vehicle on the intended path.
It is not a substitute for safe driving
S U D F W L F H V $ O Z D \ V D G M X V W \ R X U V S H H G
and driving to the road conditions.
WARNING
Never drive too fast for the road
conditions or too quickly when
cornering. The ESC system will
not prevent accidents.
Excessive speed in turns, abrupt
manoeuvres, and hydroplaning on
wet surfaces can result in severe
accidents.
Page 299 of 486
6-43
06

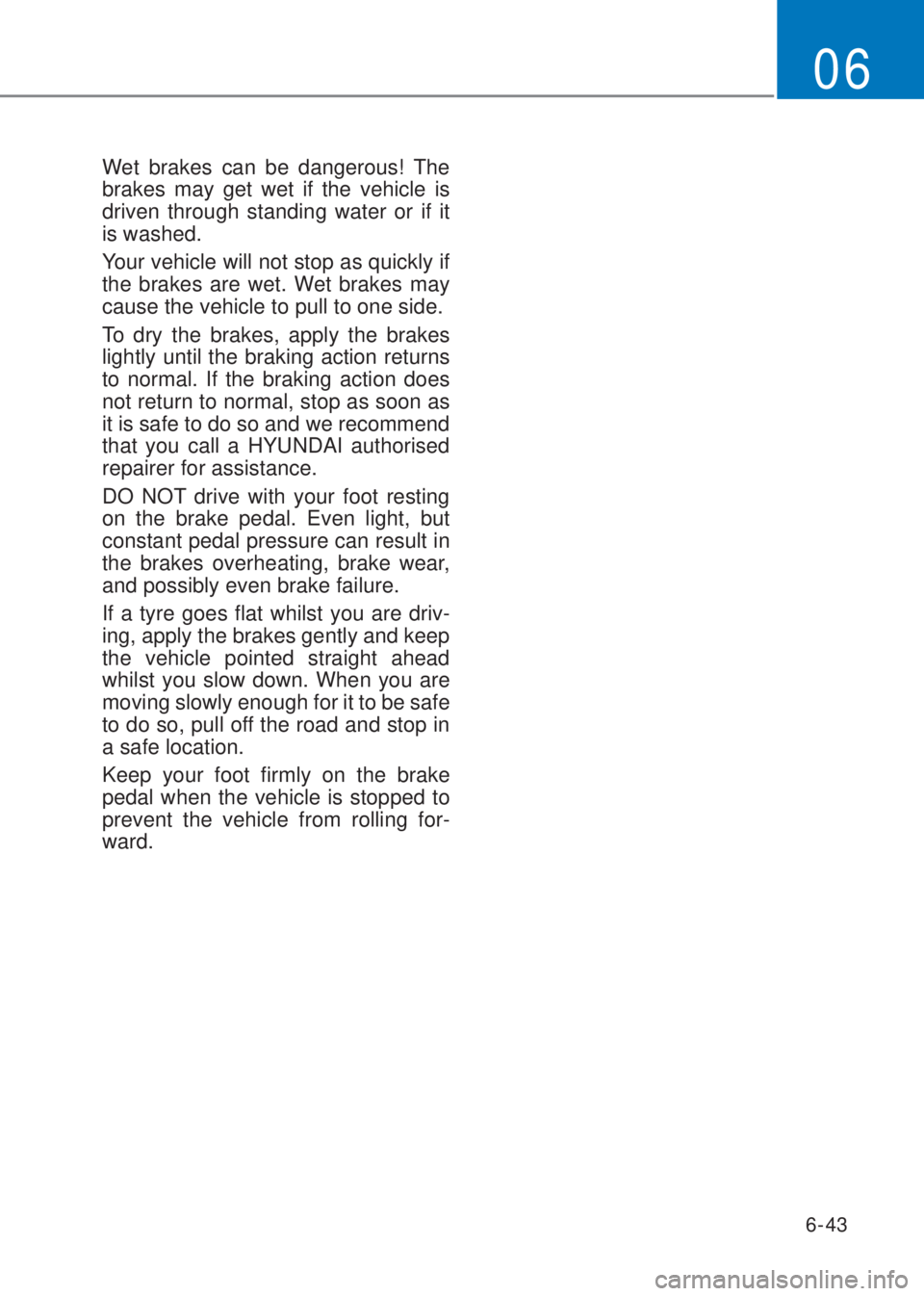

Wet brakes can be dangerous! The
brakes may get wet if the vehicle is
driven through standing water or if it
is washed.
Your vehicle will not stop as quickly if
the brakes are wet. Wet brakes may
cause the vehicle to pull to one side.
To dry the brakes, apply the brakes
lightly until the braking action returns
to normal. If the braking action does
not return to normal, stop as soon as
it is safe to do so and we recommend
that you call a HYUNDAI authorised
repairer for assistance.
DO NOT drive with your foot resting
on the brake pedal. Even light, but
constant pedal pressure can result in
the brakes overheating, brake wear,
and possibly even brake failure.
If a tyre goes flat whilst you are driv-
ing, apply the brakes gently and keep
the vehicle pointed straight ahead
whilst you slow down. When you are
moving slowly enough for it to be safe
to do so, pull off the road and stop in
a safe location.
Keep your foot firmly on the brake
pedal when the vehicle is stopped to
prevent the vehicle from rolling for-
ward.
