2020 HYUNDAI I10 key

Accessing your vehicle .......................................................................................5-4
Remote key .....................................................................................................5-4
Remote key precautions .................................................................................5-6
Smart key ......................................................................................................... 5-7
Smart key precautions ................................................................................... 5-11
Immobiliser system ........................................................................................5-12
Door locks ..........................................................................................................5-13
Operating door locks from outside the vehicle ...........................................5-13
Operating door locks from inside the vehicle ..............................................5-15
Deadlocks ...................................................................................................... 5-16
Auto door lock/unlock features ..................................................................... 5-17
Child-protector rear door locks ..................................................................... 5-17
How to lock the door in case of emergency ................................................ 5-17
Theft-alarm system .......................................................................................... 5-18
Steering wheel ..................................................................................................5-20
Electric power steering (EPS) .......................................................................5-20
Tilt steering / Telescope steering ..................................................................5-21
Heated steering wheel .................................................................................. 5-22
Horn ................................................................................................................ 5-22
Mirrors ............................................................................................................... 5-23
Inside rearview mirror ................................................................................... 5-23
Outside rearview mirror ................................................................................ 5-24
Windows ............................................................................................................ 5-26
Power windows ............................................................................................. 5-26
Exterior features ...............................................................................................5-30
Bonnet ............................................................................................................5-30
Tailgate ............................................................................................................5-31
Fuel filler door ................................................................................................ 5-33
Lighting ..............................................................................................................5-36
Exterior lights .................................................................................................5-36
Interior lights ................................................................................................. 5-44
Wipers and washers ........................................................................................ 5-46
Windscreen wipers ....................................................................................... 5-46
Windscreen washers .................................................................................... 5-47
Rear window wiper and washer switch ....................................................... 5-47
5. Convenient features
5

5-4
Convenient features
ACCESSING YOUR VEHICLE
Remote key (if equipped)
OIB034040
Your HYUNDAI uses a remote key,
which you can use to lock or unlock a
door (and tailgate) and even start the
engine.
(1) Door Lock
(2) Door Unlock
(3) Tailgate Unlock
Locking
To lock :
1. Close all doors, engine bonnet and
tailgate.
2. Press the Door Lock button (1) on
the remote key.
3. The doors will lock. The hazard
warning lights will blink once.
4. Make sure the door are locked by
pulling on the door handle.
WARNING
Do not leave the keys in your vehi-
cle with unsupervised children.
Unattended children could place
the key in the ignition switch and
may operate power windows or
other controls, or even make the
vehicle move, which could result
in serious injury or death.
Unlocking
To unlock:
1. Press the Door Unlock button (2)
on the remote key.
2. The doors will unlock. The hazard
warning lights will blink two times.
i Information
After unlocking the doors, the doors
will lock automatically after 30 sec-
onds unless a door is opened.
Tailgate unlocking
To unlock:
1. Press the Tailgate Unlock button
(3) on the remote key for more
than one second.
2. The hazard warning lights will blink
two times. Once the tailgate is
opened and then closed, the tail-
gate will lock automatically.
i Information
‡ After unlocking the tailgate, the tail-
gate will lock automatically.
‡ 7he word “+2L'” is written on the
button to inform you that you must
press and hold the button for more
than one second.

5-5
05
Start-up
For detailed information refer to “Key
Ignition Switch” in chapter 6.
NOTICE
To prevent damaging the remote
key:

5-6
Convenient features

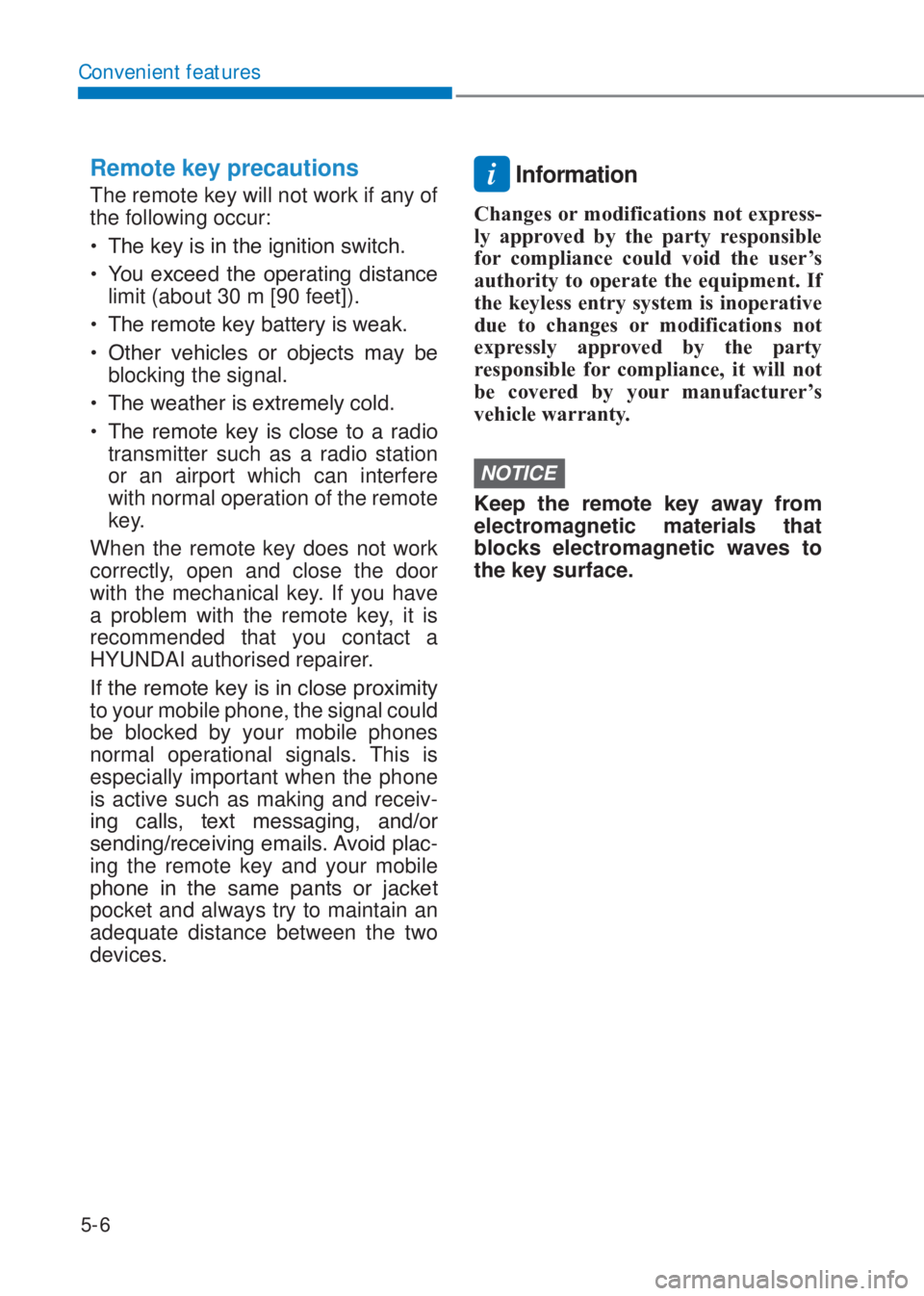

Remote key precautions
The remote key will not work if any of
the following occur:

5-7
05
Battery replacement
If the remote key is not working prop-
erly, try replacing the battery with a
new one.
OIB044180
Battery Type: CR2032
To replace the battery:
1. Insert a slim tool into the slot and
gently pry open the cover.
2. Remove the old battery and insert
the new battery. Make sure the
battery position is correct.
3. Reinstall the rear cover of the
remote key.
If you suspect your remote key might
have sustained some damage, or you
feel your remote key is not working
correctly, it is recommended that you
contact a HYUNDAI authorised
repairer.
i Information
An inappropriately dis-
posed battery can be harm-
ful to the environment and
human health. 'ispose the
battery according to your
local law(s) and regulation.
Smart key (if equipped)
OIB044179
Your HYUNDAI uses a Smart Key,
which you can use to lock or unlock a
door (and tailgate) and even start the
engine.
(1) Door Lock
(2) Door Unlock
(3) Tailgate Unlock

5-8
Convenient features
Locking
OAC3059004R
To lock :
1. Close all doors, engine bonnet and
tailgate.
2. Either press the door handle but-
ton or press the Door Lock button
(1) on the smart key.
3. The hazard warning lights will blink
once.
4. Make sure the door are locked by
pulling on the door handle.
i Information
7he door handle button will only oper-
ate when the smart key is within 0.7 ~
1 m (28 ~ 40 in.) from the outside door
handle. Even though you press the outside
door handle button, the doors will not
lock and the chime will sound for
three seconds if any of the following
occur:

5-9
05

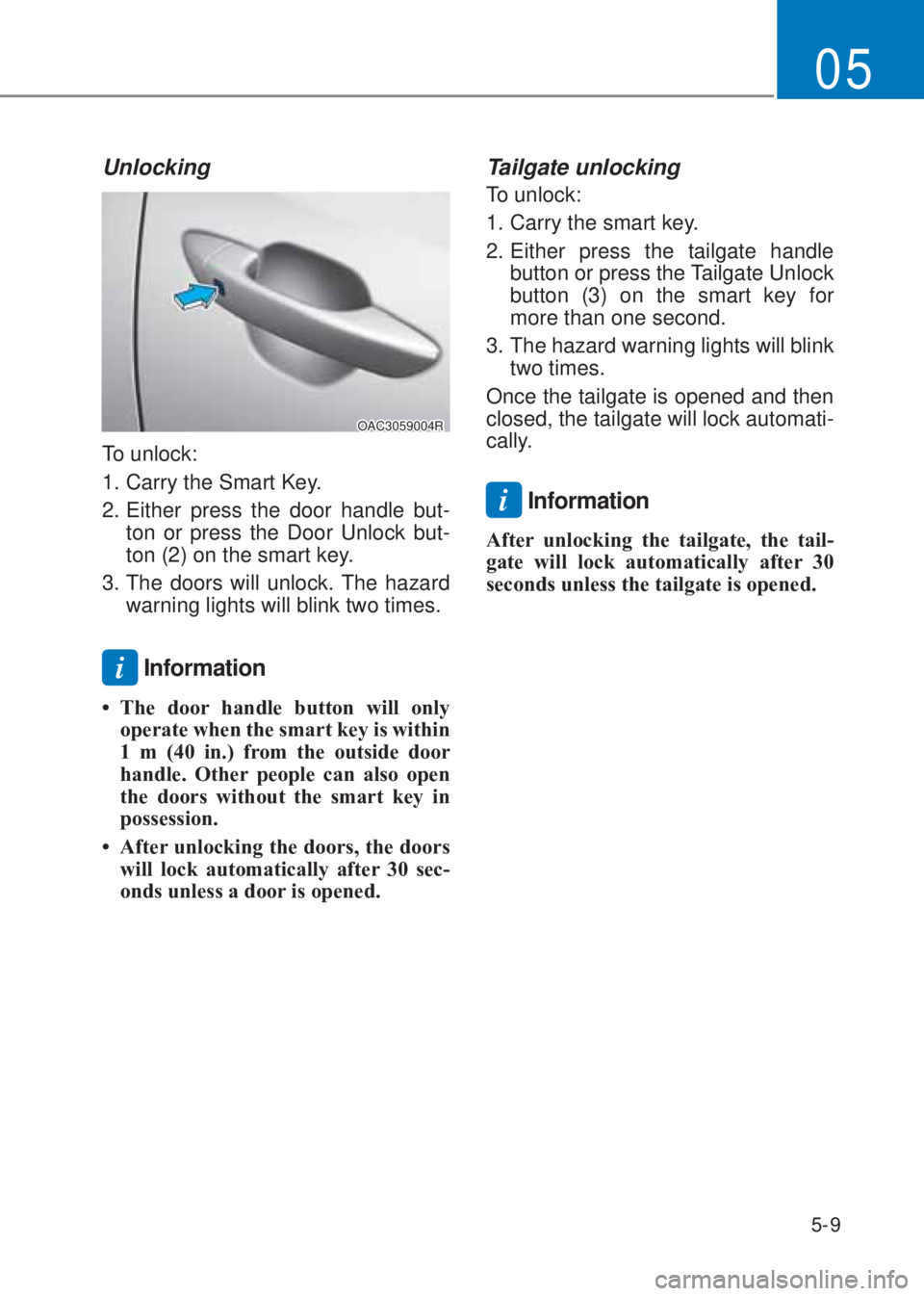

Unlocking
OAC3059004R
To unlock:
1. Carry the Smart Key.
2. Either press the door handle but-
ton or press the Door Unlock but-
ton (2) on the smart key.
3. The doors will unlock. The hazard
warning lights will blink two times.
i Information
‡ 7he door handle button will only
operate when the smart key is within
1 m (40 in.) from the outside door
handle. 2ther people can also open
the doors without the smart key in
possession.
‡ After unlocking the doors, the doors
will lock automatically after 30 sec-
onds unless a door is opened.
Tailgate unlocking
To unlock:
1. Carry the smart key.
2. Either press the tailgate handle
button or press the Tailgate Unlock
button (3) on the smart key for
more than one second.
3. The hazard warning lights will blink
two times.
Once the tailgate is opened and then
closed, the tailgate will lock automati-
cally.
i Information
After unlocking the tailgate, the tail-
gate will lock automatically after 30
seconds unless the tailgate is opened.

5-10
Convenient features
Start-up
You can start the engine without
inserting the key. For detailed infor-
PDWLRQUHIHUWRWKH(QJLQH6WDUW6WRS
button in chapter 6.
NOTICE
To prevent damaging the smart
key:
