2020 HONDA ODYSSEY navigation system

4
Quick Reference Guide
Quick Reference Guide
Visual Index
❙ (Vehicle Stability AssistTM (VSA®) System OFF) Button (P597)
❙Road Departure Mitigation (RDM) Button* (P585)
❙Power Sliding Door Switch* (P175, 176)
❙Climate Control System (P251)
❙Driving Position Memory System Buttons* (P206)
❙Accessory Power Socket (P236)
❙Power Tailgate Button* (P165)
❙Parking Sensor System Switch* (P627)
❙Collision Mitigation Braking SystemTM (CMBSTM) OFF Button* (P618)
❙Heated Windshield Button* (P204)
❙Electric Parking Brake Switch (P607)
❙Automatic Brake Hold Button (P611)
❙Shift Button
Automatic Transmission
(P550)
❙ECON Button (P564)
❙SNOW Button (P565)
❙Auto Idle Stop OFF Button (P559)
❙Hazard Warning Button
❙AC Power Outlet* (P238)
❙System Indicators (P84)
❙Gauges (P119)
❙Driver Information Interface (P120)
❙Audio System (P264)
❙Navigation System*
() See Navigation System Manual
❙Rear Defogger (P203)
❙Heated Mirror Button* (P203)
❙Seat Heater Switches* (P245)
❙Seat Heater and Seat Ventilation
Switches* (P246)
❙Center Pocket* (P233)
❙Blu-ray/DVD Rear Entertainment System* (P400)
20 US ODYSSEY-31THR6210.book 4 ページ ２０２０年２月２８日　金曜日　午前７時２６分

5
Quick Reference Guide
❙Navigation System Voice Control Buttons*
() See Navigation System Manual
❙Audio Remote Control Buttons (P268)
❙Steering Wheel Adjustments (P208)
❙Brightness Control (P205)
❙ENTER Button (P122)
❙/ Button (P122)34
❙Headlights/Turn Signals (P191)
❙LaneWatchTM * (P605)
❙Fog Lights* (P195)
❙Bluetooth ® HandsFreeLink ® System
Buttons
(P476, 501)
❙Paddle Shifter (Shift down) (P557)
❙Heated Steering Wheel Button* (P244)
❙Paddle Shifter (Shift up) (P557)
❙Adaptive Cruise Control (ACC) Buttons* (P572)
❙Interval Button* (P578)
❙Cruise Control Buttons* (P566)
❙ENGINE START/STOP Button (P188)
❙MAIN Button* (P572, 590)
❙Wipers/Washers (P200)
❙Lane Keeping Assist System (LKAS) Button*
(P590)
❙CRUISE Button* (P566)
❙ (home) Button (P122, 269)
❙Horn (Press an area around .)
* Not available on all models
20 US ODYSSEY-31THR6210.book 5 ページ ２０２０年２月２８日　金曜日　午前７時２６分

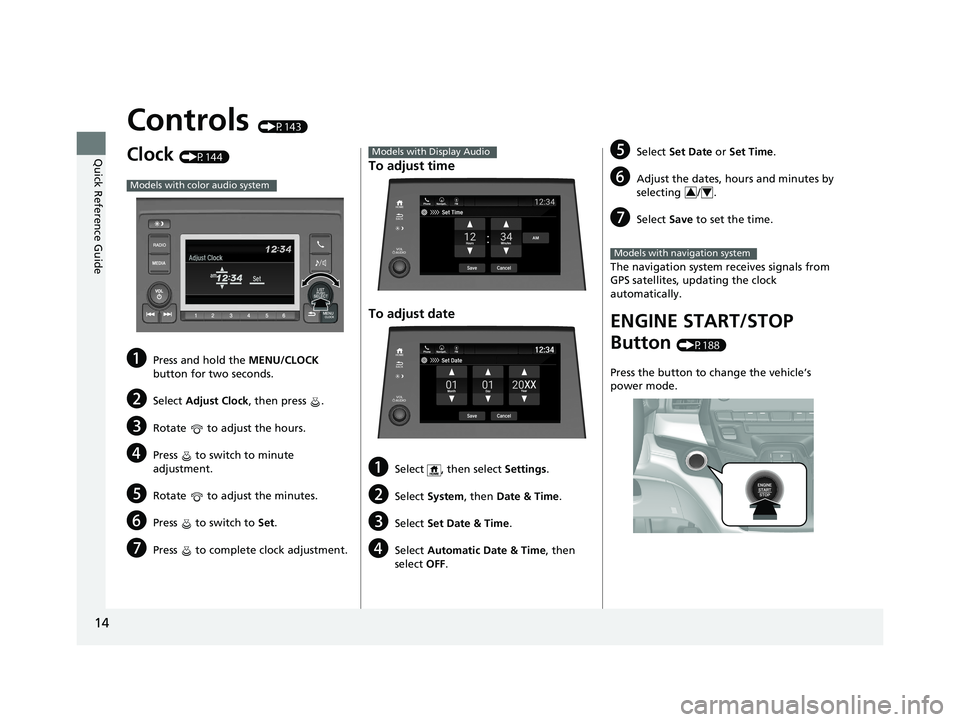

14
Quick Reference Guide
Controls (P143)
Clock (P144)
aPress and hold the MENU/CLOCK
button for two seconds.
bSelect Adjust Clock, then press .
cRotate to adjust the hours.
dPress to switch to minute
adjustment.
eRotate to adjust the minutes.
fPress to switch to Set.
gPress to complete clock adjustment.
Models with color audio system
To adjust time
To adjust date
aSelect , then select Settings .
bSelect System , then Date & Time .
cSelect Set Date & Time .
dSelect Automatic Date & Time , then
select OFF.
Models with Display Audio
Set DateBlu-Ray
Save
Month DayYearXX
Cancel
Phone Navigati.. FM12:34
eSelect
Set Date or Set Time .
fAdjust the dates, hours and minutes by
selecting / .
gSelect Save to set the time.
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
ENGINE START/STOP
Button
(P188)
Press the button to change the vehicle’s
power mode.
34
Models with navigation system
20 US ODYSSEY-31THR6210.book 14 ページ ２０２０年２月２８日　金曜日　午前７時２６分

21
Quick Reference Guide
VOL/ AUDIO (Volume/Power) Knob
(Home) Icon
(Back) Icon
(Day/Night) Icon
Audio/Information Screen
(P 289)
For navigation system operation () See the Navigation System ManualModels with Display Audio
(Eject) Button
Disc Slot
Models with Blu-rayTM or CD player
20 US ODYSSEY-31THR6210.book 21 ページ ２０２０年２月２８日　金曜日　午前７時２６分

uuGauges and Displays uDriver Information Interface
126
Instrument Panel
■Compass
Shows the compass screen.
■Turn-by-Turn Directions
When driving guidance is provided by the
navigation system* or Android Auto, turn-by-
turn directions to your destination appear.
2 Refer to the Navigation System Manual
2 Android Auto P. 367
■Navigation*1Navigation*
You can select whether to have the turn-by-turn
display come on or not during route guidance.
2 Customized Features P. 448
When the compass or turn-by-turn directions are
displayed, you can contro l some navigation system
functions on the driver information interface by
pressing the ENTER button.
2 Refer to the Navigation System Manual
Models with navigation system
Compass
Turn-By-Turn Driving Directions
* Not available on all models
20 US ODYSSEY-31THR6210.book 126 ページ ２０２０年２月２８日　金曜日　午前７時２６分

144
Controls
Clock
Adjusting the Clock
You can adjust the time manually in the audio/information screen, with the power
mode in ON.
1.Press and hold the MENU/CLOCK button.
2. Select Adjust Clock , then press .
3. Rotate to adjust the hours.
4. Press to switch to minute adjustment.
5. Rotate to adjust the minutes.
6. Press to switch to Set.
7. Press to complete clock adjustment.
■Adjusting the Time
1Clock
The clock is automatica lly updated through the
navigation system, so the ti me does not need to be
adjusted.
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
To change the setting between 12h and 24h:
1. Press the MENU/CLOCK button.
2. Rotate to select Settings, then press .
3. Rotate to select Clock Format, then press .
4. Rotate to select 12h or 24h , then press .
Models with navigation system
Models with color audio systemModels with color audio system
20 US ODYSSEY-31THR6210.book 144 ページ ２０２０年２月２８日　金曜日　午前７時２６分

290
uuAudio System Basic Operation uAudio/Information Screen
Features
Audio/Information Screen
Displays the audio status and wallpaper. From this display, you can go to various
setup options.
■Using the audio/information screen
Select to go to the home screen.
Select the following icons on the hom e screen or after selecting All Apps.
■Switching the Display
1Audio/Information Screen
Touchscreen Operation
•Use simple gestures - in cluding touching, swiping,
and scrolling - to operate certain audio functions.
•Some items may be grayed out during driving to
reduce the potential for distraction.
•You can select them when the vehicle is stopped or
use voice commands.
•Wearing gloves may limit or prevent touchscreen
response.
You can change the touchs creen sensitivity setting.
2 Customized Features P. 448
Home Screen
Models without
navigation system
Models with
navigation system
(Home) Icon
All Apps
20 US ODYSSEY-31THR6210.book 290 ページ ２０２０年２月２８日　金曜日　午前７時２６分

292
uuAudio System Basic Operation uAudio/Information Screen
Features
■Navigation*
Displays the navigation screen.
2 Refer to the Navigation System Manual
■HondaLink
Displays the HondaLink ® screen.
2 HondaLink ® P. 353
■Apple CarPlay/Android Auto
Displays the Apple CarPlay or Android Auto .
2Apple CarPlay P. 364
2 Android Auto P. 367
■Messages
Displays the text message screen.
2 Bluetooth ® HandsFreeLink ® P. 501
■CabinTalk*
Displays the CabinTalk screen.
2CabinTalkTM * P. 527
■CabinWatch*
Displays the CabinWatch screen.
2CabinWatchTM * P. 526
■Rear Entertainment*
Displays the rear audio screen.
2Blu-ray/DVD Rear Entertainment System* P. 400
* Not available on all models
20 US ODYSSEY-31THR6210.book 292 ページ ２０２０年２月２８日　金曜日　午前７時２６分
