2020 HONDA ODYSSEY display

35
uuMap and VehicleuDriving Map View (Map Orientation)
System Setup
Driving Map View (Map Orientation)
H (Home)uNavigationuuSettingsuMap and VehicleuDriving
Map View
Select the map orientation.
1.Select an option.
2.Select Save.
The following options are available:
•3D (factory default): Displays the map in 3D with your direction of travel facing
upwards.
•Track Up: Displays the map with your direction of travel facing upwards.
•North Up: Displays the map with north always pointing up.

40
System Setup
Navigation
H (Home)uNavigationuuSettingsuNavigation
Changes the navigation settings.
The following options are available:
•Calculation Mode: Sets route preference.
2Calculation Mode P. 41
•Avoidances: Sets road features to avoid on a route.
2Avoidances P. 42
•Custom Avoidances: Allows you to avoid specific roads or areas.
2Custom Avoidances P. 43
•Satellite Status: Displays the satellite' status.
2Satellite Status P. 47
•GPS Simulator: Stops the system from receiving a GPS signal.
1Navigation
GPS Simulator is set to off as factory default.
You can access the navigation settings from any
screen includes the options menu icon.
Select to open the options menu, and then select
Navigation Settings.

44

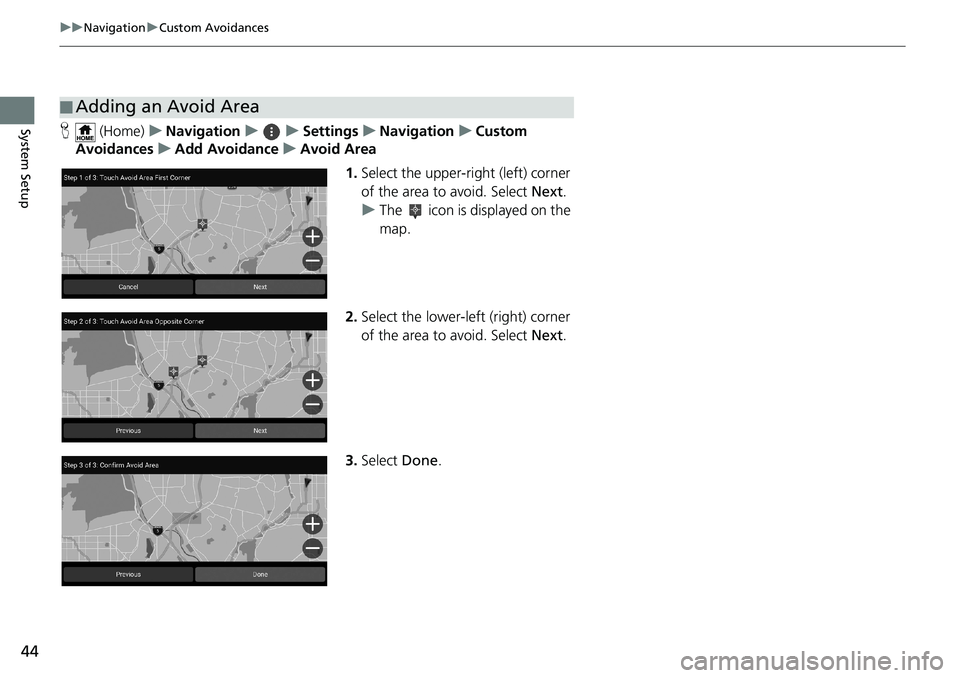

uuNavigationuCustom Avoidances
System SetupH (Home)uNavigationuuSettingsuNavigationuCustom
AvoidancesuAdd AvoidanceuAvoid Area
1.Select the upper-right (left) corner
of the area to avoid. Select Next.
uThe icon is displayed on the
map.
2.Select the lower-left (right) corner
of the area to avoid. Select Next.
3.Select Done.
■Adding an Avoid Area

45
uuNavigationuCustom Avoidances
Continued
System SetupH (Home)uNavigationuuSettingsuNavigationuCustom
AvoidancesuAdd AvoidanceuAvoid Road
1.Select the starting point of the
section of road to avoid. Select
Next.
uThe icon is displayed on the
map.
2.Select the ending point of the road
section. Select Next.
3.Select Done.
■Adding an Avoid Road

48
System Setup
Traffic
H (Home)uNavigationuuSettingsuTraffic
Sets the traffic feature.
Select an option.
The following options are available:
•Traffic: Enables the traffic feature.
2Traffic Information P. 80
•Traffic Alert: Sets whether to receive an alert when traffic may cause a delay.
•Automatic Route Optimization: Sets whether to use optimized alternate
routes.
•Current Provider: Sets the traffic provider to use for traffic data.
•Subscriptions: Displays the lists of the current traffic subscriptions.

50
System Setup
About
H (Home)uNavigationuuSettingsuAbout
Select an option.
The following options are available:
•System Information: Displays the system information.
•EULAs: Displays end-user license agreements.
•Copyright and Acknowledgments: Displays copyright and acknowledgments
information.
•Restore Navigation Settings: Restores navigation settings to the factory
defaults.
2Reset Factory Default Settings P. 51

54
Navigation
Entering a Destination
H (Home)uNavigationu
This section describes how to enter a destination for route guidance.
Select an option.
The following options are available:
•Keyword or Address, State: Sets a destination by entering a keyword, address
or state name.
2Using the Search Bar P. 56
•Searching near: Selects the city to search near.
2Changing the Search Area P. 57
•Go Home: Sets your home address as the destination.
2Going Home P. 8
•Search Tools: Sets a destination by searching for a place.
2Search Tools P. 60
•Categories: Sets a destination by selecting a category.
2Categories P. 67
•Saved: Sets a destination by selecting a place stored in the Saved list.
2Saved P. 68
•Recents: Sets a destination by selecting a previous destination.
2Recents P. 68
•myTrips: Sets a destination by selecting a saved route.
2myTrips P. 69
1Entering a Destination
The Display Audio system can only provide route
guidance from one navigation system at a time.
When setting a destination on one system, any active
route guidance with the other system is canceled,
and the system you are currently using will direct you
to your destination.
If you press the (Home) button on the steering
wheel, select Navigation and then press the ENTER
button, the following items are available. Use the
steering wheel buttons to select the items.
•Go Home
•Saved•Recent
When en route, the following item is available.
•Cancel Route
(Home) Button

uuEntering a Destinationu
56
Navigation
H (Home)uNavigationuuKeyword or Address, State
You can use the search bar to search for locations by entering a keyword, address,
or state name.
1.Enter a search term.
uThe search history is displayed
below the search bar.
uSuggested search terms appear
below the search bar as you
type.
2.Select Done or a suggested search
term.
3.Select your destination from the
list.
4.Select Go! to set the route to your
destination.
2Calculating the Route P. 72
■Using the Search Bar1Using the Search Bar
Using Voice Command
You can say the names of popular, well-known
locations.
From the Voice Portal screen, say “Navigation.”
Say “Find Place,” then say a place name (e.g.,
“Honda”).
Say the line number of screen (e.g., “1”).
Say “Go” to set the route.
2Using Voice Commands P. 5
2Voice Control Operation P. 11
•To search for a type of business, enter a category
name, such as “movie theaters.”
•To search for a business by name, enter all or part
of the name.
•To search for an address near you, enter the street
number and street name.
•To search for an address in another city, enter the
street number, street name, city, and state.
•To search for a city, enter the city and state.
If you want to delete the search history, reset the
navigation settings to default.
2Reset Factory Default Settings P. 51
You can change the order of search results.
Select and then select Sort POI Results.
