2020 HONDA CR-V Owner's Manual (in English)

15
Quick Reference Guide
AUTO should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
●Cleaning the windshield●Driving through a car wash●No rain present
Steering Wheel (P195)
●To adjust, pull the adjustment lever
towards you, adjust to the desired
position, then lock the lever back in place.
Models with automatic intermittent wipersUnlocking the Front
Doors from the Inside
(P146)
●Pull either front door inner handle to
unlock and open it at the same time.
Tailgate (P149)
Use a forward and back kicking motion
under the center of the rear bumper to
open or close the power tailgate while
carrying the smart entry remote.
Models with Hands Free Access
1 sec.
* Not available on all models
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 15 ページ ２０１９年１０月３日　木曜日　午後４時５５分

16
Quick Reference Guide
●With all the doors unlocked, press the
tailgate outer handle, and lift open the
tailgate.
●Press the tailgate outer handle to unlock
and open the tailgate when you have the
smart entry remote on you.
●Press the power tailgate button on the
driver side control panel, or press the
remote transmitter to unlock and open
the tailgate when you have the smart
entry remote on you.
Outer
Handle
Models without smart entry system
Models with smart entry system
Models with power tailgate
Power Door Mirrors
(P197)
●With the ignition switch in ON (w*1, move
the selector switch to L or R .
●Push the appropriate edge of the
adjustment switch to adjust the mirror.
*1: Models with the smart entry system have an
ENGINE START/STOP button instead of an ignition
switch.
Selector Switch
Adjustment Switch
Power Windows (P163)
●With the ignition switch in ON ( w*1, open
and close the power windows.
●If the power window lock button is in the
off position, each passenger's window
can be opened and closed with its own
switch.
●If the power window lock button is in the
on position (indicator on), each
passenger's window switch is disabled.
*1: Models with the smart entry system have an
ENGINE START/STOP button instead of an ignition
switch.
Power Window Lock Button
Window Switch Indicator
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 16 ページ ２０１９年１０月３日　木曜日　午後４時５５分

17
Quick Reference Guide
Climate Control System (P228)
●Press the AUTO button to activate th e climate control system.●Press the button to tu rn the system on or off.●Press the button to defrost the windshield.
Models without SYNC button
Fan Control Dial
(Fresh Air) ButtonTemperature Control Dial
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
(Recirculation) Button (MODE Control) Button
(ON/OFF) Button
AUTO Button
A/C (Air Conditioning) Button
(Windshield Defroster) Button
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 17 ページ ２０１９年１０月３日　木曜日　午後４時５５分

18
Quick Reference Guide
Models with SYNC button
Passenger's side Temperature
Control Dial
(Windshield Defroster) ButtonDriver's side Temperature
Control Dial (Recirculation) Button
(CLIMATE) Button
(ON/OFF) Button
AUTO Button
Audio/Information Screen
SYNC (Synchronization) Button
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
(Fresh Air) Button
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 18 ページ ２０１９年１０月３日　木曜日　午後４時５５分

Quick Reference Guide
19
Features (P233)
Audio Remote Controls
(P237)
●(+ / (- Bar
Press to adjust the volume up/down.
● / Button
Press or to cycl e through the audio
mode as follows:
FM1/FM2/AM/USB or iPod/Pandora ®/
Bluetooth ® Audio
FM/AM/SiriusXM ®
*/USB/iPod/
Bluetooth ®Audio/Pandora ®*/Apps*/
Audio Apps*
ENTER Button
/ / / Button34(+ / (- Bar
34
34
Models with color audio system
Models with Display Audio
●ENTER Button
•When listening to the radio and
SiriusXM ®*
aPress ENTER to switch the display to a
preset list you stored in the preset
buttons.
bPress or to select a preset, then
press ENTER .
•When listening to a USB flash drive
aPress ENTER to display the folder list.
bPress or to select a folder.
cPress ENTER to display a list of tracks in
that folder.
dPress or to select a track, then
press ENTER .
Models with Display Audio
34
34
34
•When listening to an iPod
aPress ENTER to display the iPod music
list.
bPress or to select a category.
cPress ENTER to display a list of items in
the category.
dPress or to select an item, then
press ENTER .
uPress ENTER and press or
repeatedly until a desired item you
want to listen is displayed.
• When listening to Pandora ®
*
aPress ENTER to display the station list.
bPress or to select an item, then
press ENTER .
•When listening to Bluetooth ®Audio
aPress ENTER to display the track list.
bPress or to select a track, then
press ENTER .
34
34
34
34
34
* Not available on all models
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 19 ページ ２０１９年１０月３日　木曜日　午後４時５５分

20
Quick Reference Guide
● / Button
Radio: Press to change the preset station. Press and hold to select the next or
previous strong station.
USB device: Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
Pandora®
*:
Press to skip to the next track.
Press and hold to select the next or
previous station.
(Display/Information) Button: Press to change contents. 2Driver Information
Interface (P113)
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 20 ページ ２０１９年１０月３日　木曜日　午後４時５５分

21
Quick Reference Guide

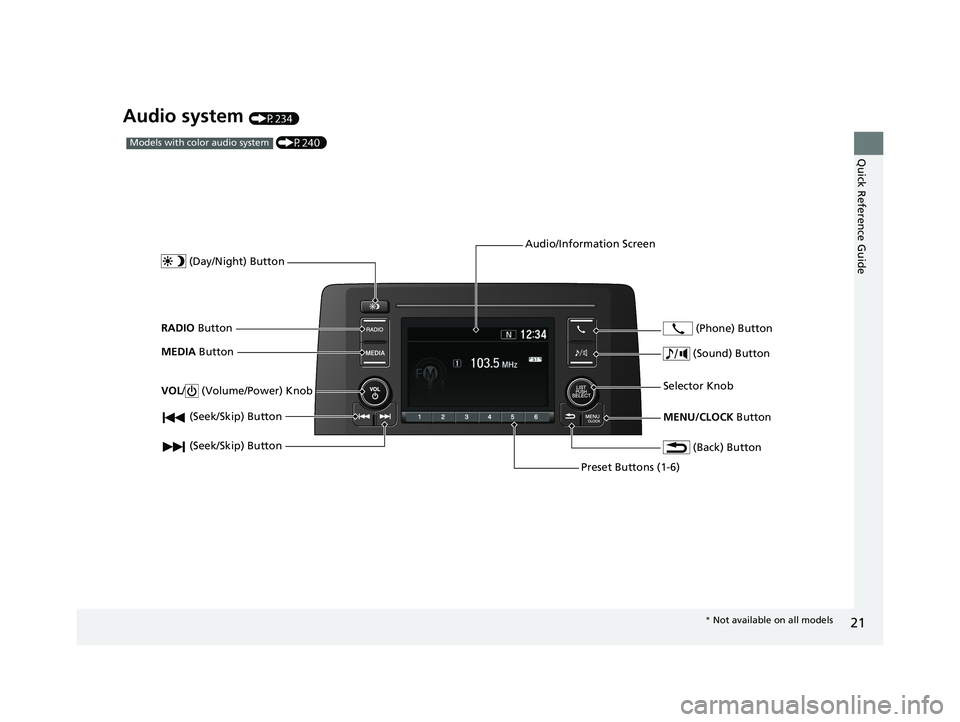

Audio system (P234)
(P240)Models with color audio system
(Seek/Skip) Button
RADIO Button
(Day/Night) Button
MEDIA Button
Preset Buttons (1-6)
(Seek/Skip) Button
VOL
/ (Volume/Power) Knob
Audio/Information Screen
(Back) Button
(Sound) Button
MENU/CLOCK Button
Selector Knob (Phone) Button
*
Not available on all models
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 21 ページ ２０１９年１０月３日　木曜日　午後４時５５分

22
Quick Reference Guide
(P261)
For navigation system operation () See the Navigation System Manual
Models with Display Audio
(Audio) Icon
(Back) Icon
Audio/Information Screen Driver Information Interface
(Instrument Panel) Icon (Day/Night) Icon
*
VOL / AUDIO (Volume/Power Audio)
Knob
(Home) Icon
(Map) Icon*
(Phone) Icon
Compass Icon*
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 22 ページ ２０１９年１０月３日　木曜日　午後４時５５分
