2020 HONDA CLARITY PLUG-IN charging

Contents
Child Safety P. 69Safety Labels P. 83
Opening and Closing the Trunk P. 150 Security System P. 153 Opening and Closing the Windows P. 156
Adjusting the Mirrors P. 173 Adjusting the Seats P. 175
Climate Control System P. 193
Audio Error Messages P. 284 General Information on the Audio System P. 288
Bluetooth ® HandsFreeLink ® P. 337
When Driving P. 378 Braking P. 435Parking Your Vehicle P. 451
Charging P. 458 Fuel Economy and CO
2 Emissions P. 473
Maintenance Under the Hood P. 484 Replacing Light Bulbs P. 498
Checking and Maintaining Tires P. 503 12-Volt Battery P. 512 Remote Transmitter Care P. 514
Accessories and Modifications P. 523
Power System Won’t Start P. 539 Jump Starting P. 543 Overheating P. 546
Fuses P. 557 Emergency Towing P. 565
When You Cannot Open the Charge Lid P. 567 When You Cannot Open the Trunk P. 568
Devices that Emit Radio Waves P. 573 Reporting Safety Defects P. 574
Authorized Manuals P. 579 Customer Service Information P. 580
Quick Reference GuideP. 6
Safe DrivingP. 41
Instrument PanelP. 85
ControlsP. 135
FeaturesP. 203
DrivingP. 371
MaintenanceP. 475
Handling the UnexpectedP. 525
InformationP. 569
IndexP. 582
20 CLARITY PHEV-31TRW6200.book 5 ページ ２０１９年９月２４日　火曜日　午後１２時９分

11
Quick Reference Guide

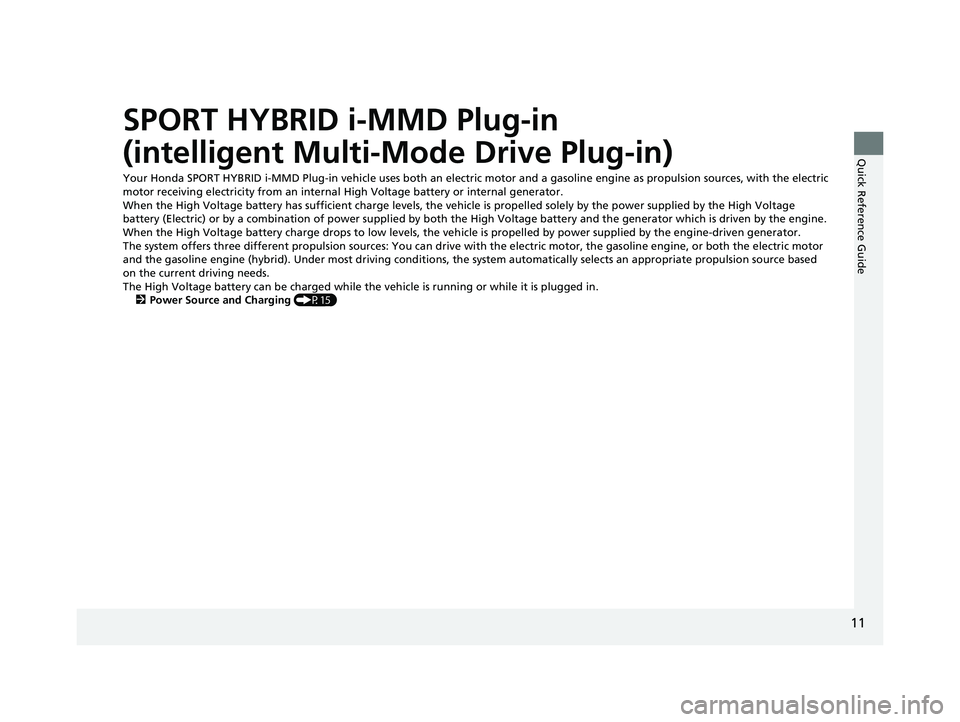

SPORT HYBRID i-MMD Plug-in
(intelligent Multi-Mode Drive Plug-in)
Your Honda SPORT HYBRID i-MMD Plug-in vehicle uses both an electric motor and a gasoline engine as propulsion sources, with the electric
motor receiving electricity from an internal High Voltage battery or internal generator.
When the High Voltage battery has sufficient charge levels, the vehicle is propelled solely by the power supplied by the High V oltage
battery (Electric) or by a combination of power supplied by both the High Voltage battery and the generator which is driven by the engine.
When the High Voltage battery charge drops to low levels, the ve hicle is propelled by power supplied by the engine-driven generator.
The system offers three different propulsion sources: You can dr ive with the electric motor, the gasoline engine, or both the e lectric motor
and the gasoline engine (hybrid). Under most driving conditions , the system automatically selects an appropriate propulsion source based
on the current driving needs.
The High Voltage battery can be charged while the vehicle is running or while it is plugged in. 2 Power Source and Charging (P15)
20 CLARITY PHEV-31TRW6200.book 11 ページ ２０１９年９月２４日　火曜日　午後１２時９分

14
Quick Reference Guide
Power SourceElectricHybridEngine
EV indicator
POWER /CHARGE
GaugeThe readings on the blue barThe readings on the white bar
Driving state
Light to mid acceleration or cruise●Only the electric motor provides
propulsion to the wheels.
Mild to heavy acceleration●The electric motor provides
propulsion to the wheels.
●The engine drives the generator,
supplying electricity to the electric
motor for added power or to the
High Voltage battery for charging.
The vehicle is cruising at a higher
speed.
●Propulsion is provided by the
engine, coupled through the gears
to the transmission. This is
indicated by the gear icon in
the display.
Energy flow
Comes
onGoes
off
20 CLARITY PHEV-31TRW6200.book 14 ページ ２０１９年９月２４日　火曜日　午後１２時９分

15
Quick Reference Guide

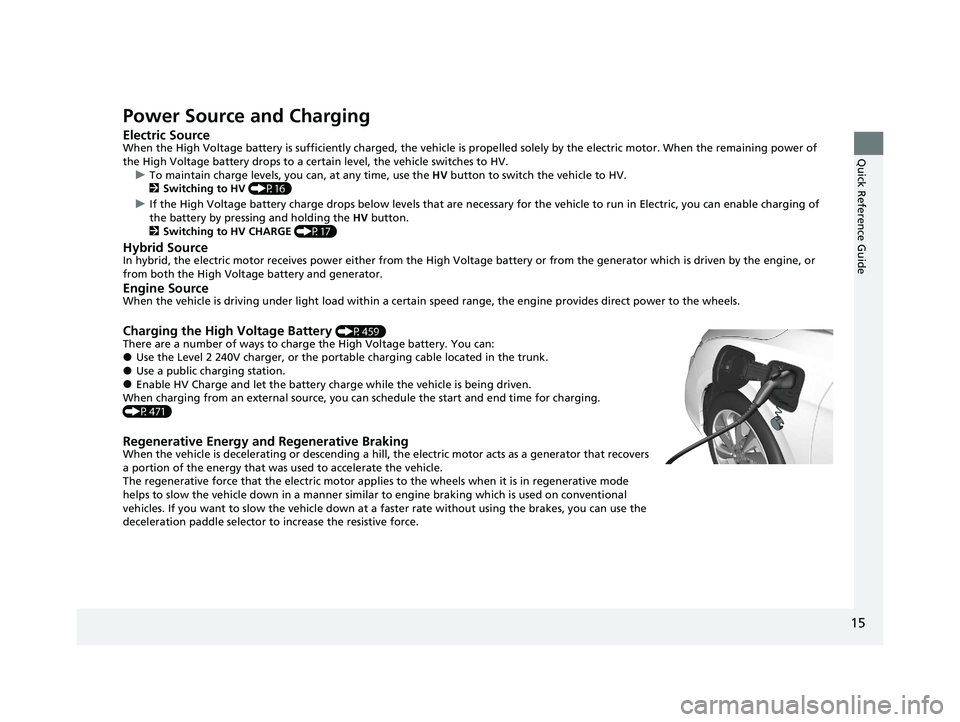

Power Source and Charging
Electric SourceWhen the High Voltage battery is sufficiently charged, the vehicle is propelled solely by the electric motor. When the remaining power of
the High Voltage battery drops to a certain level, the vehicle switches to HV. u To maintain charge levels, you can, at any time, use the HV button to switch the vehicle to HV.
2 Switching to HV (P16)
u If the High Voltage battery charge drops below levels that are necessary for the vehicle to run in Electric, you can enable charging of
the battery by pressing and holding the HV button.
2 Switching to HV CHARGE (P17)
Hybrid SourceIn hybrid, the electric motor receives powe r either from the High Voltage battery or from the generator which is driven by the engine, or
from both the High Volt age battery and generator.
Engine SourceWhen the vehicle is driving under light load within a certain speed range, the engine provides direct power to the wheels.
Charging the High Voltage Battery (P459)
There are a number of ways to charge the High Voltage battery. You can:
●Use the Level 2 240V charger, or the portable charging cable located in the trunk.●Use a public charging station.●Enable HV Charge and let the battery charge while the vehicle is being driven.
When charging from an external source, you ca n schedule the start and end time for charging.
(P471)
Regenerative Energy and Regenerative BrakingWhen the vehicle is decelerating or descending a hill, the electric motor acts as a generator that recovers
a portion of the energy that was used to accelerate the vehicle.
The regenerative force that the electric motor applie s to the wheels when it is in regenerative mode
helps to slow the vehicle down in a manner similar to engine braking which is used on conventional
vehicles. If you want to slow the vehicle down at a faster rate without using the brakes, you can use the
deceleration paddle selector to increase the resistive force.
20 CLARITY PHEV-31TRW6200.book 15 ページ ２０１９年９月２４日　火曜日　午後１２時９分

17
Quick Reference Guide

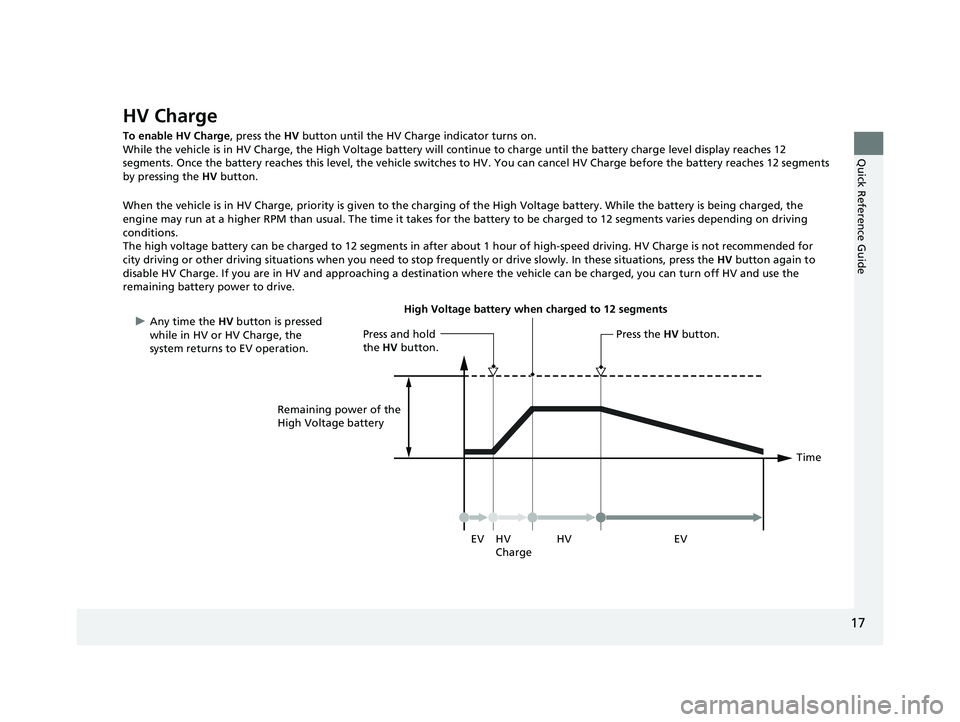

HV Charge
To enable HV Charge, press the HV button until the HV Charge indicator turns on.
While the vehicle is in HV Charge, the High Voltage battery will continue to charge until the battery charge level display reac hes 12
segments. Once the battery reaches this leve l, the vehicle switches to HV. You can cancel HV Charge before the battery reaches 12 segments
by pressing the HV button.
When the vehicle is in HV Charge, priority is given to the charging of the High Voltage battery. While the battery is being charged, the
engine may run at a higher RPM than usual. The time it takes for the battery to be charged to 12 segments varies depending on d riving
conditions.
The high voltage battery can be charged to 12 segments in after about 1 hour of high-speed driving. HV Charge is not recommende d for
city driving or other driving situations when you need to stop frequently or driv e slowly. In these situations, press the HV button again to
disable HV Charge. If you are in HV and approaching a destination where the vehicle can be charged, you can turn off HV and use the
remaining battery power to drive.
Time
High Voltage battery when charged to 12 segments
HV
Charge
Remaining power of the
High Voltage battery
Press and hold
the HV
button.Press the HV button.
EV EV
HV
u
Any time the HV button is pressed
while in HV or HV Charge, the
system returns to EV operation.
20 CLARITY PHEV-31TRW6200.book 17 ページ ２０１９年９月２４日　火曜日　午後１２時９分

23
Quick Reference Guide

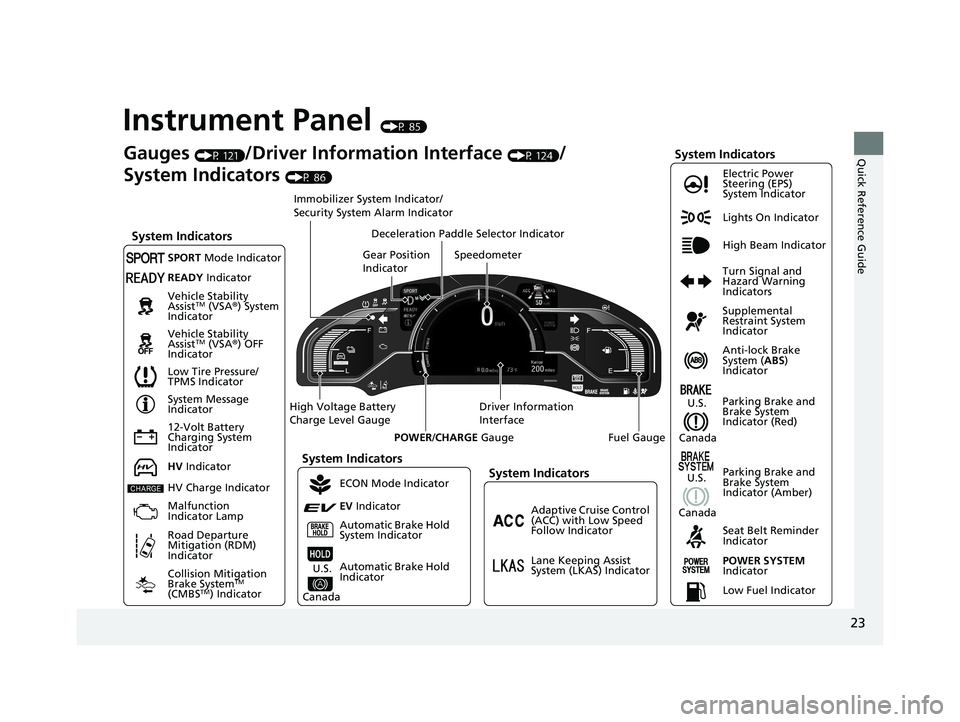

Instrument Panel (P 85)
Lights On Indicator
System Indicators
12-Volt Battery
Charging System
IndicatorAnti-lock Brake
System (
ABS)
Indicator
Vehicle Stability
Assist
TM (VSA
®) System
Indicator
Vehicle Stability
Assist
TM (VSA ®) OFF
Indicator Electric Power
Steering (EPS)
System Indicator
System Indicators
High Beam Indicator
Seat Belt Reminder
Indicator
System Indicators
System Message
Indicator
Parking Brake and
Brake System
Indicator (Red) Supplemental
Restraint System
Indicator
Gauges (P 121)/Driver Information Interface (P 124)/
System Indicators
(P 86)
Low Tire Pressure/
TPMS Indicator Turn Signal and
Hazard Warning
Indicators
Speedometer
Automatic Brake Hold
System Indicator Parking Brake and
Brake System
Indicator (Amber)SPORT
Mode Indicator
Collision Mitigation
Brake System
TM
(CMBSTM) Indicator
Road Departure
Mitigation (RDM)
Indicator
Immobilizer System Indicator/
Security System Alarm Indicator
Automatic Brake Hold
Indicator
READY Indicator
POWER SYSTEM
Indicator
Gear Position
Indicator
Fuel Gauge
Driver Information
Interface
High Voltage Battery
Charge Level Gauge
POWER/CHARGE Gauge
Low Fuel Indicator
Adaptive Cruise Control
(ACC) with Low Speed
Follow Indicator
Lane Keeping Assist
System (LKAS) Indicator
Deceleration Paddle Selector Indicator
System Indicators
ECON Mode Indicator
EV
Indicator
U.S.
Canada
HV Indicator
HV Charge Indicator
Malfunction
Indicator Lamp U.S.
Canada
U.S.
Canada
20 CLARITY PHEV-31TRW6200.book 23 ページ ２０１９年９月２４日　火曜日　午後１２時９分

44
uuFor Safe Driving uImportant Safety Precautions
Safe Driving
■Handle high-voltage with care
Familiarize yourself with the charging instructions and warnings supplied in this
manual and on the quick reference card. If using a public charger, also observe the
charging station manufacturer’s instructions.
20 CLARITY PHEV-31TRW6200.book 44 ページ ２０１９年９月２４日　火曜日　午後１２時９分

83
Safe Driving
Safety Labels
Label Locations
These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels
carefully.
If a label comes off or becomes hard to read (except for the U. S. dashboard label which may be removed by the owner), contact a n
authorized Honda Clarity Plug-In Hybrid dealer for a replacement.
Dashboard
Air Conditioner System U.S. models
Canadian models
Radiator Cap
U.S. models only
Charging Lid
U.S. models Canadian models
PCU U.S. models Canadian models
High Voltage Battery System
Coolant Reserve Tank Cap
Sun Visor
U.S. models Canadian modelsMotor Coolant
Reserve Tank Cap
Actuator Lid
U.S. models Canadian models
20 CLARITY PHEV-31TRW6200.book 83 ページ ２０１９年９月２４日　火曜日　午後１２時９分
