2020 HONDA CLARITY PLUG-IN ad blue

Contents
Child Safety P. 69Safety Labels P. 83
Opening and Closing the Trunk P. 150 Security System P. 153 Opening and Closing the Windows P. 156
Adjusting the Mirrors P. 173 Adjusting the Seats P. 175
Climate Control System P. 193
Audio Error Messages P. 284 General Information on the Audio System P. 288
Bluetooth ® HandsFreeLink ® P. 337
When Driving P. 378 Braking P. 435Parking Your Vehicle P. 451
Charging P. 458 Fuel Economy and CO
2 Emissions P. 473
Maintenance Under the Hood P. 484 Replacing Light Bulbs P. 498
Checking and Maintaining Tires P. 503 12-Volt Battery P. 512 Remote Transmitter Care P. 514
Accessories and Modifications P. 523
Power System Won’t Start P. 539 Jump Starting P. 543 Overheating P. 546
Fuses P. 557 Emergency Towing P. 565
When You Cannot Open the Charge Lid P. 567 When You Cannot Open the Trunk P. 568
Devices that Emit Radio Waves P. 573 Reporting Safety Defects P. 574
Authorized Manuals P. 579 Customer Service Information P. 580
Quick Reference GuideP. 6
Safe DrivingP. 41
Instrument PanelP. 85
ControlsP. 135
FeaturesP. 203
DrivingP. 371
MaintenanceP. 475
Handling the UnexpectedP. 525
InformationP. 569
IndexP. 582
20 CLARITY PHEV-31TRW6200.book 5 ページ ２０１９年９月２４日　火曜日　午後１２時９分

7
Quick Reference Guide
❚Wipers/Washers (P 166)
❚Headlights/Turn Signals (P 161, 162)
❚Brightness Control (P 168)
❚LaneWatchTM (P 433)
❚TRIP Button (P 125, 126)
❚Lane Keeping Assist System (LKAS) Button (P 421)
❚ (Display/Information) Button (P 124)
❚/ / / Buttons (P 124, 207)34
❚ENTER Button (P 124, 207)
❚Voice Control Buttons (P 239)
❚Bluetooth® HandsFreeLink ® System
Voice Control Buttons
(P 337)
❚Horn (Press an area around .)
❚Paddle Selector (- (P 392)
❚Paddle Selector (+ (P 392)
❚MAIN Button (P403, 421)
❚Adaptive Cruise Control (ACC) with Low
Speed Follow Buttons
(P 404)
❚Interval Button (P 412)
* Not available on all models
20 CLARITY PHEV-31TRW6200.book 7 ページ ２０１９年９月２４日　火曜日　午後１２時９分

13
Quick Reference Guide
Auto Engine Stop/Start
The car will select the appropriate source of power depending on the drive mode you select.
As a result, the engine will automatically start or stop as needed to either charge the battery or provide supplemental power.
Under certain circumstances, the engine may turn on or, if it is already on, it may not turn off.
●You are going uphill or accelerating aggressively.●The climate control system is in heavy use.●The Ambient temperature is too hot or too cold.●The High Voltage Battery state of charge is very low.●The engine has not been sufficiently warmed up.●The vehicle is running a system check.
System Check
When the engine initially starts (between the time the POWER button is turned on and turned of f), the vehicle conducts a system check.●While the check is being conducted, the engine may periodically turn on and off. This, however, is normal.●The curved blue line in the POWER/CHARGE Gauge will not appear during the system check ( EV indicator may still turn on).●Once the engine starts, it will continue to run until the system reaches operating temperature.
The curved blue line in the POWER/CHARGE Gauge will reappear once the system check is completed.
2 POWER/CHARGE Gauge (P122)
20 CLARITY PHEV-31TRW6200.book 13 ページ ２０１９年９月２４日　火曜日　午後１２時９分

14
Quick Reference Guide
Power SourceElectricHybridEngine
EV indicator
POWER /CHARGE
GaugeThe readings on the blue barThe readings on the white bar
Driving state
Light to mid acceleration or cruise●Only the electric motor provides
propulsion to the wheels.
Mild to heavy acceleration●The electric motor provides
propulsion to the wheels.
●The engine drives the generator,
supplying electricity to the electric
motor for added power or to the
High Voltage battery for charging.
The vehicle is cruising at a higher
speed.
●Propulsion is provided by the
engine, coupled through the gears
to the transmission. This is
indicated by the gear icon in
the display.
Energy flow
Comes
onGoes
off
20 CLARITY PHEV-31TRW6200.book 14 ページ ２０１９年９月２４日　火曜日　午後１２時９分

28
Quick Reference Guide
Features (P 203)
Audio Remote Controls
(P 207)
●(+ / ( - Bar
Press to adjust the volume up/down.
● / Button
Press or to cycle through the audio
mode as follows:
FM AM SiriusXM ®
*USB iPod
Bluetooth ® Audio Pandora®*Apple
CarPlay/Android Auto
ENTER Button
/ / / Button34(+ / (- Bar
Button
34
34
●ENTER Button
•When listening to the radio and
SiriusXM ®*
aPress ENTER to switch the display to a
preset list you stored in the preset
buttons.
bPress or to select a preset, then
press ENTER .
•When listening to a USB flash drive
aPress ENTER to display the folder list.
bPress or to select a folder.
cPress ENTER to display a list of tracks in
that folder.
dPress or to select a track, then
press ENTER .
34
34
34
•When listening to an iPod
aPress ENTER to display the iPod music
list.
bPress or to select a category.
cPress ENTER to display a list of items in
the category.
dPress or to select an item, then
press ENTER .
uPress ENTER and press or
repeatedly until a desired item you
want to listen is displayed.
• When listening to Pandora ®
*
aPress ENTER to display the station list.
bPress or to select an item, then
press ENTER .
•When listening to Bluetooth® Audio
aPress ENTER to display the track list.
bPress or to select a track, then
press ENTER .
34
34
34
34
34
20 CLARITY PHEV-31TRW6200.book 28 ページ ２０１９年９月２４日　火曜日　午後１２時９分

38
Quick Reference Guide
Why doesn’t the curved
blue line in the meter
appear even when the EV
indicator is on?The vehicle is performing a system check.
2Auto Engine Stop/Start (P13)
Why does the beeper
sound when I start driving?The beeper sounds when the driver and/or front passenger are
not wearing their seat belts.
Why does a beeper sound
when I walk away from the
vehicle after I close the
door?The beeper sounds if you move outside the walk away auto lock
operating range before the door completely closes.
2Locking the doors and trunk (Walk away auto lock ®) (P 140)
Pressing the electric
parking brake switch does
not release the parking
brake. Why?Press the electric parking brake switch with the brake pedal
depressed.
Depressing the accelerator
pedal does not release the
parking brake
automatically. Why?●Fasten the driver’s seat belt.
●Check if the transmission is in (P or (N. If so, select any other
position.
20 CLARITY PHEV-31TRW6200.book 38 ページ ２０１９年９月２４日　火曜日　午後１２時９分

uuGauges and Driver Information Interface uGauges
122
Instrument Panel

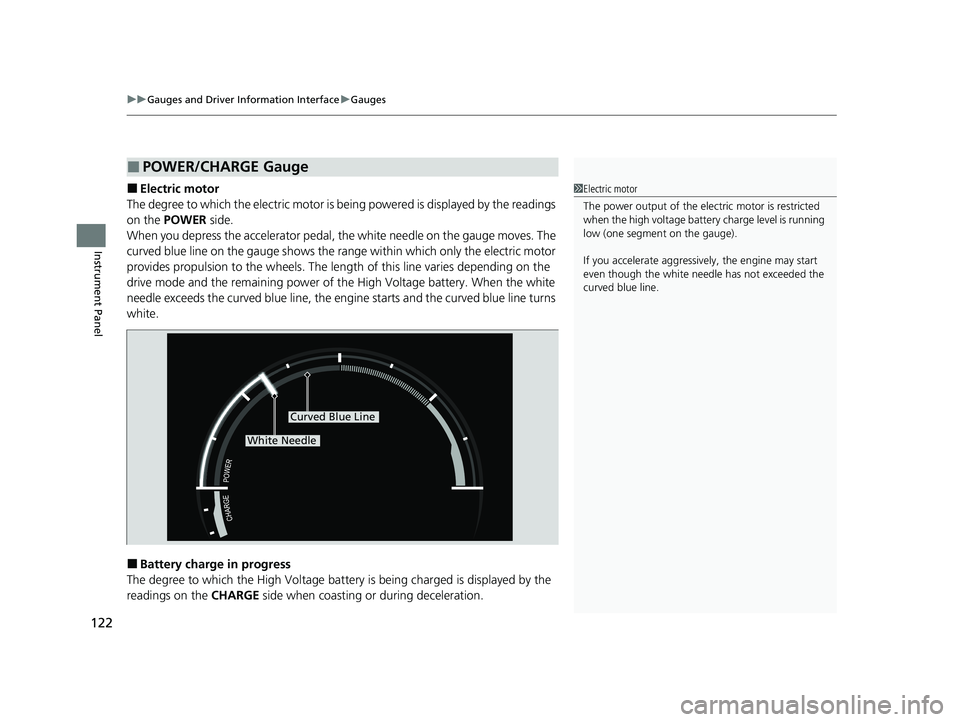

■Electric motor
The degree to which the electric motor is being powered is displayed by the readings
on the POWER side.
When you depress the accelerator pedal, th e white needle on the gauge moves. The
curved blue line on the gauge shows the range within which only the electric motor
provides propulsion to the wheels. The length of this line varies depending on the
drive mode and the remaining power of th e High Voltage battery. When the white
needle exceeds the curved blue line, the engine starts and the curved blue line turns
white.
■Battery charge in progress
The degree to which the High Voltage battery is being charged is displayed by the
readings on the CHARGE side when coasting or during deceleration.
■POWER/CHARGE Gauge
1Electric motor
The power output of the elec tric motor is restricted
when the high voltage battery charge level is running
low (one segment on the gauge).
If you accelerate aggressively, the engine may start
even though the white needle has not exceeded the
curved blue line.
Curved Blue Line
White Needle
20 CLARITY PHEV-31TRW6200.book 122 ページ ２０１９年９月２４日　火曜日　午後１２時９分

128
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
Shows the Maintenance MinderTM.
2 Maintenance MinderTM P. 479
Shows the current audio information.
2Audio System Basic Operation P. 210
Shows the current mail information.
2Bluetooth ® HandsFreeLink ® P. 337
Shows the current phone information.
2 Bluetooth ® HandsFreeLink ® P. 337
■Maintenance MinderTM
■Audio
■Mail
■Phone
20 CLARITY PHEV-31TRW6200.book 128 ページ ２０１９年９月２４日　火曜日　午後１２時９分
