2020 FORD F-150 compression ratio

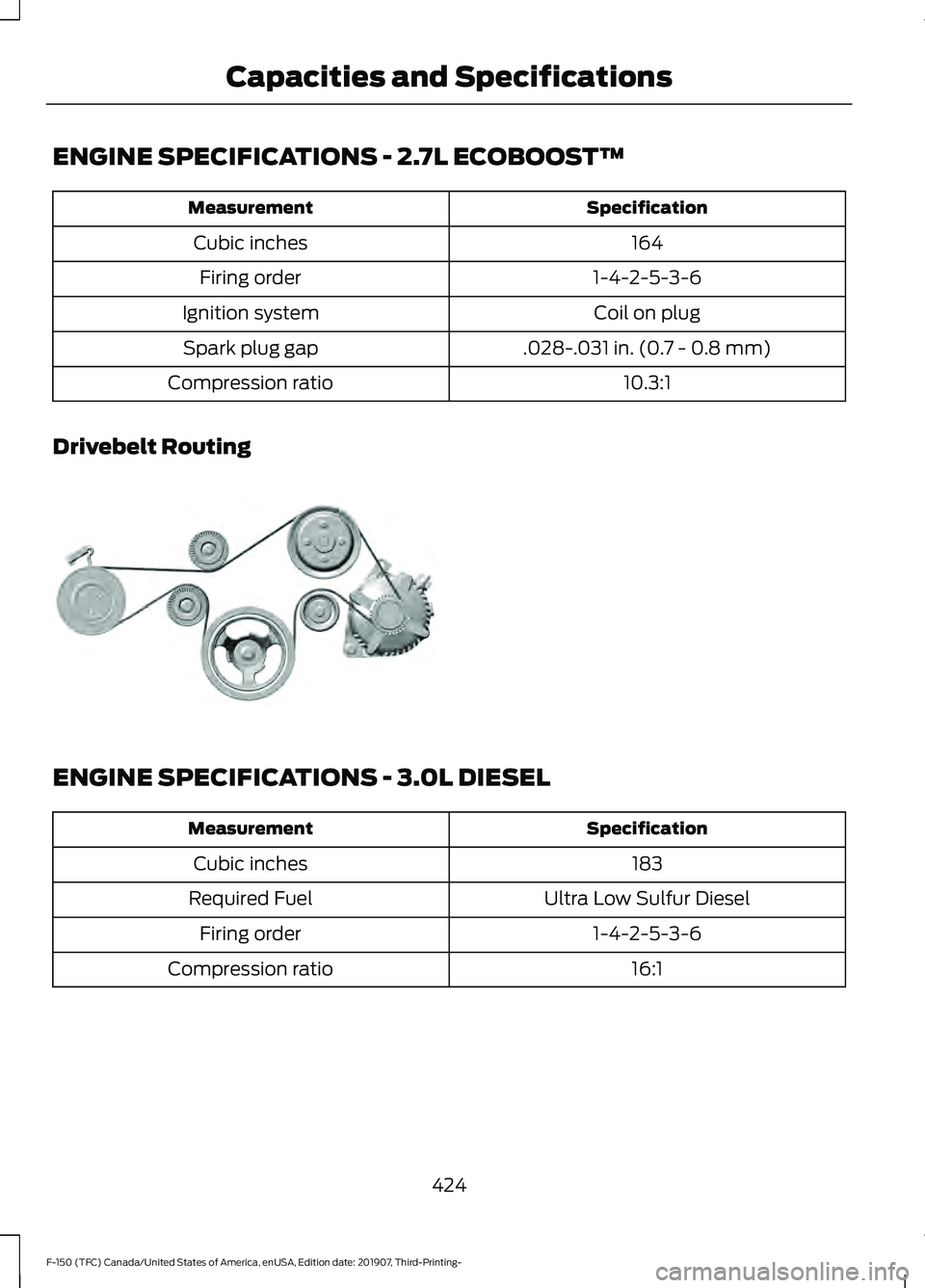

ENGINE SPECIFICATIONS - 2.7L ECOBOOST™
Specification
Measurement
164
Cubic inches
1-4-2-5-3-6
Firing order
Coil on plug
Ignition system
.028-.031 in. (0.7 - 0.8 mm)
Spark plug gap
10.3:1
Compression ratio
Drivebelt Routing ENGINE SPECIFICATIONS - 3.0L DIESEL
Specification
Measurement
183
Cubic inches
Ultra Low Sulfur Diesel
Required Fuel
1-4-2-5-3-6
Firing order
16:1
Compression ratio
424
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- Capacities and SpecificationsE176088

Drivebelt Routing
ENGINE SPECIFICATIONS - 3.3L
Specification
Measurement
201
Cubic inches
1-4-2-5-3-6
Firing order
Coil on plug
Ignition system
.049-.053 in. (1.25 - 1.35 mm)
Spark plug gap
12:1
Compression ratio
Drivebelt Routing 425
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- Capacities and SpecificationsE249449 E167467

ENGINE SPECIFICATIONS - 3.5L ECOBOOST™
Specification
Measurement
213
Cubic inches
1-4-2-5-3-6
Firing order
Coil on plug
Ignition system
0.028–0.031 in (0.7–0.8 mm)
Spark plug gap
10.5:1
Compression ratio
Drivebelt Routing ENGINE SPECIFICATIONS - 5.0L
Specification
Measurement
307
Cubic inches
1-3-7-2-6-5-4-8
Firing order
Coil on plug, coil near plug
Ignition system
.049-.053 in. (1.25 - 1.35 mm)
Spark plug gap
12:1
Compression ratio
426
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- Capacities and SpecificationsE263466
