48
C5_en_Chap02_ouverture_ed01-2016

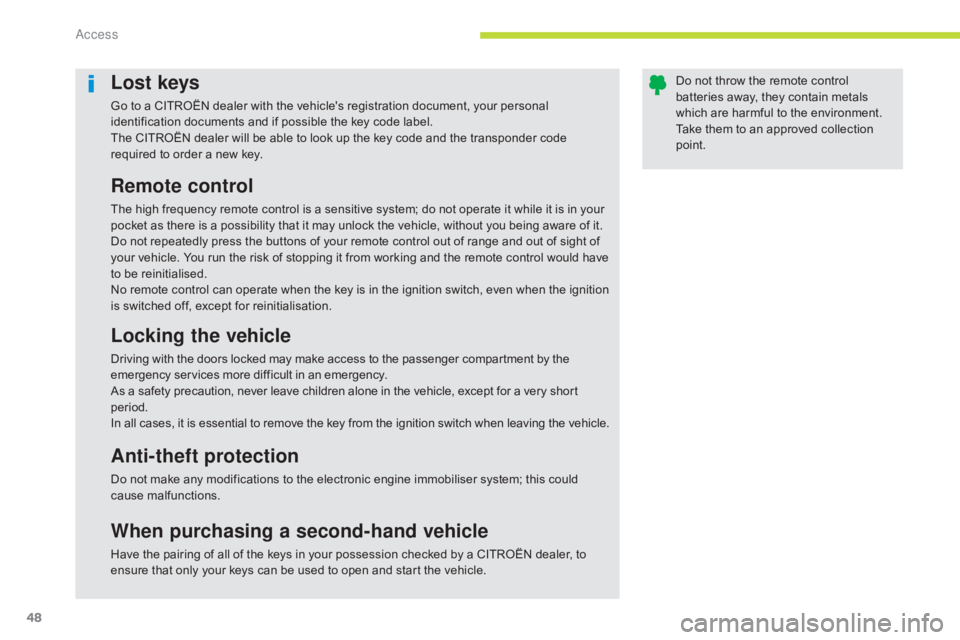

Lost keys
Go to a CITROËN dealer with the vehicle's registration document, your personal
identification documents and if possible the key code label.
The CITROËN dealer will be able to look up the key code and the transponder code
required to order a new key.
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your
pocket as there is a possibility that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of
your vehicle. You run the risk of stopping it from working and the remote control would have
to be reinitialised.
No remote control can operate when the key is in the ignition switch, even when the ignition
is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the
emergency services more difficult in an emergency.
As a safety precaution, never leave children alone in the vehicle, except for a very short
period.
In all cases, it is essential to remove the key from the ignition switch when leaving the vehicle.
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could
cause malfunctions.
When purchasing a second-hand vehicle
Have the pairing of all of the keys in your possession checked by a CITROËN dealer, to
ensure that only your keys can be used to open and start the vehicle.Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
Take them to an approved collection
point.
Access

71
C5_en_Chap03_ergonomie-et-confort_ed01-2016
In order for these systems to be fully effective, follow the operation and maintenance
guidelines below:
F
T
o obtain an even air distribution, take care not to obstruct the exterior air intake grilles
located at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as the air extractor located in the boot.
F

D
o not cover the sunshine sensor, located on the dashboard; this is used for regulation
of the air conditioning system.
F

O
perate the air conditioning system for at least 5 to 10 minutes, once or twice a month
to keep it in per fect working order.
F

E
nsure that the passenger compartment filter is in good condition and have the filter
elements replaced regularly.
W

e recommend the use of a combined passenger compartment filter. Thanks to its
special active additive, it contributes to the purification of the air breathed by the
occupants and the cleanliness of the passenger compartment (reduction of allergic
symptoms, bad odours and greasy deposits).
F

T
o ensure correct operation of the air conditioning system, you are also advised to
have it checked regularly as recommended in the maintenance and warranty guide.
F

I
f the system does not produce cold air, switch it off and contact a CITROËN dealer or
a qualified workshop.
When towing the maximum load on a steep gradient in high temperatures, switching off the
air conditioning increases the available engine power and so improves the towing ability.
Recommendations for ventilation and air conditioning
Stop & Start
The heating and air conditioning
systems only work when the engine is
running.
To maintain a comfortable temperature
in the passenger compartment, you can
temporarily deactivate the Stop & Start
system.
For more information on Stop & Star t ,
refer to the corresponding section. The condensation created by the air
conditioning results in a discharge
of water under the vehicle which is
per fectly normal.
If after an extended stop in sunshine,
the interior temperature is very
high, first ventilate the passenger
compartment for a few moments.
Put the air flow control at a setting high
enough to quickly change the air in the
passenger compartment.
Contains fluorinated greenhouse gas R134A.
From 1st October 2016, depending on version and country of sale, contains fluorinated
greenhouse gas R134A (gas capacity 0.525 kg +/- 0.025 kg, GWP index 1 430, 0.751 t
equivalent CO
2). The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.
3
Ease of use and comfort

96
C5_en_Chap04_conduite_ed01-2016
Electric parking brake
The electric parking brake combines
2 operating modes:
Automatic operation
Application with the engine off
With the vehicle stationary, the parking brake
is automatically applied when the engine is
switched off.
The application of the parking brake is
confirmed by:
Application with the engine running
With the engine running and the vehicle
stationary, in order to immobilise the vehicle
you need to manually apply the parking brake
by pulling the control lever A .
The application of the parking brake is
confirmed by:
-

w

arning lamp P in the control
lever A coming on,
-

d

isplay of a message " Parking brake
applied " in the instrument panel screen. -

w
arning lamp P in the control
lever A coming on,
-

d
isplay of a message " Parking brake
applied " in the instrument panel screen.
-

t

his warning lamp in the
instrument panel coming on, -

t
his warning lamp in the
instrument panel coming on,
Before leaving the vehicle, check that
warning lamp P and the warning lamp in
the instrument panel are on.
Never leave a child alone inside the
vehicle with the ignition on, as they
could release the parking brake. Before leaving the vehicle, check that
warning lamp
P and the warning lamp in
the instrument panel are on.
-

A

utomatic
A

utomatic application when the engine
stops and automatic release on use of the
accelerator (activated by default).
-

M

anual
M

anual application / release of the parking
brake is always possible by pulling control
lever A while pressing the brake pedal. When the driver’s door is opened, a beep is
heard and a message displayed if the parking
brake has not been applied.
The noise of operation will confirm to you the
application / release of the electric parking
brake.
Driving

102
C5_en_Chap04_conduite_ed01-2016
SITUATIONCONSEQUENCES
4 Display of the messages "
Parking brake faulty" and
" Anti roll-back fault " and of the following warning lamps:
and/or
f

lashing-

T
he automatic functions are deactivated.
-

T
he hill start assist is not available.
To apply the electric parking brake:
F

I
mmobilise the vehicle and switch off the ignition.
F

P
ull the control lever for at least 5 seconds or until maximum application.
F

S
witch on the ignition and check that the electric parking brake warning lamps
are on.
-

A
pplication may take longer than in normal operation.
-

I
f the warning lamp (!) flashes or if the warning lamps do not come on when
the ignition is switched on, this method does not work. Have it checked by a
CITROËN dealer or a qualified workshop.
To release the electric parking brake:
F

S
witch on the ignition.
F

P
ush the control lever and hold it for approximately 3 seconds.
5 Display of the message "
Parking brake control
faulty
– automatic mode activated " and of the
following warning lamps:
and/or
f

lashing-

O
nly the functions for automatic application on switching off the engine and
automatic release on acceleration are available.
-

M
anual application / release of the electric parking brake and dynamic
emergency braking are unavailable.
6 Display of the message "
Parking brake faulty" and of
the following warning lamp:
flashing -

A
pplication of the parking brake is not guaranteed.
-

T
he parking brake is temporarily unavailable.
It this situation arises:
F

W
ait approximately 3 minutes.
F

A
fter 3 minutes, if the warning lamp is still flashing, try to reinitialise the parking
brake, either by pushing and releasing the control A while pressing the brake
pedal or by means of a long pull on control lever A .
7 Battery problem
-

I
llumination of the battery warning lamp makes it essential to stop the vehicle
as soon as traffic allows. Stop and immobilise your vehicle.
-

A
pply the electric parking brake before switching off the engine.
Driving

113
C5_en_Chap04_conduite_ed01-2016
Operating fault
In the event of a malfunction with the system,
the "ECO OFF" switch warning lamp flashes
for a few seconds, then comes on continuously.
Have it checked by a CITROËN dealer or a
qualified workshop.In the event of a fault in STOP
mode, the vehicle may stall. All of
the instrument panel warning lamps
come
on.
Depending on version, an alert
message may also be displayed
asking you to put the gear selector into
position

N and to put your foot on the
brake pedal.
It is then necessary to switch off the
ignition, then restart the engine using
the key.
The Stop & Start requires the use of a
12 V battery of special technology and
characteristics.
All work on this type of battery must
only be carried out by a CITROËN
dealer or a qualified workshop.
For more information on the
12
V batter y, refer to the corresponding
section.
4
Driving

120
C5_en_Chap04_conduite_ed01-2016
The accelerator pedal has a stiff point at the
end of its travel. To exceed the maximum speed
setting at any time, you can press the pedal
all the way down. While the speed is being
exceeded, the speed displayed in zone A will
flash. Simply release the accelerator pedal to
return below the maximum speed and restore
the limiter function.
Return to normal
driving Operating fault
If there is a fault, a message is displayed
accompanied by an audible signal and
illumination of the SERVICE
warning lamp.
Have it checked by a CITROËN dealer or a
qualified workshop.
Exceeding the programmed
speed
In the event of a steep descent or
under excessive acceleration, the
speed limiter (which does not act
on the brakes) may not be able to
prevent the vehicle from exceeding the
programmed speed.
Use of a floor mat other than that
recommended by CITROËN may affect
the normal operation of the accelerator
pedal and hamper the operation of the
speed limiter.
Floor mats approved by CITROËN
are fitted with a 3rd fixing located in
the pedal area to avoid any risk of
inter ference with the pedals.
The speed will also flash if the speed limiter is
not able to prevent the vehicle from exceeding
the programmed speed setting (e.g. on a steep
descent or under excessive acceleration).
To reactivate the speed limiter, release the
accelerator to slow to a speed lower than the
programmed speed. F

P

ress button 5 .
F

O

r select the speed limiter function.
F

O

r stop the engine.
Driving

123
C5_en_Chap04_conduite_ed01-2016
Reactivation
- By recalling the memorised speed After deactivation, press button 3. Your
vehicle automatically returns to the
memorised cruise speed setting. The
memorised speed and "ON" are displayed
in zone A .
I

f the memorised cruise speed setting is
higher than the current speed, the vehicle
will accelerate strongly to reach the current
speed.
-

B
y selecting the current speed
P

ress button 1 or 2 once the desired speed
has been reached.
T

he new speed and "ON" will appear in
zone A .
Return to normal driving
F Press button 5 .
F O r select the cruise control function.
F

O
r stop the engine.
The speed that was chosen is no longer
memorised.
" PAUS E "
will then be displayed in zone A of
the instrument panel.
These actions do not cancel the cruise
speed setting which remains displayed in the
instrument panel.
Operating fault
If there is a fault , a message is displayed
accompanied by an audible signal and
illumination of the SERVICE warning lamp.
Have it checked by a CITROËN dealer or a
qualified workshop.
Cruise control must only be used where
the traffic conditions permit driving at a
constant speed.
Do not use it on congested roads or
when the weather or the road conditions
are poor.
Pause / Resume
F Either by pressing the brake or clutch pedal.
F

O
r by pressing button 3 .
F

O
r by the DSC or ASR systems being
active.
For vehicles with a manual gearbox, cruise
control is deactivated if the gear lever is in
neutral.
4
Driving

149
C5_en_Chap06_securite_ed01-2016
Reactivation
Operating fault
Illumination of this warning lamp and
the lamp in the deactivation button,
accompanied by an audible signal
and a message, indicate a fault with
the system.
Deactivation
Reactivate the systems as soon as the level of
grip permits.F

P
ress this button.
The indicator lamp in the button
comes on.
Contact a CITROËN dealer or a qualified
workshop to have the system checked.
The DSC and ASR systems no longer act
on the operation of the engine and on the
brakes in the event of a involuntary change of
trajectory.
F

P
ress this button again.
The indicator lamp in the button
goes
off.
The systems are reactivated automatically
each
time the ignition is switched back on or
from 30
mph (50 km/h).
Below 30 mph (50 km/h), you can reactivate
them manually:
In exceptional conditions (starting a vehicle
which is bogged down, stuck in snow, on soft
ground...), it may be advisable to deactivate
the DSC and ASR, so that the wheels can turn
freely and regain grip.
6
Safety
