Buick Encore GX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14018934) - 2020 - CRC - 2/27/20
282 Driving and Operating
{Warning
AEB may automatically brake the
vehicle suddenly in situations
where it is unexpected and
undesired. It could respond to a
turning vehicle ahead, guardrails,
signs, and other non-moving
objects. To override AEB, firmly
press the accelerator pedal, if it is
safe to do so.
Intelligent Brake Assist (IBA)
IBA may activate when the brake
pedal is applied quickly by providing
a boost to braking based on the
speed of approach and distance to
a vehicle ahead.
Minor brake pedal pulsations or
pedal movement during this time is
normal and the brake pedal should
continue to be applied as needed.
IBA will automatically disengage
only when the brake pedal is
released.
{Warning
IBA may increase vehicle braking
in situations when it may not be
necessary. You could block the
flow of traffic. If this occurs, take
your foot off the brake pedal and
then apply the brakes as needed.
AEB and IBA can be disabled
through vehicle personalization. See
“Collision/Detection Systems” under
Vehicle Personalization 0135.
{Warning
Using AEB or IBA while towing a
trailer could cause you to lose
control of the vehicle and crash.
Turn the system to Alert, or if the
vehicle has ACC to Off, when
towing a trailer.
A system unavailable message may
display if:
. The front of the vehicle or
windshield is not clean. .
Heavy rain or snow is interfering
with object detection.
. There is a problem with the
StabiliTrak/Electronic Stability
Control (ESC) system.
The AEB system does not need
service.
Front Pedestrian Braking
(FPB) System
If equipped, the FPB system may
help avoid or reduce the harm
caused by front-end crashes with
nearby pedestrians when driving in
a forward gear. FPB displays an
amber indicator,
~, when a nearby
pedestrian is detected ahead. When
approaching a detected pedestrian
too quickly, FPB provides a red
flashing alert on the windshield and
rapidly beeps. FPB can provide a
boost to braking or automatically
brake the vehicle. This system
includes Intelligent Brake Assist
(IBA), and the Automatic
Emergency Braking (AEB) system

Buick Encore GX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14018934) - 2020 - CRC - 2/27/20
284 Driving and Operating
If Head-Up Display (HUD) is
equipped and the screen is closed,
when the vehicle approaches a
pedestrian ahead too rapidly, the
HUD with the integrated RLAD can
display red spots reflected in the
windshield.
If Head-Up Display (HUD) is
equipped and the screen is open,
when the vehicle approaches apedestrian ahead too rapidly, the
HUD can display indicator on the
screen.
Eight rapid high-pitched beeps will
sound from the front. When this
Pedestrian Alert occurs, the brake
system may prepare for driver
braking to occur more rapidly which
can cause a brief, mild deceleration.
Continue to apply the brake pedal
as needed. Cruise control may be
disengaged when the Front
Pedestrian Alert occurs.
Automatic Braking
If FPB detects it is about to crash
into a pedestrian directly ahead, and
the brakes have not been applied,
FPB may automatically brake
moderately or brake hard. This can
help to avoid some very low speed
pedestrian crashes or reduce
pedestrian injury. FPB can
automatically brake to detected
pedestrians between 8 km/h (5 mph)
and 80 km/h (50 mph). Automatic
braking levels may be reduced
under certain conditions, such as
higher speeds.
If this happens, Automatic Braking
may engage the Electric Parking
Brake (EPB) to hold the vehicle at a
stop. Release the EPB. A firm press
of the accelerator pedal will also
release Automatic Braking and
the EPB.
{Warning
FPB may alert or automatically
brake the vehicle suddenly in
situations where it is unexpected
and undesired. It could falsely
alert or brake for objects similar in
shape or size to pedestrians,
including shadows. This is normal
operation and the vehicle does
not need service. To override
Automatic Braking, firmly press
the accelerator pedal, if it is safe
to do so.
Automatic Braking can be disabled
through vehicle personalization. See
“Front Pedestrian Detection” in
“Collision/Detection Systems” under
Vehicle Personalization 0135.

Buick Encore GX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14018934) - 2020 - CRC - 2/27/20
302 Driving and Operating
manufactured. Many trailer tire
manufacturers recommend
replacing tires more than six
years old.
Overloading is another leading
cause of trailer tire blow-outs. Never
load your trailer with more weight
than the tires are designed to
support. The load rating is located
on the trailer tire sidewall.
Always know the maximum speed
rating for the trailer tires before
driving. This may be significantly
lower than the vehicle tire speed
rating. The speed rating may be on
the trailer tire sidewall. If the speed
rating is not shown, the default
trailer tire speed rating is 105 km/h
(65 mph).Conversions and
Add-Ons
Add-On Electrical
Equipment
{Warning
The Data Link Connector (DLC) is
used for vehicle service and
Emission Inspection/Maintenance
testing. SeeMalfunction Indicator
Lamp (Check Engine Light) 0115.
A device connected to the DLC —
such as an aftermarket fleet or
driver-behavior tracking device —
may interfere with vehicle
systems. This could affect vehicle
operation and cause a crash.
Such devices may also access
information stored in the vehicle’s
systems.
Caution
Some electrical equipment can
damage the vehicle or cause
components to not work and
would not be covered by the
vehicle warranty. Always check
with your dealer before adding
electrical equipment.
Add-on equipment can drain the
vehicle's 12-volt battery, even if the
vehicle is not operating.
The vehicle has an airbag system.
Before attempting to add anything
electrical to the vehicle, see
Servicing the Airbag-Equipped
Vehicle 071 and
Adding Equipment to the
Airbag-Equipped Vehicle 071.

Buick Encore GX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14018934) - 2020 - CRC - 2/27/20

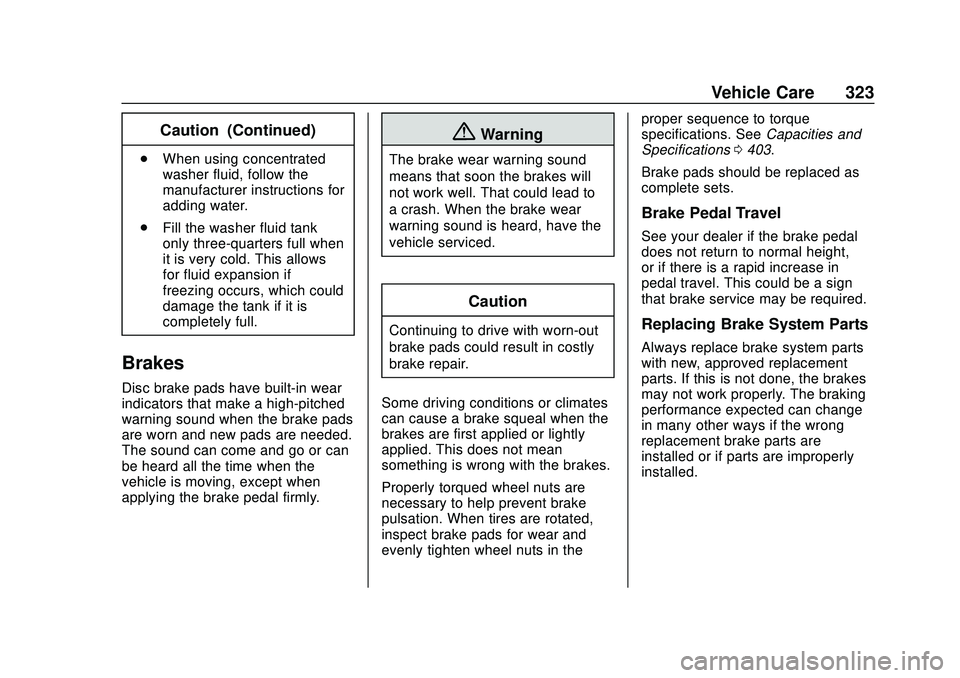

Vehicle Care 323
Caution (Continued)
.When using concentrated
washer fluid, follow the
manufacturer instructions for
adding water.
. Fill the washer fluid tank
only three-quarters full when
it is very cold. This allows
for fluid expansion if
freezing occurs, which could
damage the tank if it is
completely full.
Brakes
Disc brake pads have built-in wear
indicators that make a high-pitched
warning sound when the brake pads
are worn and new pads are needed.
The sound can come and go or can
be heard all the time when the
vehicle is moving, except when
applying the brake pedal firmly.
{Warning
The brake wear warning sound
means that soon the brakes will
not work well. That could lead to
a crash. When the brake wear
warning sound is heard, have the
vehicle serviced.
Caution
Continuing to drive with worn-out
brake pads could result in costly
brake repair.
Some driving conditions or climates
can cause a brake squeal when the
brakes are first applied or lightly
applied. This does not mean
something is wrong with the brakes.
Properly torqued wheel nuts are
necessary to help prevent brake
pulsation. When tires are rotated,
inspect brake pads for wear and
evenly tighten wheel nuts in the proper sequence to torque
specifications. See
Capacities and
Specifications 0403.
Brake pads should be replaced as
complete sets.
Brake Pedal Travel
See your dealer if the brake pedal
does not return to normal height,
or if there is a rapid increase in
pedal travel. This could be a sign
that brake service may be required.
Replacing Brake System Parts
Always replace brake system parts
with new, approved replacement
parts. If this is not done, the brakes
may not work properly. The braking
performance expected can change
in many other ways if the wrong
replacement brake parts are
installed or if parts are improperly
installed.

Buick Encore GX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14018934) - 2020 - CRC - 2/27/20
Service and Maintenance 397
Hoses
Hoses transport fluids and should
be regularly inspected to ensure
that there are no cracks or leaks.
With a multi-point inspection, your
dealer can inspect the hoses and
advise if replacement is needed.
Lamps
Properly working headlamps,
taillamps, and brake lamps are
important to see and be seen on
the road.
.Signs that the headlamps need
attention include dimming, failure
to light, cracking, or damage.
The brake lamps need to be
checked periodically to ensure
that they light when braking.
. With a multi-point inspection,
your dealer can check the lamps
and note any concerns. Shocks and Struts
Shocks and struts help aid in control
for a smoother ride.
.
Signs of wear may include
steering wheel vibration, bounce/
sway while braking, longer
stopping distance, or uneven
tire wear.
. As part of the multi-point
inspection, trained dealer
technicians can visually inspect
the shocks and struts for signs
of leaking, blown seals,
or damage, and can advise
when service is needed.
Tires
Tires need to be properly inflated,
rotated, and balanced. Maintaining
the tires can save money and fuel,
and can reduce the risk of tire
failure. .
Signs that the tires need to be
replaced include three or more
visible treadwear indicators; cord
or fabric showing through the
rubber; cracks or cuts in the
tread or sidewall; or a bulge or
split in the tire.
. Trained dealer technicians can
inspect and recommend the right
tires. Your dealer can also
provide tire/wheel balancing
services to ensure smooth
vehicle operation at all speeds.
Your dealer sells and services
name brand tires.
Vehicle Care
To help keep the vehicle looking like
new, vehicle care products are
available from your dealer. For
information on how to clean and
protect the vehicle’s interior and
exterior, see Interior Care 0383 and
Exterior Care 0379.

Buick Encore GX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14018934) - 2020 - CRC - 2/27/20
Index 431
Carbon MonoxideEngine Exhaust . . . . . . . . . . . . . . . 246
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . 21
Winter Driving . . . . . . . . . . . . . . . . 230
Cargo Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Management System . . . . . . . . . . . 95
Tie-Downs . . . . . . . . . . . . . . . . . . . . . . 94
Caution, Danger, and Warning . . . . 3
Center Console Storage . . . . . . . . . 93
Chains, Tire . . . . . . . . . . . . . . . . . . . . 364
Charging Wireless . . . . . . . . . . . . . . . . . . . . . . 103
Charging System Light . . . . . . . . . 115
Check Engine Light (Malfunction
Indicator) . . . . . . . . . . . . . . . . . . . . .115
Child Restraints Infants and Young Children . . . . . 74
Lower Anchors and Tethersfor Children . . . . . . . . . . . . . . . . . . . 80
Older Children . . . . . . . . . . . . . . . . . . 73
Securing . . . . . . . . . . . . . . . . . . . . 86, 88
Systems . . . . . . . . . . . . . . . . . . . . . . . . 77
Circuit Breakers . . . . . . . . . . . . . . . . 338
Cleaning
Exterior Care . . . . . . . . . . . . . . . . . 379
Interior Care . . . . . . . . . . . . . . . . . . 383 Climate Control Systems . . . . . . . 216
Air Conditioning . . . . . . . . . . . . . . 216
Dual Automatic . . . . . . . . . . . . . . . 218
Heating . . . . . . . . . . . . . . . . . . . . . . . 216
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Cluster, Instrument . . . . . . . . . . . . . 107
Collision Damage Repair . . . . . . . 413
Compact Spare Tire . . . . . . . . . . . . 371
Compartments Storage . . . . . . . . . . . . . . . . . . . . . . . . . 92
Compass . . . . . . . . . . . . . . . . . . . . . . . 101
Connected Services
Connections . . . . . . . . . . . . . . . . . . 427
Diagnostics . . . . . . . . . . . . . . . . . . . 428
Navigation . . . . . . . . . . . . . . . . . . . . 426
Connections
Connected Services . . . . . . . . . . 427
Control Traction and ElectronicStability . . . . . . . . . . . . . . . . . . . . . 254
Control of a Vehicle . . . . . . . . . . . . . 226
Controls
Steering Wheel . . . . . . . . . . . . . . . 154
Convenience Net . . . . . . . . . . . . . . . . 95
Convex Mirrors . . . . . . . . . . . . . . . . . . 30
Coolant Engine Temperature Gauge . . .112
Cooling . . . . . . . . . . . . . . . . . . . . 216, 218 Cooling System . . . . . . . . . . . . . . . . . 317
Courtesy Lamps . . . . . . . . . . . . . . . . 148
Courtesy Transportation
Program . . . . . . . . . . . . . . . . . . . . . . . 412
Cover Cargo . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Coverage Explanations . . . . . . . . . 182
Covers
Rear Compartment/StoragePanel . . . . . . . . . . . . . . . . . . . . . . . . . 93
Winter . . . . . . . . . . . . . . . . . . . . . . . . 240
Cruise Control . . . . . . . . . . . . . . . . . . 256 Light . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Cruise Control, Adaptive . . . . . . . . 258
Cupholders . . . . . . . . . . . . . . . . . . . . . . 92
Customer Assistance . . . . . . . . . . . 409 Offices . . . . . . . . . . . . . . . . . . . . . . . . 408
Text Telephone (TTY)Users . . . . . . . . . . . . . . . . . . . . . . . 409
Customer Information Publications Ordering
Information . . . . . . . . . . . . . . . . . . 415
Customer Satisfaction Procedure . . . . . . . . . . . . . . . . . . . . . 406
Cybersecurity . . . . . . . . . . . . . . . . . . . 418

Buick Encore GX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14018934) - 2020 - CRC - 2/27/20
432 Index
D
Damage Repair, Collision . . . . . . . 413
Danger, Warning, and Caution . . . . 3
Data CollectionInfotainment System . . . . . . . . . . 419
OnStar . . . . . . . . . . . . . . . . . . . . . . . 419
Data Recorders, Event . . . . . . . . . 418
Database Coverage Explanations . . . . . . . . . . . . . . . . . . 182
Daytime Running
Lamps (DRL) . . . . . . . . . . . . . . . . . . 145
Defensive Driving . . . . . . . . . . . . . . . 226
Delayed Locking . . . . . . . . . . . . . . . . . 19
Destination . . . . . . . . . . . . . . . . . . . . . 173
Diagnostics Connected Services . . . . . . . . . . 428
Distracted Driving . . . . . . . . . . . . . . . 225
Dome Lamps . . . . . . . . . . . . . . . . . . . 148
Door Delayed Locking . . . . . . . . . . . . . . . . 19
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Power Locks . . . . . . . . . . . . . . . . . . . . 19
Drive Belt Routing, Engine . . . . . . 405
Drive Systems All-Wheel Drive . . . . . . . . . . 250, 327
Driver Teen . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Driver Assistance Systems . . . . . 270 Driver Behavior . . . . . . . . . . . . . . . . . 224
Driver Information
Center (DIC) . . . . . . . . . . . . . 123, 127
Driving Assistance Systems . . . . . . . . . . 278
Better Fuel Economy . . . . . . . . . 225
Characteristics andTowing Tips . . . . . . . . . . . . . . . . . 293
Defensive . . . . . . . . . . . . . . . . . . . . . 226
Drunk . . . . . . . . . . . . . . . . . . . . . . . . . 226
Environment . . . . . . . . . . . . . . . . . . 224
Hill and Mountain Roads . . . . . . 230
If the Vehicle is Stuck . . . . . . . . . 232
Loss of Control . . . . . . . . . . . . . . . 228
Off-Road Recovery . . . . . . . . . . . 228
Vehicle Load Limits . . . . . . . . . . . 232
Wet Roads . . . . . . . . . . . . . . . . . . . 229
Winter . . . . . . . . . . . . . . . . . . . . . . . . 230
Driving the Vehicle . . . . . . . . . . . . . . . . 3
Dual Automatic Climate Control System . . . . . . . . . . . . . . . . 218
E
Electric Parking Brake . . . . . . . . . . 252
Electric Parking Brake Light . . . . 118
Electrical Equipment,
Add-On . . . . . . . . . . . . . . . . . . . . . . . 302 Electrical System
Engine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 338
Fuses and Circuit Breakers . . . 338
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 341
Overload . . . . . . . . . . . . . . . . . . . . . 337
Rear Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 343
Emergency OnStar . . . . . . . . . . . . . . . . . . . . . . . 421
Engine Air Cleaner/Filter . . . . . . . . . . . . . 315
Check Light (MalfunctionIndicator) . . . . . . . . . . . . . . . . . . . . .115
Compartment Overview . . . . . . . 308
Coolant Temperature
Gauge . . . . . . . . . . . . . . . . . . . . . . .112
Cooling System . . . . . . . . . . . . . . . 317
Drive Belt Routing . . . . . . . . . . . . 405
Exhaust . . . . . . . . . . . . . . . . . . . . . . 246
Heater . . . . . . . . . . . . . . . . . . . . . . . . 243
Oil Life System . . . . . . . . . . . . . . . 313
Oil Pressure Light . . . . . . . . . . . . 121
Overheating . . . . . . . . . . . . . . . . . . 321
Power Messages . . . . . . . . . . . . . 135
Running While Parked . . . . . . . . 247
Starting . . . . . . . . . . . . . . . . . . . . . . . 238

Buick Encore GX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14018934) - 2020 - CRC - 2/27/20
Index 433
Engine Air Filter Life System . . . . 314
Entry Lighting . . . . . . . . . . . . . . . . . . . 149
Equipment, Towing . . . . . . . . . . . . . 300
Event Data Recorders . . . . . . . . . . 418
Exit Lighting . . . . . . . . . . . . . . . . . . . . 149
Extended Parking . . . . . . . . . . . . . . . 246
Extender, Seat Belt . . . . . . . . . . . . . . 58
Exterior Lamp Controls . . . . . . . . . 143
Exterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . . . 150
F
Filter,Engine Air Cleaner . . . . . . . . . . . 315
Flash-to-Pass . . . . . . . . . . . . . . . . . . . 145
Flashers, Hazard Warning . . . . . . 146
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . 365 Changing . . . . . . . . . . . . . . . . . . . . . 366
Floor Mats . . . . . . . . . . . . . . . . . . . . . . 387
Fluid Automatic Transmission . . . . . . 314
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 324
Washer . . . . . . . . . . . . . . . . . . . . . . . 322
Fog Lamps . . . . . . . . . . . . . . . . . . . . . 147
Folding Mirrors . . . . . . . . . . . . . . . . . . 31
Folding Seatback . . . . . . . . . . . . . . . . 48
Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . . 278 Frequency Statement
Radio . . . . . . . . . . . . . . . . . . . . . . . . . 416
Front Fog Lamp Light . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Front Pedestrian Braking (FPB) System . . . . . . . . . . . . . . . . . 282
Front Seats
Adjustment . . . . . . . . . . . . . . . . . . . . . 42
Heated . . . . . . . . . . . . . . . . . . . . . . . . . 48
Fuel Additives . . . . . . . . . . . . . . . . . . . . . 290
Economy, Driving for Better . . . 225
Filling a Portable Fuel
Container . . . . . . . . . . . . . . . . . . . 292
Filling the Tank . . . . . . . . . . . . . . . 290
Foreign Countries . . . . . . . . . . . . 290
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . 111
Low Fuel Warning Light . . . . . . . 122
Prohibited Fuels . . . . . . . . . . . . . . 290
Recommended . . . . . . . . . . . . . . . 289
Top Tier . . . . . . . . . . . . . . . . . . . . . . 289
Fuses Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 338
Fuses and Circuit Breakers . . . 338
Instrument Panel Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 341 Fuses (cont'd)
Rear Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 343
G
Garage Door Opener . . . . . . . . . . . 140Programming . . . . . . . . . . . . . . . . . 140
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . 330
Gauges
Engine CoolantTemperature . . . . . . . . . . . . . . . . .112
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Odometer . . . . . . . . . . . . . . . . . . . . . . 111
Speedometer . . . . . . . . . . . . . . . . . . 111
Tachometer . . . . . . . . . . . . . . . . . . . . 111
Trip Odometer . . . . . . . . . . . . . . . . . 111
Warning Lights and
Indicators . . . . . . . . . . . . . . . . . . . 106
General Information Service and Maintenance . . . . . 388
Towing . . . . . . . . . . . . . . . . . . . . . . . . 293
Vehicle Care . . . . . . . . . . . . . . . . . . 304
Global Positioning System (GPS) . . . . . . . . . . . . . . . . . 180
Glove Box . . . . . . . . . . . . . . . . . . . . . . . 92
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . 410
