2020 AUDI A5 display

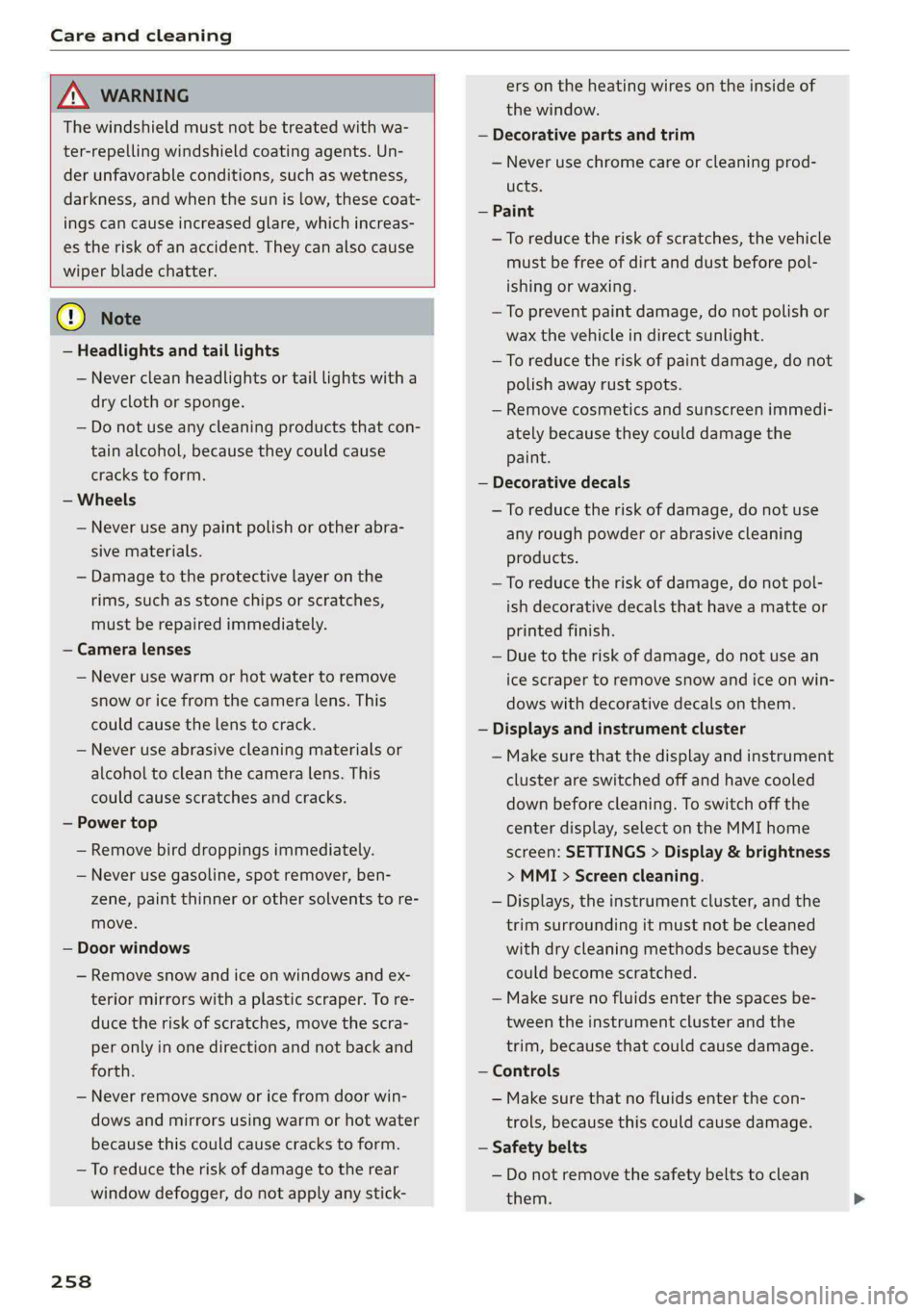

Care and cleaning


ZA WARNING
The windshield must not be treated with wa-
ter-repelling windshield coating agents. Un-
der unfavorable conditions, such as wetness,
darkness, and when the sun is low, these coat-
ings can cause increased glare, which increas-
es the risk of an accident. They can also cause
wiper blade chatter.

@) Note
— Headlights and tail lights
— Never clean headlights or tail lights with a
dry cloth or sponge.
— Do not use any cleaning products that con-
tain alcohol, because they could cause
cracks to form.
— Wheels
— Never use any paint polish or other abra-
sive materials.
— Damage to the protective layer on the
rims,
such as stone chips or scratches,
must be repaired immediately.
— Camera lenses
— Never use warm or hot water to remove
snow or ice from the camera lens. This
could cause the lens to crack.
— Never use abrasive cleaning materials or
alcohol to clean the camera lens. This
could cause scratches and cracks.
— Power top
— Remove bird droppings immediately.
— Never use gasoline, spot remover, ben-
zene, paint thinner or other solvents to re-
move.
— Door windows
— Remove snow and ice on windows and ex-
terior mirrors with a plastic scraper. To re-
duce the risk of scratches, move the scra-
per only in one direction and not back and
forth.
— Never remove snow or ice from door win-
dows and mirrors using warm or hot water
because this could cause cracks to form.
— To reduce the risk of damage to the rear
window defogger, do not apply any stick-
258
ers on the heating wires on the inside of
the window.
— Decorative parts and trim
— Never use chrome care or cleaning prod-
ucts.
— Paint
—To reduce the risk of scratches, the vehicle
must be free of dirt and dust before pol-
ishing or waxing.
— To prevent paint damage, do not polish or
wax the vehicle in direct sunlight.
—To reduce the risk of paint damage, do not
polish away rust spots.
— Remove cosmetics and sunscreen immedi-
ately because they could damage the
paint.
— Decorative decals
—To reduce the risk of damage, do not use
any rough powder or abrasive cleaning
products.
—To reduce the risk of damage, do not pol-
ish decorative decals that have a matte or
printed finish.
— Due to the risk of damage, do not use an
ice scraper to remove snow and ice on win-
dows with decorative decals on them.
— Displays and instrument cluster
— Make sure that the display and instrument
cluster are switched off and have cooled
down before cleaning. To switch off the
center display, select on the MMI home
screen: SETTINGS > Display & brightness
> MMI > Screen cleaning.
— Displays, the instrument cluster, and the
trim surrounding it must not be cleaned
with dry cleaning methods because they
could become scratched.
— Make sure no fluids enter the spaces be-
tween the instrument cluster and the
trim, because that could cause damage.
— Controls
— Make sure that no fluids enter the con-
trols, because this could cause damage.
— Safety belts
— Do not remove the safety belts to clean
them.

8W7012721BA
Fuses and bulbs
Fuse assignment - Driver's side of the Fuse assignment - Left side of the luggage
(ole 4o}ig compartment
GU -




|_8aw-0013]

Fig. 194 Driver side cockpit: fuse panel with plastic bracket

Fuse panel

No. | Equipment



1 |Vehicle opening/start (NFC)
2 | Telephone, mobile device charger
4 |Head-up display
5 |Audi music interface, USB charging port
6 Front climate control panel, instrument
Fig. 195 Left side of the luggage compartment: fuse panel
with plastic clip
panel

7 |Steering column lock

Infotainment system display Fuse panel @) (black)
9 |Instrument cluster No. | Equipment
Windshield defroster
Windshield defroster

10 | Infotainment unit

11 | Light switch, switch module

12 | Steering column electronics Suspension control

Particulate matter sensor for climate con-
trol system
13 Automatic transmission

Rear window defogger
14 | Infotainment system Rear seat heating
Left tail lights
10 | Airbag control module


WOl/OINID|M|)WInN 16 | Steering wheel heating


Luggage compartment lid lock, fuel filler
iL
door lock, luggage compartment cover

12 |Luggage compartment lid control module

Fuse panel (8) (red)
No. | Equipment

6 | Battery power interrupt

Fuse panel © (brown)

No. | Equipment


2 |Telephone, safety belt microphone

273

Data privacy

These data can help provide a better understand-
ing of the circumstances in which crashes and in-
juries occur. NOTE: EDR data are recorded by your
vehicle only if a non-trivial crash situation occurs;
no data are recorded by the EDR under normal
driving conditions and no personal data (e.g.
name, gender, age, and crash location) are re-
corded. However, other parties, such as law en-
forcement, could combine the EDR data with the
type of personally identifying data routinely ac-
quired during a crash investigation.
To read data recorded by an EDR, special equip-
ment is required, and access to the vehicle or the
EDR is needed. In addition to the vehicle manu-
facturer, other parties, such as law enforcement,
that have the special equipment, can read the in-
formation if they have access to the vehicle or the
EDR.
Data usage
Audi can read out the information stored in the
data memories or similar data, or give this infor-
mation to third parties, especially in the follow-
ing situations:
— If the vehicle owner or lessee agrees
—If there is an official request from the police
— Ifa court or authorities request it
If legally permitted, Audi can also use the data
for analysis of vehicle operation and safety per-
formance or provide this data to third parties for
research purposes.
Transmitted information
Data collection
Applies to: vehicles with data collection
Depending on the country, AUDI AG may collect
data for the following purposes, for example: of-
fer and product optimization, public safety, pro-
vision of Audi connect remote vehicle services,
and adaptation to customer expectations. For ex-
ample, various technical function data, environ-
mental data, driving data, and usage data will be
collected for a specific purpose and forwarded to
AUDI AG. The data will be sent from the vehicle
at the time the data was collected.
276
Applies to: MMI: You can find additional informa-
tion about data collection in the MMI. Select on
the home screen: SETTINGS > General > Legal
notes > About Audi connect.
If you would like to deny data transmission to
AUDI AG, contact an authorized Audi dealer or
authorized Audi Service Facility for more infor-
mation. You also have the option to deactivate
data transmission within the privacy settings.
Privacy settings
Applies to: vehicles with Audi connect
> Applies to MMI: Select on the home screen:
SETTINGS > Privacy settings.
When using Audi connect services or during data
collection, data will be transmitted from the ve-
hicle.
> To display additional information about the pri-
vacy settings and the associated symbols in the
status bar, press @ in the MMI.
Requirement: the ignition must be switched on.
Setting the maximum privacy settings
When the Activate privacy mode function is
switched on, the data connection is deactivated
or sending of data is restricted, but all safety-re-
lated, legal, or contractually required Audi con-
nect services remain activated. The majority of
the Audi connect services are deactivated.
When the function is switched off, the data con-
nection will be available in order to use Audi con-
nect services.
Adjusting individual privacy settings
In the MMI, you can adjust individually which da-
ta should be transmitted from the vehicle. If you
switch on a data category, the data will be trans-
mitted.
@) Note
You are responsible for all precautions taken
for data protection, anti-virus protection, and
protection against loss of data on mobile de-
vices that are used to access the Internet
through the Wi-Fi hotspot.

8W7012721BA
Accessories and technical changes

Usually maintenance and repair work requires
special tools, measuring devices, and other
equipment that is available to trained vehicle
technicians in order to help ensure that your vehi-
cle and all of its systems operate correctly, relia-
bly, and safely. Performing work on the vehicle
incorrectly can impair the operation and reliabili-
ty of your vehicle and may void one or more of
your vehicle's warranties.
Technical Modifications
Interference with electronic components, their
software, the wiring, and data transfer may cause
malfunctions. Because of the way electronic com-
ponents are interconnected, such malfunctions
can also impair systems that are not directly in-
volved. This means that you risk both a substan-
tial reduction in the operational safety of your ve-
hicle and increased wear of vehicle components.
Some convenience functions, such as the conven-
ience turn signal function, individual door open-
ing function, and displays, can be reprogrammed
using special workshop equipment. If functions
are reprogrammed, the information and descrip-
tions about these functions in this Owner's Man-
ual may no longer apply to the changed func-
tions. Audi recommends that an authorized Audi
dealer or authorized Audi Service Facility perform
and verify any reprogramming procedures.


carry out the job and have the correct tech-
nical information and the correct tools.
— If you are uncertain about what to do, have
the work performed by an authorized Audi
dealer, an authorized Audi Service Facility,
or another qualified workshop. Serious per-
sonal injury may result from improperly per-
formed work.


ZA WARNING
Maintenance procedures, repairs, or technical
modifications that are performed incorrectly
increase the risk of an accident and can lead
to serious injuries.


ZA WARNING
The engine compartment of any motor vehicle
is a potentially dangerous area and can cause
serious personal injury.
— Always use extreme caution when doing any
work in the engine compartment. Always
follow commonly accepted safety practices
and use common sense. Never risk personal
injury.
— Never perform any work in the engine com-
partment unless you know exactly how to

@) Note
— Maintenance procedures, repairs or techni-
cal modifications that are performed incor-
rectly can cause damage to the vehicle, such
as corrosion.
— If emergency repairs must be performed,
take your vehicle to an authorized Audi deal-
er or authorized Audi Service Facility as soon
as possible.
— Audi is not liable for damage to the vehicle
resulting from failure to comply with these
guidelines.
@) For the sake of the environment
— Regular maintenance can help protect the
environment.
— Technical modifications to the vehicle can
have a negative impact on fuel consumption
and vehicle emissions.
(@) For the sake of the environment
Certain components in your vehicle such as
undeployed airbag modules, pretensioners
and remote control batteries may contain Per-
chlorate Material - special handling may ap-
ply, See www.dtsc.ca.gov/hazardouswaste/
perchlorate. When the vehicle or parts of the
restraint system including airbag modules
and safety belts with pretensioners are scrap-
ped, all applicable laws and regulations must
be observed. Your authorized Audi dealer is
familiar with these requirements and we rec-
ommend that you have your dealer perform
this service for you.
(i) Tips
Because of your vehicle's aluminum body de-
sign, all service and repair procedures
279

Index

Bluetooth
Audio player... . 2... cece eee eee eee eee 202
Connecting acellphone............... 165
Connecting adevice............-...--- 214
Deleting adevice................00 00 215
Device OVervieW secs s «sees 3 + eawe ss eee 214
Disconnecting a device.............00. 214
Displaying profiles..................0. 215
Selecting a device s seas ss seg ts ees 2 3 214
Specifying a favorite.................. 215
BoOStss « « cosy: ¢ ¢ eyes 5 © sees § o Rewn ¢ a ees ¢ e 14
Boost pressure indicator................. 14
Brake fluid

New brake pads..............---000-- 109
Break-in security feature..............0.. 33
Breaking in
New brake pads..............-..00005 109
N@W tiCGSs « s eaves = ¢ says + © eure 2s eee Ge 241
Browser
refer to Mediacenter................0. 205
Business address.............--000000- 190
Cc
California Proposition 65 Warning........ 221
Battery specifiers « a sno 2 wrens © sannine ws 9 231
CALLLISE o ssc x = vmaaie 2% swavese vx wena eae 169,171
Cameras
Coverage areaS... 1.2... . eee eee eee 122
Locations...................0.000005 123
Capacities
FUeL TANK: » sew ss ewe 2 9 aes 2 dame Be Be 284
Washer fluid reservoir..............--. 284
Cargoimatis « « wseon «x sows ee ies 4 o sonne & o oe 93
Car kiss ¢ s anon oo ese y 2 ease oo oo oe ees 34
Car phone
Serial number (IMED) .............00005 172
GCarwashiis ¢ savin se essa se ewe a cme v6 ores 254
Catalytic converter. .... 06s. cse eee ee eee 220
Cell phone
refer to Telephone...........-..2+-05- 165
286
Cell phone compartment
refer to Audi phone box...........+... 167
Central locking.............0 0... eee ee eee 30
AUTO. LOCK: 5 waza s anus s main & § aaiee G 3 Ba 30
Convenience key..........-.00-- eee eee 35
Convenience opening and closing......... 42
Luggage compartment lid............... 37
Mechanically unlocking and locking....... 32
MeSSAGES « sic 5 0 semis oo semen © oremeet @ » axons 32
Remote control key............2-.00005 35
SOtting’s s x cows 5 x ues £2 AwE Fo ee Fo ee 31
VehiCle Key secre o 1 ssseene © a veomme = mene sites 35
Central locking switch..............2000. 32
Ceramic DrakeSvovcc. x a vince wv sesame a ov cece oa 8 109
Certificationis, « 2 asws + saun 2 ¢ saws ¢ x caw 281
Charging
refer to Power sourceS.........--.e ee eee 88
Charging the battery
Mobile:devicesi. . «since eo siazase no aacane © 0 ase 203
USB... eee eee 167
WireleSst « » aauae « 2 sawn «a ame ae uw 2 2 167
Child safety lock
Climate control system controls in the rear. 40
Power WindowS.........--ce eee eens 40
Rear’ doorsian « « wesw sy aga + eam a x oem aa 40
Child safety seats........... 0. eee eevee 81
Securing to the top tether anchor........ 86
Securing with a safety belt.............. 84
Securing with LATCH...............---. 84
Cleaning... 0.2... . cee eee 254
Cleaning Alcantara...............0e eee 257
Cleaning artificial leather............... 257
Cleaning carbon components........ 256, 257
Cleaning controls’: « secu. 6 esses ov cvs oo om 257
Cleaning decorative parts/trim....... 256, 257
Cleaning exhaust tail pipes.............. 256
Cleaning plastic parts.................. 257
Cleaning textiles...............000200. 257
Climate control system...........--..0-- 95
also refer to Automatic climate control sys-
TOING oo cron © aeavase © e comiane oo caeswie @ same Y 95
Climate control system controls in the rear
Child safety lock...............0 0.000 40
Closing
Automatic luggage compartment lid...... 38
Convenience closing.............+-+45- 42
HOOK,
«2 sensiis + 6 conn + oem © eee = RE 222

8W7012721BA

Luggage compartment lid............... 37
Luggage compartment lid with foot motion . 39
Panoramic glass roof...............0005 42
PoWertOpy « » cscs w x eran xs soaner ea mews a ee 47
Sunshade (roof)... .. 6.2... 0. scene eee 42
WITGOWS = saws 2 2 eeuse 5 ¢ eae x 5 eee 6 2 ae 41
Cockpit dimming................02-000 59
Cockpit (overview) ..............0000000 ee 6
Color code... 2... ccc cece ee eee eee eee 283
Compact spare tire........... 0... eee eee 265
GOMPATEMENES!s «6 cave » 6 eunwma » x avers ¥ vara 88
Gompassimtheiminor’s « wim 2 wiwe ax sae x 64
Complianees: « wos ss sews sv aaa « 2 eae x es 281
Conference Calleces = = sews se pews te ees ea: 171
Configuration wizard...............2.00. 18
CONNECE. ke ee ees 176
Data plans: « seis ss nen se nce + een ooo 180
Datta Privatyinns « ws 3 x esmem + onemoai « + arenes 277
Emergency call................-0000- 181
Infotainment): « : sues ¢ s wens « = wows 2 ew 176
Infotainment services...........00000- 177
Online roadside assistance............. 182
Vehicle control services.............0.. 178
Connected devices
Device Overview asics « ssasin sv mses + wave 214
Connections
refer to Media...............0-.- 202, 204
Consumer information................05 278
Consumption
Reducing.......... cee eee eee eee ee 107
Consumption: (Fuel), « wvccwis ow menos © setewe a = ee 15
Contacts
Importing and exporting.............. 173
Updating inthe MMI.................. 173
also refer to Directory..............005 170
Convenience: key: - wevu 2 5 ween ss eee sy were 30
Convenience closing................00 42
also refer to Vehicle key..........-...-. 34
Convenience opening and closing
Windows or panoramic glass roof........ 42
Coolant temperature display.............. 13
Cooling system
Adding
coolant « vss 4 i seen se ecw ae eee 228
Checking the coolant level............. 228
Coolant... 6... cece eee eee eee eee eee 227
Cornering
light. ............. 0. eee e eee 54
Cruise control system.............2+--5 130
Cup holdersyincss «a sive sx onmn oe waren oe eww s 88
Current consumption ...........ceeee cece 15
D
Data module
Serialinumber (IMED) « sevice es ciseava ao wenuane 172
Data plans sorsacs « 0 sersene ¢ o aoeees ¥ o mesa & 8 wa 180
Data Privacy’: « sass gs wows oo eau ¢ 8 mews 2 277
Daté seuss x 2 eyes 2 x eae ¢ # eieS 7 ReuEmS 3 Re 15
SeOTtHA G's » cca oo cess 2 v emeee oo evans o & sae 213
Daytime running lights.................. 54
Declaration of compliance............... 281
DEF {instrument cluster) . vii s vous ss oes Li
Demo mode
refer to Presentation mode............. 193
Destination onthe map...............4. 186
Detailsi: « « wees 2 wen 2: meme oe woe sg co 186
Determining correct load limit........... 249
Digital compass .......... 06. e cece eee eee 64
Dimensions. ...........0.00 000 eee eee 283
Dimming the exterior mirrors............. 60
Dimming the rearview mirror............. 60
DineGtOnyics « » secu « 0 sxeums © o omemeus aw o seers @ & 3 170
Business card. ..........0 0.02000 e eee 170
SOttingS
sacs « s wees + eeee Fs ROER ee SOE F L72
Display
GlOANING)'s » » sews ¢ 2 ewes o © wee oe Rew BBE 257
Displaying tool tips ssc «2 ces ss een ys eee 18
Disposal: s ¢ eens ¢ z sree 5 sees ge eee ae 278
Distance... 0.0... eee eee ee 15
Distance warning..............-.0-.0-. 143
Doors
Child safety LOCK weer: ¢ x oes 2 2 wen 2 5 ewe 40
Door'contact Switch « « sisi és sien a 0 aera oa 58
Mechanically unlocking and locking....... 32
Driver information system................ 12
Drives
refer to Media.............000005 202, 204
Drive select
refer to Audi drive select............... 114
Drive systeM.. 1.2... eee eee eee 106
Audi drive select): seo. < ¢ sau 2s some 2 oe 114
Drive system (message)................. 108
Driving down hills.............2.-0000- 112

Index

Driving programs « = sscses x « soins wo soasmes © w vee 140
Driving through water...............005 112
DIVING CINe’s s « ees 5 e com s ean « pee a so 15
Driving tips
Driving through water................. 112
Efficient driving.............00- eee ee 107
Uphilland downhill................... 112
DFiVING Up Hills: < » cams zs saws to eee eo eee 112
Dust filter
refer to Pollutant filter................. 95
DyNamMie Steering « zeny + v sews s wrens + pees 115
E
E-mail
MessageOptionSten so sis 6 2 ames so eeu o 174
SettingS 0.6... cece eee eee eee 174
EDL
refer to Electronic Differential Lock...... 116
EDR
Event Data Recorder...............0.. 275
Efficiency assist.........2....02-000 ee 131
Electrical system. .........-. cee eee eee 229
Electromechanical parking brake......... 110
Electronic Differential Lock.............. Liz
ElectronicimmMobiliZetivcn. s & scsi av areas 6 ease 34
Electronic Stabilization Control........... 116
Embedded. SIM ard « csies ss sss sc cae sve 177
Emergency assistance...............-0. 260
Emergency braking function............. 111
Emergency call..............2200. 172,181
Emergency flashers.............2.-.000- 57
Emergency mode..............--00000- 105
Emergency operation
DOOrs 0... eee ee 32
Fueltillerdoor'ss + say « s nome o < ome a ¢ ae 220
Luggage compartment lid............... 40
Panoramic glass roof.............000005 43
Emissions control system...........005- 220
ERErQy CONSUMES! . «servis oo scesnce © enateny # ae 15
Energy Management’. « scisie + «ssw © ieee a» 107
Engine
Breakingin........... cee ee eee eee eee 106
GOOlANt sxe: 5 = gems x eee 2 s eeeE Ee EE 227
EmergencyStop's « « swsis «0 case oe rene & oe 100
Jump starting....................00. 266
288
Start/Stop system © cw... ese ve cee ee 107
Starting/stopping..............ee eee 100
Engine compartment
Opening and closing the hood.......... 222
OVEIVIEW's sees oo sees oo ees on eo @ 2 oe 223
Safety precautions............ 0. eee eee 221
Engine oil
Adding ......... 0. cece eee eee eee 223
CHANGING as = « cows « « cows a a news a x caw 2 226
Checking oil-level).... «cscs as west ao esoowse a 223
Consumption ...........0.0-.0 eee eee 223
Indicator light’: » wces «eos ss sews ee rows 224
Replacement interval................. 233
Temperature display................005 14
Engine sound
Audi drive select..................0.. 114
Engine Start/Stop mode
refer to Start/Stop system............. 107
Efigine Startisystem «in : seem es news & exe 101
Engine stop
refer to Start/Stop system............. 107
Entry/exit lightinGjas « « seus « « sayes « s meas a 2 Sf
Etitity ASSIStAnICE’s s 2 ews 5 2 eee § x epee a eRe 69
also refer to Exit assistance............. 69
also refer to Seats...... 0.0.0. cee eee 69
Environment
Unleaded gasoline............ eee eee 217
ESC Sport... 0.0... cece eee eee eee 118
eSIM
refer to Embedded SIM card............ 177
Event Data Recorder (EDR).............. 275
Exit assistance... 2.2... 60.0.0. cece eee ee 69
Exit WaPOiAGp esse + « sowie 9 0 conse +» eneieue © 8 arene IS2
EXteriOnantenina « was: x + wesw » x nse os canes 167
Exterior lig hitingiecs + + smwas % « somes w 2 amvane «0 see 54
Exteri@r MIPfOPS scsi = see = o ise 2 wom 2 2 60
Folding settings................00 ee eee 31
External voice operation..............-4. 25
F
Factory default settings
Multi Media Interface................. 214
Fast forwarding and rewinding (media files) . 204
Fast forwarding (media files)............ 204
FaStTOutels «cna « o anc © 6 ews +o airs © we 184

8W7012721BA
Index

Favorites
Bluetooth ........ cece eee eee eee 215
NavViGdtiGnis « = snes 5 2 anes 2 ¥ ees & 2 eee 185
Telephone seas x cme « scene gv ewe ee wane 170
Federal Communications Commission (FCC) . 281
File formats (media drives).............. 208
Filling
TANK CAPACHHICS css + wcecsn ao manne we er 284
For the sake of the environment
Disposing of engine oil................ 226
Fueling. ..... 2.0.0 e cece ee eee eee 218
Le@aksSiax = scene so aeen ¢ eee s ewe 6 x oes 222
Forward gear
TefFEr tO GeaNS scscis x 5 ecw eo arenes oo ween © 102
Free text search
Media... ... cee cece eee eee 207
RadiGlss < = acs ¢ = ones = & eevee + £ Sates $F 197
also refer to Intelligent search.......... 184
Freeze protection
COOLANT ais 2 x cencere s ¥ ararcie 2 2 earns Ye ome 227
Frequency band « ¢ caccax xo cows x wownes « 2 bee 195
also refer to Frequency band........... 195
Front center armrest ....... 0... cece eee 70
Front collision warning
refer to Audi pre sense front............ 146
Front passenger’s seat adjustment
ReGit seas x ¢ wees 5 e eee Fe ee £2 ewe YB oe 69
Front wiper blades
Changing'’s « ¢ ses yo ewe xo saps 2 eee & ene 63
GLOATIAG « «: cxnins 2 cetesees 9 a suena atone a = am 63
BUC lbs corso a x connor: 2 a cress vx amaviems x x cmomae eB oH 217
Additives ...... 0.0... cece cece eee 218
CURFENECONSUMPTION = cox « pene sy emme se 15
Fuelidisplay sssisis s cose s 0 seemese ww avons 6 9 sea 11
Gasoline. ... 2... eee eee eee eee 217
Reducing fuel consumption............ 107
Tank. capacity's « ssica cs seca se ween = ween 284
Fueling
Fuel filler door..............00220000- 218
Fuel filler door emergency release....... 220
Functions ondemand...........+ee eee 178
Functions that require a license
refer to Functions ondemand.......... 178
Fuses
ASSIQNMONE: sews « x saws = e mews x x ees es 271
Replacing siciiss + x seis +o acer ow ceauere » wrenene 270
G
Garage door opener............--000 eee 44
Garment hooks .............00000eee eee 88
GaSOUIMC sie uo asmeme = veins = 5 cxamene 8 a omens @ 217
Additives... 0.0.0... 0... cece eee eee eee 218
Gasoline MIRCUNE wen 2» ewe so ways + ance 217
GAWR
refer to Gross Axle Weight Rating (GAWR) . 284
GOATS: ss cise 2 oes oo mie 2 OR ae RE A 102
Glossary of tire and loading terminology... 237
Glove compartment.............--.0000- 88
Lockablets< . css ao cave a owen oo omer vo ae 88
Valet parking. ... 0... ccc eee eee eee 43
Gross Axle Weight Rating (GAWR)........ 284
Gross Vehicle Weight Rating (GVWR)...... 284
GVWR
refer to Gross Vehicle Weight
Rating (GVWR) = sce 2 x meme 2 ¢ coms 2 2 ee 284
H
Handsfree................2..-0..0 eee 166
Hands Free Profile..................... 166
Head-up display
ACiUStiNG zu: » = :zvor ss eames 5 s eee sv BES 23
Adjusting the brightness................ 59
Operating...................0.000000. 23:
Headlight range control.................. 54
Headlights. « isos xo enc oo comune v © asecane ¥ © ave 54
Cleaning ............. 0. cece eee eee ee 255
Headlight range control................ 54
Washerisystemtx « « ces «i sauna » memes 3 © wee 61
Head restraints « vscsia 2 seaccci v anew a 2 omen 2 oo 71
Heated rear window...............000008 98
Heated steering wheel................... 99
Heating... 2.6... cece cece 95
HFP
refer to Hands Free Profile............. 165
High beams
High beam assistant............00.000 55
Highwaylightss » ase ss weew + weeaw ¢ woe a 54
Hill descent control............00 e000 ee 112
Hill hold Assist = seex < «eee se pees ss pees 102
Home
refer to Home address............00 0s 190
HOM@@ddrESS). « ¢ cues + paysmn > pees ss HORE 190
