2020 Acura MDX HYBRID phone

343
uuRear Entertainment System (RES)*uAuxiliary Console Panel
Features
Auxiliary Console Panel
Auxiliary input jacks and headphone connec tors for the rear entertainment system
are on the back of the front console compartment. V = Video jack
L = Left audio jack
R = Right audio jack
■Auxiliary input jacks
The system will accept auxiliary inputs from standard video games and video
equipment. Some video game power s upplies may cause poor picture quality.
■Headphone connectors
The headphones can also be used by connecting to the auxiliary console panel.
There are two headphone connectors for th e rear passengers. Each connector has
its own volume control.
Headphone Connectors
Auxiliary
Input
Jacks
Volume
Control
Knob
20 ACURA MDX E-AWD-31TRX6302.book 343 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

351
uuRear Entertainment System (RES)*uRear Control Panel Operation
Continued
Features
1. Press the SETUP button (in DVD mode).
2. Select an item. Press the ENTER button.
The following items are available:
• Brightness: Adjusts the screen’s brightness. Adjust the brightness using the
interface dial and press the ENTER button.
• Appearance : Selects the color of the rear menu screen.
• Display Adjust : Adjusts the screen’s preferences.
2Adjusting the screen P. 352
•Aspect Ratio : Selects an aspect ratio of the image.
2Setting the aspect ratio P. 353
•PERSONAL SURROUND : Sets the surround of the wireless headphones. You can
choose from three options: Music, Cinema, or Voice. Select Off to disable the
feature.
• Language : Sets the system language used on al l screens. You can choose from
three languages: English, Français (French), or Español (Spanish).
■Screen and Surround Settings
20 ACURA MDX E-AWD-31TRX6302.book 351 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

360
uuRear Entertainment System (RES)*uFront Control Panel Operation
Features
1. Select Audio Menu .
2. Select RES Settings.
The following items are available:
• Rear Control : Sets whether to use the rear co ntrol panel to control the RES.
When setting is set to On, operates the RES using the rear control panel.
• Rear Speaker : Sets the front audio source to play through the rear speakers,
even when the RES is on. The RES source can only be heard through the wireless
headphones. When setting is set to On, outputs the sound of the front source to
the rear speakers.
• Single/Dual Screen Mode : Selects a source to continue playing when you
switch from dual mode to singl e mode on the overhead screen.
■Rear System Setup
20 ACURA MDX E-AWD-31TRX6302.book 360 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

363
uuCustomized Features u
Continued
Features
■Customization flow
Information Screen
Press the SETTINGS button.
Bluetoot'Bluetoot'
Bluetooth Device List
Edit Speed Dial
Auto Transfer
Auto Answer
Ring Tone
Automatic Phone Sync
Use Contact Phot–
Enable Text/Email
Select Account
New Text/Email Alert
Text/Email


Default
Edit Pairing Code
Phone


Bluetooth/
Phone
Settings


See the Navigation System Manual.

Navigation Settings
20 ACURA MDX E-AWD-31TRX6302.book 363 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

368
uuCustomized Features u
Features

Voice Prompt
Brightness
Contrast
Black Level


Default
Display
System
Settings
Voice Reco.
Sync Display Brightness
System Device Information
Header Clock Display

Language
Operation Restriction Tips*
Others

Default
Apple CarPlay Device List
Android Auto Device List
Smartphone
Settings
Smartphone Volume


Factory Data Reset
Units
Song By Voice
Song By Voice Phonetic Modification
Phonebook Phonetic Modification
Guidance Volume

FeedbackGuidance Volume
Verbal Reminder
* Not available on all models
20 ACURA MDX E-AWD-31TRX6302.book 368 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

369
uuCustomized Features u
Continued
Features
■List of customizable options
*1:Default Setting Setup
Group Customizable Features Desc
ription Selectable Settings
Bluetooth/
Phone
Settings
DefaultCancels/Resets all customized items in the
Bluetooth/Phone Settings group as default.Yes/No
Bluetooth
BluetoothTurns the Bluetooth® on and off.On*1/Off
Bluetooth Device List
Pairs a new phone to HF L, edits or deletes a
paired phone, or creates a security PIN.
2 Phone Setup P. 405
—
Edit Pairing CodeChanges a pairing code.
2To change the pairing code setting P. 407Random/Fixed*1
Phone
Edit Speed DialEdits, adds or deletes a speed dial entry.
2 Phone Setup P. 405—
Auto TransferSets calls to automatically transfer from your
phone to HFL when you enter the vehicle.On*1/Off
Auto AnswerSets whether to automatically answer an
incoming call after about four seconds.On /Off*1
Information Screen
20 ACURA MDX E-AWD-31TRX6302.book 369 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

370
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Bluetooth/
Phone
Settings
Phone
Ring ToneSelects a fixed ring tone or the one from the
connected cell phone.Fixed/Mobile
Phone*1/ Off
Automatic Phone SyncSets a phonebook data to be automatically
imported when a phone is paired to HFL.On /Off
Use Contact PhotoDisplays a caller’s picture on an incoming call
screen.On*1/Off
Text/Email
Enable Text/EmailTurns the text/e-mail message function on and
off.On*1/ Off
Select AccountSelects a text or e-mail message account.—
New Text/Email Alert
Selects whether a pop-up alert comes on the
screen when HFL receives a new text/e-mail
message.
—
20 ACURA MDX E-AWD-31TRX6302.book 370 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分

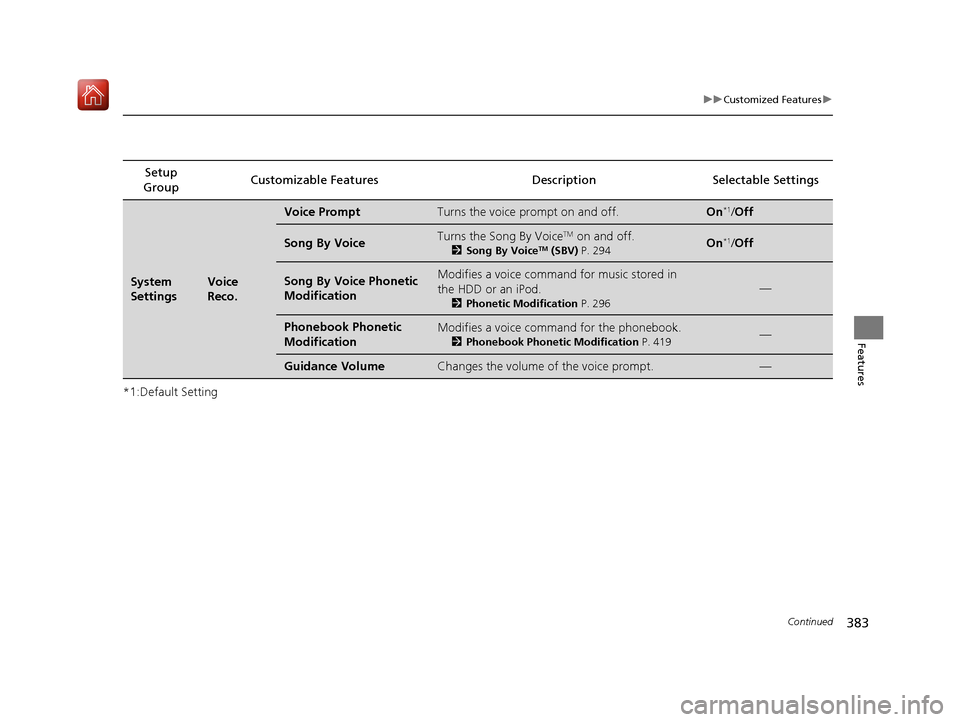

383
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
System
SettingsVoice
Reco.
Voice PromptTurns the voice prompt on and off.On*1/Off
Song By VoiceTurns the Song By VoiceTM on and off.
2 Song By VoiceTM (SBV) P. 294On*1/Off
Song By Voice Phonetic
ModificationModifies a voice command for music stored in
the HDD or an iPod.
2 Phonetic Modification P. 296
—
Phonebook Phonetic
ModificationModifies a voice comma nd for the phonebook.
2Phonebook Phonetic Modification P. 419—
Guidance VolumeChanges the volume of the voice prompt.—
20 ACURA MDX E-AWD-31TRX6302.book 383 ページ ２０２０年２月１１日　火曜日　午後１時 ４５分
