VOLVO XC90 TWIN ENGINE 2019 Owners Manual 4

Resetting user data when the vehiclechanges owners134
Resetting center display settings134
Table of settings in the center display135
Driver profiles136
Selecting a driver profile137
Changing a dr

Page 8 of 697

VOLVO XC90 TWIN ENGINE 2019 Owners Manual 6

Activating and deactivating climatecontrol for the third-row seats*231
Parking climate231
Preconditioning232
Starting and stopping preconditioning233
Preconditioning timer234
Adding and editing ti

Page 138 of 697

||DISPLAYS AND VOICE CONTROL
* Option/accessory.
136
System Sub-categories
Driver Profile
Date and Time
System Languages and Units
Privacy and Data
Keyboard Layouts
Voice Control
*
Factory Reset
System Information
Related information
Center display overview (p. 109)
Changing settings in the center display's Top
view (p. 132)
Resetting center display settings (p. 134) Driver profiles
Many of the vehicle's settings can be custom-
ized to the driver's personal preferences and
saved in one or more driver profiles.
These personal settings are automatically saved
in the active driver profile. Each key can be linked
to one driver profile. When the linked key is used,
the vehicle is customized to the specific settings
of that driver profile.
Which settings are saved in driverprofiles?
Many of the settings made in the vehicle will be
automatically stored in the active driver profile if
the profile is not protected. The vehicle has set-
tings that can be made either personal or global.
The personal settings are saved in driver profiles.
Settings that can be saved in a driver profile
include, among other things, screens, mirrors,
front seats, navigation*, audio and media system,
language and voice control.
Some settings are global settings. These settings
can be changed but are not saved to a specific
driver profile. Changes to global settings affect all
profiles.
Global settings
Global settings and parameters do not change
when driver profiles are changed. They remain
the same regardless of which driver profile is cur-
rently active. Keyboard layout is an example of a global setting.
If driver profile X is used to add additional key-
board languages, these languages will also be
available for driver profile Y. The settings for key-
board layout are not saved to a specific driver
profile - the settings are global.
Personal settings
If driver profile X has been used to e.g., set the
brightness for the center display, driver profile Y
will not be affected by this setting. It will only be
saved to driver profile X because brightness set-
ting is a personal setting.
Related information

Selecting a driver profile (p. 137)
Changing a driver profile's name (p. 137)
Linking a remote key to a driver profile
(p. 138)
Protecting a driver profile (p. 138)
Resetting driver profile settings (p. 139)
Table of settings in the center display
(p. 135)

Page 139 of 697

DISPLAYS AND VOICE CONTROL
137
Selecting a driver profile
When the center display starts up, the selected
driver profile will be shown at the top of the
screen. The most recently used driver profile will
be active the next time the vehicle is unlocked. A
different driver profile can be selected once the
vehicle has been unlocked. However, if the
remote key has been linked to a driver profile,
this profile will be used instead.
There are two options for switching between
driver profiles.
Option 1:
1.

Tap the name of the driver profile shown at
the top of the center display when the dis-
play starts up.
> A list will appear, showing driver profiles that can be selected.
2. Select desired driver profile.
3. Tap Confirm.
>

The driver profile has now been selected
and the system will load the settings
stored in that profile.
Option 2:
1. Pull down Top view in the center display.
2. Tap Profile.
>

The same list as in option 1 will be dis-
played.
3. Select desired driver profile. 4.
Tap Confirm.
>

The driver profile has now been selected
and the system will load the settings
stored in that profile.
Related information
Driver profiles (p. 136)
Navigating in the center display's views
(p. 115)
Changing a driver profile's name (p. 137)
Linking a remote key to a driver profile
(p. 138) Changing a driver profile's name
It is possible to change the names of the differ-
ent driver profiles used in the vehicle.
1. Tap Settings in the Top view in the center
display.
2.

Tap System Driver Profiles
.
3. Select Edit Profile.
>

A menu will open in which the driver pro-
file can be changed.
4. Tap the Profile Name box.
>

A keyboard will be displayed and can be
used to change the name. Tap to
close the keyboard.
5. Save the name change by pressing Back or
Close.
>

The name has now been changed.
NOTE Profile names may not begin with a space. If a
space is entered first, the profile name will not
be saved.
Related information

Selecting a driver profile (p. 137)
Using the center display keyboard (p. 126)

Page 140 of 697

DISPLAYS AND VOICE CONTROL

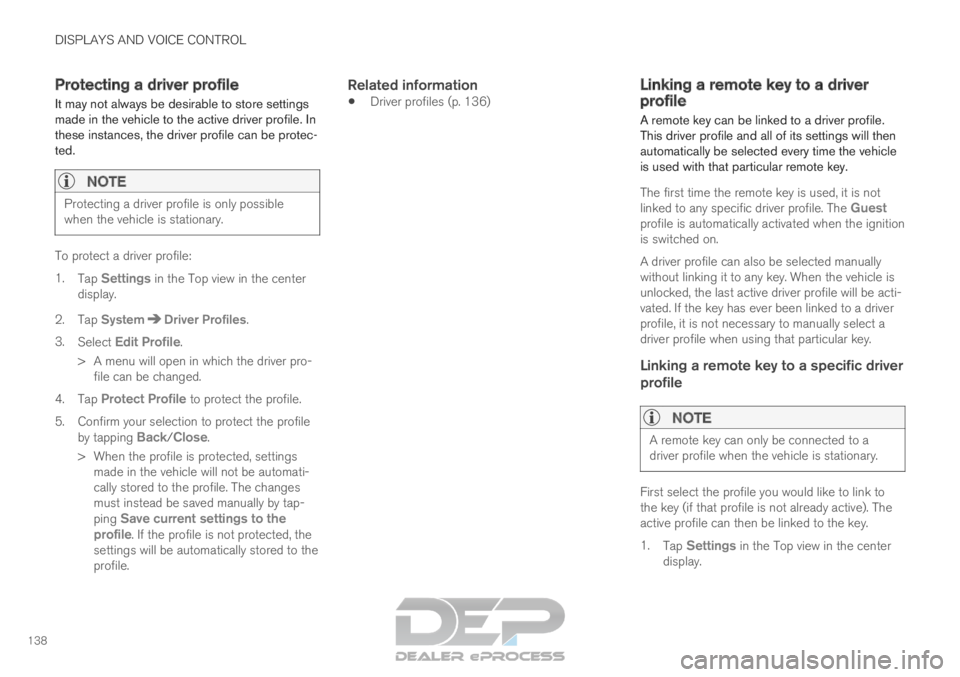

138Protecting a driver profile
It may not always be desirable to store settings
made in the vehicle to the active driver profile. In
these instances, the driver profile can be protec-
ted.
NOTE Protecting a driver profile is only possible
when the vehicle is stationary.
To protect a driver profile:
1.
Tap Settings in the Top view in the center
display.
2.

Tap System Driver Profiles
.
3. Select Edit Profile.
>

A menu will open in which the driver pro-
file can be changed.
4. Tap Protect Profile to protect the profile.
5.

Confirm your selection to protect the profile
by tapping Back/Close.
>

When the profile is protected, settings
made in the vehicle will not be automati-
cally stored to the profile. The changes
must instead be saved manually by tap-
ping Save current settings to the profile. If the profile is not protected, the
settings will be automatically stored to the
profile.
Related information
Driver profiles (p. 136) Linking a remote key to a driver
profile
A remote key can be linked to a driver profile.
This driver profile and all of its settings will then
automatically be selected every time the vehicle
is used with that particular remote key.
The first time the remote key is used, it is not
linked to any specific driver profile. The
Guest
profile is automatically activated when the ignition
is switched on.
A driver profile can also be selected manually
without linking it to any key. When the vehicle is
unlocked, the last active driver profile will be acti-
vated. If the key has ever been linked to a driver
profile, it is not necessary to manually select a
driver profile when using that particular key.
Linking a remote key to a specific driver
profile
NOTE A remote key can only be connected to a
driver profile when the vehicle is stationary.
First select the profile you would like to link to
the key (if that profile is not already active). The
active profile can then be linked to the key.
1.
Tap Settings in the Top view in the center
display.

Page 141 of 697

Page 170 of 697

VOLVO XC90 TWIN ENGINE 2019 Owners Manual ||WINDOWS, GLASS AND MIRRORS
* Option/accessory.
168
WARNING Children, other passengers or objects can be
trapped by the moving parts.
Always operate the windows with caution.
Do not allow children

||WINDOWS, GLASS AND MIRRORS
* Option/accessory.
168
WARNING Children, other passengers or objects can be
trapped by the moving parts.
Always operate the windows with caution.
Do not allow children to play with the
operating controls.
Never leave a child alone in the vehicle.
Remember to always cut the current to
the power windows by setting the vehi-
cle's electrical system to ignition mode 0
and then taking the remote key with you
when leaving the vehicle.
Never stick objects or body parts out
through the windows, even if the vehicle
electrical system is completely turned off.
Related information
Operating the power windows (p. 168)
Pinch protection for windows and sun cur-
tains (p. 166)
Reset procedure for pinch protection
(p. 167) Operating the power windows
All power windows can be operated using the
control panel in the driver's door. The control
panels in the other doors can be used to oper-
ate that particular door.
The power windows have pinch protection. If
there is any problem with the pinch protection, a
rest procedure can be tested.
WARNING Children, other passengers or objects can be
trapped by the moving parts.
Always operate the windows with caution.
Do not allow children to play with the
operating controls.
Never leave a child alone in the vehicle.
Remember to always cut the current to
the power windows by setting the vehi-
cle's electrical system to ignition mode 0
and then taking the remote key with you
when leaving the vehicle.
Never stick objects or body parts out
through the windows, even if the vehicle
electrical system is completely turned off. Operating the power windows.
Operating manually. Move one of the controls
slightly up or down. The power windows go
up or down while the control is held in posi-
tion.
Operating with automatic controls. Move one
of the controls up or down to its end position
and release it. The window moves automati-
cally to its fully closed/open position.
To use the power windows, the ignition must be
in at least mode I or II. After the ignition has
been switched off, the power windows can be
operated for several minutes or until a door is
opened. Only one control panel can be operated
at a time.
It can also be operated using keyless opening*
with the door handle.

Page 171 of 697

VOLVO XC90 TWIN ENGINE 2019 Owners Manual WINDOWS, GLASS AND MIRRORS
}}
* Option/accessory. 169
WARNINGMake sure that no child or other passenger
comes into contact with the windows as they
are closing with keyless closing*.
NOTE
One way to r

WINDOWS, GLASS AND MIRRORS
}}
* Option/accessory. 169
WARNINGMake sure that no child or other passenger
comes into contact with the windows as they
are closing with keyless closing*.
NOTE
One way to reduce the pulsating wind noise
heard when the rear windows are open is to
also open the front windows slightly.
NOTE
The windows cannot be opened at speeds
over approx. 180 km/h (ca112 mph), but they
can be closed.
The driver is always responsible for following
applicable traffic regulations.
Related information

Power windows (p. 167)
Pinch protection for windows and sun cur-
tains (p. 166)
Reset procedure for pinch protection
(p. 167)
Keyless locking and unlocking* (p. 259)
Locking and unlocking using the remote key
(p. 246) Using sun curtains*
There are integrated sun curtains in each rear
door.
Rear door – manually operated The illustration is generic – the design may vary.
Hook with locking mechanism
– Pull up the sun curtain and hook it to the
upper section of the door frame.
The window can be opened and closed when the
sun curtain is being used.
Related information
Pinch protection for windows and sun cur-
tains (p. 166)
Reset procedure for pinch protection
(p. 167)
Power windows (p. 167) Rearview/door mirrors
The rearview mirror and door mirrors can be
used to improve the driver's visibility behind the
vehicle.
Rearview mirrorThe rearview mirror can be easily adjusted man-
ually. The rearview mirror can be equipped with
HomeLink*, auto-dim* and compass*.
Door mirrors
WARNING The door mirror on the passenger side is
curved to improve visibility. Objects in the mir-
ror may appear farther away than they actually
are.
The joystick in the drivers' door control panel is
used to adjust the position of the door mirrors.
There are also several automatic settings that
can also be connected to the memory function
buttons for the power seat*.
Related information
HomeLink ®
* (p. 489)
Compass* (p. 493)
Adjusting the rearview mirror dimming func-
tion (p. 170)
Adjusting the door mirrors (p. 171)

Load next 8 pages

Page: 1-8 9-16 17-24 25-32 33-40 ... 40 next >

navigation fuel type check oil audio tyre pressure trailer
