2019 VOLVO XC90 TWIN ENGINE display

DRIVER SUPPORT
371
WARNING
The Driver Alert Control function is sup-
plementary driver support intended to
facilitate driving and help make it safer –
it cannot handle all situations in all traffic,
weather and road conditions.
Driver Alert Control must not be used to
extend a period of driving. The driver
should plan in breaks at regular intervals
and make sure they are well rested.
Driver Alert Control is not a substitute for
the driver's attention and judgment. The
driver is always responsible for ensuring
the vehicle is driven in a safe manner, at
the appropriate speed, with an appropri-
ate distance to other vehicles, and in
accordance with current traffic rules and
regulations.
WARNING An alarm from Driver Alert Control should be
taken very seriously since a sleepy driver is
often not aware of their own condition.
If the alarm sounds or you feel fatigued:
Stop the vehicle safely as soon as possi-
ble and rest.
Studies have shown that it is just as danger-
ous to drive while tired as it is to drive under
the influence of alcohol or other stimulants.
Related information
Activating/deactivating Driver Alert Control
(p. 371)
Selecting guidance to a rest area if the
Driver Alert Control warning has been given
(p. 372)
Driver Alert Control limitations (p. 372) Activating/deactivating Driver Alert
Control
The Driver Alert Control (DAC) function can be
activated/deactivated.
On/OffTo change DAC settings:
1. Tap Settings in the center display's Top
view.
2.

Select My Car IntelliSafe Driver Alert
Control .
3. Select/deselect Alertness Warning to acti-
vate/deactivate DAC.
Related information
Driver Alert Control (p. 370)

DRIVER SUPPORT
* Option/accessory.
372 Selecting guidance to a rest area if
the Driver Alert Control warning has
been given
The Rest Stop Guidance function can be
switched on or off.
In vehicles equipped with Sensus Navigation*, the
driver can activate a guide that can automatically
suggest a suitable rest stop if the DAC warning
is given.
To select Rest Stop Guidance:
1. Tap Settings in the center display's Top
view.
2.

Select My Car IntelliSafe Driver Alert
Control .
3. Select/deselect Rest Stop Guidance to
activate/deactivate the function.
Related information
Driver Alert Control (p. 370) Driver Alert Control limitations
Driver Alert Control (DAC) functionality may be
reduced in certain situations.
In certain situations, the system may provide a
warning even if it has not detected a change in
driving behavior, e.g.:
in strong crosswinds
on grooved road surfaces.
WARNING In certain cases, driving behavior might not be
affected despite the driver's fatigue – when
using the Pilot Assist function – resulting in
the driver not getting a warning from DAC.
It is therefore very important to always stop
and take a break at the slightest sign of fati-
gue, regardless of whether the DAC function
has issued a warning or not.
NOTE
The function uses the vehicle's camera unit,
which has some general limitations – see the
section "Camera unit limitations".
Related information

Driver Alert Control (p. 370)
Camera limitations (p. 338) Lane Keeping Aid
Lane Keeping Aid (LKA 104
) is designed to
actively steer the vehicle on freeways, highways
and other major roads to help the driver reduce
the risk of the vehicle unintentionally veering out
of the lane.
Lake Keeping Assistance steers the vehicle back
into the lane and/or alerts the driver using vibra-
tions in the steering wheel.
Lane Keeping Aid is active at speeds between
65-200 km/h (40-125 mph) on roads with
clearly visible traffic lane marker lines.
On narrow roads, the function may be unavailable
and go into standby mode. The function will
become available again when the road becomes
sufficiently wide. A camera monitors the road/traffic lane's marker lines.
104
Lane Keeping Aid

DRIVER SUPPORT
375
vated, another symbol will illuminate and the
following message will be displayed:
–
Lane Keeping Aid –
Apply
steering
LKA will then be deactivated until the driver
begins actively steering the vehicle again.
The audible signal will stop and the information
symbol and message will disappear when LKA
detects that the driver is actively steering the
vehicle again.
Related information
Lane Keeping Aid (p. 372) Activating/deactivating Lane
Keeping Aid
The Lane Keeping Aid (LKA
108
) function can be
switched On or Off.
On/OffPress the Lane Keeping Aid
button in the center display's
Function view.
GREEN button indicator light - LKA is acti-
vated.
GRAY button indicator light - LKA is deacti-
vated.
Related information
Lane Keeping Aid (p. 372) Selecting type of assistance for
Lane Keeping Aid
The driver can determine what types of assis-
tance LKA 109
should provide if the vehicle veers
from its lane.
1. Select
Settings My Car IntelliSafe in
the center display's Top view.
2. Under Lane Keeping Aid Mode, select
what assistance LKA should provide:
Assist the driver will receive steering
assistance but no warning.
Both - the driver will receive both steering
assistance and a warning.
Warning - the driver will only receive a
warning.
Related information
Lane Keeping Aid (p. 372) 108
Lane Keeping Aid
109 Lane Keeping Aid

DRIVER SUPPORT
}}
377
Lane Keeping Aid symbols and
messages
A number of symbols and messages related to
Lane Keeping Aid LKA 110
may be displayed in
the instrument panel. Some examples of symbols and messages are shown in the table below. Symbol
Message MeaningDriver support system
Reduced functionality Service required
The system is not functioning as intended. Contact a workshop ‒ an authorized Volvo work-
shop is recommended. Windscreen sensor
Sensor blocked, see Owner's manual
The camera's ability to detect the lane in front of the vehicle is re\
duced.Lane Keeping Aid
Apply steering
LKA's steering assistance is disabled when the driver's hands are \
not on the wheel. Follow
the instructions and steer the vehicle.Lane Keeping Aid
Apply steering
LKA will go into standby mode until the driver begins steering the vehic\
le again.110
Lane Keeping Aid

DRIVER SUPPORT
* Option/accessory.
380 Steering assistance at risk of
collision
The Collision avoidance assistance function
is intended to help the driver reduce the risk of
the vehicle inadvertently veering from the traffic
lane and/or colliding with another vehicle or
obstacle by actively steering the vehicle back
into the lane and/or swerving out of the way.
Collision avoidance assistance consists of
three sub-functions:
Run-Off Mitigation with steering assistance
Steering assistance during collision risks
from oncoming traffic
Steering assistance during collision risks
from behind*
After the system has automatically intervened,
this text message will appear in the instrument
panel:
Collision avoidance assistance –
Automatic intervention
NOTE It is always the driver who must decide how
much the vehicle should be in control – the
vehicle can never take command.
Related information

Activating/deactivating steering assistance
during collision risks (p. 380)
Symbols and messages for steering assis-
tance during collision risks (p. 389)
Run-Off Mitigation with steering assistance
(p. 381)
Run-Off Mitigation with steering assistance
levels (p. 381)
Activating/deactivating Run-Off Mitigation
with steering assistance (p. 382)
Limitations of Run-Off Mitigation with steer-
ing assistance (p. 383)
Steering assistance during collision risks
from oncoming traffic (p. 383)
Activating/deactivating Steering assistance
during collision risks with oncoming vehicles
(p. 384)
Limitations of steering assistance during col-
lision risks from oncoming traffic (p. 385)
Steering assistance during collision risks
from behind* (p. 386)
Activating/deactivating Steering assistance
during collision risks from behind* (p. 387)
Limitations of steering assistance during col-
lision risks from behind (p. 387) Activating/deactivating steering
assistance during collision risks
The driver can choose to have this function On
or Off.
Use this button in the center
display's Function view to turn
the function On and Off.
NOTE When the
Collision avoidance assistance
function is deactivated, all subfunctions of the
following are deactivated:
Steering assistance at risk of run-off
Steering assistance at risk of head-on
collision
Steering assistance during collision risks
from behind*
Although it is possible to deactivate the func-
tion, the driver is advised to keep it activated
since it can help improve driving safety in
most cases.
Related information
Steering assistance at risk of collision
(p. 380)

||DRIVER SUPPORT
* Option/accessory.
382
Steering assistance with braking Intervention with steering assistance and braking.
Braking intervention assists in situations where
steering assistance alone is not sufficient. Brak-
ing force is automatically adapted according to
the situation at the moment the vehicle begins to
run off the road.
Related information
Steering assistance at risk of collision
(p. 380) Activating/deactivating Run-Off
Mitigation with steering assistance
The driver can choose to have this function On
or Off.
Use this button in the center
display's Function view to turn
the function On and Off.
NOTE When the
Collision avoidance assistance
function is deactivated, all subfunctions of the
following are deactivated:
Steering assistance at risk of run-off
Steering assistance at risk of head-on
collision
Steering assistance during collision risks
from behind*
Although it is possible to deactivate the func-
tion, the driver is advised to keep it activated
since it can help improve driving safety in
most cases.
Related information
Steering assistance at risk of collision
(p. 380)
Run-Off Mitigation with steering assistance
(p. 381)

||DRIVER SUPPORT
* Option/accessory.

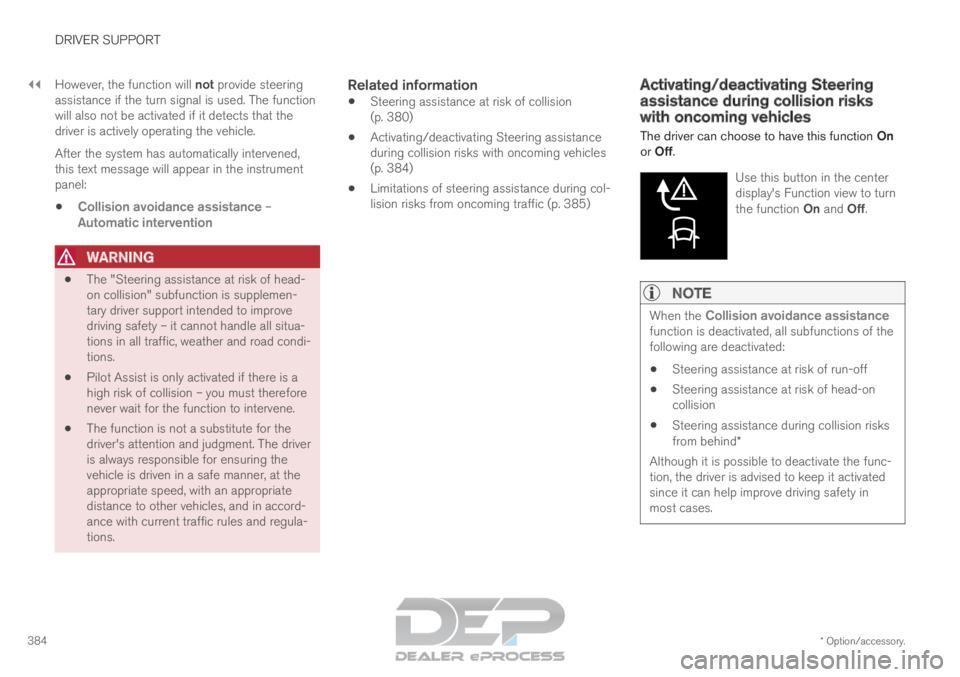

384 However, the function will not provide steering
assistance if the turn signal is used. The function
will also not be activated if it detects that the
driver is actively operating the vehicle.
After the system has automatically intervened,
this text message will appear in the instrument
panel:
Collision avoidance assistance –
Automatic intervention
WARNING
The "Steering assistance at risk of head-
on collision" subfunction is supplemen-
tary driver support intended to improve
driving safety – it cannot handle all situa-
tions in all traffic, weather and road condi-
tions.
Pilot Assist is only activated if there is a
high risk of collision – you must therefore
never wait for the function to intervene.
The function is not a substitute for the
driver's attention and judgment. The driver
is always responsible for ensuring the
vehicle is driven in a safe manner, at the
appropriate speed, with an appropriate
distance to other vehicles, and in accord-
ance with current traffic rules and regula-
tions.
Related information
Steering assistance at risk of collision
(p. 380)
Activating/deactivating Steering assistance
during collision risks with oncoming vehicles
(p. 384)
Limitations of steering assistance during col-
lision risks from oncoming traffic (p. 385) Activating/deactivating Steering
assistance during collision risks
with oncoming vehicles
The driver can choose to have this function On
or Off.
Use this button in the center
display's Function view to turn
the function On and Off.
NOTE When the
Collision avoidance assistance
function is deactivated, all subfunctions of the
following are deactivated:
Steering assistance at risk of run-off
Steering assistance at risk of head-on
collision
Steering assistance during collision risks
from behind*
Although it is possible to deactivate the func-
tion, the driver is advised to keep it activated
since it can help improve driving safety in
most cases.

DRIVER SUPPORT
}}
* Option/accessory. 387
Activating/deactivating Steering
assistance during collision risks
from behind*
The driver can choose to have this function On
or Off.
Use this button in the center
display's Function view to turn
the function On and Off.
NOTEWhen the Collision avoidance assistance
function is deactivated, all subfunctions of the
following are deactivated:
Steering assistance at risk of run-off
Steering assistance at risk of head-on
collision
Steering assistance during collision risks
from behind*
Although it is possible to deactivate the func-
tion, the driver is advised to keep it activated
since it can help improve driving safety in
most cases.
Related information
Steering assistance at risk of collision
(p. 380)
Steering assistance during collision risks
from behind* (p. 386) Limitations of steering assistance
during collision risks from behind
The function may have limited functionality in
certain situations and not intervene, e.g.:

for smaller vehicles such as motorcycles
if more than half of your vehicle has moved
into the adjacent lane
on roads/lanes with indistinct or no side lane
markings
outside the speed range 60-140 km/h
(37-87 mph)
when the power steering works at reduced
power - e.g. during cooling due to overheat-
ing (see section "Speed-dependent steering
force").
Functionality may also be reduced in other situa-
tions, such as:
road work
winter driving conditions
narrow roads
poor road surfaces
a very sporty driving style
bad weather with reduced visibility.
In these demanding driving conditions, the func-
tion may not be able to properly assist the driver.
In these situations, it is recommended that it is
turned off.
