||DRIVER SUPPORT
* Option/accessory.
302

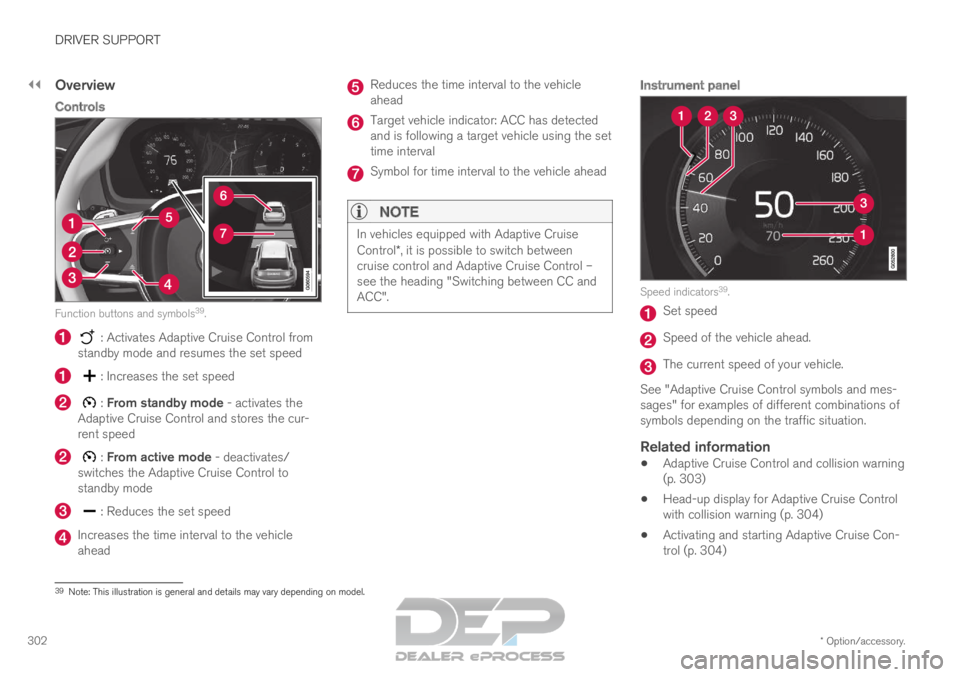

Overview
Controls Function buttons and symbols
39
. : Activates Adaptive Cruise Control from
standby mode and resumes the set speed : Increases the set speed
: From standby mode - activates the
Adaptive Cruise Control and stores the cur-
rent speed : From active mode - deactivates/
switches the Adaptive Cruise Control to
standby mode : Reduces the set speed
Increases the time interval to the vehicle
ahead Reduces the time interval to the vehicle
ahead
Target vehicle indicator: ACC has detected
and is following a target vehicle using the set
time interval
Symbol for time interval to the vehicle ahead
NOTE
In vehicles equipped with Adaptive Cruise
Control*, it is possible to switch between
cruise control and Adaptive Cruise Control –
see the heading "Switching between CC and
ACC".
Instrument panel Speed indicators
39
. Set speed
Speed of the vehicle ahead.
The current speed of your vehicle.
See "Adaptive Cruise Control symbols and mes-
sages" for examples of different combinations of
symbols depending on the traffic situation.
Related information
Adaptive Cruise Control and collision warning
(p. 303)
Head-up display for Adaptive Cruise Control
with collision warning (p. 304)
Activating and starting Adaptive Cruise Con-
trol (p. 304) 39
Note: This illustration is general and details may vary depending on mod\
el.
Page 306 of 697
DRIVER SUPPORT
* Option/accessory.
304 Head-up display for Adaptive Cruise
Control with collision warning
In vehicles equipped with a head-up display*, a
flashing warning symbol will be displayed on the
windshield. Collision warning symbol on the windshield
41
.
NOTE Visual warnings on the windshield may be dif-
ficult to notice in cases of strong sunlight,
reflections, extreme light contrasts, or if the
driver is wearing sunglasses or is not looking
straight ahead.
Related information
Adaptive Cruise Control* (p. 300)
Head-up display* (p. 142) Activating and starting Adaptive
Cruise Control
Adaptive Cruise Control (ACC
42
) must first be
activated and then started before it can regulate
speed and distance.
Putting Adaptive Cruise Control in
standby mode Note: This illustration is general and details may vary
depending on model.
Adaptive Cruise Control is in standby mode each
time the engine is started. To put ACC in standby
mode from active mode:
–
Press ◀ (2) or ▶ (3) on the steering wheel
keypad and scroll to the (4) function.
>
The symbol will appear and Adaptive
Cruise Control will go into standby mode.
Starting/activating Adaptive Cruise
Control
To start ACC:
The driver's seat belt must be buckled and
the driver's door must be closed.
There must be a vehicle ahead (target vehi-
cle) within a reasonable distance or your
vehicle's current speed must be at least
15 km/h (9 mph). Note: This illustration is general and details may vary
depending on model.
–
With the (4) function displayed, press
(1) on the steering wheel keypad.
>
Adaptive Cruise Control will start and the
current speed will be stored, which will be
shown by numbers in the center of the
speedometer. 41
Note: This illustration is general and details may vary depending on mod\
el.
Page 315 of 697
DRIVER SUPPORT
* Option/accessory.313
Switching between Cruise Control
and Adaptive Cruise Control
In vehicles equipped with Adaptive Cruise Con-
trol (ACC), the driver can switch between Cruise
Control (CC) and ACC.
A symbol in the instrument panel indicates which
cruise control system is active CC
ACCA A
Cruise control
Adaptive Cruise Control A
WHITE symbol: The function is active. GRAY symbol: Standby
mode
Switching from ACC to CCTo do so:
1. Press the button on the steering wheel
keypad to put Adaptive Cruise Control in
standby mode.
2. Tap the Cruise Control button in the center
display's Function view. The button's indica-
tor will change from GRAY to GREEN.
>
The symbol in the instrument panel will
change from ACC to
CC, indicating that Adaptive Cruise Con-
trol is off and Cruise Control is in standby
mode. 3.
Pressing the button on the steering
wheel keypad.
>
Cruise Control will start and the vehicle's
current speed will be set.
WARNING Switching from ACC to CC means that the
vehicle:
will no longer maintain a preset time
interval to the vehicle ahead.
will only follow the stored speed and the
driver must therefore apply the brakes
when necessary.
If CC is active when the engine is turned off, ACC
will be automatically activated the next time the
engine is started.
Switching from CC to ACCTo do so:
1. Press the button on the steering wheel
keypad to put Cruise Control in standby
mode. 2.
Tap the Cruise Control button in Function
view. The button's indicator will change from
GREEN to GRAY.
>
The symbols in the instrument panel will
switch from CC to ACC
to indicate that Adaptive Cruise Control is
in standby mode.
3. Pressing the button on the steering
wheel keypad.
>
Adaptive Cruise Control will go into active
mode and set the vehicle's current speed
and the selected time interval to the vehi-
cle ahead.
Related information
Adaptive Cruise Control* (p. 300)
Cruise control (p. 291)
Page 316 of 697
DRIVER SUPPORT
* Option/accessory.
314 Symbols and messages for
Adaptive Cruise Control
A number of symbols and messages relating to
Adaptive Cruise Control (ACC 54
) may be dis-
played in the instrument panel and/or the head-
up display*.
Several examples 55
are provided below. The previous illustration
56
shows that Adaptive
Cruise Control is set to maintain a speed of
110 km/h (68 mph) and that there is no target
vehicle ahead to follow. The previous illustration
56
shows that Adaptive
Cruise Control is set to maintain a speed of
110 km/h (68 mph) and is following a target
vehicle ahead, which is traveling at the same
speed. 54
Adaptive Cruise Control
55 In the following illustration, Road Sign Information (RSI) indicates t\
hat the maximum permitted speed is 130 km/h (80 mph).
56 Note: This illustration is general and details may vary depending on mod\
el.
Page 321 of 697
DRIVER SUPPORT
}}
* Option/accessory. 319
Instrument panelSpeed indicators
57
. Set speed
Speed of the vehicle ahead
The current speed of your vehicle
See "Pilot Assist symbols and messages" for
examples of different combinations of symbols
depending on the traffic situation.
Related information
Pilot Assist and collision warning (p. 319)
Head-up display for Pilot Assist during colli-
sion risks (p. 320)
Activating and starting Pilot Assist (p. 320)
Managing Pilot Assist speed (p. 322)
Setting a time interval for Pilot Assist
(p. 323)
Deactivating/reactivating Pilot Assist
(p. 324)
Passing assistance with Pilot Assist (p. 326)
Starting passing assistance with Pilot Assist
(p. 327)
Passing assistance with Pilot Assist limita-
tions (p. 327)
Switching target vehicles with Pilot Assist
(p. 327)
Auto-hold braking with Pilot Assist (p. 328)
Pilot Assist limitations (p. 329)
Pilot Assist* symbols and messages (p. 330) Pilot Assist and collision warning
Pilot Assist can alert the driver if the distance to
the vehicle ahead suddenly decreases to an
unsafe distance. Collision warning light on the windshield
58
. Audio-visual collision warning
Camera/radar sensor distance monitoring
Pilot Assist uses approx. 40% of the vehicle's
braking capacity. If a situation requires more
braking force than Pilot Assist can provide, and if
the driver does not apply the brakes, a warning
light and audible warning signal will be activated
to alert the driver that immediate action is
required. 57
Note: This illustration is general and details may vary depending on mod\
el.
58 The illustration is generic - details may vary according to vehicle mode\
l.
Page 322 of 697
||DRIVER SUPPORT
* Option/accessory.
320
NOTE Visual warnings on the windshield may be dif-
ficult to notice in cases of strong sunlight,
reflections, extreme light contrasts, or if the
driver is wearing sunglasses or is not looking
straight ahead.
WARNING
Pilot Assist only issues a warning for vehicles
detected by its camera and radar unit – thus,
a warning may come after a delay or not at all.
Never wait for a warning. Apply the
brakes when necessary!
Related information
Pilot Assist (p. 316) Head-up display for Pilot Assist
during collision risks
In vehicles equipped with a head-up display*, a
flashing warning symbol will be displayed on the
windshield. Collision warning symbol on the windshield
59
.
NOTE Visual warnings on the windshield may be dif-
ficult to notice in cases of strong sunlight,
reflections, extreme light contrasts, or if the
driver is wearing sunglasses or is not looking
straight ahead.
Related information
Pilot Assist (p. 316)
Head-up display* (p. 142) Activating and starting Pilot Assist
Pilot Assist must first be activated and then
started before it can help regulate speed and
distance and provide steering assistance.
Note: This illustration is general and details may vary
depending on model.
To start Pilot Assist:
The driver's seat belt must be buckled and
the driver's door must be closed.
There must be a vehicle ahead (target vehi-
cle) within a reasonable distance or your
vehicle's current speed must be at least
15 km/h (9 mph). 59
Note: This illustration is general and details may vary depending on mod\
el.
Page 332 of 697
||DRIVER SUPPORT
* Option/accessory.
330
Steep roads and/or heavy loadsPilot Assist is primarily intended to be driven on
flat roads. The function may not be able to main-
tain the correct time interval to the vehicle ahead
when driving down steep hills. The driver should
be extra attentive and prepared to apply the
brakes.
Do not use Pilot Assist if the vehicle is carry-
ing a heavy load or towing a trailer.
NOTE Pilot Assist cannot be activated if a trailer,
bike carrier or similar is connected to the
vehicle electrical system.
Other limitations
The
Off Road drive mode cannot be
selected when Pilot Assist is activated.
NOTE The function uses the vehicle's combined
camera and radar unit, which has certain gen-
eral limitations; see sections "Camera limita-
tions" and "Radar sensor limitations".
Related information
Pilot Assist (p. 316)
Speed-dependent steering wheel resistance
(p. 278)
Camera limitations (p. 338)
Radar sensor limitations (p. 333) Pilot Assist* symbols and messages
A number of symbols and messages relating to
Pilot Assist may be displayed in the instrument
panel and/or the head-up display*.
Page 335 of 697
DRIVER SUPPORT
}}
333
Radar sensor limitations
The radar sensor used by several of the driver
support functions has certain limitations, which
also affect the functions using the radar sensor.
Obstructed camera The area marked in the illustration must be kept free of
decals, objects, solar film, etc.
65 The radar sensor is located on the upper interior
section of the windshield along with the camera.
CAUTION Do not place, affix or mount anything on the
inside or outside of the windshield, or in front
of or around the camera and radar unit – this
could disrupt camera and radar-based func-
tions.
It could cause functions to be reduced, deac-
tivated completely or produce an incorrect
function response. If this symbol and the message
"
Windscreen sensor Sensor
blocked, see Owner's manual" is
displayed in the instrument panel, it
means that the camera and radar sensor are
unable to detect other vehicles, cyclists, pedes-
trians and large animals in front of the vehicle
and that the vehicle's camera and radar-based
functions may be obstructed, reduced, completely
disabled or providing inaccurate responses. The following table shows some of the situations that can cause the mess\
age to be displayed, and suggested actions:
Cause
Action
The area of the windshield in front of the camera/radar sensor is dirty \
or
covered by ice or snow. Clean the windshield in front of the camera/radar sensor and remove dirt\
, ice
and snow.
Thick fog, heavy rain or snow is blocking the radar signals or the camer\
a's
range of visibility. No action. Heavy precipitation may sometimes prevent the camera/radar se\
nsor
from functioning.65
Note: This illustration is general and details may vary depending on mod\
el.
