Depending on the vehicle equipment level, symbols may be displayed in the instrument cluster
instead of warning lamps.
Some warning and indicator lamps are not available in all markets.
For details on indicator lamps which light up in the light switch, see Chapter Lights ⇒ Lights.
SymbolMeaning
Central warning lamp. Observe the additional information on the
instrument cluster display.
Do not drive on!
The electronic parking brake is switched on ⇒ Electronic parking
brake.
Do not drive on!
Brake fluid level too low or fault in the brake system ⇒ Brake fluid.
Do not drive on!
Coolant level too low ⇒ Engine coolant, engine coolant temperature
too high or fault in the cooling system ⇒ Coolant temperature display.
Do not drive on!
Engine oil pressure too low ⇒ Engine oil.
Flashing: Do not drive on! Fault in the electronic steering column
lock ⇒ Steering.
Lit up: electromechanical steering has failed ⇒ Steering.
Driver or front passenger seat belt not fastened ⇒ Seat belts.
OR: there are objects on the front passenger seat ⇒ Seat belts.
Brake or take evasive action.
Collision warning from area monitoring system (Front Assistyf ⇒ Area
monitoring system (Front Assistyf.
OR: collision warning from Pedestrian Monitoring ⇒ Pedestrian
Monitoring.
Depress the brake pedal. ⇒ DSG dual clutch gearbox, ⇒ Adaptive
Cruise Control (ACCyf.
Fault in the alternator ⇒ 12-volt vehicle battery.
Front brake pads worn. Go to a qualified workshop immediately. All
brake pads should be checked and renewed as necessary
⇒ Information on the brakes.
Central warning lamp. Observe the additional information on the
instrument cluster display.
Electronic Stability Control (ESCyf ⇒ Brake support systems.
Traction control system (TCSyf ⇒ Brake support systems.
OR: off-road driving profile active ⇒ Driving profile selection and
4MOTION Active Control.
Anti-lock brake system faulty or not functioning ⇒ Brake support
systems.
Electronic parking brake fault ⇒ Electronic parking brake.
Rear fog light switched on ⇒ Lights.
Partial or complete failure of the vehicle lighting, excluding cornering
light ⇒ Changing bulbs.
Lit up: there is a fault that affects the exhaust emissions
⇒ Troubleshooting.
Flashing: misfiring, which damages the catalytic converter
⇒ Troubleshooting.
Engine management system fault (Electronic Power Controlyf
⇒ Troubleshooting.
Engine speed limited (protection against overheatingyf
⇒ Troubleshooting.
Lit up: electromechanical steering reduced
OR: the 12-volt battery has been disconnected and reconnected
⇒ Steering.
Flashing: steering column is wound-up or is not unlocked/locked
⇒ Steering.
Lit up: tyre pressure too low ⇒ Tyre monitoring systems.
Flashing: fault in tyre monitoring system ⇒ Tyre monitoring systems.
Fault in the rain/light sensor ⇒ Wipers.
Fault in wipers ⇒ Wipers.
Washer fluid level too low ⇒ Wipers.
Fuel tank almost empty ⇒ Fuel gauge.
Lit up: engine oil level too low ⇒ Engine oil.
Flashing: engine oil system fault ⇒ Engine oil.
®

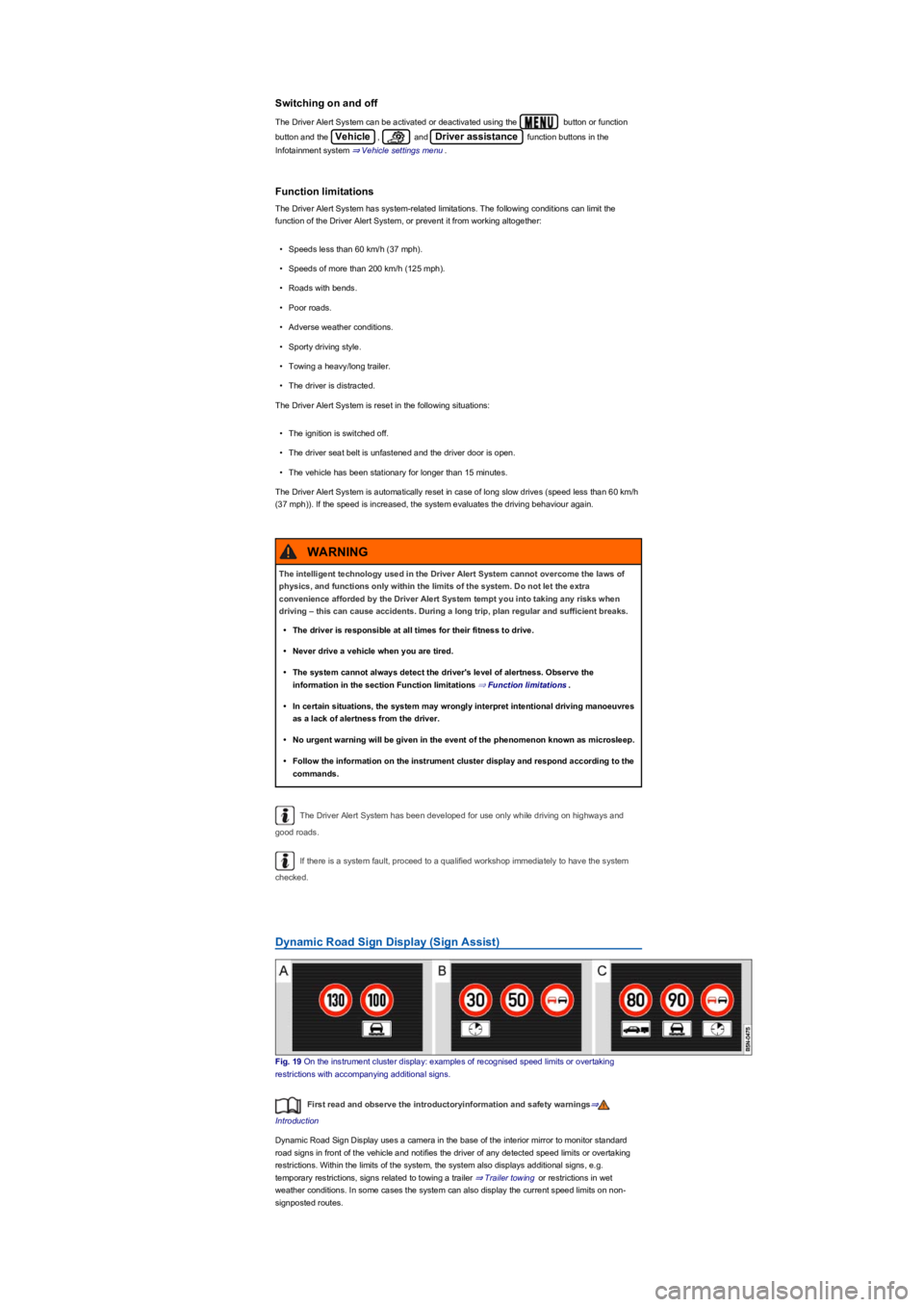

Switching on and off
The Driver Alert System can be activated or deactivated using the button or function
button and the Vehicle, and Driver assistance function buttons in the
Infotainment system ⇒ Vehicle settings menu.
Function limitations
The Driver Alert System has system-related limitations. The following conditions can limit the
function of the Driver Alert System, or prevent it from working altogether:
•Speeds less than 60 km/h (37 mphyf.
•Speeds of more than 200 km/h (125 mphyf.
•Roads with bends.
•Poor roads.
•Adverse weather conditions.
•Sporty driving style.
•Towing a heavy/long trailer.
•The driver is distracted.
The Driver Alert System is reset in the following situations:
•The ignition is switched off.
•The driver seat belt is unfastened and the driver door is open.
•The vehicle has been stationary for longer than 15 minutes.
The Driver Alert System is automatically reset in case of long slow drives (speed less than 60 km/h
(37 mphyf\f. If the speed is increased, the system evaluates the driving behaviour again.
The Driver Alert System has been developed for use only while driving on highways and
good roads.
If there is a system fault, proceed to a qualified workshop immediately to have the system
checked.
Dynamic Road Sign Display (Sign Assistyf
Fig. 19 On the instrument cluster display: examples of recognised speed limits or overtaking
restrictions with accompanying additional signs.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Dynamic Road Sign Display uses a camera in the base of the interior mirror to monitor standard
road signs in front of the vehicle and notifies the driver of any detected speed limits or overtaking
restrictions. Within the limits of the system, the system also displays additional signs, e.g.
temporary restrictions, signs related to towing a trailer ⇒ Trailer towing or restrictions in wet
weather conditions. In some cases the system can also display the current speed limits on non-
signposted routes.
The intelligent technology used in the Driver Alert System cannot overcome the laws of
physics, and functions only within the limits of the system. Do not let the extra
convenience afforded by the Driver Alert System tempt you into taking any risks when
driving – this can cause accidents. During a long trip, plan regular and sufficient breaks.
•The driver is responsible at all times for their fitness to drive.
•Never drive a vehicle when you are tired.
•The system cannot always detect the driver's level of alertness. Observe the
information in the section Function limitations ⇒ Function limitations.
•In certain situations, the system may wrongly interpret intentional driving manoeuvres
as a lack of alertness from the driver.
•No urgent warning will be given in the event of the phenomenon known as microsleep.
•Follow the information on the instrument cluster display and respond according to the
commands.
WARNING

Check that all lights and turn signals are working properly.
Check the tyre pressure and fuel level Wheels and tyres, Fuel types and refuelling.
Ensure that you have a good, clear view through all of the windows.
Air intake to the engine must not be obstructed, and the engine must not be covered with
any kind of insulating materials In the engine compartment.
Secure any objects and luggage in the stowage compartments, the luggage compartment
or on the roof Transporting.
Ensure that you are able to operate the pedals freely at all times.
Secure any children travelling in the vehicle in a restraint system suitable for their weight
and size Safe transport of children.
Adjust the front seats, head restraints and mirrors properly in accordance with the size of
the occupants Sitting position, Mirrors.
Wear shoes that provide good grip for your feet when using the pedals.
The floor mat in the footwell on the driver side must leave the pedal area free and must be
securely fastened.
Assume a correct sitting position before setting off and maintain this position while driving.
This also applies to all passengers Sitting position.
Fasten your seat belt correctly before setting off and keep it properly fastened throughout
the journey. This also applies to all passengers Seat belts.
Each vehicle occupant must sit in a seat of their own and must have their own seat belt.
Never drive if your driving ability is impaired, e.g. by medication, alcohol or drugs.
Do not allow yourself to be distracted from the traffic, e.g. by passengers, telephone calls,
opening menus and making adjustments to settings.
Always adapt your speed and driving style to suit visibility, weather, road and traffic
conditions.
Observe traffic regulations and speed limits.
Take regular breaks when travelling long distances – at least every two hours.
Secure animals in the vehicle using a system that is suitable for their weight and size.
Does the vehicle need any technical modifications for driving abroad, e.g. masking or
switching the headlights over?
Are the necessary tools, diagnostic equipment and spare parts available for service and
repair work?
Are there any Volkswagen dealerships in the destination country?
•Vehicles without Keyless Access: vehicle key used to unlock the vehicle.
•Vehicles with Keyless Access: vehicle key that is identified first by the personalisation function
upon opening the driver door.
Personalised vehicle setup
The vehicle equipment and functions that can be personalised include the following:
•Open and close (single door unlocking, window convenience opening etc.yf
•Light and vision (daytime running lights, cornering light, convenience turn signal etc.yf
•Air conditioning system (temperature settings, ventilation etc.yf
•Assistance systems (Park Distance Control, ACC, Dynamic Road Sign Display etc.yf
•Driver profile selection (driver profiles etc.yf
•Multifunction display and instrument cluster (selection of displaysyf
•Infotainment system (brightness and saved stationsyf
•Seat setup (seat positionyf
A new vehicle key will be assigned to the current user account. To assign the vehicle key to
a different user account, select the user account you want and manually assign it to the vehicle key.
Safety
General notes
Checklist
Observe the following information both before and during every journey to ensure your own
safety, and the safety of all passengers and other road users ⇒:
Checklist
In some countries, special safety standards and emissions-related regulations apply that the
vehicle may not comply with. Volkswagen recommends that you visit your Volkswagen
dealership before travelling abroad to find out about any legal requirements and the
following issues at your destination:

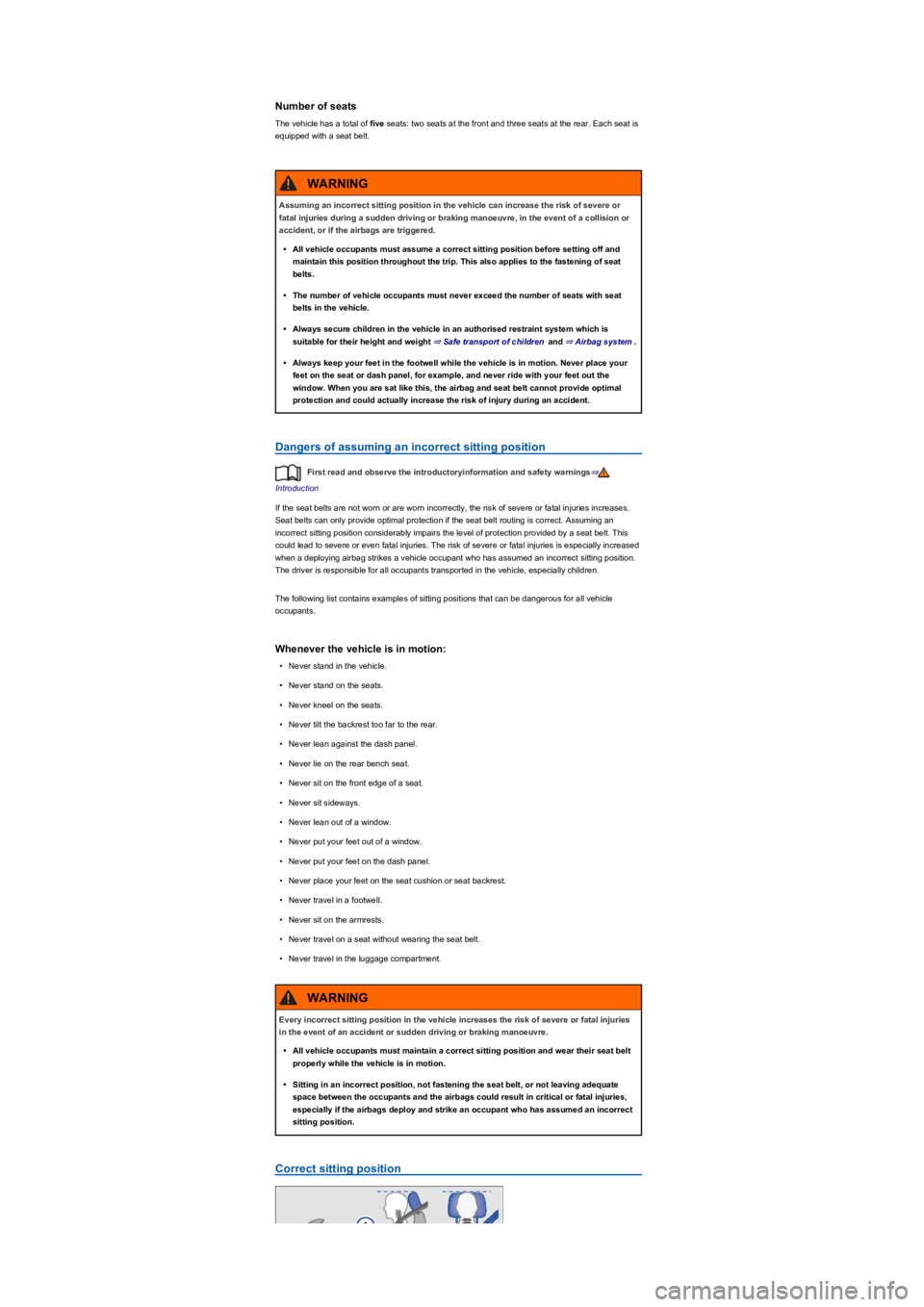

Number of seats
The vehicle has a total of five seats: two seats at the front and three seats at the rear. Each seat is
equipped with a seat belt.
Dangers of assuming an incorrect sitting position
First read and observe the introductoryinformation and safety warnings⇒
Introduction
If the seat belts are not worn or are worn incorrectly, the risk of severe or fatal injuries increases.
Seat belts can only provide optimal protection if the seat belt routing is correct. Assuming an
incorrect sitting position considerably impairs the level of protection provided by a seat belt. This
could lead to severe or even fatal injuries. The risk of severe or fatal injuries is especially increased
when a deploying airbag strikes a vehicle occupant who has assumed an incorrect sitting position.
The driver is responsible for all occupants transported in the vehicle, especially children.
The following list contains examples of sitting positions that can be dangerous for all vehicle
occupants.
Whenever the vehicle is in motion:
•Never stand in the vehicle.
•Never stand on the seats.
•Never kneel on the seats.
•Never tilt the backrest too far to the rear.
•Never lean against the dash panel.
•Never lie on the rear bench seat.
•Never sit on the front edge of a seat.
•Never sit sideways.
•Never lean out of a window.
•Never put your feet out of a window.
•Never put your feet on the dash panel.
•Never place your feet on the seat cushion or seat backrest.
•Never travel in a footwell.
•Never sit on the armrests.
•Never travel on a seat without wearing the seat belt.
•Never travel in the luggage compartment.
Correct sitting position
Assuming an incorrect sitting position in the vehicle can increase the risk of severe or
fatal injuries during a sudden driving or braking manoeuvre, in the event of a collision or
accident, or if the airbags are triggered.
•All vehicle occupants must assume a correct sitting position before setting off and
maintain this position throughout the trip. This also applies to the fastening of seat
belts.
•The number of vehicle occupants must never exceed the number of seats with seat
belts in the vehicle.
•Always secure children in the vehicle in an authorised restraint system which is
suitable for their height and weight ⇒ Safe transport of children and ⇒ Airbag system.
•Always keep your feet in the footwell while the vehicle is in motion. Never place your
feet on the seat or dash panel, for example, and never ride with your feet out the
window. When you are sat like this, the airbag and seat belt cannot provide optimal
protection and could actually increase the risk of injury during an accident.
WARNING
Every incorrect sitting position in the vehicle increases the risk of severe or fatal injuries
in the event of an accident or sudden driving or braking manoeuvre.
•All vehicle occupants must maintain a correct sitting position and wear their seat belt
properly while the vehicle is in motion.
•Sitting in an incorrect position, not fastening the seat belt, or not leaving adequate
space between the occupants and the airbags could result in critical or fatal injuries,
especially if the airbags deploy and strike an occupant who has assumed an incorrect
sitting position.
WARNING

Fig. 30 Illustration: correct distance between the driver and the steering wheel, correct seat belt
routing and correct head restraint adjustment.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The following details the correct sitting positions for the driver and passengers.
If any vehicle occupants cannot assume a correct sitting position due to their physical build, they
should contact a qualified workshop to find out about possible special modifications. The seat belts
and airbags can only provide a maximum level of protection if a correct sitting position is assumed.
Volkswagen recommends using a Volkswagen dealership for this purpose.
Volkswagen recommends the following seating position for your own safety and to reduce the level
of injury in the event of a sudden braking manoeuvre or an accident:
The following applies to all vehicle occupants:
•Adjust the head restraint so that its upper edge is at the same height as the top of the head, but
not lower than eye level. Position the back of your head as close to the head restraint as
possible ⇒ Fig. 30.
•For small people, push the head restraint all the way down, even if the head is then located
underneath the top edge of the head restraint.
•For taller people, push the head restraint up as far as it will go.
•Keep both feet in the footwell while the vehicle is in motion.
•Adjust and fasten seat belts properly ⇒ Seat belts.
Additional points for the driver:
•In vehicles with head restraints that can be moved backwards and forwards, position the head
restraint as close as possible to the back of your head.
•Move the backrest into an upright position so that your back rests fully against it.
•Adjust the steering wheel so that the distance between the steering wheel and your breastbone
is at least 25 cm ⇒ Fig. 30Ⓐ, and the circumference of the steering wheel can be held at the
sides with both hands and your arms slightly bent ⇒ Steering wheel.
•The steering wheel must always point towards the breastbone and not towards the face.
•Adjust the driver seat by moving it forwards or backwards so that you are able to press the
pedals to the floor with your knees still slightly bent and so that the distance from the dash
panel to your knees is at least 10 cm ⇒ Fig. 30Ⓑ.
•Adjust the height so that you can reach the highest point of the steering wheel.
•Always leave both feet in the footwell, to help ensure you maintain control of the vehicle at all
times.
Additional points for the front passenger:
•In vehicles with head restraints that can be moved backwards and forwards, position the head
restraint as close as possible to the back of your head.
•Move the backrest into an upright position so that your back rests fully against it.
•Push the front passenger seat as far back as possible so that the airbag can provide maximum
protection if it is deployed.
Seat belts
Introduction
This chapter contains information on the followingsubjects:
⇒ Warning lamp
⇒ Frontal collisions and the laws of physics
⇒ What happens to vehicle occupants who have not fastened their seat belts
⇒ Seat belt protection
⇒ Using seat belts
⇒ Fastening and unfastening seat belts
⇒ Seat belt routing
⇒ Seat belt height adjuster
⇒ Belt retractor, belt tensioner, belt tension limiter
⇒ Service and disposal of belt tensioners
⇒ Proactive occupant protection system
Check the condition of all seat belts regularly. If the belt webbing, belt connections, belt retractor or
seat belt buckle become damaged, the seat belt in question should be replaced immediately by a
qualified workshop ⇒. The qualified workshop must use correct spare parts that are compatible
with the vehicle, equipment level and model year. Volkswagen recommends using a Volkswagen
dealership for this purpose.

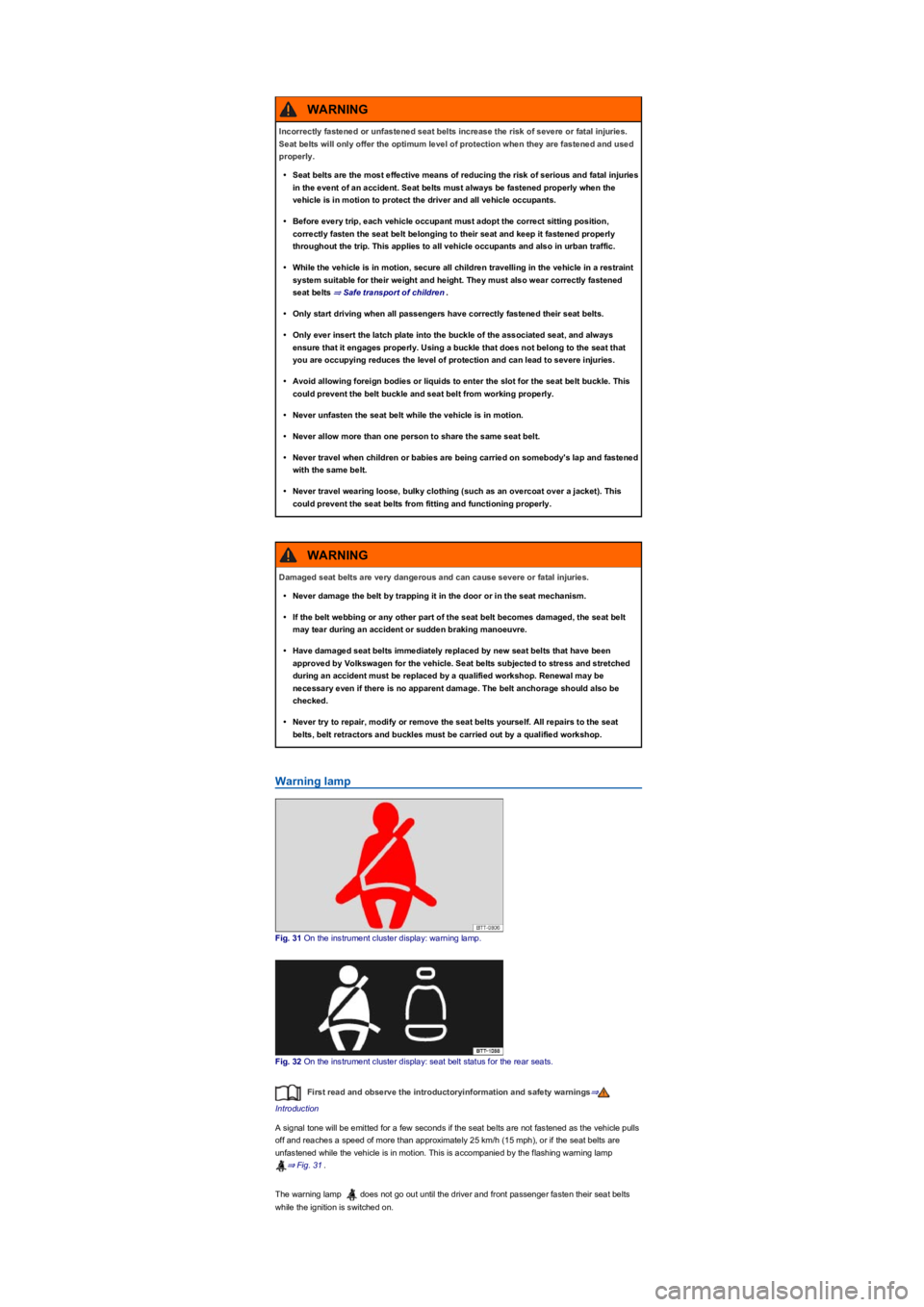

Warning lamp
Fig. 31 On the instrument cluster display: warning lamp.
Fig. 32 On the instrument cluster display: seat belt status for the rear seats.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
A signal tone will be emitted for a few seconds if the seat belts are not fastened as the vehicle pulls
off and reaches a speed of more than approximately 25 km/h (15 mphyfRULIWKHVHDWEHOWVDUH
unfastened while the vehicle is in motion. This is accompanied by the flashing warning lamp
⇒ Fig. 31.
The warning lamp does not go out until the driver and front passenger fasten their seat belts
while the ignition is switched on.
Incorrectly fastened or unfastened seat belts increase the risk of severe or fatal injuries.
Seat belts will only offer the optimum level of protection when they are fastened and used
properly.
•Seat belts are the most effective means of reducing the risk of serious and fatal injuries
in the event of an accident. Seat belts must always be fastened properly when the
vehicle is in motion to protect the driver and all vehicle occupants.
•Before every trip, each vehicle occupant must adopt the correct sitting position,
correctly fasten the seat belt belonging to their seat and keep it fastened properly
throughout the trip. This applies to all vehicle occupants and also in urban traffic.
•While the vehicle is in motion, secure all children travelling in the vehicle in a restraint
system suitable for their weight and height. They must also wear correctly fastened
seat belts ⇒ Safe transport of children.
•Only start driving when all passengers have correctly fastened their seat belts.
•Only ever insert the latch plate into the buckle of the associated seat, and always
ensure that it engages properly. Using a buckle that does not belong to the seat that
you are occupying reduces the level of protection and can lead to severe injuries.
•Avoid allowing foreign bodies or liquids to enter the slot for the seat belt buckle. This
could prevent the belt buckle and seat belt from working properly.
•Never unfasten the seat belt while the vehicle is in motion.
•Never allow more than one person to share the same seat belt.
•Never travel when children or babies are being carried on somebody's lap and fastened
with the same belt.
•Never travel wearing loose, bulky clothing (such as an overcoat over a jacketyf7KLV
could prevent the seat belts from fitting and functioning properly.
WARNING
Damaged seat belts are very dangerous and can cause severe or fatal injuries.
•Never damage the belt by trapping it in the door or in the seat mechanism.
•If the belt webbing or any other part of the seat belt becomes damaged, the seat belt
may tear during an accident or sudden braking manoeuvre.
•Have damaged seat belts immediately replaced by new seat belts that have been
approved by Volkswagen for the vehicle. Seat belts subjected to stress and stretched
during an accident must be replaced by a qualified workshop. Renewal may be
necessary even if there is no apparent damage. The belt anchorage should also be
checked.
•Never try to repair, modify or remove the seat belts yourself. All repairs to the seat
belts, belt retractors and buckles must be carried out by a qualified workshop.
WARNING

Belt status display for the rear seats
After the ignition has been switched on, the belt status display ⇒ Fig. 32 on the instrument cluster
display shows the driver whether the rear seat passengers have fastened their seat belts. The
symbol indicates that the passenger on this seat has fastened their seat belt. The symbol
indicates that the seatbelt has not been fastened.
The belt status display will be shown for approximately 30 seconds if a seat belt is fastened or
unfastened on the rear seats. The display can be hidden by pressing the button in the
instrument cluster.
If a seat belt for one of the rear seats is unfastened while the vehicle is in motion, the belt status
display will flash for a maximum of 30 seconds. If the vehicle is travelling faster than approximately
25 km/h (15 mphyfDVLJQDOWRQHZLOODOVRVRXQG.
Frontal collisions and the laws of physics
Fig. 33 Unbelted occupants in a vehicle heading for a brick wall.
Fig. 34 Unbelted occupants in a vehicle striking a brick wall.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The physical principles involved in a frontal collision are relatively simple. As soon as the vehicle is
in motion ⇒ Fig. 33, both the moving vehicle and its passengers gain kinetic energy.
The higher the vehicle speed and the heavier the weight of the vehicle, the greater the amount of
energy that will have to be released in the event of an accident.
However, the most significant factor is the speed of the vehicle. For example, if the speed doubles
from 25 km/h to 50 km/h (15 mph to 31 mphyfWKHNLQHWLFHQHUJ\LQFUHDVHVE\DIDFWRURIIRXU.
The amount of kinetic energy depends on the speed of the vehicle and the weight of the vehicle
and passengers. The higher the speed and the heavier the weight, the greater the amount of
energy that will be released in the event of an accident.
Passengers not wearing seat belts are not connected to the vehicle. In the event of a frontal
collision they will continue to move forwards at the same speed at which the vehicle was travelling
before impact, until something stops them. Because the passengers in our example are not
restrained by seat belts, the entire amount of kinetic energy will be released only at the point of
impact against the wall ⇒ Fig. 34.
Even at speeds of approximately 30 km/h (19 mphyfWRDSSUR[LPDWHO\NPKPSK\f, the forces
acting on bodies in a collision can easily exceed one tonne (1,000 kgyf7KHVHIRUFHVDUHHYHQ
greater at higher speeds.
This example applies not only to frontal collisions, but to all accidents and collisions.
What happens to vehicle occupants who have not fastened their
seat belts
Incorrectly fastened or unfastened seat belts increase the risk of severe or fatal injuries.
Seat belts will only offer the optimum level of protection when they are fastened and used
properly.
WARNING

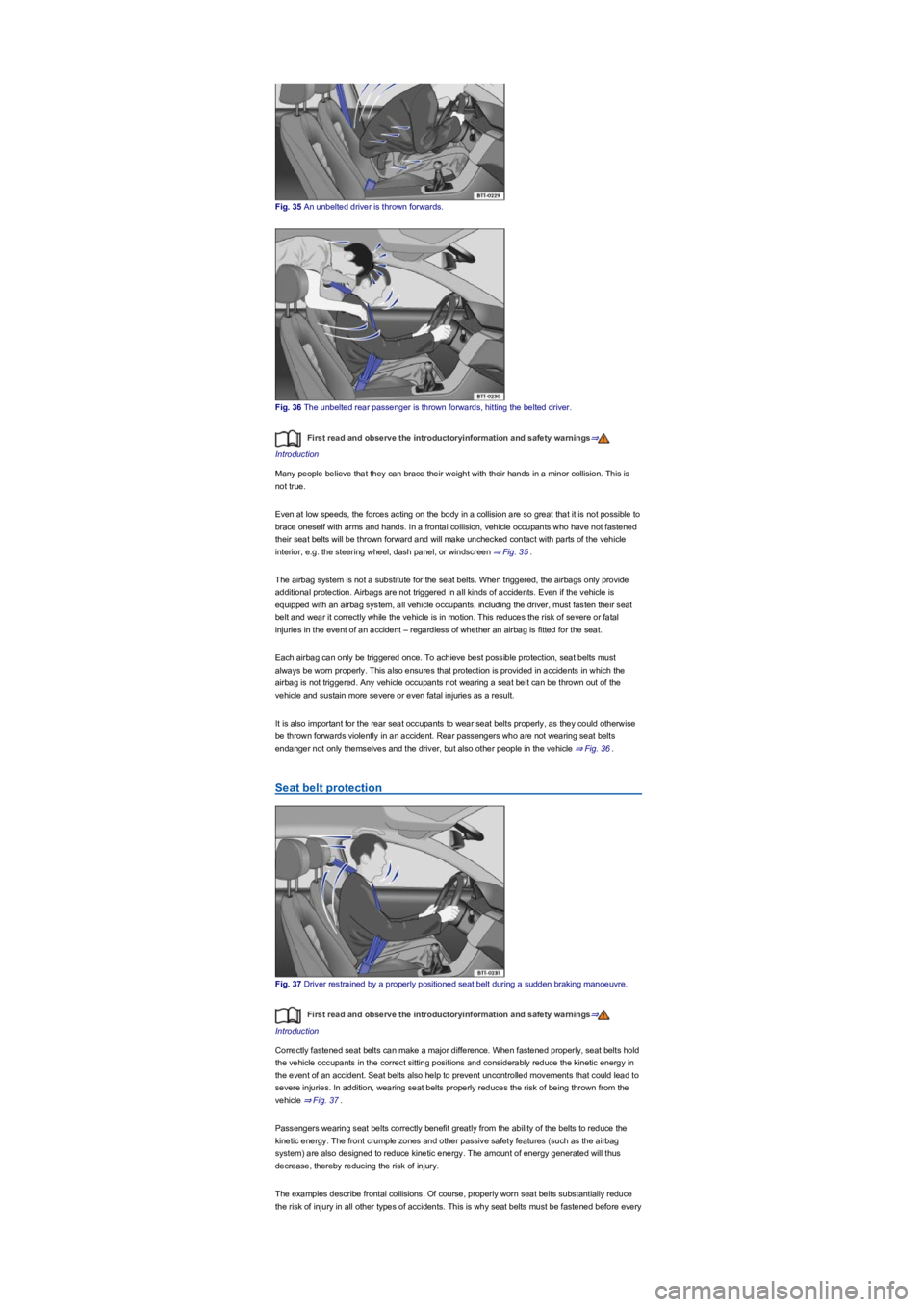

Fig. 35 An unbelted driver is thrown forwards.
Fig. 36 The unbelted rear passenger is thrown forwards, hitting the belted driver.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Many people believe that they can brace their weight with their hands in a minor collision. This is
not true.
Even at low speeds, the forces acting on the body in a collision are so great that it is not possible to
brace oneself with arms and hands. In a frontal collision, vehicle occupants who have not fastened
their seat belts will be thrown forward and will make unchecked contact with parts of the vehicle
interior, e.g. the steering wheel, dash panel, or windscreen ⇒ Fig. 35.
The airbag system is not a substitute for the seat belts. When triggered, the airbags only provide
additional protection. Airbags are not triggered in all kinds of accidents. Even if the vehicle is
equipped with an airbag system, all vehicle occupants, including the driver, must fasten their seat
belt and wear it correctly while the vehicle is in motion. This reduces the risk of severe or fatal
injuries in the event of an accident – regardless of whether an airbag is fitted for the seat.
Each airbag can only be triggered once. To achieve best possible protection, seat belts must
always be worn properly. This also ensures that protection is provided in accidents in which the
airbag is not triggered. Any vehicle occupants not wearing a seat belt can be thrown out of the
vehicle and sustain more severe or even fatal injuries as a result.
It is also important for the rear seat occupants to wear seat belts properly, as they could otherwise
be thrown forwards violently in an accident. Rear passengers who are not wearing seat belts
endanger not only themselves and the driver, but also other people in the vehicle ⇒ Fig. 36.
Seat belt protection
Fig. 37 Driver restrained by a properly positioned seat belt during a sudden braking manoeuvre.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Correctly fastened seat belts can make a major difference. When fastened properly, seat belts hold
the vehicle occupants in the correct sitting positions and considerably reduce the kinetic energy in
the event of an accident. Seat belts also help to prevent uncontrolled movements that could lead to
severe injuries. In addition, wearing seat belts properly reduces the risk of being thrown from the
vehicle ⇒ Fig. 37.
Passengers wearing seat belts correctly benefit greatly from the ability of the belts to reduce the
kinetic energy. The front crumple zones and other passive safety features (such as the airbag
systemyfDUHDOVRGHVLJQHGWRUHGXFHNLQHWLFHQHUJ\7KHDPRXQWRIHQHUJ\JHQHUDWHGZLOOWKXV
decrease, thereby reducing the risk of injury.
The examples describe frontal collisions. Of course, properly worn seat belts substantially reduce
the risk of injury in all other types of accidents. This is why seat belts must be fastened before every
