Keys, doors and windows39Exterior mirrors
Convex shape
The convex exterior mirror contains
an aspherical area and reduces blind spots. The shape of the mirror makes objects appear smaller, which will
affect the ability to estimate
distances.

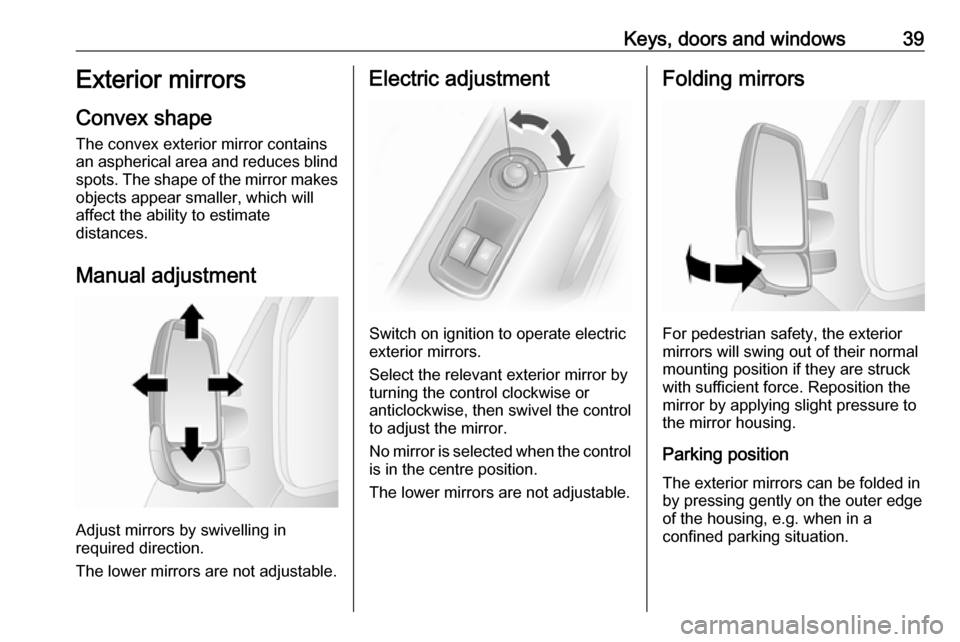

Manual adjustment
Adjust mirrors by swivelling in
required direction.
The lower mirrors are not adjustable.
Electric adjustment
Switch on ignition to operate electric
exterior mirrors.
Select the relevant exterior mirror by turning the control clockwise or
anticlockwise, then swivel the control
to adjust the mirror.
No mirror is selected when the control is in the centre position.
The lower mirrors are not adjustable.
Folding mirrors
For pedestrian safety, the exterior
mirrors will swing out of their normal
mounting position if they are struck
with sufficient force. Reposition the mirror by applying slight pressure tothe mirror housing.
Parking position
The exterior mirrors can be folded in
by pressing gently on the outer edge
of the housing, e.g. when in a
confined parking situation.

40Keys, doors and windowsHeated mirrors
Operated by pressing Ü on either
system. LED illuminates in button
during operation.
Heating works with the engine
running and is switched off
automatically after a short time.
Climate control system 3 118.
Electronic climate control system 3 120.Interior mirrors
Manual anti-dazzle
To reduce dazzle, adjust the lever on the underside of the mirror housing.

Keys, doors and windows41Wide view mirror
Depending on vehicle, a large convexmirror is located in the front
passenger sun visor which helps to
increase visibility and reduce blind
spots.
Windows
Windscreen
Windscreen stickers
Do not attach stickers, e.g. toll road
stickers or similar, on the windscreen
in the area of the interior mirror.
Otherwise the detection zone of the
sensor in the mirror housing could be restricted.
Windscreen replacementCaution
If the vehicle has a front-looking
camera sensor for the driver
assistance systems, it is very
important that any windscreen
replacement is performed
accurately according to Vauxhall
specifications. Otherwise, these systems may not work properly
and there is a risk of unexpected
behaviour and / or messages from these systems.
Manual windows
The door windows can be opened or
closed with the window cranks.
Power windows9 Warning
Take care when operating the
power windows. Risk of injury,
particularly to children.
Keep a close watch on the
windows when closing them.
Ensure that nothing becomes
trapped in them as they move.
Switch on ignition to operate power
windows.

42Keys, doors and windows
Operate the switch for the respective
window by pushing to open or pulling to close.
For vehicles with automatic opening
feature for the driver's door window:
When opening, operate the switch
again to stop window movement.
In the event of closing difficulties due
to frost or the like, operate the switch
several times to close the window in
stages.
Overload If the windows are repeatedly
operated within short intervals, the
window operation is disabled for
some time.
Rear windows
Sliding side windows
Press catch and slide window to
open. Ensure catch engages when
closing.
Press catch and slide window to
open. Ensure catch engages when
closing.
Opening side windows

Keys, doors and windows43Pull handle to open window.Notice
Depending on vehicle, some
windows may not open fully.
Emergency exit
To provide an emergency exit from
the vehicle, use hammer 1 to strike
glass 2.
Depending on version, emergency
exit may be via the roof glass panel
3 44.
Rear reversing lens
A rear reversing lens may be fitted to
the rear window.
The rear reversing lens assists the
driver when reversing by reducing
blind spots.
Heated rear window
Operated by pressing Ü on either
system. LED illuminates in button
during operation.

44Keys, doors and windowsHeating works with the engine
running and is switched off
automatically after a short time.
Climate control system 3 118.
Electronic climate control system 3 120.
Sun visors
The sun visors can be folded down or
swivelled to the side to prevent
dazzling.
If the sun visors have integral mirrors, the mirror covers should be closed
when driving.
Sun visors may also feature a holder
for parking tickets etc.
Wide view mirror 3 40.Roof
Glass panel
Depending on model variant, the load compartment may incorporate a
single or a double glass roof panel.
Emergency exit
In an emergency, the glass can be
broken. Use the hammer provided to strike the glass panel.
Depending on version, emergency
exit may alternatively be via the side
windows 3 42.

Seats, restraints45Seats, restraintsHead restraints............................ 45
Front seats ................................... 46
Seat position .............................. 46
Seat adjustment ........................47
Armrest ...................................... 51
Heating ...................................... 52
Rear seats ................................... 52
Seat belts ..................................... 55
Three-point seat belt .................56
Airbag system .............................. 59
Front airbag system ...................62
Side airbag system ....................63
Airbag deactivation ....................63
Child restraints ............................. 65
Child restraint systems ..............65
Child restraint installation locations ................................... 68Head restraints
Position9 Warning
Only drive with the head restraint
set to the proper position.
The upper edge of the head restraint
should be at upper head level. If this
is not possible for extremely tall
people, set to highest position, and
set to lowest position for small people.
Adjustment
Pull up to raise or press button and
lower head restraint. Ensure the head restraint engages.

46Seats, restraintsDepending on version, head
restraints can also be tilted forwards
or backwards. Push or pull the lower
part of the head restraint to adjust.
Notice
Approved accessories may only be
attached to the front passenger seat head restraint if the seat is not in use.
Removal
E.g. when using a child restraint
system 3 65.
First tilt the backrest forwards, then
pull up head restraint to uppermost
position. Press both release buttons
and pull the head restraint upwards to remove.
Stow head restraints securely in load
compartment.
Do not drive with head restraints
removed if the seat is occupied.
Installation First tilt the backrest forwards, then
insert the rods of the head restraint into their holes.
Lower head restraint as far as
possible, then raise head restraint (press both release buttons first, if
necessary) until it engages securely
in desired position.Front seats
Seat position9 Warning
Only drive with the seat correctly
adjusted.
9 Danger
Do not sit closer than 25 cm to the
steering wheel, to permit safe
airbag deployment.
9 Warning
Never adjust seats while driving as
they could move uncontrollably.
9 Warning
Never store any loose objects
under the seats.
Underseat storage, storage box 3 76.
