2019 VAUXHALL CORSA F Owner's Manual

In brief7Seat adjustmentLongitudinal adjustment
Pull handle, slide seat, release
handle. Try to move the seat back and forth to ensure that the seat is locked
in place.
Seat position 3 33.
Seat adjustment 3 34.
Backrest inclination
Turn handwheel. Do not lean on
backrest while adjusting.
Seat position 3 33.
Seat adjustment 3 34.
Seat folding 3 35.
Sport seat 3 35.
Seat height
Lever pumping motion
up:seat higherdown:seat lower
Seat position 3 33.
Seat adjustment 3 34.

8In briefHead restraint adjustment
Press release button, adjust height,
engage.
Head restraints 3 32.
Seat belt
Pull out the seat belt and fasten in belt
buckle. The seat belt must not be
twisted and must fit close against the
body. The backrest must not be tilted back too far (maximum approx. 25°).
To unfasten belt, press red button on belt buckle.
Seat position 3 33.
Seat belts 3 37.
Airbag system 3 40.
Mirror adjustment
Interior mirror
To adjust the mirror, move the mirror
housing in the desired direction.
Manual anti-dazzle interior mirror
3 28.
Automatic anti-dazzle interior mirror 3 28.

In brief9Exterior mirrors
Select the relevant exterior mirror with
the rocker switch and adjust the
mirror with the control :.
Convex exterior mirrors 3 27.
Electric adjustment 3 27.
Folding exterior mirrors 3 27.
Heated exterior mirrors 3 28.
Steering wheel adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless the vehicle is stationary and the steering wheel lock has been
released.
Airbag system 3 40.
Ignition positions 3 118.

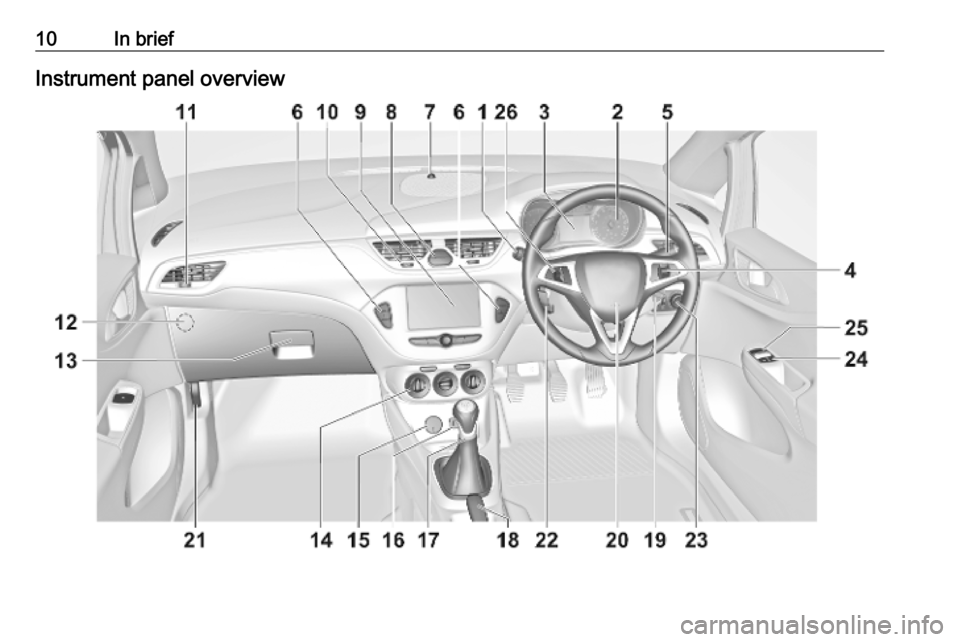

10In briefInstrument panel overview

In brief111Turn lights, headlight
flash, low beam and high
beam ................................... 102
Exit lighting ......................... 106
Parking lights ...................... 103
Buttons for Driver
Information Centre ................81
2 Instruments .......................... 69
3 Driver Information Centre ...... 81
4 Infotainment controls ...........62
5 Windscreen wiper,
windscreen washer
system, rear window
wiper, rear window washer system ................................... 63
6 Central locking system ..........21
City mode ............................ 132
Fuel selector ......................... 71
Eco button for stop-start
system ................................. 120
Traction Control system .....131
Electronic Stability Control . 131
Parking assist ..................... 139
Lane departure warning ........62Seat heating .......................... 36
Heated steering wheel ..........62
7 Anti-theft alarm system
status LED ........................... 25
8 Hazard warning flashers ....102
Control indicator for airbag
deactivation .......................... 77
Control indicator for front passenger seat belt .............76
9 Info Display .......................... 86
10 Centre air vents .................. 115
11 Side air vents, passenger
side ..................................... 115
12 Airbag deactivation ..............45
13 Glovebox .............................. 53
14 Climate control system ........ 108
15 Power outlet .......................... 67
16 USB input .............................. 10
17 Selector lever ...................... 125
18 Parking brake ......................130
19 Ignition switch with
steering wheel lock ............118
20 Horn ..................................... 63
Driver airbag ........................ 4321Bonnet release lever ..........156
22 Steering wheel adjustment ..62
23 Light switch .......................... 98
Headlight range
adjustment ......................... 100
Rear fog light ...................... 103
Front fog lights ....................102
Brightness of instrument
panel illumination ................104
Fuse box ............................ 174
24 Power windows .....................29
25 Exterior mirrors .....................27
26 Cruise control .....................133
Speed limiter ...................... 135
Forward collision alert ........136

12In briefExterior lighting
Light switch
Turn light switch:
7:lights off8:sidelights9:headlights
Light switch 3 98.
Light switch with automatic light
controlAUTO:automatic light control:
exterior lighting is switched
on and off automaticallym:activation or deactivation of
the automatic light control8:sidelights9:headlights
Automatic light control 3 99.
Headlight flash, high beam and
low beamheadlight flash:pull stalkhigh beam:push stalklow beam:push or pull stalk
High beam 3 100.
Headlight flash 3 100.

In brief13Turn lightsstalk up:right turn lightstalk down:left turn light
Turn lights 3 102.
Parking lights 3 103.
Hazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 102.
Horn
Press j.

14In briefWasher and wiper systems
Windscreen wiperHI:fastLO:slowINT:interval wiping
or
automatic wiping with rain
sensorOFF:off
For single wipe when the wiper is off,
press lever down to position 1x.
Windscreen wiper 3 63.
Windscreen washer
Pull lever.
Windscreen washer system 3 63.
Washer fluid 3 159.
Wiper blade replacement 3 162.
Rear window wiper
Press the rocker switch to activate the
rear window wiper:
ON:continuous operationOFF:offINT:intermittent operation
