1041-3. Theft deterrent system
YARIS_F_OM_Europe_OM52A54E
Double locking system
Vehicles employing this system
have labels on the window glass
of both front doors.
Turn the engine switch to the “LOCK” position (vehicles without a
smart entry & start system) or off (vehicles with a smart entry & start
system), have all the passengers exit the vehicle and ensure that all
the doors are closed.
Using the entry function (vehicles with a smart entry & start system):
Touch the sensor area on the outside door handle twice within 5 sec-
onds.
Using the wireless remote control:
Press twice within 5 seconds.
: If equipped
Unauthorized access to the vehicle is prevented by disabling the
door unlocking function from both the interior and exterior of
the vehicle.
Setting the double locking system

1051-3. Theft deterrent system
1
For safety and security
YARIS_F_OM_Europe_OM52A54E
Using the entry function (vehicles with a smart entry & start system):
Hold either front outside door handle or push up the back door opener
switch.
Using the wireless remote control:
Press .
Canceling the double locking system
WARNING
■ Double locking system precaution
Never activate the double locking system when there are people in the vehi-
cle because all the doors cannot be opened from inside the vehicle.

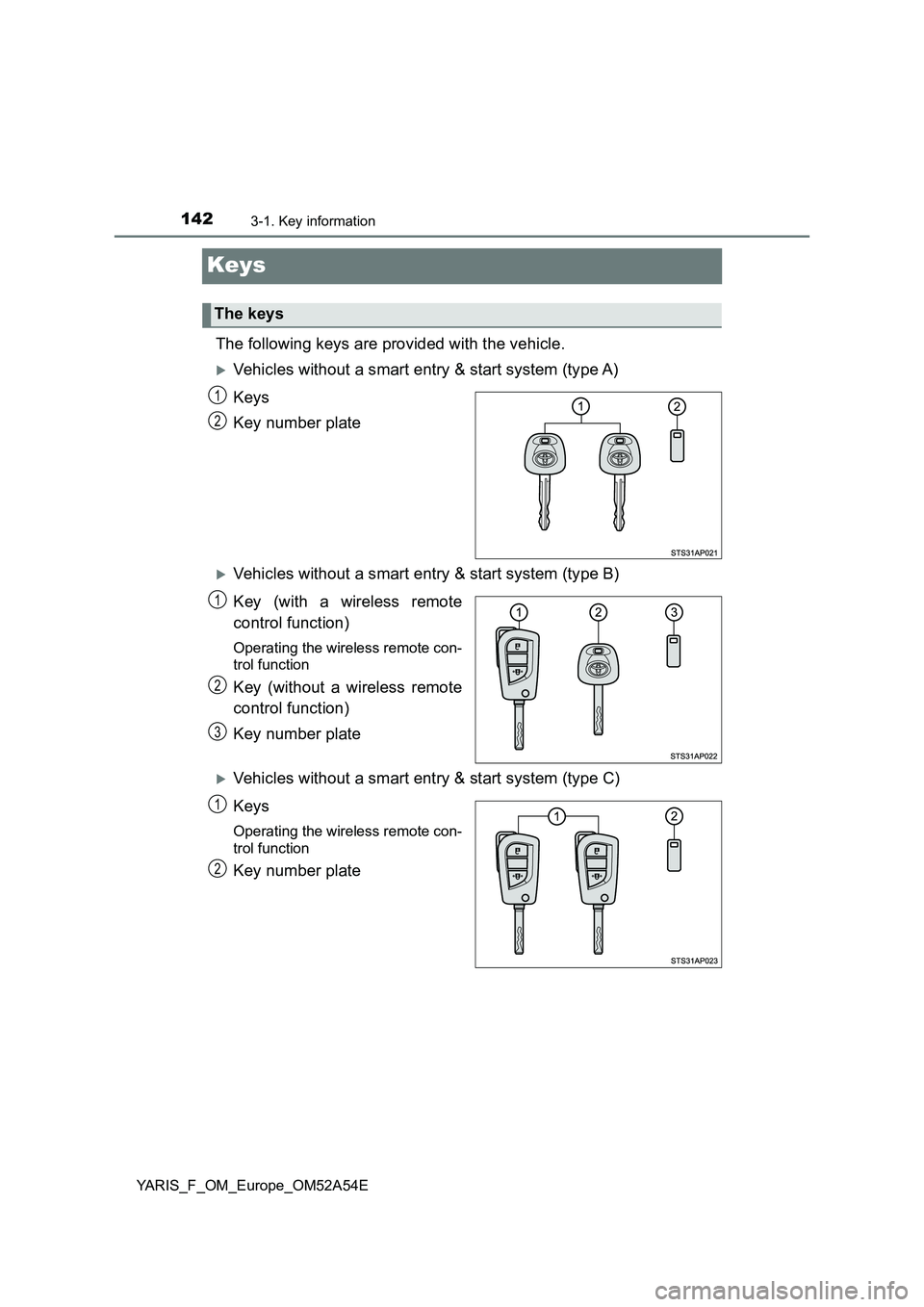

1423-1. Key information
YARIS_F_OM_Europe_OM52A54E
Keys
The following keys are provided with the vehicle.
Vehicles without a smart entry & start system (type A)
Keys
Key number plate
Vehicles without a smart entry & start system (type B)
Key (with a wireless remote
control function)
Operating the wireless remote con-
trol function
Key (without a wireless remote
control function)
Key number plate
Vehicles without a smart entry & start system (type C)
Keys
Operating the wireless remote con-
trol function
Key number plate
The keys
1
2
1
2
3
1
2

1433-1. Key information
3
Operation of each component
YARIS_F_OM_Europe_OM52A54E
Vehicles with a smart entry & start system
Electronic keys
• Operating the smart entry &
start system ( P. 167)
• Operating the wireless remote
control function
Mechanical keys
Key number plate
Vehicles without a smart entry & start system
Locks all the doors (P. 155)
Check that the door is securely
locked.
Unlocks all the doors (P. 155)
Vehicles with a smart entry & start system
Locks all the doors (P. 155)
Check that the door is securely
locked.
Unlocks all the doors ( P. 155)
1
2
3
Wireless remote control
1
2
1
2

1453-1. Key information
3
Operation of each component
YARIS_F_OM_Europe_OM52A54E
■If you lose your keys
New genuine keys can be made by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer using the other key and the key
number stamped on your key number plate. Keep the plate in a safe place
such as your wallet, not in the vehicle.
■When riding in an aircraft
When bringing a key with wireless remote control function onto an aircraft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying a key in your bag etc., ensure that the buttons are
not likely to be pressed accidentally. Pressing a button may cause the key to
emit radio waves that could interfere with the operation of the aircraft.
■Conditions affecting operation of the smart entry & start system or wire-
less remote control
Vehicles without a smart entry & start system
The wireless remote control function may not operate normally in the follow-
ing situations:
●When the wireless key battery is depleted
●Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise
●When carrying a portable radio, cellular phone or other wireless communi-
cation devices
●When the wireless key is in contact with, or is covered by a metallic object
●When other wireless keys (that emit radio waves) are being used nearby
●If window tint with a metallic content or metallic objects are attached to the
rear window
Vehicles with a smart entry & start system
P. 170

1463-1. Key information
YARIS_F_OM_Europe_OM52A54E■Key battery depletion
Vehicles without a smart entry & start system
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. (P. 537)
Vehicles with a smart entry & start system
●The standard battery life is 1 to 2 years.
●If the battery becomes low, an alarm will sound in the cabin when the engine
stops. (P. 591)
●As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace the battery
when necessary. (P. 537)
• The smart entry & start system or the wireless remote control does not
operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
●To avoid serious deterioration, do not leave the electronic key within 1 m
(3 ft.) of the following electrical appliances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Induction cookers
• Table lamps
■Replacing the battery
P. 537
■Confirmation of the registered key number (vehicles with a smart entry &
start system)
The number of keys already registered to the vehicle can be confirmed. Ask
any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer for details.
■If a wrong key is used
On some models, the key cylinder rotates freely to isolate inside mechanism.
■Customization
Settings (e.g. wireless remote control system) can be changed.
(Customizable features: P. 669)

1473-1. Key information
3
Operation of each component
YARIS_F_OM_Europe_OM52A54E■Certification for the wireless remote control (vehicles without a smart
entry & start system)

1543-2. Opening, closing and locking the doors
YARIS_F_OM_Europe_OM52A54E
Side doors
◆Entry function (vehicles with a smart entry & start system)
Carry the electronic key to enable this function.
Grip the front door handle to
unlock all the doors.
Make sure to touch the sensor
on the back of the handle.
The doors cannot be unlocked
for 3 seconds after the doors are
locked.
Touch the lock sensor (the
indentation on the side of the
front door handle) to lock all
the doors.
Check that the door is securely
locked.
The vehicle can be locked and unlocked using the entry func-
tion, wireless remote control, key or door lock switch.
Unlocking and locking the doors from the outside
1
2
