2019 TOYOTA TACOMA Accessories, Audio & Navigation (in English)

113
3. MEDIA OPERATION
AUDIO SYSTEM
3
Select to set random playback.
Select to display the play mode selection screen. To return to the top screen, select “Now Playing” on the list screen.
Select to display the port able device connection screen.
Displays cover art.
 Select to display a track list.
Press to select a track.
 Press and hold to fast forward/rewind.
Turn to select a track.
 Turn to move up/down the list. Also, the knob can be used to en ter selections on the
list screens by pressing it.
 Turn to adjust volume.
 Press to turn the audio system on/off.
 Press and hold to restart the system.
WA R N I N G
● Do not operate the player’s controls or connect to the Bluetoot h® audio system while driv-
ing.
● Your audio unit is fitted with Bluetooth
® antennas. People with implantable cardiac pace-
makers, cardiac resynchronization therapy-pacemakers or implant able cardioverter
defibrillators should maintain a reasonable distance between th emselves and the Blue-
tooth
® antennas. The radio waves may affect the operation of such dev ices.
● Before using Bluetooth
® devices, users of any electrical medical device other than
implantable cardiac pacemakers, cardiac resynchronization thera py-pacemakers or
implantable cardioverter defibrillators should consult the manu facturer of the device for
information about its operation under the influence of radio wa ves. Radio waves could
have unexpected effects on the operation of such medical device s.
NOTICE
●Do not leave your portable player in the vehicle. In particular, high temperatures inside
the vehicle may damage the portable player.
No.Function

114
3. MEDIA OPERATION
INFORMATION
●Depending on the Bluetooth® device that is connected to the system, the music may start
playing when selecting while it is paused. Conversely, the mus ic may pause when
selecting while it is playing.
● In the following conditions, the system may not function:
• The Bluetooth
® device is turned off.
• The Bluetooth
® device is not connected.
• The Bluetooth
® device has a low battery.
● It may take time to connect the phone when Bluetooth
® audio is being played.
● For operating the portable player, see the instruction manual that comes with it.
Vehicles without a smart key system
●If the Bluetooth® device is disconnected due to poor reception from the Bluetoot h® net-
work when the engine switch is turned to the “ACC” or “ON” posi tion, the system auto-
matically reconnects the portable player.
 Vehicles with a smart key system
●If the Bluetooth® device is disconnected due to poor reception from the Bluetoot h® net-
work when the engine switch is turned to the ACCESSORY or IGNITION ON mode, the
system automatically reconnects the portable player.
● If the system is attempting to connect to a Bluetooth
® device and the Bluetooth® device is
turned off and then back on, the system will attempt to reconne ct.
● Bluetooth
® device information is registered when the Bluetooth® device is connected to
the Bluetooth® audio system. When selling or disposing of the vehicle, remove the
Bluetooth® audio information from the system. ( P. 6 2 )

115
3. MEDIA OPERATION
AUDIO SYSTEM
3
Registering an additional device
1Select “Select Device” on the
Bluetooth
® audio control screen.
2For more information: P.52
 Selecting a registered device
1Select “Select Device” on the
Bluetooth
® audio control screen.
2For more information: P.53
1Select the repeat button to change on/
off.
1Select the random button to change
on/off.
CONNECTING A Bluetooth®
DEVICE
To use the Bluetooth® audio system, it
is necessary to register a Bluetooth
®
device with the system.
LISTENING TO Bluetooth®
AUDIO
REPEATING
The track or album currently being lis-
tened to can be repeated.
RANDOM ORDER
Tracks or albums can be automatically
and randomly selected.

116
3. MEDIA OPERATION

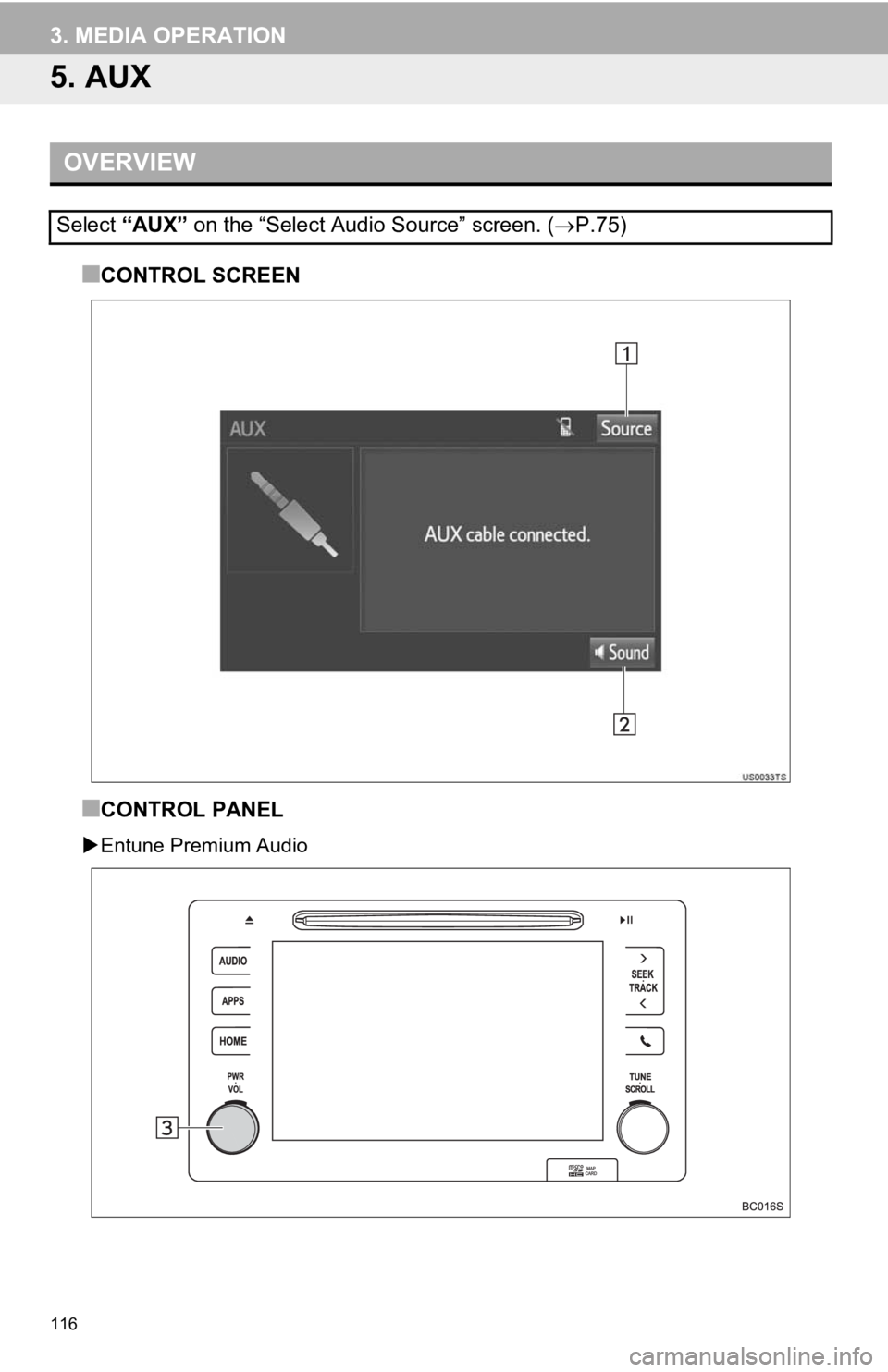

5. AUX
■CONTROL SCREEN
■CONTROL PANEL
Entune Premium Audio
OVERVIEW
Select “AUX” on the “Select Audio Source” screen. ( P.75)

117
3. MEDIA OPERATION
AUDIO SYSTEM
3
Entune Audio Plus
No.Function
Select to display the “S elect Audio Source” screen.
Select to display the sound setting screen.
Turn to adjust volume.
 Press to turn the audio system on/off.
 Press and hold to restart the system.
WA R N I N G
● Do not connect portable audio device or operate the controls wh ile driving.
NOTICE
●Do not leave portable audio device in the vehicle. The temperat ure inside the vehicle may
become high, resulting in damage to the player.
● Do not push down on or apply unnecessary pressure to the portab le audio device while it
is connected as this may damage the portable audio device or it s terminal.
● Do not insert foreign objects into the port as this may damage the portable audio device
or its terminal.

118
4. AUDIO REMOTE CONTROLS
1. STEERING SWITCHES
Volume control switch
 Press the “+” side to increase the volume.
The volume continues to increase while
the switch is being pressed.
 Press the “-” side to decrease the vol-
ume. The volume continues to decrease
while the switch is being pressed.
“” switch
 When in radio mode
 Press the “” or “” switch to change
the station/channel up or down.
 Press and hold the “” or “” switch to
quickly change the station/channel.
 Press and hold the “” or “” switch to
type seek up or down. (XM Satelite Radio)
 When in media mode
 Press the “” or “ ” switch to skip to the
next or previous track/file.
 Press and hold the “” or “” switch to
fast forward/rewind.
“MODE/HOLD” switch
 Press the “MODE/HOLD” switch to select
an audio mode. Each press changes the
mode sequentially if the desired mode is
ready to use.
 To turn the audio system on, press the
“MODE/HOLD” switch.
 Press and hold the “MODE/HOLD” switch
to turn the audi o system off.
Some parts of the audio system can be
adjusted using the switches on the
steering wheel.
No.Switch
Volume control switch
“ ” switch
“MODE/HOLD” switch

119
AUDIO SYSTEM
3
5. SETUP
1. AUDIO SETTINGS
1Press the “APPS” button.
2Select “Setup” .
3Select “Audio” .
4Select the items to be set.
Detailed audio settings can be pro-
grammed.“Audio Settings” SCREEN
No.FunctionPage
Select to change the num-
ber of preset radio stations
displayed on the screen.
120
Select to set cover art set-
tings.
Select to set automatic
sound levelizer.120
*Select to enable cache ra-
dio.
*: Entune Premium Audio only

120
5. SETUP
1Display the “Audio Settings” screen.
(P.119)
2Select “Number of Radio Presets” .
3Select the button with the desired num-
ber to be displayed.
1Display the “Audio Settings” screen.
(P.119)
2Select the “Automatic Sound Level-
izer” .
3Select the “High”, “Mid”, “Low”, or
“Off” .
 Entune Premium JBL Audio
3Select on/off.
SETTING THE NUMBER OF
RADIO PRESETS
AUTOMATIC SOUND
LEVELIZER (ASL)
The system adjusts to the optimum vol-
ume and tone quality according to ve-
hicle speed to compensate for
increased vehicle noise.
