2019 TOYOTA SEQUOIA navigation system

8
227
1
2
3
4
5
6
7
8
9
1. ROUTE GUIDANCE SCREEN ..... 261
SCREEN FOR ROUTE GUIDANCE ... 261
ROUTE OVERVIEW............................ 262
DURING FREEWAY DRIVING............ 263
WHEN APPROACHING INTERSECTION ............................... 264
TURN LIST SCREEN .......................... 265
TURN-BY-TURN ARROW SCREEN ... 265
2. TYPICAL VOICE GUIDANCE PROMPTS.................................. 266
3. EDITING ROUTE ......................... 267
ADDING DESTINATIONS ................... 268
REORDERING DESTINATIONS ......... 268
DELETING DESTINATIONS ............... 268
SETTING ROUTE PREFERENCES ... 268
SELECTING ROUTE TYPE ................ 269
DETOUR SETTING ............................. 269
1. MEMORY POINTS SETTINGS .... 271
SETTING UP HOME ........................... 272
SETTING UP PRESET DESTINATIONS................................ 273
SETTING UP ADDRESS BOOK ......... 275
SETTING UP AREAS TO AVOID ........ 277
DELETING PREVIOUS DESTINATIONS................................ 279
1. DETAILED NAVIGATION SETTINGS ................................. 280
SCREENS FOR NAVIGATION
SETTINGS ........................................ 280
2. TRAFFIC SETTINGS................... 284
SCREEN FOR TRAFFIC SETTINGS ........................................ 284
AUTO AVOID TRAFFIC....................... 285
MY TRAFFIC ROUTES ....................... 286
1. GPS (GLOBAL POSITIONING SYSTEM) .................... ............... 290
LIMITATIONS OF
THE NAVIGATION SYSTEM ............ 290
2. MAP DATABASE VERSION AND COVERED AREA ............. 292
MAP INFORMATION ........................... 292
ABOUT THE MAP DATA ..................... 293
3ROUTE GUIDANCE
4MEMORY POINTS
5SETUP
6TIPS FOR THE NAVIGATION
SYSTEM
NAVIGATION SYSTEM
*: Entune Premium Audio only
*

228

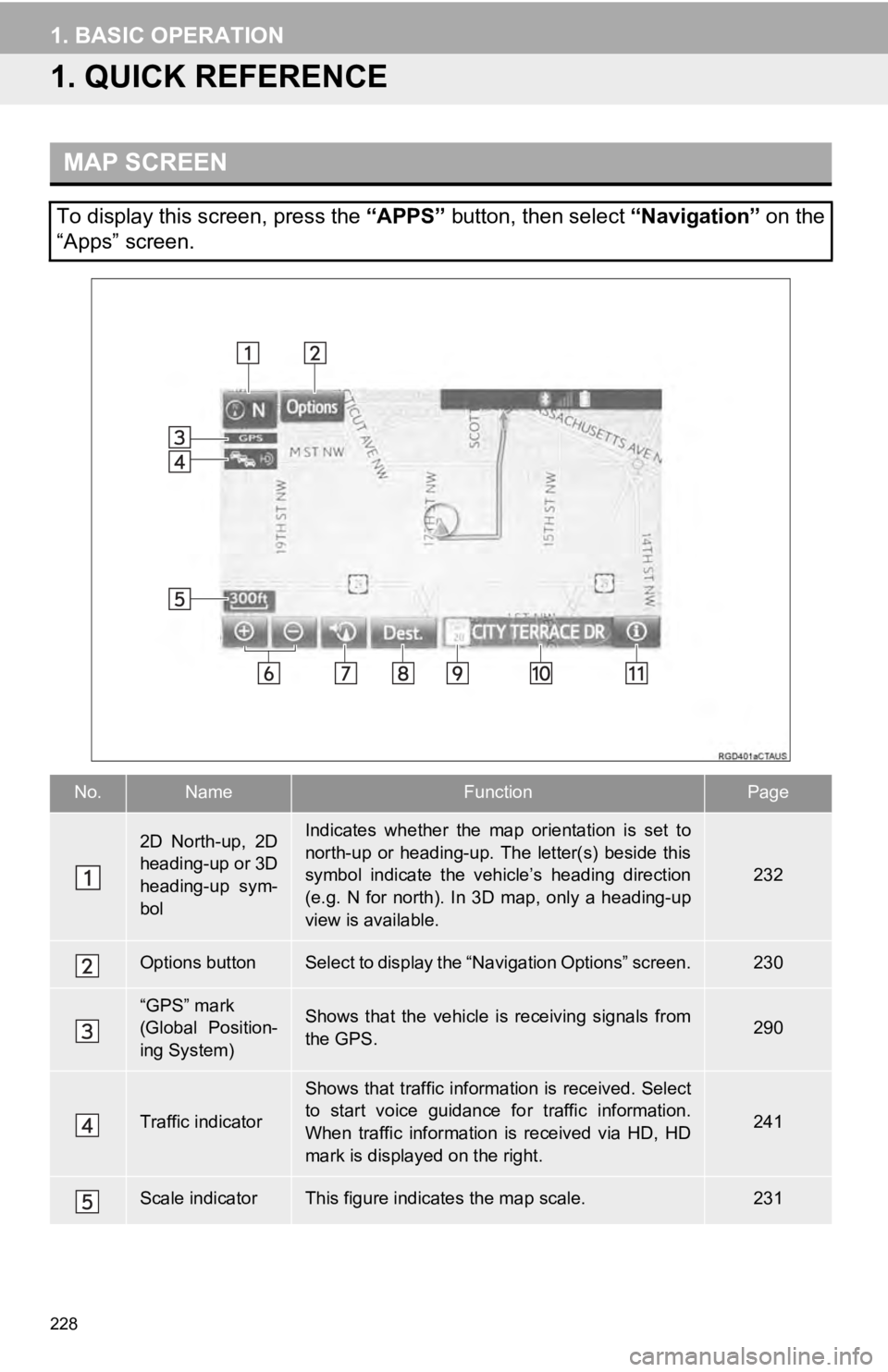

1. BASIC OPERATION
1. QUICK REFERENCE
MAP SCREEN
To display this screen, press the “APPS” button, then select “Navigation” on the
“Apps” screen.
No.NameFunctionPage
2D North-up, 2D
heading-up or 3D
heading-up sym-
bolIndicates whether the map orientation is set to
north-up or heading-up. The letter(s) beside this
symbol indicate the vehicle’s heading direction
(e.g. N for north). In 3D map, only a heading-up
view is available.
232
Options buttonSelect to display the “Navigation Options” screen.230
“GPS” mark
(Global Position-
ing System)Shows that the vehicle is receiving signals from
the GPS.290
Traffic indicator
Shows that traffic information is received. Select
to start voice guidance fo r traffic information.
When traffic information is received via HD, HD
mark is displayed on the right.
241
Scale indicatorThis figure indicate s the map scale.231

229
1. BASIC OPERATION
NAVIGATION SYSTEM
8
Zoom in/out but-
tonSelect to magnify or reduce the map scale. When
either button is selected, the map scale indicator
bar appears at the bottom of the screen.
231
Current position
button/voice
guidance button Select to display the current position address.
 Select to repeat voice guidance.231
Destination but-
tonSelect to display the “Destination” screen.244
Speed limit iconIndicates the speed limit on the current road. The
display of the speed limit icon can be set to on/off.237
Route informa-
tion bar
Displays the current street name, or the distance
with the estimated travel time/arrival time to the
destination. The route information bar fills from
left to right as the vehicle progresses on the
route.
261
Route informa-
tion buttonSelect to change the display between the current
street name and the distance with the estimated
travel/arrival time.
262
No.NameFunctionPage

231
1. BASIC OPERATION
NAVIGATION SYSTEM
8
2. MAP SCREEN OPERATION
1Press the “APPS” button.
2Select “Navigation” .
3Check that the current position map is
displayed.
1Select or to change the
scale of the map screen.
The scale indicator bar appears at the bot-
tom of the screen.
 Select and hold or to con-
tinue changing the scale of the map
screen.
 The scale of the map screen can also be
changed by selecting the scale bar
directly. This function is not available while
driving.
CURRENT POSITION
DISPLAY
To correct the current position manu-
ally:
P. 2 8 2
INFORMATION
● While driving, the current position mark
is fixed on the screen and the map
moves.
● The current position is automatically set
as the vehicle receives signals from the
GPS (Global Positioning System). If the
current position is not correct, it is auto-
matically corrected after the vehicle
receives signals from the GPS.
● After the battery disconnection, or on a
new vehicle, the current position may
not be correct. As soon as the system
receives signals from the GPS, the cor-
rect current position is displayed.
MAP SCALE
INFORMATION
●The map scale is displayed above the
zoom in button at the bottom left of the
screen.

233
1. BASIC OPERATION
NAVIGATION SYSTEM
8
1Select “Options” on the map screen.
2Select “Map Mode” .
3Select the desired configuration but-
ton.
Depending on the conditions, certain
screen configuration buttons cannot be
selected.
■MAP ONLY
■DUAL MAP
The map on the left is the main map.
SWITCHING THE MAP MODE
No.FunctionPage
Select to display the single
map screen. 233
Select to display the dual
map screen.233
Select to display the com-
pass mode screen.234
Select to display the turn list
screen.265
Select to display the free-
way exit list screen.263
Select to display the inter-
section guidance screen or
the guidance screen on the
freeway.
264
Select to display the turn-
by-turn arrow screen.265

235
1. BASIC OPERATION
NAVIGATION SYSTEM
8
To scroll over the map screen, place the
cursor mark in the desired position and
then press and hold the map screen. The
map will continue scrolling in that direction
until the finger is released.
SCREEN SCROLL
OPERATION
Use the scroll feature to move the de-
sired point to the center of the screen
for looking at a point on the map that is
different from the current position.
No.Information/Function
Cursor mark
Distance from the current position to
the cursor mark.
Select to set as a destination.
When selecting “Go to ” on the
following map screen, the navigation
system performs a search for the
route. ( P.257)
If a destination has already been set,
“Go to ” and “Add to Route” will
be displayed.
“Go to ” : Select to delete the ex-
isting destination(s) and set a new
one.
“Add to Route” : Select to add a
destination.
Select to register as a memory point.
To change the icon, name, etc.:
 P.275
Select to return to the current posi-
tion.
No.Information/Function

237
1. BASIC OPERATION
NAVIGATION SYSTEM
8
3. MAP SCREEN INFORMATION
1Select “Options” on the map screen.
2Select “Map Information” .
3Select the desired items to be dis-
played.
When set to on, the indicator will illumi-
nate.
1Display the “Map Information” screen.
(P.237)
2Select “Select POI”.
When the POI icons to be displayed on
the map screen have already been set,
“Change POI” is displayed.
3Select the desired POI category and
select “OK”.
DISPLAYING MAP
INFORMATION
Information such as POI icons, route
trace, speed limit, etc. can be dis-
played on the map screen.
No.FunctionPage
Select to display the select-
ed POI icons.
Select to select or change
POI icons.237
Select to display route
trace.239
Select to display speed limit
icon.
Select to display traffic infor-
mation.241
SELECTING THE POI ICONS
No.Information/FunctionPage
Displays up to 5 selected
POI icons on the map
screen

Select to cancel the select-
ed POI icons.
Displays up to 6 POI icons
as favorite POI categories281
Select to display other POI
categories if the desired
POIs cannot be found on
the screen.
238
Select to search for the
nearest POIs.238

239
1. BASIC OPERATION
NAVIGATION SYSTEM
8
1Display the “Map Information” screen.
(P.237)
2Select “Route Trace”.
The “Route Trace” indicator illuminates
and the route trace starts.
3Check that the traveled line is dis-
played.
■STOP RECORDING THE ROUTE
TRACE
1Select “Route Trace” again.
2A confirmation screen will be dis-
played.
“Yes”: Select to keep the recorded
route trace.
“No” : Select to erase the recorded
route trace.
1Place the cursor over an icon.
2Select “Info”.
 POI information
 Memory point information
ROUTE TRACE
The traveled route can be stored and
retraced on the map screen. This fea-
ture is available when the map scale is
30 miles (50 km) or less.
INFORMATION
● The traveled route can be stored up to
124 miles (200 km).
DISPLAYING INFORMATION
ABOUT THE ICON WHERE
THE CURSOR IS SET
When the cursor is placed over an icon
on the map screen, the name bar is
displayed on the upper part of the
screen. If “Info” appears on the right
side of the name bar, detailed informa-
tion can be displayed.
