2019 TOYOTA PROACE VERSO cruise control

199
The presence in the recognition zone of the remote control of the "Smart Entry & Start System" is essential.Never leave the vehicle with the engine running and with the remote control on your person.If the remote control leaves the recognition zone, a message is displayed.Move the remote control into the zone to be able to start the engine.
If one of the starting conditions is not met, a message appears in the instrument panel screen. In some circumstances, it is necessary to turn the steering wheel slightly while pressing the "START/STOP" button to assist unlocking of the steering; a message warns you when this is needed.
If the vehicle is not immobilised, the engine will not stop.
Switching off
F Immobilise the vehicle.
F With the remote control in the recognition zone, press the "START/STOP" button.
The engine stops and the steering column is locked.
Ignition on
(without starting)
With the ignition on, the system automatically goes into energy economy mode to maintain an adequate state of charge in the battery.
With the Smart Entry & Start System remote control inside the vehicle, pressing the "START/STOP" button, with no action on the pedals, allows the ignition to be switched on.This also allows the accessories to be used (for example: audio system, lighting...).
F Press the "START/STOP" button, the instrument panel comes on but the engine does not start.
F Press the button again to switch off the ignition and allow the vehicle to be locked.
To avoid any risk of jamming of the pedals:- only use mats which are suited to the fixings already present in the vehicle; these fixings must be used,- never fit one mat on top of another.The use of mats not approved by Toyota
may inter fere with access to the pedals and hinder the operation of the cruise control / speed limiter.The mats approved by Toyota have two fixings located below the seat.
6
Driving

218
1. On.2. Off (long press).3. Brightness adjustment.4. Display height adjustment.
Once the system has been activated, the following information is grouped together in the head-up display:A. The speed of your vehicle.B. Cruise control/speed limiter information.C. If your vehicle is so equipped, inter-vehicle distance information, automatic emergency braking alerts and navigation instructions.D. If your vehicle is so equipped, speed limit information.
System which projects various information onto a smoked blade in the driver's field of vision so that they do not have to take their eyes off the road.
Buttons
Displays during operation
Head-up display
For more information on Navigation, refer to the Audio and telematics section.
F With the engine running, press button 1 to activate the system and deploy the blade.
Activation / Deactivation
F Press and hold button 2 to deactivate the system and retract the blade.
The activated/deactivated state is saved and retained on restarting the engine.
Driving

220
MEM

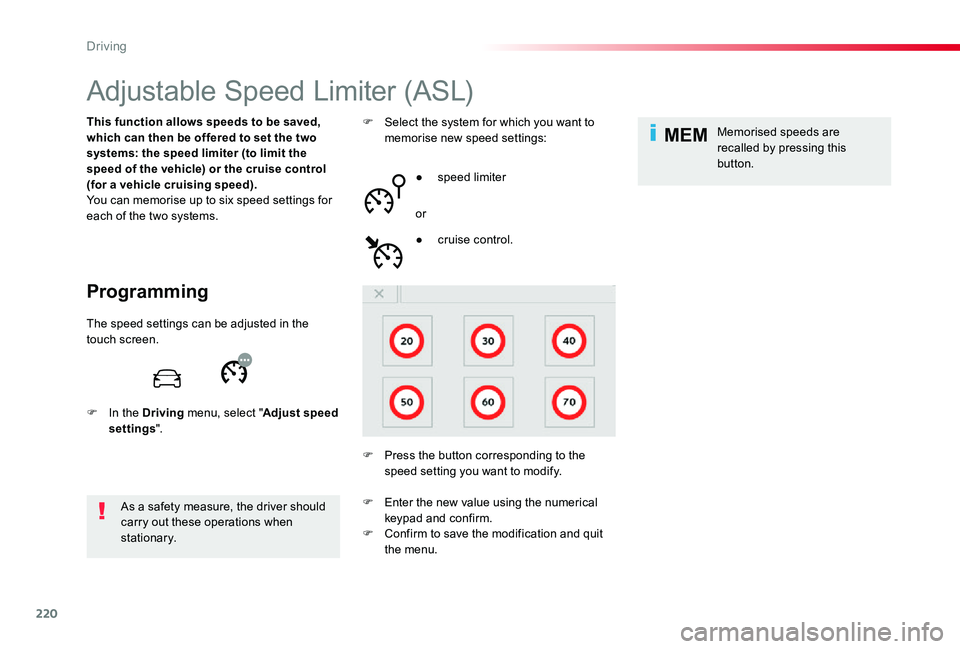

Adjustable Speed Limiter (ASL)
Programming
This function allows speeds to be saved, which can then be offered to set the two systems: the speed limiter (to limit the speed of the vehicle) or the cruise control (for a vehicle cruising speed).You can memorise up to six speed settings for each of the two systems.
As a safety measure, the driver should carry out these operations when stationary.
F Select the system for which you want to memorise new speed settings:
● speed limiter
or
F Press the button corresponding to the speed setting you want to modify.
● cruise control.
Memorised speeds are recalled by pressing this button.
The speed settings can be adjusted in the touch screen.
F In the Driving menu, select "Adjust speed settings".
F Enter the new value using the numerical keypad and confirm.F Confirm to save the modification and quit the menu.
Driving

223

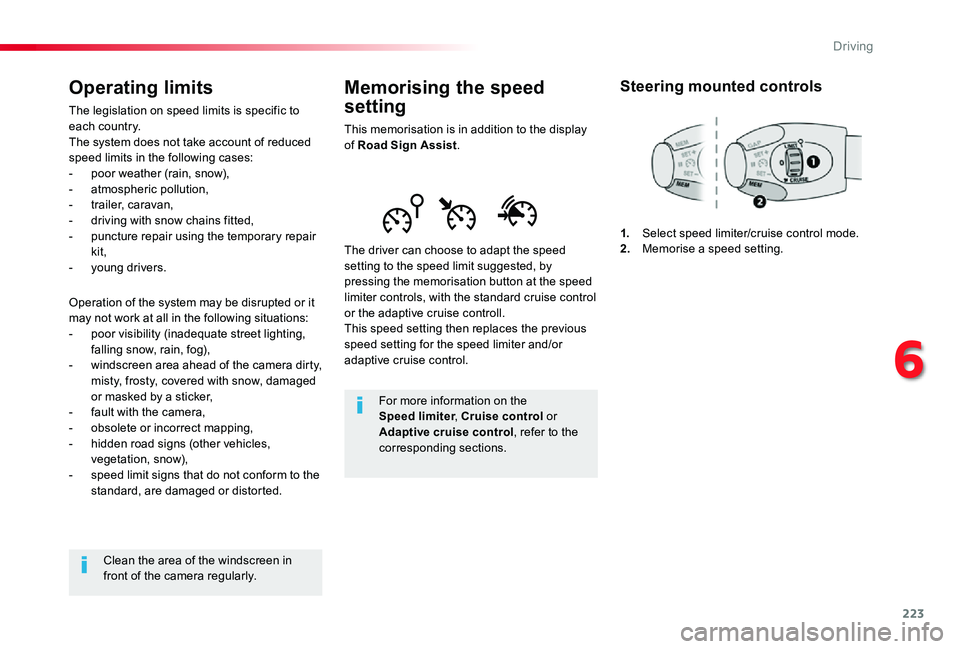

Memorising the speed
setting
This memorisation is in addition to the display of Road Sign Assist.
The driver can choose to adapt the speed setting to the speed limit suggested, by pressing the memorisation button at the speed limiter controls, with the standard cruise control or the adaptive cruise controll.This speed setting then replaces the previous speed setting for the speed limiter and/or adaptive cruise control.
For more information on the Speed limiter, Cruise control or Adaptive cruise control, refer to the corresponding sections.
Steering mounted controls
1. Select speed limiter/cruise control mode.2. Memorise a speed setting.
Operating limits
The legislation on speed limits is specific to each country.The system does not take account of reduced speed limits in the following cases:- poor weather (rain, snow),- atmospheric pollution,- trailer, caravan,- driving with snow chains fitted,- puncture repair using the temporary repair kit,- young drivers.
Operation of the system may be disrupted or it may not work at all in the following situations:- poor visibility (inadequate street lighting, falling snow, rain, fog),- windscreen area ahead of the camera dirty, misty, frosty, covered with snow, damaged or masked by a sticker,- fault with the camera,- obsolete or incorrect mapping,- hidden road signs (other vehicles,
vegetation, snow),- speed limit signs that do not conform to the standard, are damaged or distorted.
Clean the area of the windscreen in front of the camera regularly.
6
Driving

224
MEM
MEM
3. Speed limiter indication.4. Memorise the speed.5. Current speed setting.

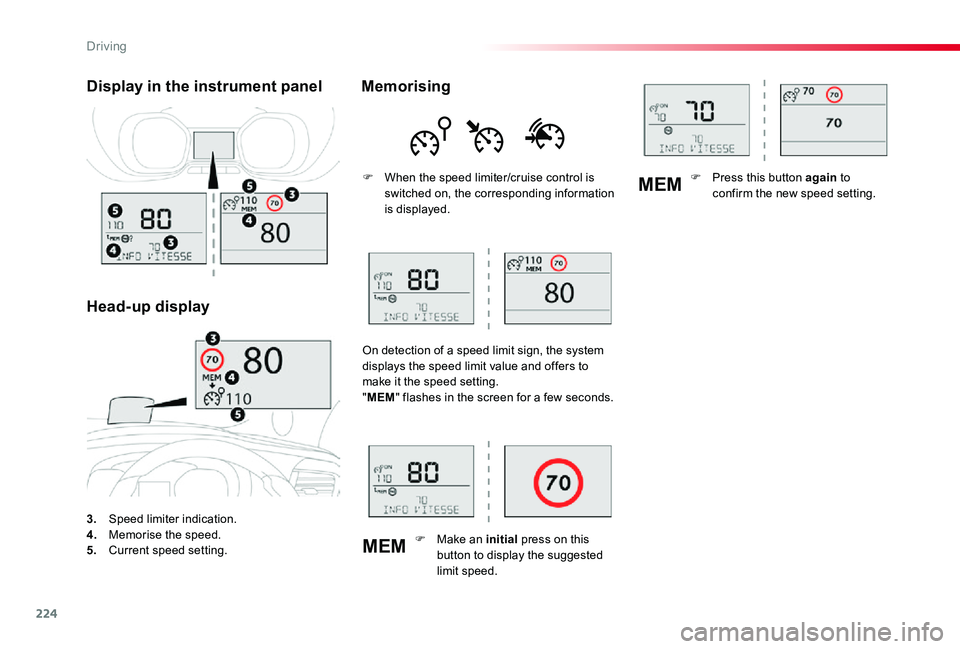

Display in the instrument panel
Head-up display
Memorising
F When the speed limiter/cruise control is switched on, the corresponding information is displayed.
On detection of a speed limit sign, the system displays the speed limit value and offers to make it the speed setting."MEM" flashes in the screen for a few seconds.
F Make an initial press on this
button to display the suggested limit speed.
F Press this button again to confirm the new speed setting.
Driving

225
GAP
MEM
Steering mounted controls
6. Speed limiter on/pause indication.7. Speed limiter mode selection indication.8. Speed value setting.

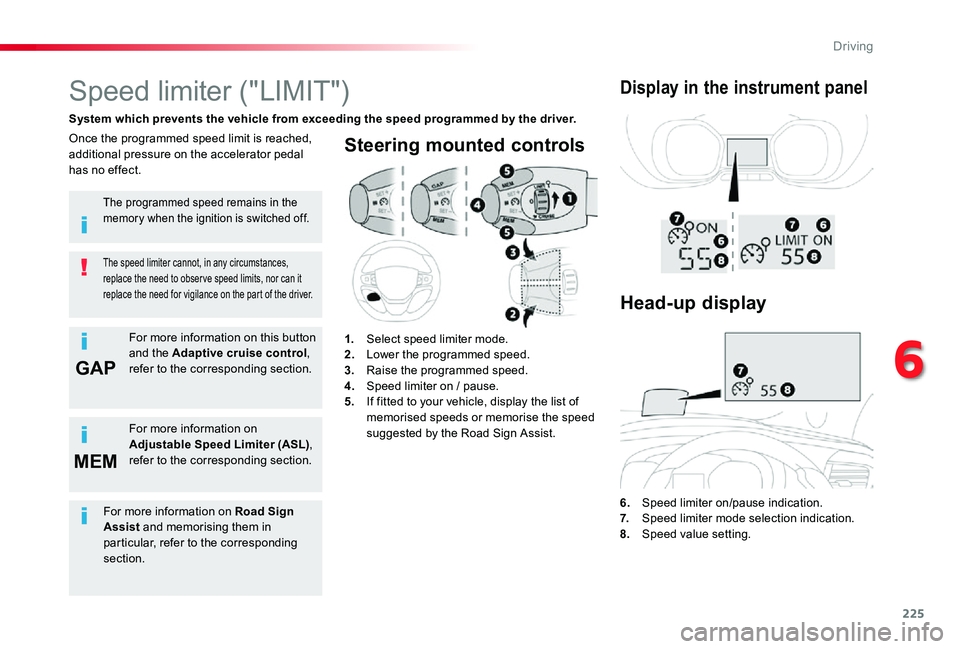

Speed limiter ("LIMIT")
System which prevents the vehicle from exceeding the speed programmed by the driver.
The speed limiter cannot, in any circumstances, replace the need to obser ve speed limits, nor can it replace the need for vigilance on the part of the driver.
Once the programmed speed limit is reached, additional pressure on the accelerator pedal has no effect.
1. Select speed limiter mode.2. Lower the programmed speed.3. Raise the programmed speed.4. Speed limiter on / pause.5. If fitted to your vehicle, display the list of memorised speeds or memorise the speed suggested by the Road Sign Assist.
Display in the instrument panel
The programmed speed remains in the memory when the ignition is switched off.
For more information on this button and the Adaptive cruise control, refer to the corresponding section.
For more information on
Adjustable Speed Limiter (ASL), refer to the corresponding section.
Head-up display
For more information on Road Sign Assist and memorising them in particular, refer to the corresponding section.
6
Driving

228
MEM
MEM

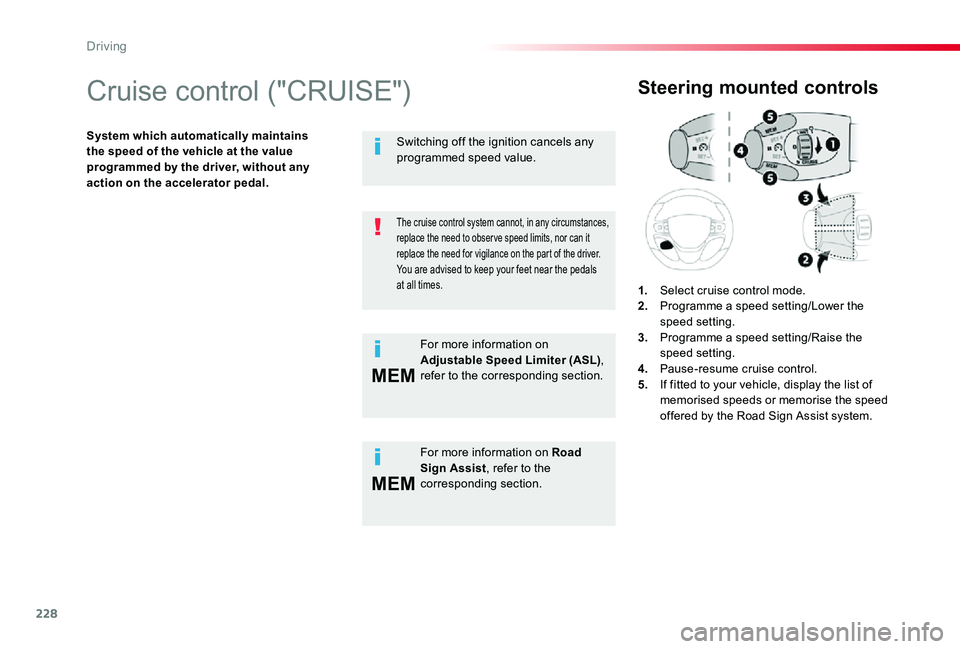

Cruise control ("CRUISE")
System which automatically maintains the speed of the vehicle at the value programmed by the driver, without any action on the accelerator pedal.
Steering mounted controls
1. Select cruise control mode.2. Programme a speed setting/Lower the speed setting.3. Programme a speed setting/Raise the speed setting.4. Pause-resume cruise control.5. If fitted to your vehicle, display the list of memorised speeds or memorise the speed offered by the Road Sign Assist system.
The cruise control system cannot, in any circumstances, replace the need to obser ve speed limits, nor can it replace the need for vigilance on the part of the driver.You are advised to keep your feet near the pedals at all times.
For more information on Road Sign Assist, refer to the corresponding section.
Switching off the ignition cancels any programmed speed value.
For more information on Adjustable Speed Limiter (ASL), refer to the corresponding section.
Driving

229
If your vehicle has a manual gearbox, third or fourth gear, or higher, must be engaged.
If your vehicle has an automatic or electronic gearbox, second gear or higher must be engaged.
6. Cruise control pause/resume indication.7. Cruise control mode selection indication.8. Speed value setting.
Display in the instrument panel
Head-up display
Switching on
F Turn thumbwheel 1 to the "CRUISE" position: the cruise control mode is selected but is not switched on (Pause).F Press on button 2 or 3: your vehicle's current speed becomes the cruise speed.The cruise control is activated (ON).
It is possible to exceed the programmed speed temporarily by pressing the accelerator pedal.To return to the programmed speed, simply release the accelerator pedal until the programmed cruise speed is reached again.
The cruise control is switched on manually: it requires a minimum vehicle speed of 25 mph (40 km/h).
6
Driving
