2019 TOYOTA PRIUS PRIME Accessories, Audio & Navigation (in English)

www.toyota.com/owners
CUSTOMER EXPERIENCE CENTER
1- 8 0 0 - 3 31- 4 3 31
Printed in U.S.A. 11/1818 -MKG -12454

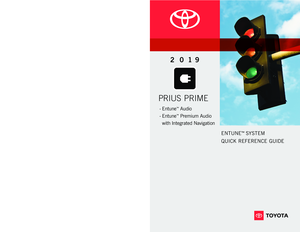

ENTUNE™ SYSTEM
QUICK REFERENCE GUIDE
PRIUS PRIME
2 0 19
- Entune™ Audio
- Entune™ Premium Audio
with Integrated Navigation

50
PRIUS PRIME APPS (IF EQUIPPED)
ECO DASHBOARDSELECT ENTUNE >
Begin by opening the Entune App on your mobile device. Select the ECO Dashboard icon. The ECO
Dashboard feature allows you to see how your energy usage compares with other Pug-in Hybrid
Advanced vehicles. You can see your ECO ranking and ECO History. You can also participate in the ECO
Challenge with other vehicles and post your ECO driving status to Social Media.
VEHICLE FINDER
SELECT ENTUNE >
Begin by opening the Entune App on your mobile device. Select the Vehicle Finder icon. This app is
useful for locating where you parked your vehicle from your phone. You can zoom in and out to see
the vehicle's location.
1
TABLE OF CONTENTS

OVERVIEW
7INCH11.6INCHLIMITATIONS OF THE QUICK REFERENCE GUIDE2BASIC MAP OPERATION2 3-4
INTRODUCTIONSAFETY, PHONE COMPATIBILITY5WHAT ENTUNE™ SYSTEM DO YOU HAVE?6
ENTUNE - HOW TO GET STARTEDBASIC OVERVIEW7
ACCOUNT CREATION7
CONNECT A BLUETOOTH® PHONEBLUETOOTH PAIRING FOR ANDROID PHONE AND ENTUNE TOUCH SCREEN SYSTEM8-10 30BLUETOOTH PAIRING FOR IPHONE AND ENTUNE TOUCH SCREEN SYSTEM11-1330-31
ADVANCED VOICE RECOGNITION SYSTEMTRAIN VOICE RECOGNITION, VOICE RECOGNITION TUTORIAL1432

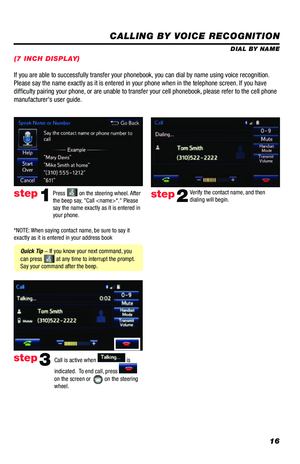

CALLING BY VOICE RECOGNITIONDIAL BY NUMBER1533DIAL BY NAME1634
DESTINATION INPUTBY ADDRESS17-1835-36NOTE ON VOICE RECOGNITION, TIPS FOR USING VOICE RECOGNITION,1937BY ADDRESS - VOICE RECOGNITION
DESTINATION INPUT - POINT OF INTEREST (POI)POINT OF INTEREST BY NAME2038POINT OF INTEREST BY CATEGORY2139POINT OF INTEREST BY CATEGORY - VOICE RECOGNITION2240
SET HOME23-2441-42
ADDITIONAL NAVIGATION FEATURESOPERATION OF EMERGENCY SCREEN, SEARCH AREA, ROUTE PREFERENCES, 3 ROUTES,2543SCREEN CONFIGURATIONS
BEEP SETTING, VOICE VOLUME, LANGUAGE, SYSTEM TIME, AUTO CHANGE TO HOME S\
CREEN,26 44CACHE RADIO
TRAFFICTRAFFIC EVENT LIST, PREDICTIVE TRAFFIC MAP2745MY TRAFFIC ROUTES, AUTOMATICALLY AVOID TRAFFIC, TRAFFIC INCIDENT WARNING2846
WEATHER2947
SIRI® EYES FREE48
PRIUS PRIME APPSCHARGE MANAGEMENT49CHARGING STATION MAP49REMOTE CLIMATE49ECO DASHBOARD50VEHICLE FINDER50

2
The Quick Reference Guide is designed to provide information on the basic operation and key
features of the navigation system and Entune™. The Quick Reference Guide is not intended as a
substitute for the Navigation Owner’s Manual.
OVERVIEW
LIMITATIONS OF THE QUICK REFERENCE GUIDE
BASIC MAP OPERATION
7 inch screen
Quick Tip - The USB and AUX port location and
design are different depending on the vehicle. For
details, see the Owner's Manual. NORTH-UP OR COMPASS MODE Icon
Touch to change the map display between North-
up or Head-up perspectives. CURRENT VEHICLE POSITION Mark
Indicates the current position of the vehicle and its
directional heading.
ZOOM IN/ZOOM OUT Icons
Touch to magnify or reduce the map scale.
HOME Button
Access to Navigation Screen.
APPS Button
Access to APPS.
AUDIO Button
Access to audio functions.

3
BASIC MAP OPERATION
11.6 inch screen
"Info"
Access to "Energy Monitor", "Fuel consumption", "Traffic
information", "Weather information", "Charge Schedule" screen.
HOME Button
Press to display the home
(Map) screen.
MENU Button
Press to display the Menu
(This) screen.
VOL Button
Press "
V" or " V
"to adjust
the volume.
AUDIO Button
Press to turn audio system
on and off.
"App Suite"
Access to APPS. "Destination"
The "Destination" screen
enables to search for a
destination (Navigation).
"Phone"
Access to hands-free
phone functions.
"Settings"
Access to the "Setup"
screen.
Display the menu
Press the
button
or swipe upward.
Hide the menu Press the
button or Swipe downward.
3 shortcuts
The first 3 buttons displayed on the App
Suite screen are displayed as shortcuts.
App Suite apps can be reordered to
customize shortcuts. "Display"
Adjust dispay image and
camera image.
Access to Audio
Source
Access to Climate
Control
Audio control
Press Audio at the bottom of the screen to access
audio control functions.
OVERVIEW

4
BASIC MAP OPERATION
11.6 inch screen
Setup
Press
to access "Setup" screen:
• Select to change the selected language, operation sound, keyboard
layout settings, etc.
• Select to set the voice settings.
• Select to set Bluetooth
® phones and Bluetooth® audio devices.
• Select to set traffic information.
• Select to set memory points (home, preset destinations, address book
entries, areas to avoid), navigation details or to delete previous destinations.
• Select to set audio settings.
• Select to set vehicle information.
• Select to set the phone sound, contacts, message settings, etc.
• Select to set Entune App Suite settings.
• Select to set data services settings.
OVERVIEW

5
Check phone compatibility using one of the following methods:
• Visit: www.toyota.com/connect
• Call the Toyota Customer Experience
Center at 1-800-331-4331
Note: You do not need an Entune App Suite compatible phone to use Bluetooth
® hands-free,
Bluetooth audio or the navigation system. To connect a Bluetooth Phone, refer to page 9.
PHONE COMPATIBILITY - INTRODUCTION
STOPPLEASE READ
SAFETY
Concentrating on the road should always be your first priority while driving. Do not use the
Entune system if it will distract you.
SUPPORT
You can find additional support at:
www.toyota.com/entune
or
Call
1-800-331-4331.
Monday – Friday 7:00 AM to 7:00 PM CT
and Saturday 7:00 AM to 4:30 PM CT.
or
See Entune
™ Audio tutorials on
https://www.youtube.com/user/ToyotaUSA and search Entune.

6
*Be sure to obey traffic regulations and maintain awareness of road and traffic conditions. Select Entune® App Suite use a large
amount of data and you are responsible for all data charges. Apps and services vary by phone and carrier. Not all apps and data
services are available at all times and all locations. Apps identified by "™" or "®" are trademarks or registered trademar\
ks of
their respective companies and cannot be used without permission. See toyota.com/entune for the latest information regarding
apps and services.
- INTRODUCTION
WHAT ENTUNE™ SYSTEM DO YOU HAVE?
Entune™ Premium Audio with 11.6-in. HD Multimedia Display,
Integrated Navigation
Entune
™ Premium JBL® Audio with 11.6-in. HD
Multimedia Display, Integrated Navigation
• 7" Touchscreen
• Siri® Eyes Free**
• SiriusXM® Satellite Radio, HD Radio™, HD Radio™ Traffic / Weather
• Integrated Navigation
• AM/FM Cache Radio
Entune™ Premium Audio with Integrated Navigation
Entune™ Premium audio with 11.6” touch screen (excludes CD Player)
• 11.6-in. HD Multimedia Display
Entune
™ Premium JBL® audio with 11.6” touch screen (excludes CD Player)
• 11.6-in. HD Multimedia Display
• JBL
® Speakers/Amp system

7
BASIC OVERVIEW
- HOW TO GET STARTED
StepReference
54
Connect your phone to your
vehicle via Bluetooth®, and
experience Entune™ App.
Launch the Entune
™ App on
your phone and sign in. The Entune™ App must
be running on the mobile
device in order to use the
internet services.
Go to "CONNECT A
BLUETOOTH PHONE"
on page 9.Launch
App and
Login
Connect Account
Creation
3Enroll via your mobile device
or register on
www.myentune.com and
create a personal Entune
™
App account using your
computer. Go to "ACCOUNT
CREATION".
Step 1: Register Your Account
Please provide all required information below .Once you click "register," you will receive
an e-mail to verify your e-mail address.
Click on the link embedded in the email to
activate your account .
Terms of Service | Privacy Polic y
© 2011 Toyota Motor Sales, U.S.A., Inc. All information applies to U.\
S. vehicles only.
User Name: P assword
1
Confirm that your phone is
able to run the Entune™ App. Go to "PHONE COMPATIBILITY"
on page 5.Phone
Compatibility
2Download the Entune™ App
to your phone. Using your cell phone, find the
Entune™ App in the Apple App
Store™ or Google Play™.
Download
App

Follow the easy steps to complete your
account.step4
ACCOUNT CREATION
From a mobile device (Entune
™ App) or
a computer, access
www.myentune.comstep1step2
From a mobile device, click "Sign Up
for Entune," or from a computer, click
on the Register button on the right hand
side of the screen.
step3Create your Entune™ App account.
