2019 TOYOTA HIGHLANDER HYBRID Warranties & Maintenance Guides (in English)

23

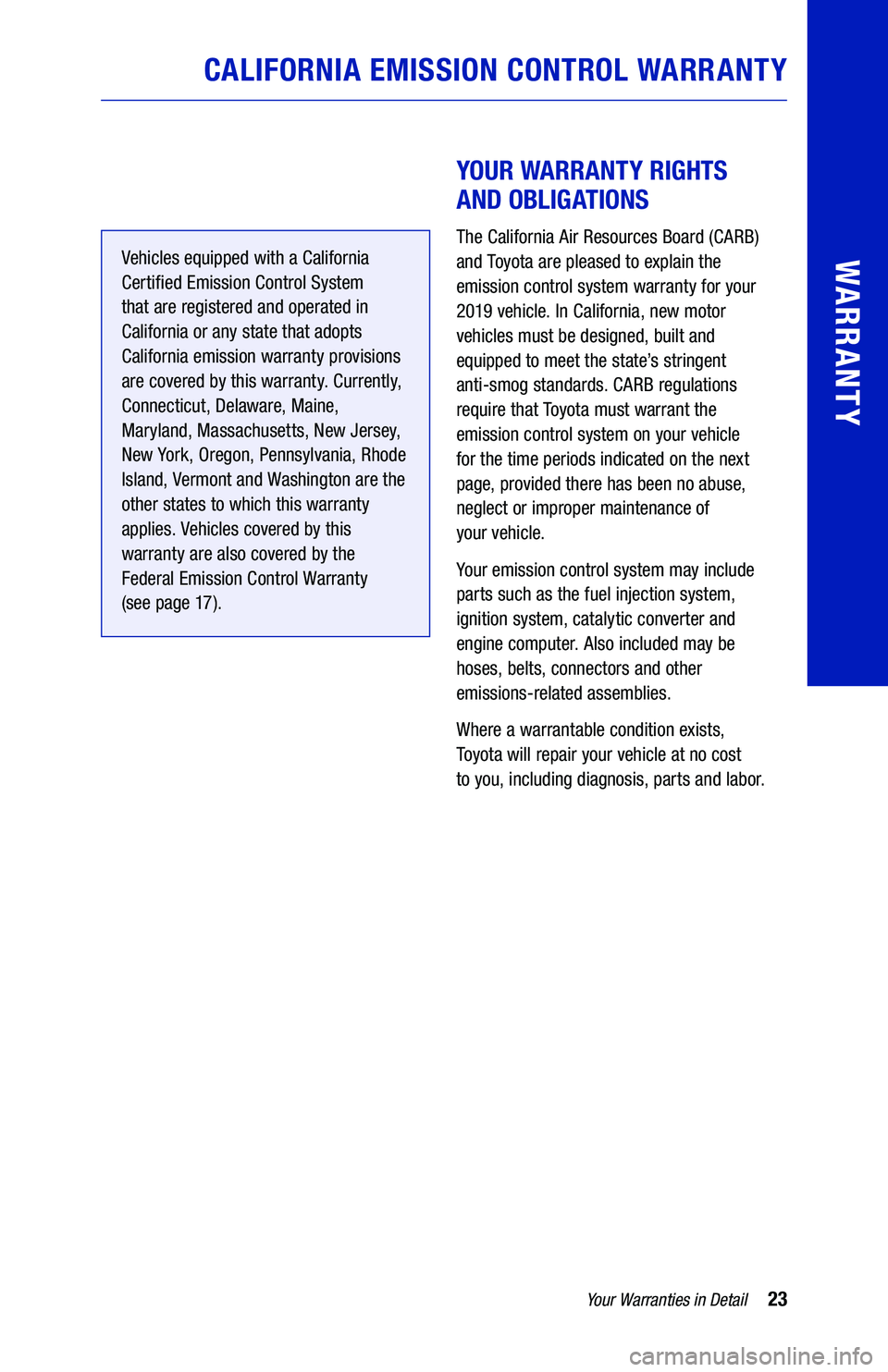

CALIFORNIA EMISSION CONTROL WARRANTY


Vehicles equipped with a California
Certified Emission Control System
that are registered and operated in
California or any state that adopts
California emission warranty provisions
are covered by this warranty. Currently,
Connecticut, Delaware, Maine,
Maryland, Massachusetts, New Jersey,
New York, Oregon, Pennsylvania, Rhode
Island, Vermont and Washington are the
other states to which this warranty
applies. Vehicles covered by this
warranty are also covered by the
Federal Emission Control Warranty
(see page 17).

YOUR WARRANTY RIGHTS
AND OBLIGATIONS
The California Air Resources Board (CARB)
and Toyota are pleased to explain the
emission control system warranty for your
2019 vehicle. In California, new motor
vehicles must be designed, built and
equipped to meet the state’s stringent
anti-smog standards. CARB regulations
require that Toyota must warrant the
emission control system on your vehicle
for the time periods indicated on the next
page, provided there has been no abuse,
neglect or improper maintenance of
your vehicle.
Your emission control system may include
parts such as the fuel injection system,
ignition system, catalytic converter and
engine computer. Also included may be
hoses, belts, connectors and other
emissions-related assemblies.
Where a warrantable condition exists,
Toyota will repair your vehicle at no cost
to you, including diagnosis, parts and labor.
Your Warranties in Detail
WARRANTY

24

MANUFACTURER’S
WARRANTY COVERAGE
1) For three years or 50,000 miles,
whichever occurs first:
– If your vehicle fails a smog-check test,
all necessary repairs and adjustments
will be made by Toyota to ensure
that your vehicle passes the test.
This is your Emission Control System
PERFORMANCE WARRANTY.
– If an emissions-related part listed on
pages 18–19 is defective, the part will
be repaired or replaced by Toyota.
This is your SHORT-TERM Emission
Control System DEFECT WARR ANT Y.
Specific components may have
longer coverage under the terms of
the Powertrain Warranty.
2) For seven years or 70,000 miles,
whichever occurs first:
– If an emissions-related part listed on
page 25 is defective, the part will be
repaired or replaced by Toyota. This
is your LONG-TERM Emission
Control System DEFECT WARR ANT Y.

OWNER’S WARRANTY
RESPONSIBILITIES
You are responsible for performance of
the required maintenance indicated in the
Owner’s Manual and this booklet. Toyota
recommends that you retain all receipts
covering maintenance on your vehicle, but
Toyota cannot deny warranty coverage
solely for the lack of receipts or your
failure to ensure the performance of all
scheduled maintenance.
You are responsible for presenting your
vehicle to a Toyota dealership as soon as
a problem exists. The warranty repairs
should be completed in a reasonable
amount of time, not to exceed 30 days.
You should also be aware that Toyota
may deny you warranty coverage if your
vehicle or a part has failed due to abuse,
neglect, improper maintenance or
unapproved modifications.
If you have any questions regarding your
warranty rights and responsibilities, you
should contact the Toyota Customer
Experience Center at (800) 331-4331 or
the California Air Resources Board, Mobile
Source Control Division, at 9528 Telstar
Avenue, Suite 4, El Monte, CA 91731,
(800) 242-4450.
CALIFORNIA EMISSION CONTROL WARRANTY
Your Warranties in Detail
WARRANTY

25


WHAT IS NOT COVERED
These warranty obligations do not apply
to failures or noncompliance caused by:
•
The use of replacement parts not
certified in accordance with aftermarket
parts certification regulations.
•
The use of replacement parts not
equivalent in quality or design to
original equipment parts.
Provisions under the “What Is Not Covered”
section of the New Vehicle Limited Warranty
also apply to this warranty.
PARTS LIST:
LONG-TERM EMISSION
DEFECT WARRANTY
The parts listed here are covered for seven
years or 70,000 miles from the vehicle’s
in-service date, whichever occurs first.
Air/Fuel Metering System
• Air fuel ratio sensor
•
Engine control computer (engine
control module)
• Fuel delivery pipe
• Fuel pressure sensor
• High pressure and low pressure fuel pump
• Injector
• Injector driver
• Throttle body
Air Induction System
• Intake manifold and intake air surge tank
Catalyst System
•
Exhaust center pipe (including
catalytic converter)
•
Exhaust manifold (including
manifold converter)
EGR System
• EGR cooler
• EGR pipe
• EGR valve
Evaporative Control System
• Fuel tank
• Fuel tank solenoid main valve



CALIFORNIA EMISSION CONTROL WARRANTY
Your Warranties in Detail
WARRANTY

26




Hybrid System
•
Battery control computer
(battery voltage sensor)*
• Hybrid Battery*
• Hybrid battery junction block
(including system main relay)
•
Hybrid control computer (power
management control module)*
• Inverter with converter*
• Oil pump with motor
• RR traction motor with transaxle
• Transaxle (including motor and generator)
• Water pump with motor
• Ignition System
• Knock sensor


MAINTENANCE
You are responsible for performance of
the required maintenance indicated in the
Owner ’s Manual and this booklet. Toyota
will not deny a warranty claim solely
because you do not have records to show
that you maintained your vehicle. However,
any failure or noncompliance caused
by lack of maintenance is not covered by
this warranty.
When maintenance and repairs are
paid for by you, these services may be
performed by you or by any automotive
service provider you choose. Toyota
will not deny a warranty claim solely
because you used a service provider
other than a Toyota dealership for
maintenance and repairs. However,
any failure or noncompliance caused by
improper maintenance or repairs is not
covered by this warranty.
CALIFORNIA EMISSION CONTROL WARRANTY
*Covered under the Hybrid System Warranty for eight years or 100,000 miles, whichever occurs first
Your Warranties in Detail
WARRANTY

27


REPLACEMENT PARTS
To ensure optimum performance and
maintain the quality built into your
vehicle’s emission control systems,
Toyota recommends the use of
Genuine Toyota Parts when servicing
or repairing the systems.
Warranty coverage is not dependent
upon the use of any particular brand
of replacement parts and you may elect
to use non-Genuine Toyota Parts for
maintenance and repairs. However,
use of replacement parts that are not
equivalent in quality to Genuine Toyota
Parts may impair the effectiveness of
the emission control systems.
If you use replacement parts that have
maintenance or replacement schedules
different from those of Genuine Toyota
Parts, you must follow the maintenance
and replacement schedules for the parts
you are using. In addition, you should
ensure that such parts are warranted by
their manufacturers to be equivalent to
Genuine Toyota Parts.

IF YOUR VEHICLE FAILS
A SMOG-CHECK TEST
If your vehicle fails a smog-check test,
you may make a claim under the Emission
Performance Warranty. To do so, take your
vehicle to an authorized Toyota dealership
and present a copy of the smog-check test
report. Also, take your maintenance
records in case they are needed.
If your claim qualifies for coverage, the
dealership will repair your vehicle within
30 days (unless a shorter period is
required by law). If your claim is denied,
Toyota will notify you in writing of the
reason within the same period. If we fail
to do so, we will repair your vehicle free
of charge. The only exceptions allowed are
when you request or agree to a delay, or
when a delay is caused by factors beyond
the control of Toyota or the dealership.
For information on how to obtain service
under the Emission Defect Warranty, see
page 32, “Obtaining Warranty Service.”
CALIFORNIA EMISSION CONTROL WARRANTY
Your Warranties in Detail
WARRANTY

28

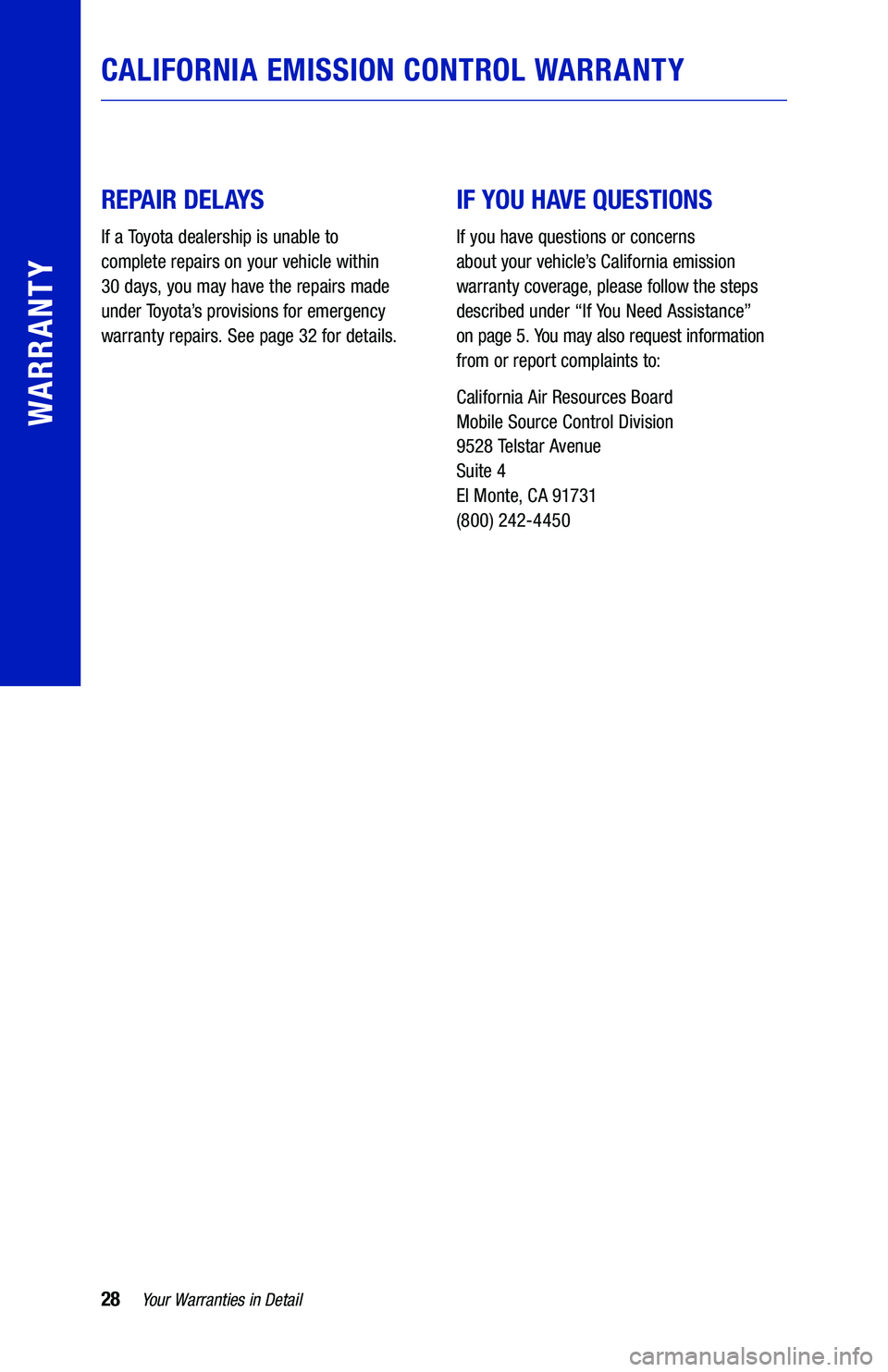

REPAIR DELAYS
If a Toyota dealership is unable to
complete repairs on your vehicle within
30 days, you may have the repairs made
under Toyota’s provisions for emergency
warranty repairs. See page 32 for details.


IF YOU HAVE QUESTIONS
If you have questions or concerns
about your vehicle’s California emission
warranty coverage, please follow the steps
described under “If You Need Assistance”
on page 5. You may also request information
from or report complaints to:
California Air Resources Board
Mobile Source Control Division
9528 Telstar Avenue
Suite 4
El Monte, CA 91731
(800) 242-4450
CALIFORNIA EMISSION CONTROL WARRANTY
Your Warranties in Detail
WARRANTY

29
OBTAINING
WARRANTY SERVICE
The tires that come as original equipment
on your vehicle are warranted by their
manufacturer and not Toyota. A separate
warranty statement for the tires is in your
glove box.
To obtain service for a tire defect, take
the tire to an authorized dealer of the tire
manufacturer. (Refer to your local phone
directory for dealer locations.) Your
Toyota dealer may also be able to assist
you in obtaining warranty service from
the manufacturer.
For additional warranty information
or service assistance, contact the tire
manufacturer directly.

ORIGINAL EQUIPMENT
TIRE MANUFACTURERS
American Kenda Rubber
7095 Americana Parkway
Reynoldsburg, OH 43068
(866) 536-3287
Bridgestone/Firestone
535 Marriott Drive
Nashville, TN 37214
Bridgestone: (800) 847-3272
Firestone: (800) 356-4644
Continental Tire of North America
1800 Continental Blvd.
Charlotte, NC 28273
(800) 847-3349
Dunlop Tires
1144 East Market Street
Akron, OH 44316
(800) 321-2136
Goodyear Tire and Rubber Co.
1144 East Market Street
Akron, OH 44316
(800) 321-2136
Hankook Tire America Corporation
1450 Valley Road
Wayne, NJ 07470
(800) 426-5665
Michelin North America
P.O. Box 19001
Greenville, SC 29602
(800) 847-3435
Toyo Tire (U.S.A.) Corporation
6261 Katella Ave., Suite 2B
Cypress, CA 90630
(800) 442-8696
Yokohama Tire Corporation
1 MacArthur Place, Suite 800
Santa Ana, CA 92707
(800) 722-9888
TIRE LIMITED WARRANTY
Your Warranties in Detail
WARRANTY

30
OPERATION AND MAINTENANCE

GENERAL INFORMATION
You are responsible for ensuring that
your Toyota is operated and maintained
according to the instructions in the
Owner’s Manual and this booklet.
You should keep detailed records of
vehicle maintenance, since under some
circumstances they may be required for
warranty coverage. These records should
include date of service, mileage at time
of service and a description of service
performed and/or parts installed. For
your convenience, a maintenance log is
included in this booklet. If you sell your
vehicle, you should give your maintenance
records to the new owner.
Toyota will not deny a warranty claim
solely because you do not have records
to show that you maintained your vehicle.
However, damage or failure caused by
lack of proper maintenance is not
covered under warranty.

WHERE TO GO
FOR MAINTENANCE
You may have maintenance performed
on your vehicle by any qualified person
or facility. However, Toyota recommends
having maintenance performed by an
authorized Toyota dealership.
Toyota dealership technicians are specially
trained to maintain and repair Toyota
vehicles. They stay current on the latest
service information through Toyota
technical bulletins, service publications
and training courses. Many are also
certified through the Toyota Certification
Program, which involves a series of
rigorous written examinations. Feel free
to ask any Toyota dealership to show you
their technicians’ credentials.
You can be confident you’re getting the
best possible service for your vehicle
when you take it to a Toyota dealership.
Your Responsibilities
WARRANTY
