OVERVIEW
Instrument cluster
Indicator symbols
For details, refer to “Indicators and warning lights,” Section 2, 2019 Owner’s
Manual.
Automatic High Beam (AHB)
indicator
Electric power steering system
warning (red/yellow)1
BSM outside rear view mirror
indicators2
Charging system warning
Brake Override System/
Drive-Start ControlECO MODE indicator
Eco Driving Indicator
Arrow direction indicates fuel tank
door position
Anti-lock Brake System (ABS)
warning1
Blind Spot Monitor (BSM)
indicator2
Brake system warning1
Brake system warning (yellow)1
Brake hold operated indicator1
Brake hold standby indicator1
“AIRBAG ON/OFF” indicator1
AIRBAG SRS warning1
Service indicators and reminders
BSM w/Rear Cross Traffic Alert
(RCTA) indicator2
Driver’s and front passenger’s seat belt
reminder (alarm will sound if speed is
over 12 mph)
Constant speed cruise control
indicator/Constant speed
cruise control SET indicator
Full-Speed Dynamic Radar
Cruise Control (DRCC)
indicator/DRCC SET indicator
TachometerOutside temperature
Fuel gauge Shift position and
shift range Engine coolant
temperature gaugeOdometer/
trip meterMulti-Information Display
Speedometer
Page 7 of 48
5
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Low fuel level warning
Turn signal indicator
Low Tire Pressure Warning1
Vehicle Stability Control
(VSC) OFF indicator1
Malfunction/Check Engine
indicator1
Low engine oil pressure
warning
High engine coolant
temperature warning
Smart Key system2
SPORT mode indicator
Parking brake indicator2
Headlight low/high beam
indicators
Pre-Collision System (PCS)
warning light1,2
Rear passengers’ seat belt
reminder indicator Lane Departure Alert (LDA) with
steering assist indicator
Slip indicator indicator1,3
Security indicator
Low outside temperature indicator
1
If the indicator does not turn off within a few seconds of starting the engine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.
Page 17 of 48
15
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Multi-Information Display (MID)
Steering wheel switchesMulti-Information Display (MID)
Previous screen
Enter/set
Select
Use the the steering wheel meter control switches to operate the MID. Se\
e
above.
Driving mode select
“NORMAL w 4 V J U B C M F G P S D J U Z E S J W J O H
“SPORT w 4 V J U B C M F G P S S P B E T X J U I N B O Z D V S W F T O F F E J O H J N Q S P W F E E S J W J O H S F T Q P O T F
“ECO w 4 V J U B C M F G P S J N Q S P W F E G V F M F D P O P N Z B O E F O F S H Z T B W J O H D P O U S P M M F E B J S
heating.
1 S F T T T U F F S J O H X I F F M T X J U D I F T i
w U P G J O E B O E T F M F D U in the MID.
1 S F T T T U F F S J O H X I F F M T X J U D I F T “
w T X J U D I F T B O E T F M F D U i % S J W F . P E F w J O U I F . * %
4 F M F D U B E S J W J O H N P E F
5 I F i 4 1 0 3 5 w B O E i & $ 0 w J O E J D B U P S T E J T Q M B Z J O U I F . V M U J * O G P S N B U J P O % J T Q M B Z . * %
Note: Operation of the LDA system and setting adjustments continues in t\
he same
condition regardless of Ignition cycle until changed by the driver or th\
e system is reset.
Refer to the Owner’s Manual for more settings and customizable featur\
es.
Push MID control switches to view or change information in the following\
:
/ B W J H B U J P O T Z T U F N M J O L F E E J T Q M B Z J G F R V J Q Q F E
Driving information
Driving assist system information
Audio system-linked display
Warning message display
Settings display
Page 26 of 48
24
TOYOTA SAFETY SENSE™
The Pre-Collision System with Pedestrian Detection uses a radar sensor and camera
sensor to help detect a vehicle or pedestrian in front of your vehicle.
As there is a limit to the degree of recognition accuracy and control performance
that this system can provide, do not overly rely on this system. This system will not
prevent collisions or lessen collision damage or injury in every situation. Do not use
PCS w/PD instead of normal braking operations under any circumstances. Do not
attempt to test the operation of the pre-collision system yourself, as the system may
not operate or engage, possibly leading to an accident. In some situations, such as
when driving in inclement weather such as heavy rain, fog, snow or a sandstorm or
while driving on a curve and for a few seconds after driving on a curve, a vehicle
may not be detected by the radar and camera sensors, preventing the system from
operating or engaging properly.
Refer to a Toyota Owner’s Manual for a list of additional situations in which the
system may not operate properly.
Refer to a Toyota Owner’s Manual for additional information on PCS w/PD operation,
settings adjustments, limitations, and precautions before attempting to use it. Pre-Collision Warning
When the system determines that the possibility of a frontal collision is high, a
buzzer will sound and a warning message will be displayed on the Multi-Information
% J T Q M B Z . * %
U P V S H F U I F E S J W F S U P U B L F F W B T J W F B D U J P O
Pre-Collision Brake Assist
If the driver notices the hazard and brakes, the system may provide additional
braking force using Brake Assist. This system may prime the brakes and may apply
greater braking force in relation to how strongly the brake pedal is depressed.
Pre-Collision Braking
If the driver does not brake in a set time and the system determines that the
possibility of a frontal collision with a preceding vehicle is extremely high, the
system may automatically apply the brakes, reducing speed in order to help the
driver reduce the impact and in certain cases avoid the collision.
Pre-Collision System with
Pedestrian Detection (PCS w/PD)
Page 30 of 48
28

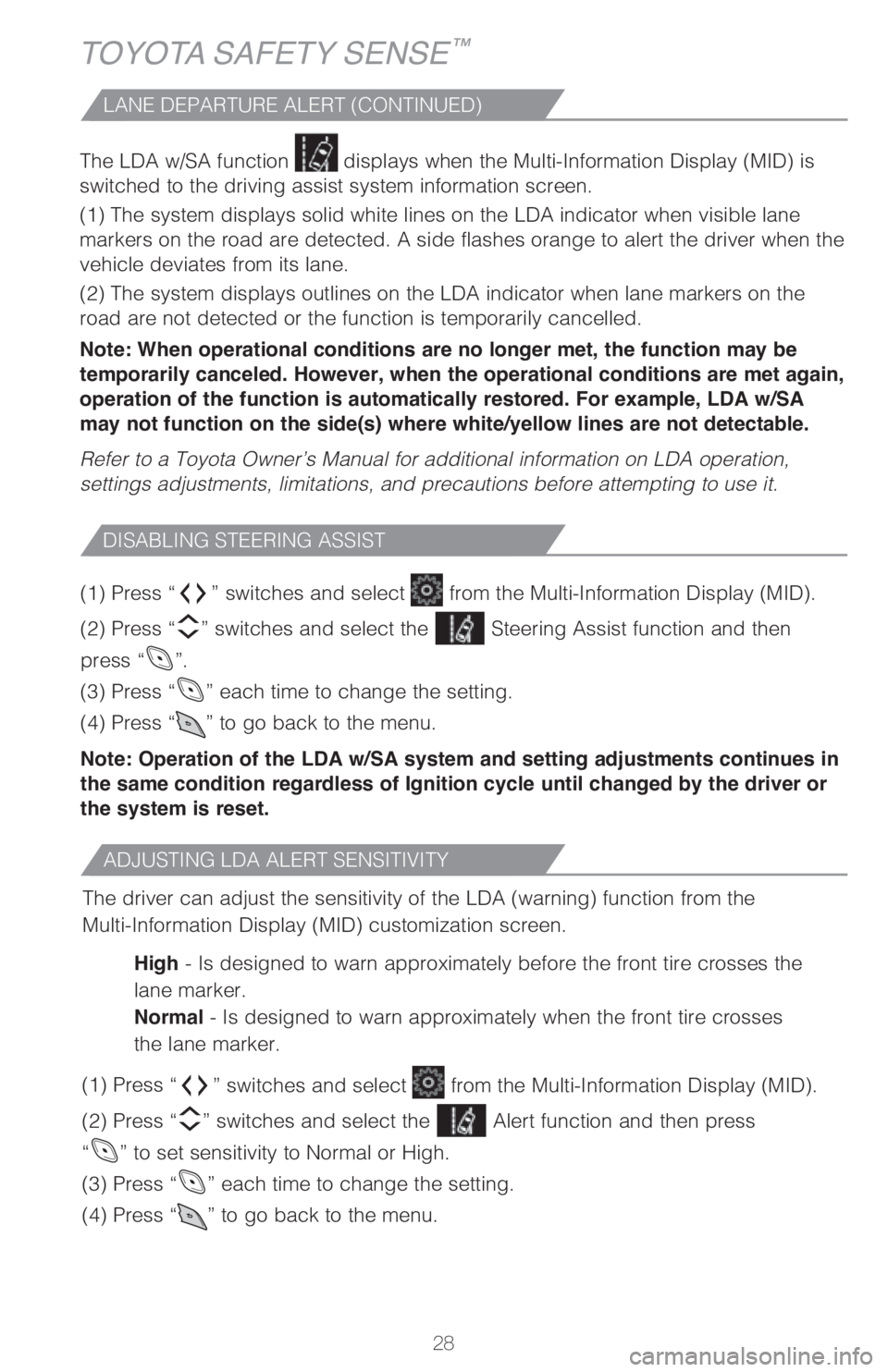

The LDA w/SA function
displays when the Multi-Information Display (MID) is
switched to the driving assist system information screen.
(1) The system displays solid white lines on the LDA indicator when visible \
lane
markers on the road are detected. A side flashes orange to alert the dri\
ver when the
vehicle deviates from its lane.
(2) The system displays outlines on the LDA indicator when lane markers on t\
he
road are not detected or the function is temporarily cancelled.
Note: When operational conditions are no longer met, the function may be\
temporarily canceled. However, when the operational conditions are met a\
gain,
operation of the function is automatically restored. For example, LDA w/\
SA
may not function on the side(s) where white/yellow lines are not detec\
table.
Refer to a Toyota Owner’s Manual for additional information on LDA op\
eration,
settings adjustments, limitations, and precautions before attempting to \
use it.
LANE DEPARTURE ALERT (CONTINUED)
DISABLING STEERING ASSIST
(1) Press “” switches and select from the Multi-Information Display (MID).
(2) Press “
” switches and select the Steering Assist function and then
press “
”.
(3) Press “
” each time to change the setting.
(4) Press “
” to go back to the menu.
Note: Operation of the LDA w/SA system and setting adjustments continues\
in
the same condition regardless of Ignition cycle until changed by the dri\
ver or
the system is reset.
TOYOTA SAFETY SENSE™
ADJUSTING LDA ALERT SENSITIVITY
The driver can adjust the sensitivity of the LDA (warning) function fr\
om the
Multi-Information Display (MID) customization screen.
High - Is designed to warn approximately before the front tire crosses the
lane marker.
Normal - Is designed to warn approximately when the front tire crosses
the lane marker.
(1) Press “
” switches and select from the Multi-Information Display (MID).
(2) Press “
” switches and select the Alert function and then press
“
” to set sensitivity to Normal or High.
(3) Press “
” each time to change the setting.
(4) Press “
” to go back to the menu.
