2019 TESLA MODEL X dimensions

Dimensions and Weights

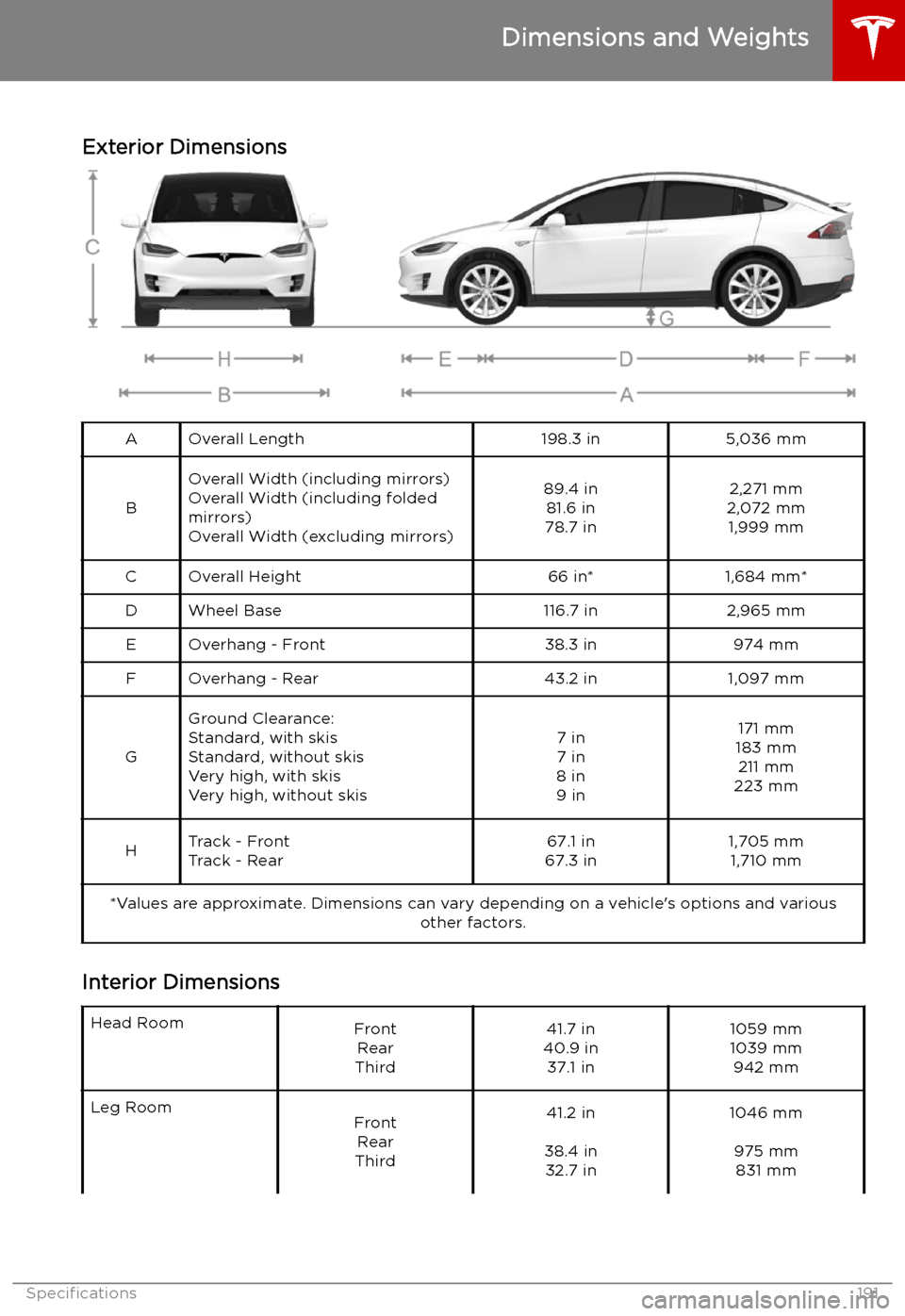

Exterior Dimensions
AOverall Length198.3 in5,036 mm
B
Overall Width (including mirrors) Overall Width (including folded
mirrors)
Overall Width (excluding mirrors)89.4 in 81.6 in
78.7 in2,271 mm
2,072 mm 1,999 mmCOverall Height66 in*1,684 mm*DWheel Base116.7 in2,965 mmEOverhang - Front38.3 in974 mmFOverhang - Rear43.2 in1,097 mm
G
Ground Clearance:
Standard, with skis
Standard, without skis
Very high, with skis
Very high, without skis7 in
7 in
8 in
9 in171 mm
183 mm 211 mm
223 mmHTrack - Front
Track - Rear67.1 in
67.3 in1,705 mm 1,710 mm*Values are approximate. Dimensions can vary depending on a vehicle

Shoulder RoomFrontRear
Third60.7 in 56.8 in 40 in1542 mm
1442 mm 1016 mmHip RoomFront Rear
Third55.6 in 59 in
38.5 in1412 mm
1498 mm 978 mm
Cargo Volume
Front TrunkRear*TotalSeven Seat Vehicles6.6 cu ft (187 L)76.5 cu ft (2166 L)**83.1 cu ft (2353 L)Six Seat Vehicles6.6 cu ft (187 L)70.7 cu ft (2002 L)**77.3 cu ft (2189 L)Five Seat Vehicles6.6 cu ft (187 L)81.2 cu ft (2299.5 L)**87.8 cu ft (2486.5 L)* Maximum cargo volume behind the front row seats. Includes the 12.6 cu ft (357 L) cargo area
in the rear trunk (area behind the third row seats, if equipped).** Second row seats fully forward and/or folded.
Weights
Curb Weight* 75D2,427 kgCurb Weight* 100D2,533 kgCurb Weight* P100D2,572 kgGVWR** 75D2,985 kgGVWR** 100D3,079 kgGVWR** P100D3,120 kgGross Vehicle Weight Distribution 75DFront: 1,311 kg
Rear: 1,674 kgGross Vehicle Weight Distribution 100DFront: 1,405 kg Rear: 1,674 kgGross Vehicle Weight Distribution P100DFront: 1,373 kgRear: 1,747 kgGross Axle Weight Rating - Front1,470 kgGross Axle Weight Rating - Rear (at nominal tire
pressure of 290 kPa)1,800 kgTowing Capacity (if equipped)See Towing and Accessories on page
87.
