2019 SKODA SCALA Owner´s Manual

Lane boundary highligh-
ted on the right: system
intervenes on the right
when approaching the
lane marking.
In the coloured display,
the lines are highlighted
in colour.
Warning through steering wheel vibrations
If the steering wheel vibrates, this means the system
is unable to keep the vehicle in the lane.

Function restriction
The system cannot detect lane width. For this rea-
son, it may, for example, draw attention to a vehicle
in a distant lane in the following cases.

Park Assist systems
Park Pilot parking aid Functionality
If an obstacle is detected, the Infotainment will dis-
play a visible message and an audible signal will
sound. The interval between the signals becomes
shorter as the clearance is reduced. At a distance of
less than 30 cm from the obstacle, a continuous tone
sounds.
If the driver does not respond to the warning, the
system triggers automatic emergency braking at
speeds below 8 km/h in order to reduce the impact.
Automatic braking can be activated and deactivated
in the infotainment.
Display
The recorded areas vary according to the equipment.
ARoute controlled at the current steering angleAcoustic signals on/o

Rear view camera
Functionality
When reversing, the area behind the vehicle is dis-
played in the Infotainment screen complete with ori-
entation lines.
The camera is equipped with a cleaning system.
Cleaning takes place automatically when the rear
window is washed.
Orientation lines and functional surfaces
Orientation lines
ADistance about 40 cmBDistance about 100 cmCDistance about 200 cm
The distance between the side lines corresponds ap-
proximately to the vehicle width including mirrors.
Function surfaces
Brightness, contrast and colour settings of the
screenTurns o

Vehicle without Park Pilot
If an approaching vehicle is detected in the area be-
hind your vehicle, the a warning is displayed in the in-
strument cluster display, indicating to the driver to
monitor the traffic behind. At the same time, an
acoustic signal sounds.
Operating conditions
q ASR activated.
q No accessories are connected to the trailer sock-
et.
Function restriction
Manoeuvre Assist

Park backwards longitudinallyPark backwards crosswisePark forwards across
The parking mode can be changed by pressing the
button .
Press the button again
and the system is switch-
ed o

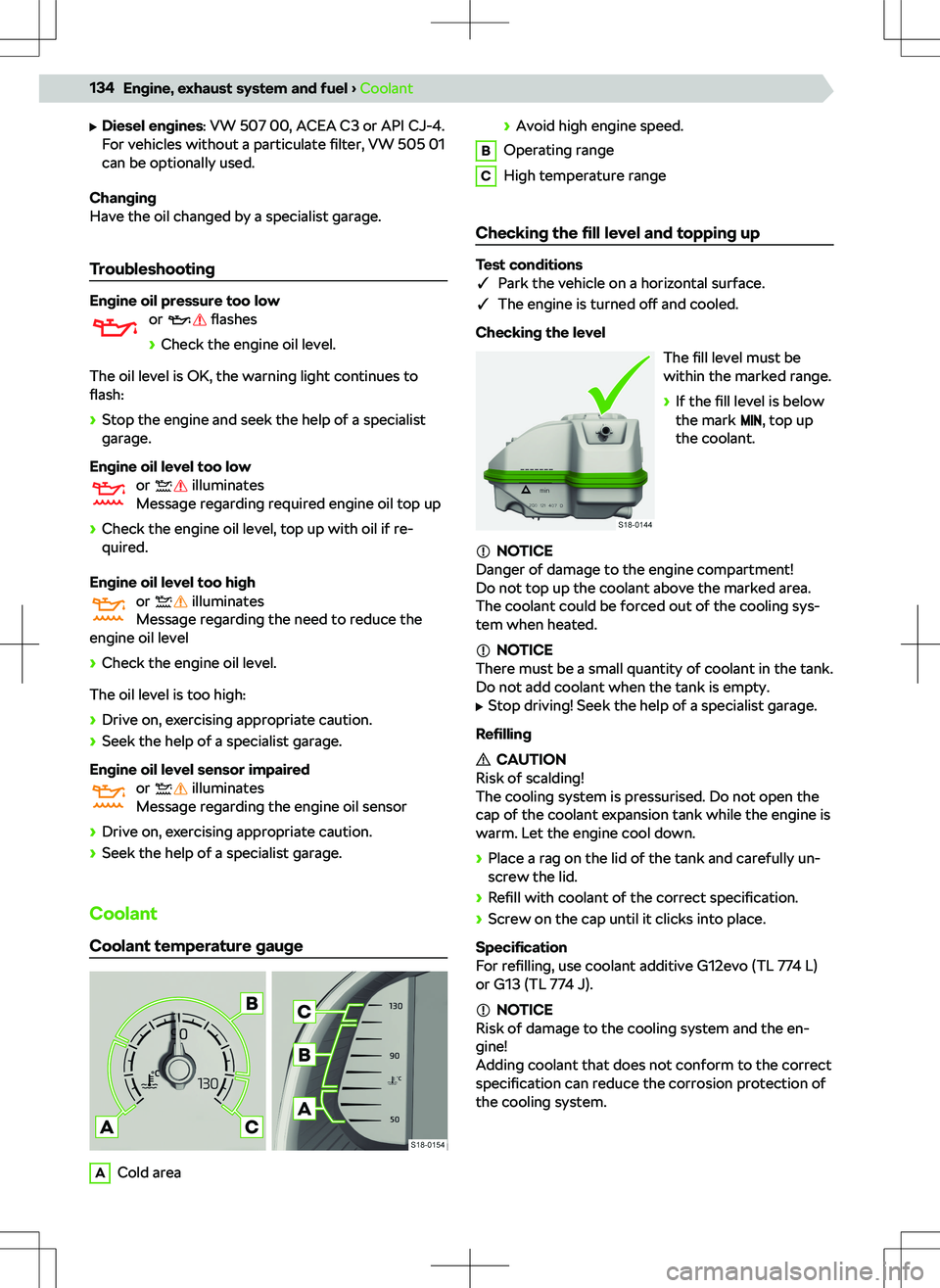

Engine, exhaust system and fuelBonnet
Opening the bonnet
Before opening
