2019 SKODA KODIAQ Owner´s Manual

Map optionsAAutomatic map display in day or night mode (de-
pending on the currently active vehicle lighting)BDaytime map displayCNight-time map displayDSwitch the split screen display on/o

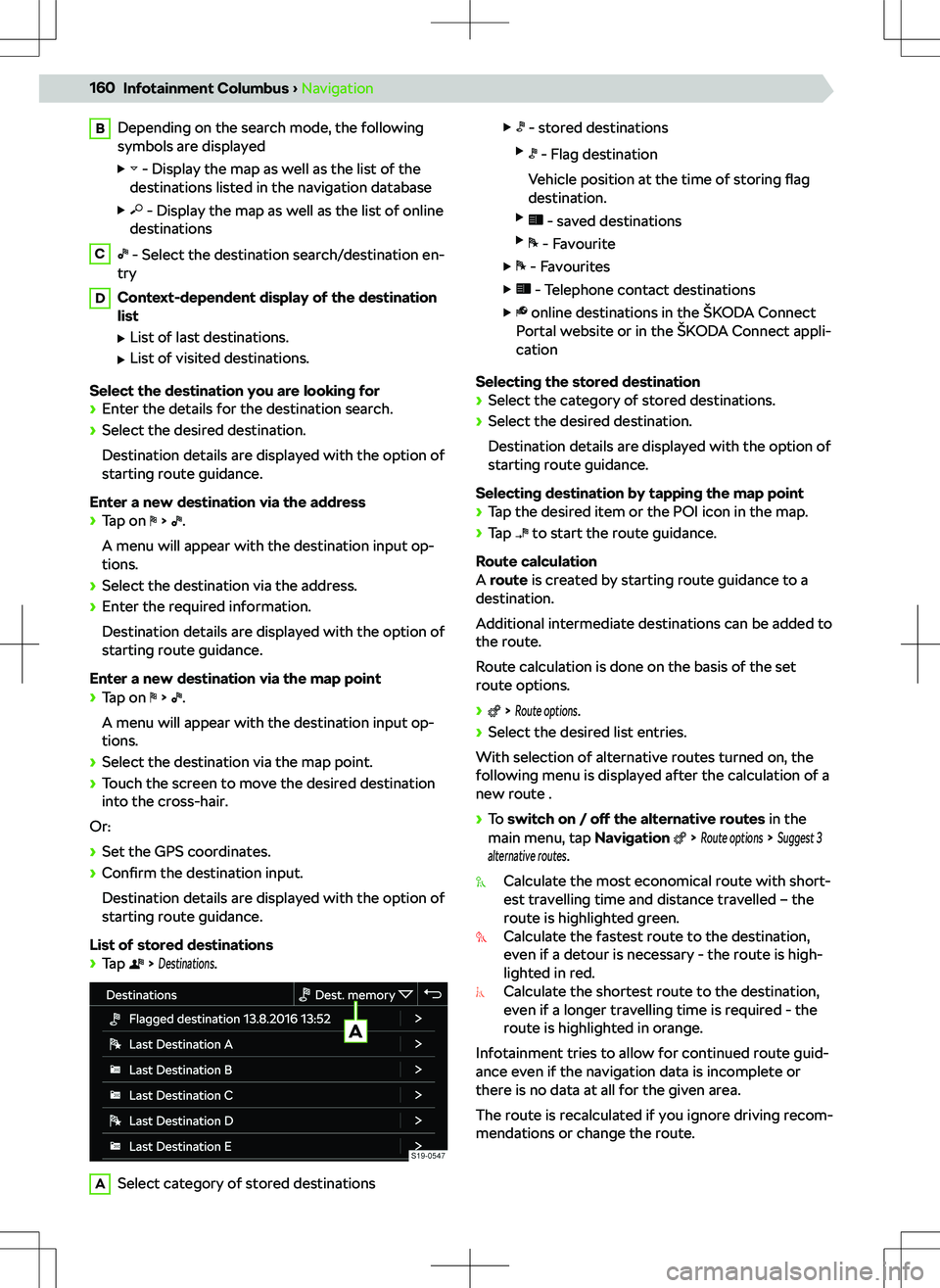

BDepending on the search mode, the following
symbols are displayed

The navigation announcements provided may vary
from the actual situations, e.g. due to out-of-date
navigation data.
Route overview
During route guidance the display of a route over-
view is possible.

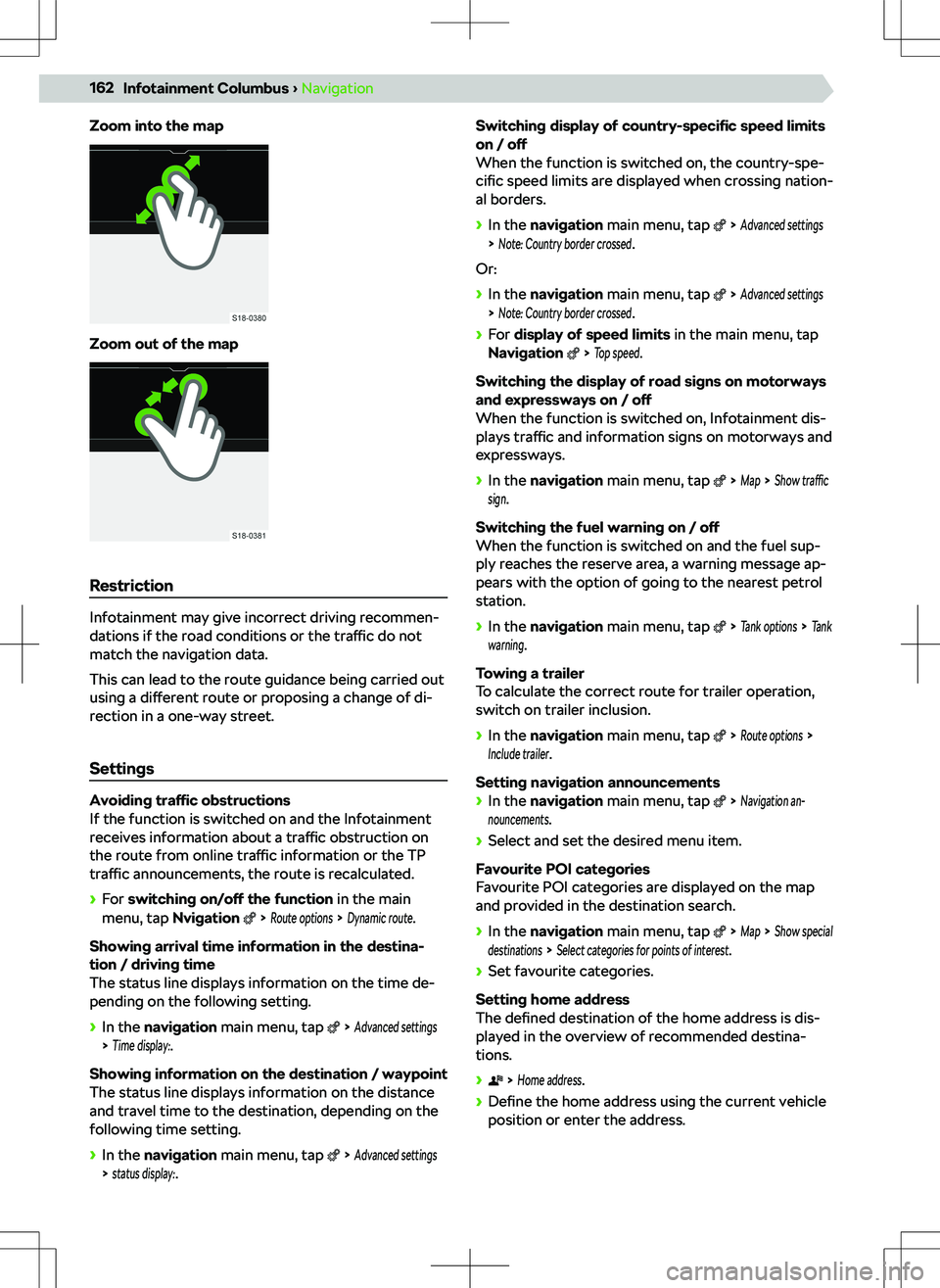

Zoom into the map
Zoom out of the map
Restriction
Infotainment may give incorrect driving recommen-
dations if the road conditions or the traffic do not
match the navigation data.
This can lead to the route guidance being carried out
using a di

Switching demo mode on / off
In demo mode, the route guidance from the starting
point of the demo mode to the selected destination
is simulated.
When the function is switched on, Infotainment is-
sues a query before the start of route guidance as to
whether the route guidance should be carried out in
the normal way or in demo mode.

NOTICE
Risk of engine overheating!

The engine makes noises after the cold start
The increased running noise is due to the briefly in-
creased engine speed. This is not a defect.
START STOPUsage
The START STOP system reduces environmentally
damaging emissions, including CO 2, and saves fuel.
If the system determine that the engine is not nee-
ded when the vehicle stops, it turns o

Automatic gearbox
Lever positions
Parked vehicle The drive wheels are
locked.
Only set the posi-
tion when the vehi- cle is stationary.
Reverse gear
Only set the posi-
tion when the vehi- cle is stationary.
Neutral
There is no transmission of engine power to the
wheels.
Forward drive / sports program
The gear is changed automatically.
In
mode, the gear is changed at higher speeds
than in mode.
Choose between and (spring-loaded posi-
tion)
Moving the selector lever out of the
or position
lights up - the selector lever is locked
