2019 Seat Arona technical data

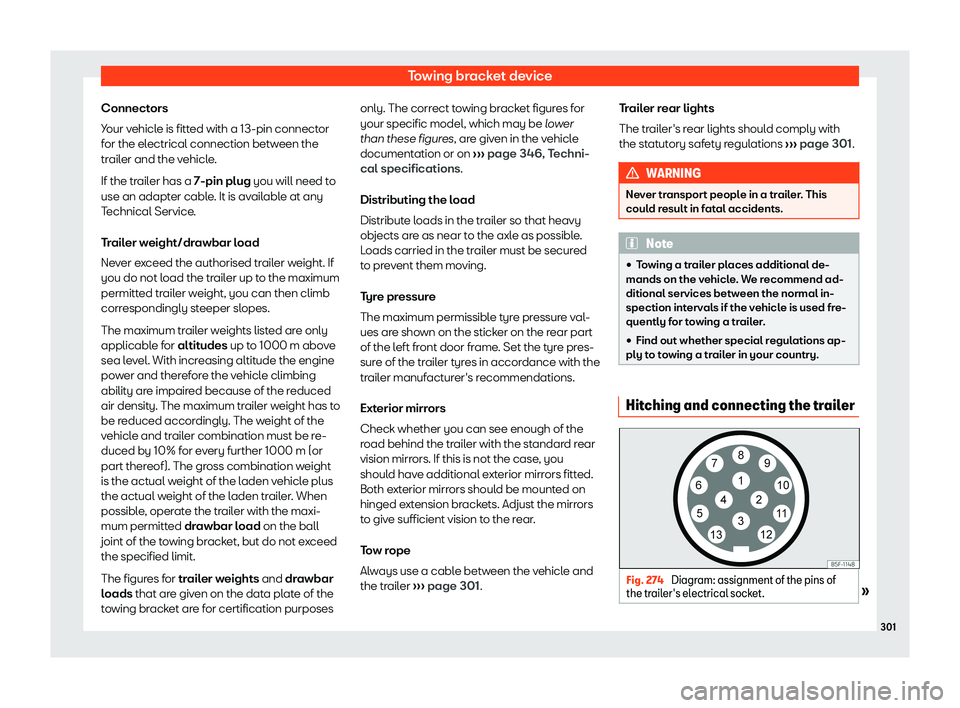

Towing bracket device
Connectors
Y our v
ehicle is fitt
ed with a 13-pin connect
or
for the electrical connection between the
trailer and the vehicle.
If the trailer has a 7-pin plug you will need to
use an adapter cable. It is available at any
Technical Service.
Trailer weight/drawbar load
Never exceed the authorised trailer weight. If
you do not load the trailer up to the maximum
permitted trailer weight, you can then climb
correspondingly steeper slopes.
The maximum trailer weights listed are only
applicable for altitudes up to 1000 m above
sea level. With increasing altitude the engine
power and therefore the vehicle climbing
ability are impaired because of the reduced
air density. The maximum trailer weight has to
be reduced accordingly. The weight of the
vehicle and trailer combination must be re-
duced by 10% for every further 1000 m (or
part thereof). The gross combination weight
is the actual weight of the laden vehicle plus
the actual weight of the laden trailer. When
possible, operate the trailer with the maxi-
mum permitted drawbar load on the ball
joint of the towing bracket, but do not exceed
the specified limit.
The figures for trailer weights and drawbar
loads that are given on the data plate of the
towing bracket are for certification purposes only. The correct towing bracket figures for
your specific model, which may be lower
than these figures
, are given in the vehicle
documentation or on

Technical data
Technical data
T echnical specifications
Impor tant inf
ormation
Impor
tant The information in the vehicle documentation
always tak
es pr

ecedence over the informa-
tion in this Instruction Manual.
All technical specifications provided in this
documentation are valid for the standard
model in Spain.
The figures may be different depending
whether additional equipment is fitted, for dif-
ferent models, for special vehicles and for
other countries. Abbreviations used in the technical speci-
fications section kW Kilowatt, engine power measurement.
PS Pferdest

Technical data
Wheels Tyr
e pr essur
e and wheel bolts Tyre pressure
The sticker with the tyre pr
essur
e values can
be found on the back of the left front door
frame. The tyre pressure values given there
are for cold tyres. Do not reduce the slightly
raised pressures of warm tyres

Technical specifications
Engine data P etr
ol engines
1.0 TSI Start-Stop
Power output in kW (PS) at 1/min 70 (95)/5,000-5,50085 (115)/5,000-5,500
Maximum torque (Nm at 1/min) 175/2,000-3,500200/2,000-3,500
No. of cylinders/displacement (cm 3
) 3/999 3/999
Fuel Super 95 / Normal 91 (with a slight power loss) ROZ
Gearbox manualmanual DSG
Top speed (km/h) 173 (IV)182 (V)182 (VI)
Acceleration from 0-80 km/h (seconds) 7.46.6 6. 7
Acceleration from 0-100 km/h (seconds) 11.49.810.0
Maximum authorised weight (kg) 1,615-1, 700a)
1,625-1, 710a)
1,655-1, 740a)
Weight in running order (with driver) (kg) 1,1801,189 1,212
Maximum authorised weight on front axle (kg) 850860 890
Maximum authorised weight on rear axle (kg) 815-900b)
815-900b)
815-900b)
Maximum trailer weight without brakes (kg) 590590 600
Weight of trailer with brakes on gradients up to 8% (kg) 1,1001,200 1,200
Weight of trailer with brakes on gradients up to 12% (kg) 1,0001,1001,100a)
Varies depending on the features.
b) Varies depending on the rear spring. 349

Technical data
Petrol engines
1.5 TSI Evo Start-Stop1.6 MPI
Power output in kW (PS) at 1/min 110 (150)/5,000-6,00081 (110)/5,800
Maximum torque (Nm at 1/min) 250/1,500-3,500155/3,800-4,000
No. of cylinders/displacement (cm 3
) 4/1,498 4/1,598
Fuel Super 95 / Normal 91 (with a slight power loss) ROZ
Gearbox manualmanualautomatic
Top speed (km/h) 205 (V)181 (IV)181 (IV)
Acceleration from 0-80 km/h (seconds) 5.87.17.3
Acceleration from 0-100 km/h (seconds) 8.311.111.5
Maximum authorised weight (kg) 1,665-1, 750a)
1,595-1,680a)
1,635-1, 720a)
Weight in running order (with driver) (kg) 1,2221,1561,194
Maximum authorised weight on front axle (kg) 900830870
Maximum authorised weight on rear axle (kg) 815-900b)
815-900b)
815-900b)
Maximum trailer weight without brakes (kg) 610570590
Weight of trailer with brakes on gradients up to 8% (kg) 1,2001,2001,200
Weight of trailer with brakes on gradients up to 12% (kg) 1,2001,1001,100a)
Varies depending on the features.
b) Varies depending on the rear spring. 350

Technical specifications
Natural gas/petrol engines
1.0 TGI Start-Stop
Power output in kW (PS) at 1/min 66 (90)/4,500-5,800
Maximum torque (Nm at 1/min) 160/1,900-3,500
No. of cylinders/displacement (cm 3
) 3/999
Fuel CNG
Super 95 / Normal 91 (with a slight power loss) ROZ
Gearbox manual
Top speed (km/h) 169 (4)
Acceleration from 0-80 km/h (seconds) 8.6
Acceleration from 0-100 km/h (seconds) 13.2
Maximum authorised weight (kg) 1, 700
Weight in running order (with driver) (kg) 1,301
Maximum authorised weight on front axle (kg) a)
Maximum authorised weight on rear axle (kg) a)
Maximum trailer weight without brakes (kg) 650
Weight of trailer with brakes on gradients up to 8% (kg) a)
Weight of trailer with brakes on gradients up to 12% (kg) a)a)
Data not available as this edition goes to print. 351

Technical data
Diesel engines
1.6 TDI CR Start-Stop
Power output in kW (PS) at 1/min 70 (95)/2, 750-4,60085 (115)/3,250-4,000
Maximum torque (Nm at 1/min) 250/1,500-2,600250/1,500-3,200
No. of cylinders/displacement (cm 3
) 4/1,5984/1,598
Fuel Diesel according to standard EN 590, min. 51 CN
Gearbox manualDSGmanual
Top speed (km/h) 172 (5)174 (6) 185 (5)
Acceleration from 0-80 km/h (seconds) 7.98.4 7.1
Acceleration from 0-100 km/h (seconds) 11.912.8 10.3
Maximum authorised weight (kg) 1, 715-1,800a)
1, 745-1,830a)
1, 725-1,810a)
Weight in running order (with driver) (kg) 1,2971,320 1,303
Maximum authorised weight on front axle (kg) 950980 960
Maximum authorised weight on rear axle (kg) 815-900b)
815-900b)
815-900b)
Maximum trailer weight without brakes (kg) 640660 650
Weight of trailer with brakes on gradients up to 8% (kg) 1,2001,200 1,200
Weight of trailer with brakes on gradients up to 12% (kg) 1,2001,1001,200a)
Varies depending on the features.
b) Varies depending on the rear spring. 352

Technical specifications
Vehicle data Dimensions Fig. 289
Dimensions and angles.
