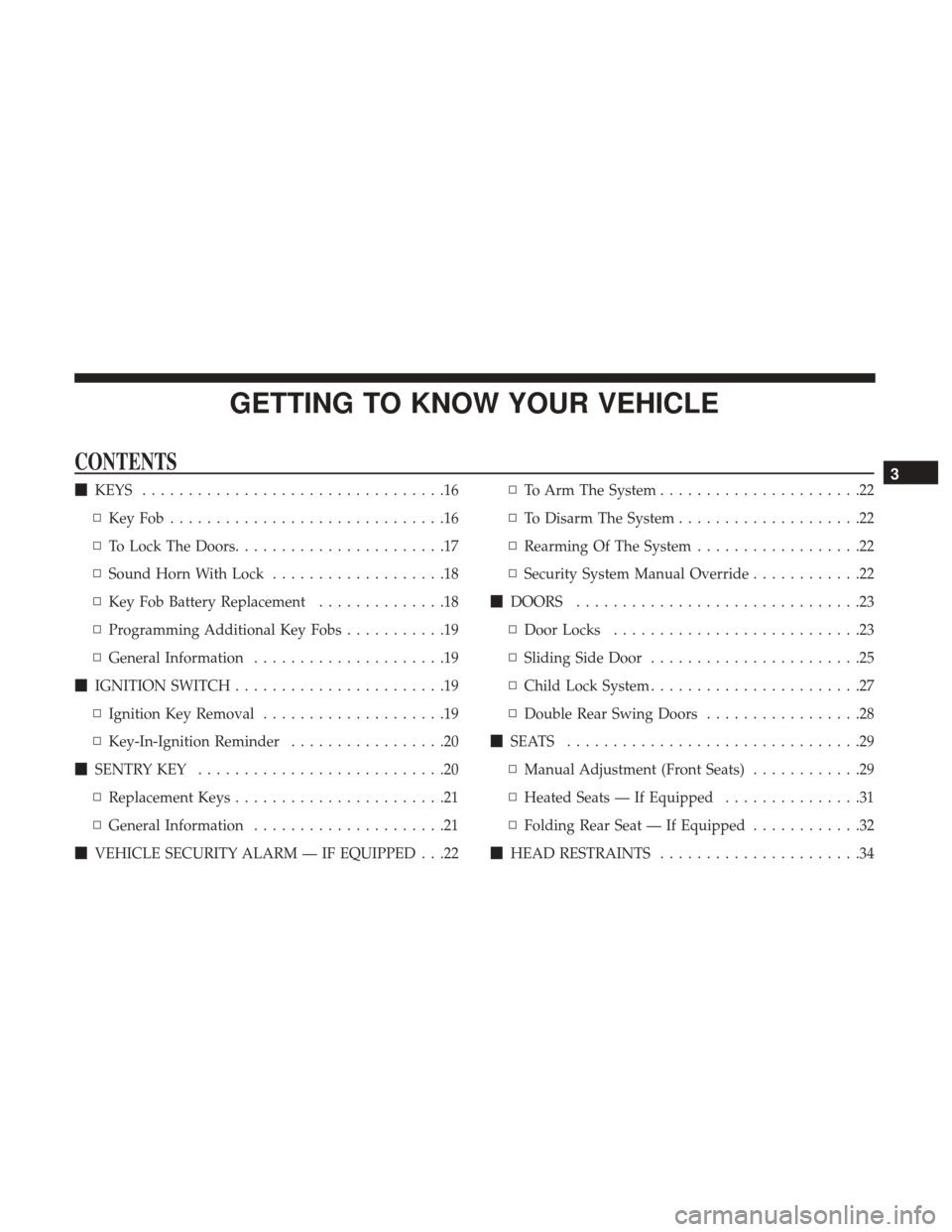

GETTING TO KNOW YOUR VEHICLE
CONTENTS
KEYS .................................16
▫ KeyFob..............................16
▫ To Lock The Doors .......................17
▫ Sound Horn With Lock ...................18
▫ Key Fob Battery Replacement ..............18
▫ Programming Additional Key Fobs ...........19
▫ General Information .....................19
 IGNITION SWITCH .......................19
▫ Ignition Key Removal ....................19
▫ Key-In-Ignition Reminder .................20
 SENTRY KEY ...........................20
▫ Replacement Keys .......................21
▫ General Information .....................21
 VEHICLE SECURITY ALARM — IF EQUIPPED . . .22 ▫
To Arm The System ......................22
▫ To Disarm The System ....................22
▫ Rearming Of The System ..................22
▫ Security System Manual Override ............22
 DOORS ...............................23
▫ Door Locks ...........................23
▫ Sliding Side Door .......................25
▫ Child Lock System .......................27
▫ Double Rear Swing Doors .................28
 SEATS ................................29
▫ Manual Adjustment (Front Seats) ............29
▫ Heated Seats — If Equipped ...............31
▫ Folding Rear Seat — If Equipped ............32
 HEAD RESTRAINTS ......................343

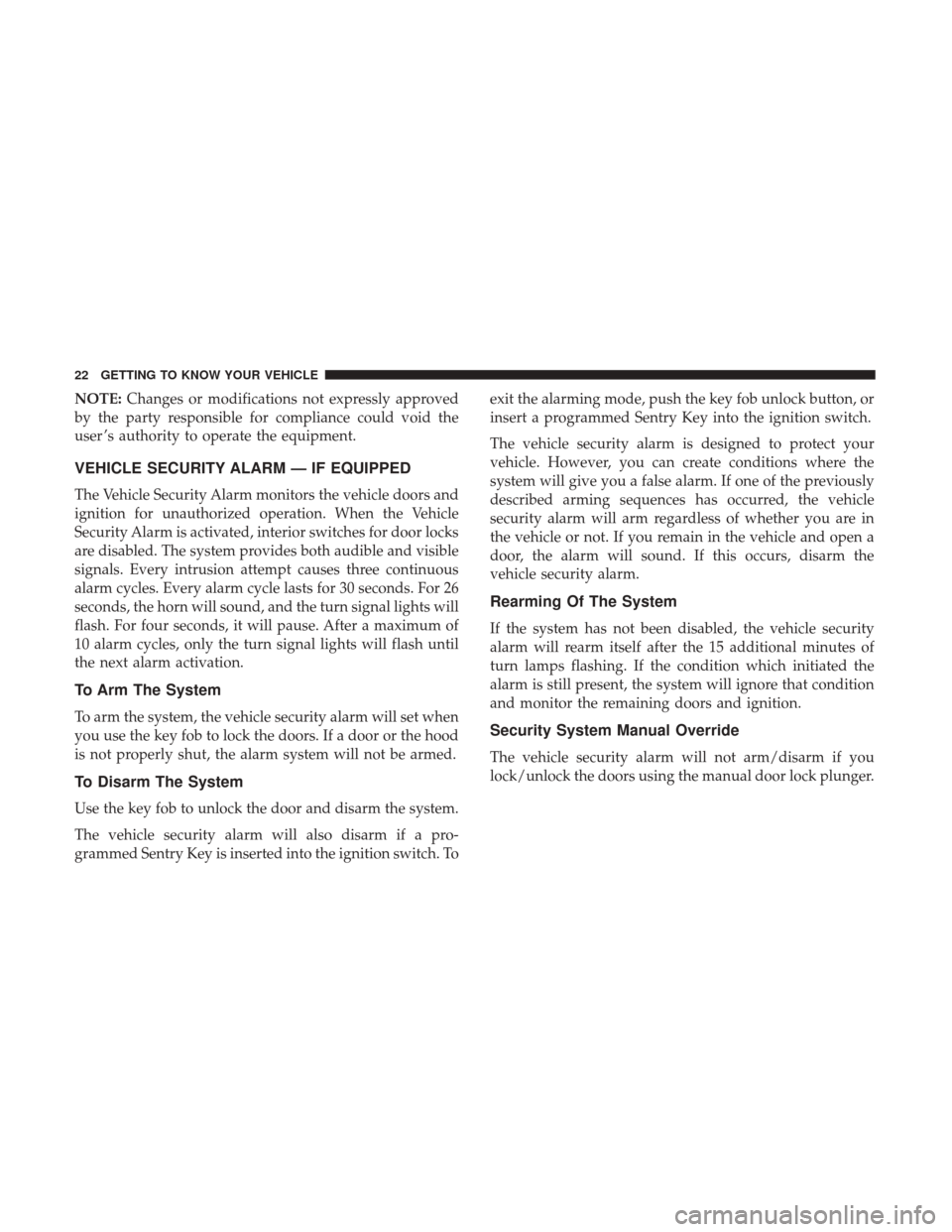

NOTE:Changes or modifications not expressly approved
by the party responsible for compliance could void the
user ’s authority to operate the equipment.
VEHICLE SECURITY ALARM — IF EQUIPPED
The Vehicle Security Alarm monitors the vehicle doors and
ignition for unauthorized operation. When the Vehicle
Security Alarm is activated, interior switches for door locks
are disabled. The system provides both audible and visible
signals. Every intrusion attempt causes three continuous
alarm cycles. Every alarm cycle lasts for 30 seconds. For 26
seconds, the horn will sound, and the turn signal lights will
flash. For four seconds, it will pause. After a maximum of
10 alarm cycles, only the turn signal lights will flash until
the next alarm activation.
To Arm The System
To arm the system, the vehicle security alarm will set when
you use the key fob to lock the doors. If a door or the hood
is not properly shut, the alarm system will not be armed.
To Disarm The System
Use the key fob to unlock the door and disarm the system.
The vehicle security alarm will also disarm if a pro-
grammed Sentry Key is inserted into the ignition switch. To exit the alarming mode, push the key fob unlock button, or
insert a programmed Sentry Key into the ignition switch.
The vehicle security alarm is designed to protect your
vehicle. However, you can create conditions where the
system will give you a false alarm. If one of the previously
described arming sequences has occurred, the vehicle
security alarm will arm regardless of whether you are in
the vehicle or not. If you remain in the vehicle and open a
door, the alarm will sound. If this occurs, disarm the
vehicle security alarm.
Rearming Of The System
If the system has not been disabled, the vehicle security
alarm will rearm itself after the 15 additional minutes of
turn lamps flashing. If the condition which initiated the
alarm is still present, the system will ignore that condition
and monitor the remaining doors and ignition.
Security System Manual Override
The vehicle security alarm will not arm/disarm if you
lock/unlock the doors using the manual door lock plunger.
22 GETTING TO KNOW YOUR VEHICLE

minute and then remain continuously illuminated. This
sequence will continue upon subsequent vehicle start-ups
as long as the malfunction exists. When the malfunction
indicator is illuminated, the system may not be able to
detect or signal low tire pressure as intended. TPMS
malfunctions may occur for a variety of reasons, including
the installation of replacement or alternate tires or wheels
on the vehicle that prevent the TPMS from functioning
properly. Always check the TPMS malfunction telltale after
replacing one or more tires or wheels on your vehicle to
ensure that the replacement or alternate tires and wheels
allow the TPMS to continue to function properly.
CAUTION!
The TPMS has been optimized for the original equip-
ment tires and wheels. TPMS pressures and warning
have been established for the tire size equipped on
your vehicle. Undesirable system operation or sensor
damage may result when using replacement equip-
ment that is not of the same size, type, and/or style.
Aftermarket wheels can cause sensor damage. Using
aftermarket tire sealants may cause the Tire Pressure
(Continued)
CAUTION!(Continued)
Monitoring System (TPMS) sensor to become inoper-
able. After using an aftermarket tire sealant it is
recommended that you take your vehicle to your au-
thorized dealer to have your sensor function checked.
— Vehicle Security Warning Light
This warning light will illuminate when the vehicle secu-
rity alarm system has detected an attempt to break into the
vehicle.
— Engine Check/Malfunction Indicator Warning
Light (MIL)
The Engine Check/Malfunction Indicator Light (MIL) is a
part of an Onboard Diagnostic System called OBD II that
monitors engine and automatic transmission control sys-
tems. This warning light will illuminate when the ignition
is in the ON/RUN position before engine start. If the bulb
does not come on when turning the ignition switch from
OFF to ON/RUN, have the condition checked promptly.
Certain conditions, such as a loose or missing gas cap, poor
quality fuel, etc., may illuminate the light after engine start.
The vehicle should be serviced if the light stays on through
80 GETTING TO KNOW YOUR INSTRUMENT PANEL

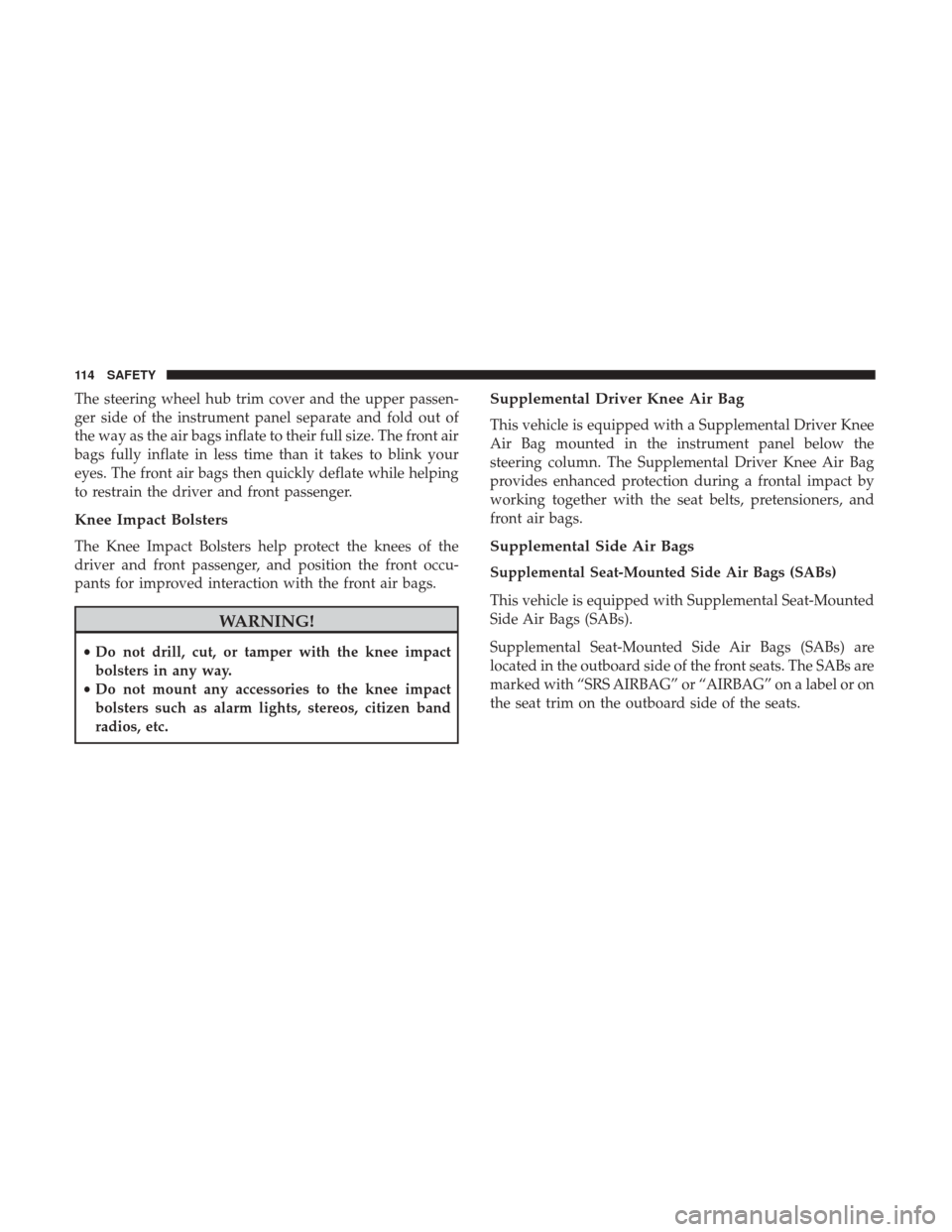

The steering wheel hub trim cover and the upper passen-
ger side of the instrument panel separate and fold out of
the way as the air bags inflate to their full size. The front air
bags fully inflate in less time than it takes to blink your
eyes. The front air bags then quickly deflate while helping
to restrain the driver and front passenger.
Knee Impact Bolsters
The Knee Impact Bolsters help protect the knees of the
driver and front passenger, and position the front occu-
pants for improved interaction with the front air bags.
WARNING!
•Do not drill, cut, or tamper with the knee impact
bolsters in any way.
• Do not mount any accessories to the knee impact
bolsters such as alarm lights, stereos, citizen band
radios, etc.
Supplemental Driver Knee Air Bag
This vehicle is equipped with a Supplemental Driver Knee
Air Bag mounted in the instrument panel below the
steering column. The Supplemental Driver Knee Air Bag
provides enhanced protection during a frontal impact by
working together with the seat belts, pretensioners, and
front air bags.
Supplemental Side Air Bags
Supplemental Seat-Mounted Side Air Bags (SABs)
This vehicle is equipped with Supplemental Seat-Mounted
Side Air Bags (SABs).
Supplemental Seat-Mounted Side Air Bags (SABs) are
located in the outboard side of the front seats. The SABs are
marked with “SRS AIRBAG” or “AIRBAG” on a label or on
the seat trim on the outboard side of the seats.
114 SAFETY

Adding Engine Coolant (Antifreeze).............248
Additives, Fuel ........................... .290
Air Bag Air Bag Operation ........................113
Driver Knee Air Bag ......................114
Enhanced Accident Response .............120, 229
Event Data Recorder (EDR) .................229
FrontAirBag ...........................111
If Deployment Occurs .....................119
Knee Impact Bolsters ......................114
Maintaining Your Air Bag System .............121
Maintenance ........................... .121
Transporting Pets ....................... .142
Air Bag Light .......................... .74, 143
Air Cleaner, Engine (Engine Air Cleaner Filter) ......242
Air Conditioner Maintenance ..................242
Air Conditioner Refrigerant ................242, 243
Air Conditioner System ..................... .242
Air Conditioning Filter .......................53
Air Conditioning, Operating Tips .............52, 54
Air Filter ............................... .242
Air Pressure Tires................................. .267
Alarm Security Alarm ...........................22 Alterations/Modifications
Vehicle .................................6
Antifreeze (Engine Coolant) ................247, 292
Disposal .............................. .249
Anti-Lock Brake System (ABS) ..................88
Anti-Lock Warning Light ......................78
Assist, Hill Start ............................90
Audio Systems (Radio) ...................... .296
Auto Down Power Windows ...................55
Automatic Transmission ..................154, 156
Adding Fluid ....................... .253, 294
Fluid And Filter Change ...................253
Fluid Change .......................... .253
Fluid Level Check .....................252, 253
Fluid Type ......................... .252, 294
Special Additives ........................ .253
Auto Up Power Windows .....................56
Auxiliary

Electrical Outlet (Power Outlet) ..........63
Axle Fluid .............................. .294
Battery .............................. .76, 239
Charging System Light .....................76
Keyless Key Fob Replacement ................18
Belts, Seat ............................... .143
Body Builders Guide ..........................5
326 INDEX

Rotation, Tires............................ .277
Safety Checks Inside Vehicle ...................143
Safety Checks Outside Vehicle .................145
Safety Defects, Reporting .....................323
Safety, Exhaust Gas ........................ .143
Safety Information, Tire ..................... .256
Safety Tips .............................. .142
Schedule, Maintenance ...................... .233
Seat Belts ............................. .99, 143
Adjustable Shoulder Belt ...................104
Adjustable Upper Shoulder Anchorage .........104
Adjustable Upper Shoulder Belt Anchorage ......104
Child Restraints ........................ .122
Energy Management Feature ................107
Front Seat ....................... .99, 100, 102
Inspection ............................. .143
Lap/Shoulder Belt Operation ................102
Lap/Shoulder Belts ...................... .100
Lap/Shoulder Belt Untwisting ...............104
Operating Instructions .....................102
Pregnant Women ........................ .106
Pretensioners .......................... .107
Rear Seat ............................. .100
Reminder ........................... .77, 99Seat Belt Pretensioner
.....................107
Untwisting Procedure .....................104
Seats ....................................29
Adjustment .............................29
Heated .................................31
Rear Folding .............................29
Tilting .................................29
Security Alarm .............................22
Selection Of Coolant (Antifreeze) ...............292
Sentry Key (Immobilizer) ......................20
Service Assistance ......................... .320
Service Contract .......................... .322
Service Manuals .......................... .324
Shifting Automatic

Transmission ....................156
Shift Lever Override ....................... .225
Shoulder Belts ............................ .100
Signals, Turn .......................... .82, 145
Snow Chains (Tire Chains) ....................277
Snow Tires .............................. .273
Spare Tires ........................ .273, 274, 275
Spark Plugs ............................. .292
Specifications Fuel (Gasoline) ......................... .292
Oil.................................. .292
334 INDEX
