First steps
With the engine running, a press
mutes the sound.
With the ignition off, a press turns
the system on.
Increase or decrease the volume using
the wheel or the "plus" or "minus" buttons
(depending on the equipment).
Use the menu buttons on either side of or
below the touch screen for access to the
menus, then press the virtual buttons in the
touch screen.
Depending on the model, use the "Source"
or "Menu" buttons to access the menus, then
press the virtual buttons in the touch screen.
You can display the menus at any time by
pressing the screen briefly with three fingers.
All of the touch areas of the screen are white.
Press the back arrow to go back a level.
Press "OK" to confirm. The touch screen is of the "capacitive"
type.
To clean the screen, use a soft, non-
abrasive cloth (e.g. spectacles cloth) with
no additional product.
Do not use sharp objects on the screen.
Do not touch the screen with wet hands.
Certain information is displayed permanently
in the side bars or in the upper bar of the touch
screen (depending on equipment):
-

R
epeat of the air conditioning information
(depending on version), and direct access to
the corresponding menu.
-

G
o directly to the selection of the audio
source, to the list of radio stations (or list of
titles depending on the source).
-

G
o to the "Notifications" of messages,
emails, map updates and, depending on the
services, the navigation notifications.
-

G
o to the settings for the touch screen and
the digital instrument panel. Selection of the sound source (depending on
equipment):
-

F
M/DAB/AM radio stations (depending on
equipment).
-

T
elephone connected via Bluetooth and
Bluetooth multimedia broadcast (streaming).
-

U
SB memory stick.
-

M
edia player connected via the auxiliary
socket (depending on equipment).
-

C
D Player (depending on equipment).
-

V
ideo (depending on equipment).
PEUGEOT Connect Nav

28

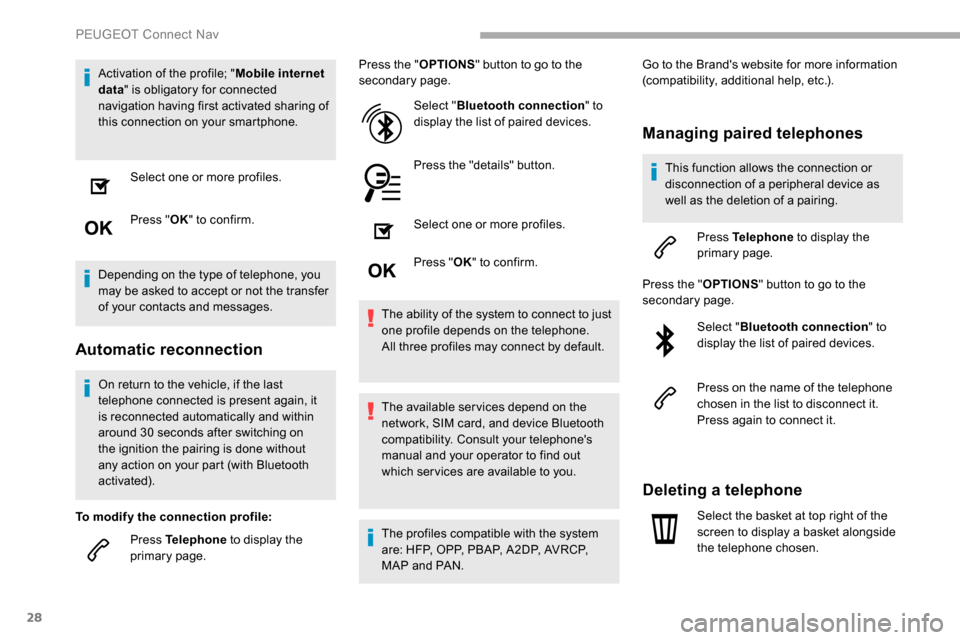

Activation of the profile; "Mobile internet
data " is obligatory for connected
navigation having first activated sharing of
this connection on your smartphone.
Select one or more profiles.
Press " OK" to confirm.
Depending on the type of telephone, you
may be asked to accept or not the transfer
of your contacts and messages.
Automatic reconnection
On return to the vehicle, if the last
telephone connected is present again, it
is reconnected automatically and within
around 30 seconds after switching on
the ignition the pairing is done without
any action on your part (with Bluetooth
activated).
To modify the connection profile: Press Telephone to display the
primary page. Press the "
OPTIONS" button to go to the
secondary page.
Select "Bluetooth connection " to
display the list of paired devices.
Press the "details" button.
Select one or more profiles.
Press " OK" to confirm.
The ability of the system to connect to just
one profile depends on the telephone.
All three profiles may connect by default.
The available services depend on the
network, SIM card, and device Bluetooth
compatibility. Consult your telephone's
manual and your operator to find out
which ser vices are available to you.
The profiles compatible with the system
are: HFP, OPP, PBAP, A 2DP, AVRCP,
MAP and PAN. Go to the Brand's website for more information
(compatibility, additional help, etc.).
Managing paired telephones
This function allows the connection or
disconnection of a peripheral device as
well as the deletion of a pairing.
Press Telephone to display the
primary page.
Press the " OPTIONS" button to go to the
secondary page.
Select "Bluetooth connection " to
display the list of paired devices.
Press on the name of the telephone
chosen in the list to disconnect it.
Press again to connect it.
Deleting a telephone
Select the basket at top right of the
screen to display a basket alongside
the telephone chosen.
PEUGEOT Connect Nav

30

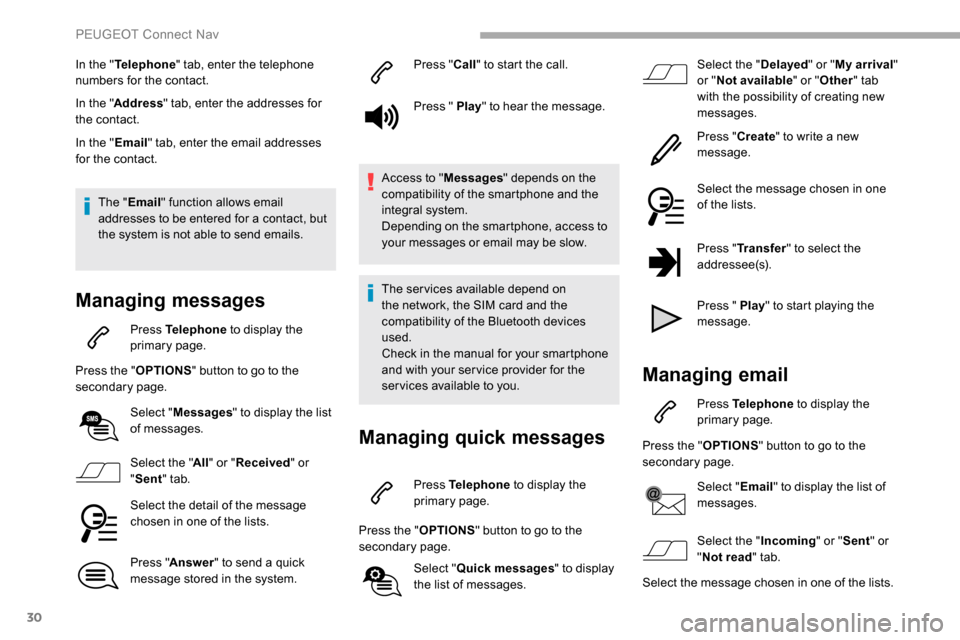

In the "Telephone " tab, enter the telephone
numbers for the contact.
In the " Address " tab, enter the addresses for
the contact.
In the " Email" tab, enter the email addresses
for the contact.
The " Email " function allows email
addresses to be entered for a contact, but
the system is not able to send emails.
Managing messages
Press Telephone to display the
primary page.
Press the " OPTIONS" button to go to the
secondary page.
Select "Messages " to display the list
of messages.
Select the " All" or " Received " or
" Sent " tab.
Select the detail of the message
chosen in one of the lists.
Press " Answer " to send a quick
message stored in the system. Press "
Call" to start the call.
Press " Play " to hear the message.
Access to " Messages" depends on the
compatibility of the smartphone and the
integral system.
Depending on the smartphone, access to
your messages or email may be slow.
The services available depend on
the network, the SIM card and the
compatibility of the Bluetooth devices
used.
Check in the manual for your smartphone
and with your ser vice provider for the
services available to you.
Managing quick messages
Press Telephone to display the
primary page.
Press the " OPTIONS" button to go to the
secondary page.
Select "Quick messages " to display
the list of messages. Select the "
Delayed" or "My arrival "
or " Not available " or "Other " tab
with the possibility of creating new
messages.
Press " Create" to write a new
message.
Select the message chosen in one
of the lists.
Press " Transfer " to select the
addressee(s).
Press " Play " to start playing the
message.
Managing email
Press Telephone to display the
primary page.
Press the " OPTIONS" button to go to the
secondary page.
Select "Email" to display the list of
messages.
Select the " Incoming" or "Sent " or
" Not read " tab.
Select the message chosen in one of the lists.
PEUGEOT Connect Nav

219
AABS .................................................................98
Accessories ............................................ 95, 120
Access to the spare wheel
............................192
Active Safety Brake.................... 18 -19, 15 0 -152
AdBlue
® ...................................... 23, 31, 183 -18 4
AdBlue® tank ................................................. 18 5
Additive, Diesel ....................................... 21, 182
Adjusting headlamp beam height
................... 91
A

djusting headlamps

...................................... 91
Adjusting head restraints


................................ 64
Adjusting seat


................................................. 59
Adjusting the air distribution


.....................75 -76
Adjusting the air flow
................................. 7

5 -76
Adjusting the date


............................... 35, 17 , 32
Adjusting the height and reach of the steering wheel


.............................................. 57
Adjusting the lumbar support
.......................... 60
A

djusting the temperature

........................75 -76
Adjusting the time


............................... 35, 17 , 33
Advanced Grip Control


.......................... 101-102
Advice on driving


................................... 115 -11 6
Airbags
...............................

.....19, 10 6 , 108, 11 0
Airbags, curtain


.............................. 107-108, 11 0
Airbags, front ................................. 10 6, 108 , 11 0
Airbags, lateral


....................................... 107-108
Air conditioning


................................... 76, 76 -77
Air conditioning, automatic


.............................83
Air conditioning, digital


................................... 78
Air conditioning, dual-zone automatic


......75 -76
Air conditioning, manual
..................... 75,

78, 83
Air intake


................................................... 75 -77
Alarm


......................................................... 53, 55
Alarm, volumetric


............................................ 53
Anti-lock braking system (ABS)
.................97- 9 8
Antitheft / Immobiliser
................................... 12

0
Apple CarPlay connection


........................12, 18
Area, loading
........................... 3

8-39, 48-49 , 68
Armrest
................

............................................ 60
Armrest, front
.................................................. 64
Assistance call
...............................

.................96
Assistance, emergency braking .......97- 9 8 , 152
Audible warning .............................................. 97
A
udio streaming (Bluetooth) .............9, 9 , 25 -26
BBattery ................................... 176, 181 , 203-206
Battery, 12 V ............................... ...................203
Battery, charging


........................................... 205
Battery, remote control


.......................45 - 47, 82
Blind spot monitoring system
.................157-15 8
Blind spot sensors


........................................ 15 8
BlueHDi


................................................... 31, 187
Bluetooth (hands-free)

.........1

0 -11, 13 -14 , 27-2 8
Bluetooth (telephone)
...................... 1

3 -15, 27-2 8
Bonnet


.................................................... 17 7-178
Boot lid


...................................................... 42, 45
Bottle holder
.................................................... 64
B

rake discs

............................................. 182-183
Brake lamps
...............................

...................19 9
Brakes


.............................................. 14, 182-183
Braking assistance system
........................97- 9 8
Braking, automatic emergency


..18 -19 , 15 0 -152
Braking, dynamic emergency


................121-124
Brightness


....................................................... 16
Bulbs


............................................................. 19 6
Bulbs (changing)


.................................... 195 -197
Bulbs (changing, type)
..................................19 6
C
Cable, audio .................................................... 25
Cable, Jack ..................................................... 25
Capacity, fuel tank


................................. 171-172
Cap, fuel filler

...............................
..........171-172
CD


........................................................... 9, 9 , 25 CD, MP3


..................................................
9, 9 , 25
Central locking
.......................................... 38,
42
Changing a bulb
.................................... 19
5 -19 9
Changing a fuse
.................................... 20
1-203
Changing a wheel
.......................... 18
8
, 191-192
Changing a wiper blade
............................ 9
2-93
Changing the remote control battery

..............
45
Charger, induction

.....................................
66- 67
Charger, wireless
...................................... 6
6- 67
Checking the engine oil level

..........................
30
Checking the levels

................................
179 -181
Checking tyre pressures (using the kit) .....18 9, 191Checks ........................................... 178, 181-183
Checks, routine ...................................... 181-183
Child lock


....................................................... 114
Child lock, electric


......................................... 114
Children


......................................................... 112
Children (safety)


............................................ 114
Child seats

............................ 10

5, 109 , 111 -113
Child seats, conventional


..............................111
Closing the doors


...................................... 38, 42
Configuration, vehicle
..................................... 29
C

onnection, Bluetooth
... 11 ,

13 -15, 21-22 , 27-2 8
Connection, MirrorLink


........................11 -12, 19
Connection, Wi-Fi network


.............................22
Control, emergency boot release


...................45
Control, emergency door
................................ 44
C

ontrol, heated seats

...................................... 61
Control stalk, lighting


................................85, 87
Control stalk, wipers

...........................91

-92, 94
Courtesy lamp
................................................. 84
Courtesy lamp, front
....................................... 84
Courtesy lamp, rear
........................................ 84
Courtesy lamps
............................................... 84
Cruise control


.................13 6, 13 9 -14 5 , 14 8 -15 0
Cruise control, adaptive
................................14 4
Cruise control by speed limit recognition
.....13 6
.
Alphabetical index

220
Cruise control, dynamic with Stop function ................................ 13 6, 142-145 , 148
Cup holder
....................................................... 64
DDAB (Digital Audio Broadcasting) -
Digital radio ........................................ 6 -7, 8, 24
Date (setting)
....................................... 35, 17 , 32
Daytime running lamps


.....................85, 87 , 198
Deactivating the passenger airbag


.......10 6, 11 0
Deactivation of DSC (ESC)
.............................99
Deadlocking


.................................................... 43
Defrosting


.................................................. 58, 78
Demisting


........................................................ 78
Demisting, rear


.......................................... 57, 79
Demisting, rear screen


.............................57, 79
Diesel


..................................................... 213 -216
Dimensions
..............................

.....................208
Dipstick
................

............................30, 179 -18 0
Direction indicators


...................86 - 87, 198, 19 9
Display screen, instrument panel


...........29, 13 0
Distance Alert


.................................. 18, 15 0 -151
Doors, side-hinged
................................... 42

- 43
Driver’s attention warning


.............................159
Driving


........................................................... 115
Driving abroad ................................................. 86
Dynamic stability control (DSC)


................................. 20, 97- 9 9 , 101-102
EEarth point, remote ....................................... 17 8
EBFD ................ ............................................... 98
Economy mode
............................................. 17

6
Electric windows


............................................. 55
Electronic brake force distribution (EBFD) .....9 7- 9 8Emergency braking assistance (EBA) .......9 7- 9 8
Emergency call ............................................... 96
Emergency warning lamps


.............................97
Emissions control system, SCR
...................183
Energy economy mode
................................. 17

6
Engine


.................................................... 211-216
Engine compartment
.................................... 17

8
Engine, Diesel


..................18, 170 , 187, 213 -216
Engine, petrol
......................... 17

0, 178 , 211-212
Engines


.................................................. 210 -216
Engine self-diagnosis
..................................... 17
E

nvironment

.............................................. 46, 82
ESC (electronic stability control)

....................97
E

xtended traffic sign recognition

..................13 6
FFatigue detection .......................................... 159
Filling the AdBlue® tank ................................ 185
Filling the fuel tank ................................. 170 -172
Filter, air


........................................................ 181
Filter, Diesel fuel


........................................... 179
Filter, oil
................

......................................... 182
Filter, particle


................................... 19, 181-182
Filter, passenger compartment


..................... 181
Finisher


......................................................... 195
Fitting a wheel

........................................ 193 -195
Fitting roof bars


............................................. 17 7
Fittings, interior
............................................... 64
F

lap, fuel filler


......................................... 171-172
Flap, removable
..............................

...........70 -71
Flashing indicators


............................ 86 - 87, 19 9
Foglamp, rear


................................... 25, 85 , 19 9
Foglamps, front


........................... 85, 90 -91 , 19 9
Foglamps, rear
................................................ 85
F

olding the rear seats

............................... 63-64
Frequency (radio)

...................................... 23 -24
Fuel................................................................ 170
Fuel tank ........................................................ 171
Fusebox, engine compartment


.....................203
Fuses
..................................................... 20

1-203
GGauge, fuel............................................. 171-172
Gearbox, automatic ...............11 6, 125-132 , 182
Gearbox, electronic


...............................13 0 -132
Gearbox, manual


...........125 -126 , 13 0 -132 , 182
Gear lever, automatic gearbox


..............126 -12 9
Gear lever, manual gearbox


..................125 -126
Gear shift indicator ~ Gear efficiency indicator


...................................................... 13 0
Glove box
........................................................ 64
G . P. S .


.............................................................. 14
HHazard warning lamps ....................................97Hazard warning lamps, automatic operation ......97headlamp adjustment ..................................... 91
Headlamp adjustment ..................................... 91
Headlamp beam height
................................... 91
H

eadlamps, automatic illumination

..........86-88
Headlamps, dipped beam


.................27, 85 , 197
Headlamps, halogen


..................................... 19 6
Headlamps, intelligent beam


......27, 88-90 , 15 8
Headlamps, main beam


....................27, 85 , 198
Head restraints ................................................ 60
Head restraints, front
...................................... 64
Head restraints, rear
.................................63-64
Heating
.......................................... 75,

79 - 81, 83
Heating, additional


..............................53, 79 - 81
Heating, programmable


......................53, 79 - 81
Alphabetical index

221
Hill Assist Descent Control (HADC) ....26 , 102-103Hill Descent Control ...............................102-103
Hill start assist ........................................ 124 -125
Horn ................................................................. 97
IIdentification, vehicle .................................... 217
Ignition ................ .............................. 11 9 -12 0, 29
Ignition on ...................................................... 120
Immobiliser, electronic


......................44, 47 , 120
Indicator, AdBlue
® range ................................. 31
Indicator, coolant temperature ..................28-30
Indicator, engine oil level
................................ 30
Indicator lamps, operation
................... 1

5 -16, 85
Indicator lamps, status
.................................... 15
I

ndicators, direction

........................................ 86
Inflating tyres


................................................ 183
Inflating tyres and accessories (using the kit)

................................................. 189, 191
Instrument panel


............................................. 11
Instrument panels


........................................... 29
Internet browser
.............................................. 21
JJack .........................................................191, 25
Jump starting ................................................ 204
KKey ................................................ 37, 39 , 42, 47
Key, electronic ......................................... 37, 120
Keyless Entry and Starting .................
3 7- 4 0, 42, 44 , 47- 4 8 , 11 8 -11 9
Key with remote control

......................37,

42, 44
Kit, hands-free
..................... 1

0 -11, 13 -14 , 27-2 8
Kit, temporary puncture repair
....... 18

8 -189, 191
LLabels ................................................................ 4
Labels, identification ..................................... 217
Lamps, front


........................................... 197-19 9
Lamps, parking


............................................... 87
Lamps, rear


................................................... 19 9
Lane departure warning active
............... 20,

15 3
LEDs - Light-emitting diodes


..........................87
Level, brake fluid
........................................... 18 0
Level, Diesel additive


.............................181-182
Level, engine coolant


........................28-30, 18 0
Level, engine oil
.............................. 30, 179 -18 0
Levels and checks

..............................
...178 -181
Level, screenwash fluid

...................92,

18 0 -181
Light-emitting diodes - LEDs


..........................87
Lighting


............................................................ 85
Lighting, cornering


.................................... 90 -91
Lighting, directional


......................................... 90
Lighting, guide-me home


................................88
Lighting, welcome


........................................... 88
Loading


................................................... 68, 17 7
Load reduction mode


.................................... 17 7
Load restraint
...............................

...................67
Locating your vehicle


...................................... 44
Locking
...............................

.................37, 42 , 47
Locking from the inside
.............................48-49
Low fuel level

......................................... 17

1-172
Lumbar


............................................................ 60
MMarkings, identification .................................217
Mat .................................................... 64-65, 11 8
Memorising a speed

..............................1

4 9 -15 0
Menu


............................................................... 12
Menu, main
....................................................... 4
M

enus (audio) ........................................ 4-5, 4-5
Messages


........................................................ 30
Messages, quick
............................................. 3

0
Mirror, rear view
.............................................. 58
Mirrors, door ......................... 57- 5 8, 79, 157-15 8
Misfuel prevention


......................................... 172
MP3 CD
............................................................. 9
NNumber plate lamps ...................................... 200
OObstacle detection ........................................ 160
Oil change .............................................. 17
9 -18 0
Oil consumption


..................................... 179 -18 0
Oil, engine


.............................................. 179 -18 0
On-board tools


....................................... 187-188
Opening the bonnet


...............................17 7-178
Opening the boot


............................................ 37
Opening the doors


.......................................... 37
Opening the fuel filler flap
.............................171
Overhead storage
........................................... 65
O

verload indicator

........................................... 21
.
Alphabetical index
