2019 OPEL CORSA E warning lights

In brief111Turn lights, headlight
flash, low beam and high
beam ................................... 104
Exit lighting ......................... 108
Parking lights ...................... 105
Buttons for Driver
Information Centre ................83
2 Instruments .......................... 71
3 Driver Information Centre ...... 83
4 Infotainment controls ...........64
5 Windscreen wiper,
windscreen washer
system, rear window
wiper, rear window washer system ................................... 65
6 Central locking system ..........23
City mode ............................ 134
Fuel selector ......................... 73
Eco button for stop-start
system ................................. 122
Traction Control system .....133
Electronic Stability Control . 133
Parking assist ..................... 141
Lane departure warning ........64Seat heating .......................... 38
Heated steering wheel ..........64
7 Anti-theft alarm system
status LED ........................... 27
8 Hazard warning flashers ....104
Control indicator for airbag
deactivation .......................... 79
Control indicator for front passenger seat belt .............78
9 Info Display .......................... 88
10 Centre air vents .................. 117
11 Side air vents, passenger
side ..................................... 117
12 Airbag deactivation ..............47
13 Glovebox .............................. 55
14 Climate control system ........ 110
15 Power outlet .......................... 69
16 USB input .............................. 10
17 Selector lever ...................... 127
18 Parking brake ......................132
19 Ignition switch with
steering wheel lock ............120
20 Horn ..................................... 65
Driver airbag ........................ 4521Bonnet release lever ..........158
22 Steering wheel adjustment ..64
23 Light switch ........................ 100
Headlight range
adjustment ......................... 102
Rear fog light ...................... 105 Front fog lights ....................104
Brightness of instrument
panel illumination ................106
Fuse box ............................ 175
24 Power windows .....................31
25 Exterior mirrors .....................29
26 Cruise control .....................135
Speed limiter ...................... 137
Forward collision alert ........138

In brief131Turn lights, headlight
flash, low beam and high
beam ................................... 104
Exit lighting ......................... 108
Parking lights ...................... 105
Buttons for Driver
Information Centre ................83
2 Instruments .......................... 71
3 Driver Information Centre ...... 83
4 Infotainment controls ...........64
5 Windscreen wiper,
windscreen washer
system, rear window
wiper, rear window washer system ................................... 65
6 Central locking system ..........23
City mode ............................ 134
Fuel selector ......................... 73
Eco button for stop-start
system ................................. 122
Traction Control system .....133
Electronic Stability Control . 133
Parking assist ..................... 141
Lane departure warning ........64Seat heating .......................... 38
Heated steering wheel ..........64
7 Anti-theft alarm system
status LED ........................... 27
8 Hazard warning flashers ....104
Control indicator for airbag
deactivation .......................... 79
Control indicator for front passenger seat belt .............78
9 Info Display .......................... 88
10 Centre air vents .................. 117
11 Side air vents, passenger
side ..................................... 117
12 Airbag deactivation ..............47
13 Glovebox .............................. 55
14 Climate control system ........ 110
15 Power outlet .......................... 69
16 USB input .............................. 10
17 Selector lever ...................... 127
18 Parking brake ......................132
19 Ignition switch with
steering wheel lock ............120
20 Horn ..................................... 65
Driver airbag ........................ 4521Bonnet release lever ..........158
22 Steering wheel adjustment ..64
23 Light switch ........................ 100
Headlight range
adjustment ......................... 102
Rear fog light ...................... 105 Front fog lights ....................104
Brightness of instrument
panel illumination ................106
Fuse box ............................ 175
24 Power windows .....................31
25 Exterior mirrors .....................29
26 Cruise control .....................135
Speed limiter ...................... 137
Forward collision alert ........138

In brief15Turn lightsstalk up:right turn lightstalk down:left turn light
Turn lights 3 104.
Parking lights 3 105.
Hazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 104.
Horn
Press j.

28Keys, doors and windowsActivation● Self-activated 30 seconds after locking the vehicle by pressing e
once.
● Directly by pressing e twice
within 5 seconds.
Status LED
Status LED is integrated in the sensor
on top of the instrument panel.
Status during the first 30 seconds of
anti-theft alarm system activation:LED illuminates:test, arming delayLED flashes
quickly:doors, tailgate or
bonnet not
completely closed,
or system fault
Status after system is armed:
LED flashes
slowly:system is armed
Seek the assistance of a workshop in the event of faults.
Deactivation Unlocking the vehicle by pressing c
deactivates anti-theft alarm system.
The system is not deactivated by
unlocking the driver's door with the
key or with the central locking button
in the passenger compartment.
Alarm When triggered, the alarm horn
sounds and the hazard warning lights
flash simultaneously. The number
and duration of alarm signals are
stipulated by legislation.
The alarm can be silenced by
pressing any button on the radio
remote control or by switching on the
ignition.
The anti-theft alarm system can only
be deactivated by pressing c on the
radio remote control or by switching
on the ignition.
A triggered alarm, which has not been interrupted by the driver, will be
indicated by the hazard warning
lights. They will flash quickly three
times when the vehicle is unlocked
with the radio remote control.
Vehicle messages 3 89.
If the vehicle's battery is to be
disconnected (e.g. for maintenance
work), the alarm siren must be
deactivated as follows: Switch the
ignition on then off, then disconnect
the vehicle's battery within
15 seconds.
Immobiliser The system is part of the ignition
switch and checks whether the
vehicle is allowed to be started with
the key being used.

Instruments and controls63Instruments and
controlsControls ....................................... 64
Steering wheel adjustment ........64
Steering wheel controls .............64
Heated steering wheel ...............64
Horn ........................................... 65
Windscreen wiper and washer ..65
Rear window wiper and washer ...................................... 66
Outside temperature ..................67
Clock ......................................... 68
Power outlets ............................. 69
Cigarette lighter ......................... 70
Ashtrays .................................... 70
Warning lights, gauges and indi‐ cators ........................................... 71
Instrument cluster ......................71
Speedometer ............................. 71
Odometer .................................. 71
Trip odometer ............................ 71
Tachometer ............................... 72
Fuel gauge ................................ 72
Fuel selector .............................. 73
Engine coolant temperature gauge ....................................... 74Service display.......................... 74
Control indicators ......................75
Turn lights .................................. 77
Seat belt reminder .....................78
Airbag and belt tensioners .........78
Airbag deactivation ....................79
Charging system .......................79
Malfunction indicator light ..........79
Service vehicle soon .................79
Brake and clutch system ...........79
Operate pedal ............................ 80
Antilock brake system (ABS) .....80
Gear shifting .............................. 80
Power steering .......................... 80
Lane departure warning ............80
Parking assist ............................ 80
Electronic Stability Control and Traction Control system ...........81
Exhaust filter .............................. 81
Tyre pressure monitoring system ...................................... 81
Engine oil pressure ....................81
Low fuel ..................................... 82
Immobiliser ................................ 82
Reduced engine power .............82
Autostop .................................... 82
Exterior light .............................. 82
High beam ................................. 82
Front fog lights ........................... 82
Rear fog light ............................. 82Cruise control............................ 83
Vehicle detected ahead .............83
Speed limiter ............................. 83
Traffic sign assistant ..................83
Door open .................................. 83
Displays ....................................... 83
Driver Information Centre ..........83
Info Display ................................ 88
Vehicle messages ........................89
Warning chimes .........................91
Battery voltage .......................... 92
Vehicle personalisation ................92
Telematics service .......................95
OnStar ....................................... 95

Instruments and controls71Warning lights, gauges
and indicators
Instrument cluster
The needles of the instruments briefly
rotate to the end position when the
ignition is switched on.
Speedometer
Indicates vehicle speed.
Odometer
The bottom line displays the recorded distance in km.
Trip odometer The recorded distance is displayedsince the last reset.
Trip odometer counts up to 9999 km
and then restarts at 0.
Midlevel display
To reset, press SET/CLR on the stalk
for a few seconds 3 83.
Uplevel display

Instruments and controls77Control indicators in the centre
console
Overview
OTurn lights 3 77XSeat belt reminder 3 78vAirbag and belt tensioners
3 78VAirbag deactivation 3 79pCharging system 3 79ZMalfunction indicator light
3 79gService vehicle soon 3 79RBrake and clutch system
3 79-Operate pedal 3 80uAntilock brake system (ABS)
3 80RGear shifting 3 80cPower steering 3 80)Lane departure warning 3 80rParking assist 3 80bElectronic Stability Control and
Traction Control system 3 81%Exhaust filter 3 81wTyre pressure monitoring
system 3 81IEngine oil pressure 3 81YLow fuel 3 82dImmobiliser 3 82#Reduced engine power 3 82DAutostop 3 828Exterior light 3 82CHigh beam 3 82>Fog light 3 82rRear fog light 3 82mCruise control 3 83AVehicle detected ahead 3 83LSpeed limiter 3 83LTraffic sign assistant 3 83hDoor open 3 83
Turn lights
O illuminates or flashes green.
Illuminates briefly The parking lights are switched on.
Flashes
A turn light or the hazard warning
flashers are activated.
Rapid flashing: failure of a turn light or associated fuse.
Bulb replacement 3 164.
Fuses 3 172.

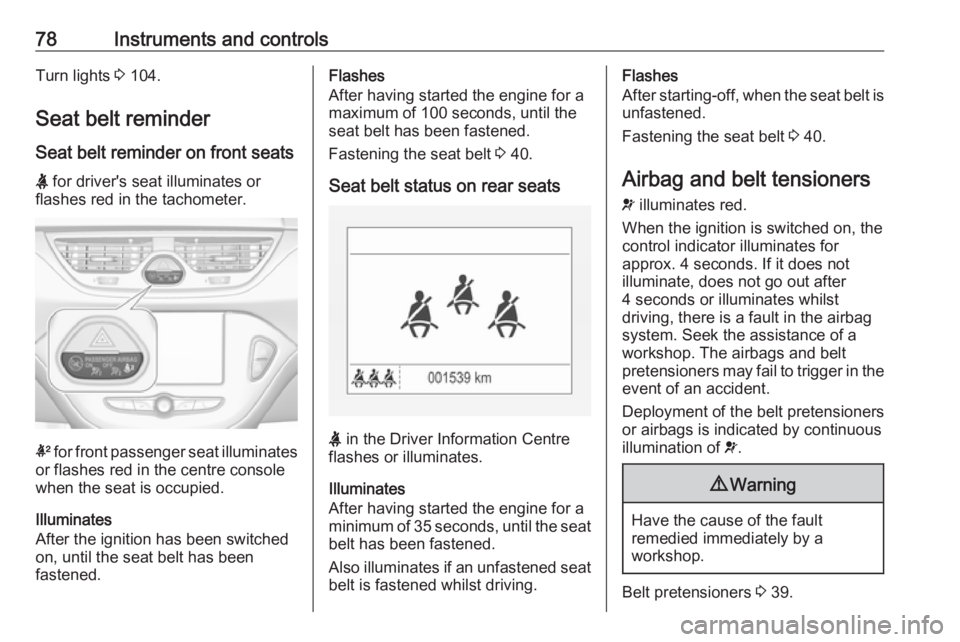

78Instruments and controlsTurn lights 3 104.
Seat belt reminder
Seat belt reminder on front seats
X for driver's seat illuminates or
flashes red in the tachometer.
k for front passenger seat illuminates
or flashes red in the centre console
when the seat is occupied.
Illuminates
After the ignition has been switched on, until the seat belt has been
fastened.
Flashes
After having started the engine for a
maximum of 100 seconds, until the
seat belt has been fastened.
Fastening the seat belt 3 40.
Seat belt status on rear seats
X in the Driver Information Centre
flashes or illuminates.
Illuminates
After having started the engine for a
minimum of 35 seconds, until the seat
belt has been fastened.
Also illuminates if an unfastened seat belt is fastened whilst driving.
Flashes
After starting-off, when the seat belt is
unfastened.
Fastening the seat belt 3 40.
Airbag and belt tensioners v illuminates red.
When the ignition is switched on, the control indicator illuminates for
approx. 4 seconds. If it does not
illuminate, does not go out after
4 seconds or illuminates whilst
driving, there is a fault in the airbag
system. Seek the assistance of a
workshop. The airbags and belt
pretensioners may fail to trigger in the event of an accident.
Deployment of the belt pretensioners
or airbags is indicated by continuous
illumination of v.9 Warning
Have the cause of the fault
remedied immediately by a
workshop.
Belt pretensioners 3 39.
