2019 OPEL ASTRA J Manual user

In brief7Seat adjustmentLongitudinal adjustment
Pull handle, slide seat, release
handle. Try to move the seat back and forth to ensure that the seat is locked
in place.
Seat position 3 32, Manual seat
adjustment 3 33.
Backrest inclination
Pull lever, adjust inclination and
release lever. Allow the seat to
engage audibly.
Seat position 3 32, Manual seat
adjustment 3 33.
Seat height
Lever pumping motion
up:seat higherdown:seat lower
Seat position 3 32, Manual seat
adjustment 3 33.

8In briefSeat inclination
Lever pumping motion
up:front end higherdown:front end lower
Seat position 3 32, Manual seat
adjustment 3 33.
Head restraint adjustment
Press release button, adjust height,
engage.
Head restraints 3 31.
Seat belt
Pull out the seat belt and fasten in belt
buckle. The seat belt must not be
twisted and must fit close against the
body. The backrest must not be tilted back too far (maximum approx. 25 ° ).
To unfasten belt, press red button on belt buckle.
Seat position 3 32, Seat belts
3 36, Airbag system 3 39.

In brief9Mirror adjustment
Interior mirror
To adjust the mirror, move the mirror
housing in the desired direction.
Manual anti-dazzle interior mirror
3 26, Automatic anti-dazzle interior
mirror 3 27.
Exterior mirrors
Select the relevant exterior mirror and
adjust it.
Convex exterior mirrors 3 25,
Electric adjustment 3 25, Folding
exterior mirrors 3 25, Heated
exterior mirrors 3 26.
Steering wheel adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless the vehicle is stationary and the steering wheel lock has been
released.
Airbag system 3 39, Ignition
positions 3 116.

10In briefInstrument panel overview

In brief111Power windows .....................28
2 Exterior mirrors .....................25
3 Cruise control .....................130
Speed limiter ....................... 131
4 Side air vents ...................... 113
5 Turn and lane-change
signals, headlight flash,
low beam and high beam,
high beam assist .................100
Exit lighting ......................... 104
Parking lights ...................... 101
Buttons for Driver
Information Centre ................73
6 Instruments .......................... 62
7 Steering wheel controls .......57
8 Driver Information Centre ...... 73
9 Windscreen wiper,
windscreen washer
system, headlight washer
system, rear window
wiper, rear window washer
system ................................... 58
10 Central locking system ..........20
Hazard warning flashers ....100Control indicator for airbag
deactivation .......................... 68
Control indicator for front
passenger seat belt .............68
11 Info Display ........................... 77
12 Centre air vents .................. 113
13 Glovebox .............................. 48
14 Traction Control system
(TC) ..................................... 128
Electronic Stability Control (ESC) .................................. 129
Parking assist systems .......133
Unlock button for boot lid ......23
15 Climate control system ........ 106
16 AUX input, USB input, SD
card slot ................................ 10
17 Power outlet .......................... 62
18 Selector lever, manual
transmission ....................... 124
Automatic transmission ......121
19 Electric parking brake .........126
20 Ignition switch with
steering wheel lock ............11621Horn ..................................... 58
Driver airbag ........................ 40
22 Bonnet release lever ..........140
23 Storage compartment,
fuse box ............................. 157
24 Steering wheel adjustment ..57
25 Light switch .......................... 93
Headlight range
adjustment ........................... 96
Front fog lights ...................101
Rear fog light ...................... 101
Instrument illumination .......102

12In briefExterior lighting
Turn light switch:
7:lights off8:sidelights9:low beam
Automatic light control
AUTO:automatic light control:
exterior lighting is switched
on and off automaticallym:activation or deactivation of
the automatic light control8:sidelights9:low beam
Fog lights
Press light switch:
>:front fog lightsr:rear fog light
Lighting 3 93.
Headlight flash, high beam and
low beamheadlight flash:pull leverhigh beam:push leverlow beam:push or pull lever
Automatic light control 3 94, High
beam 3 95, Headlight flash 3 95,
Adaptive forward lighting 3 97.

In brief13Turn and lane-change signalslever up:right turn signallever down:left turn signal
Turn and lane-change signals
3 100, Parking lights 3 101.
Hazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 100.
Horn
Press j.

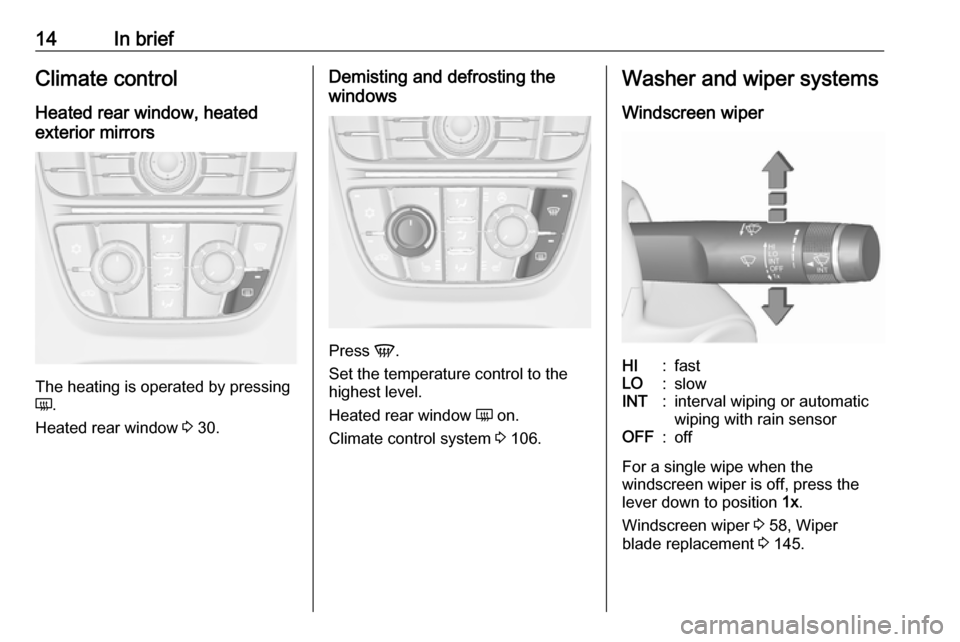

14In briefClimate control
Heated rear window, heated
exterior mirrors
The heating is operated by pressing
Ü .
Heated rear window 3 30.
Demisting and defrosting the
windows
Press V.
Set the temperature control to the
highest level.
Heated rear window Ü on.
Climate control system 3 106.
Washer and wiper systems
Windscreen wiperHI:fastLO:slowINT:interval wiping or automatic
wiping with rain sensorOFF:off
For a single wipe when the
windscreen wiper is off, press the
lever down to position 1x.
Windscreen wiper 3 58, Wiper
blade replacement 3 145.
