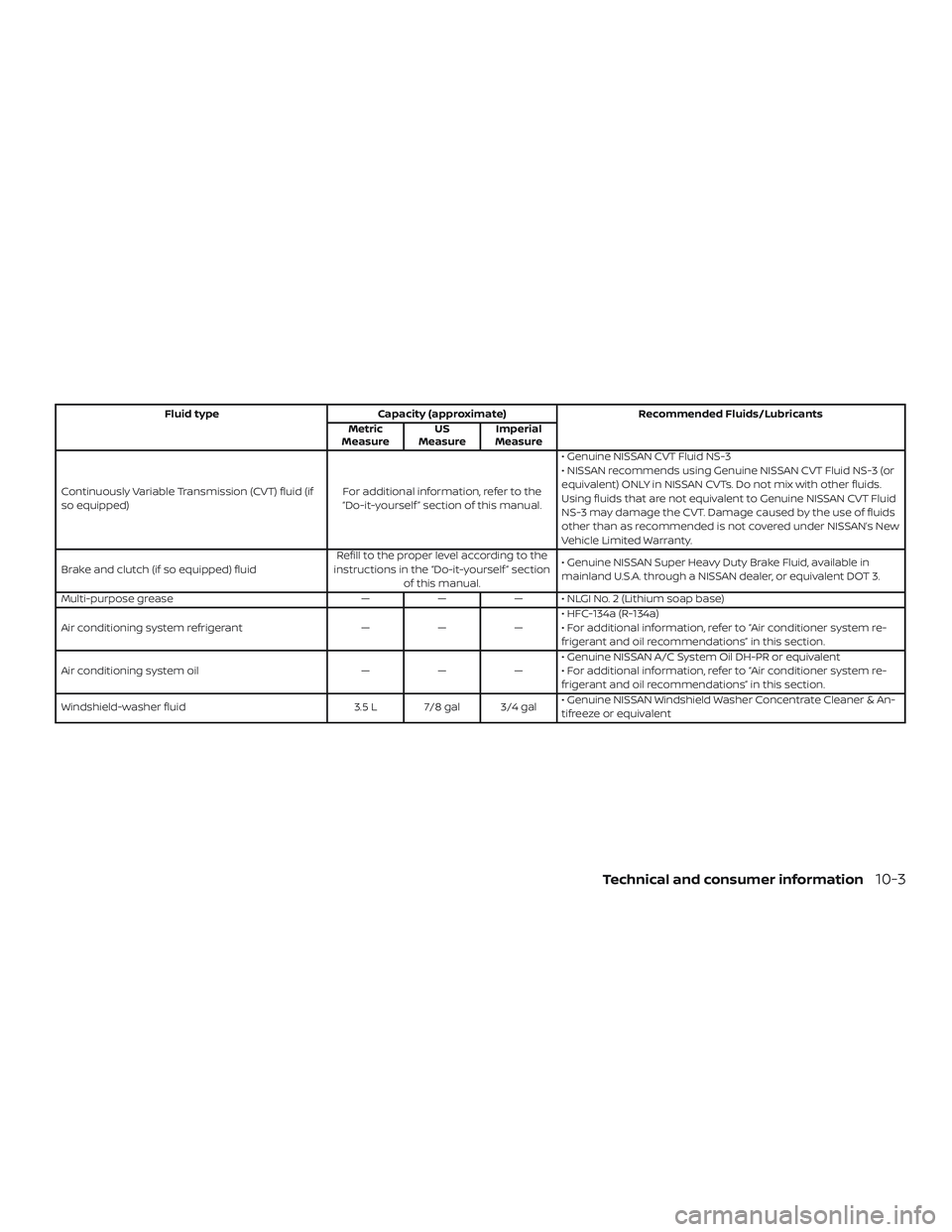

Fluid typeCapacity (approximate) Recommended Fluids/Lubricants
Metric
Measure US
Measure Imperial
Measure
Continuously Variable Transmission (CVT) fluid (if
so equipped) For additional information, refer to the
“Do-it-yourself ” section of this manual. • Genuine NISSAN CVT Fluid NS-3
• NISSAN recommends using Genuine NISSAN CVT Fluid NS-3 (or
equivalent) ONLY in NISSAN CVTs. Do not mix with other fluids.
Using fluids that are not equivalent to Genuine NISSAN CVT Fluid
NS-3 may damage the CVT. Damage caused by the use of fluids
other than as recommended is not covered under NISSAN’s New
Vehicle Limited Warranty.
Brake and clutch (if so equipped) fluid Refill to the proper level according to the
instructions in the “Do-it-yourself ” section of this manual. • Genuine NISSAN Super Heavy Duty Brake Fluid, available in
mainland U.S.A. through a NISSAN dealer, or equivalent DOT 3.
Multi-purpose grease ——— • NLGI No. 2 (Lithium soap base)
Air conditioning system refrigerant ———• HFC-134a (R-134a)
• For additional information, refer to “Air conditioner system re-
frigerant and oil recommendations” in this section.
Air conditioning system oil ———• Genuine NISSAN A/C System Oil DH-PR or equivalent
• For additional information, refer to “Air conditioner system re-
frigerant and oil recommendations” in this section.
Windshield-washer fluid 3.5 L 7/8 gal 3/4 gal• Genuine NISSAN Windshield Washer Concentrate Cleaner & An-
tifreeze or equivalent
Technical and consumer information10-3
OverheatIfyourvehicleoverheats.........6-11
Owner's manual order form ........10-21
Owner's manual/service manual order
information ..................10-21
P
Parking Parking brake operation .........5-23
Parking/parkingonhills.........5-28
Parkingbrake..................5-23
Phone, Bluetooth® hands-free system . .4-47
Power Power door locks ..............3-7
Poweroutlet................2-29
Power steering system ..........5-29
Powerwindows..............2-33
Rearpowerwindows...........2-34
Poweroutlet..................2-29
Powersteering.................5-29
Precautions Maintenance precautions .........8-2
Precautions on booster
seats............1-20, 1-27, 1-33, 1-38
Precautions on child
restraints .........1-20, 1-27, 1-33, 1-38
Precautions on seat belt usage .....1-10
Precautions on supplemental restraint
system ....................1-42
Precautions when starting and
driving.....................5-2
Programmable features ............4-5
Push starting ..................6-11 R
Radio Car phone or CB radio ..........4-47
FM/AMradio................4-28
Steering wheel audio control
switch....................4-43
Readiness for inspection maintenance (I/M)
test.......................10-20
Rearpowerwindows.............2-34
Rearseat.....................1-4
Rearviewmirror................3-33
RearViewMonitor.............4-8,4-10
Rearwindowdefrosterswitch.......2-25
Recommended Fluids ............10-2
Recorders EventData.................10-20
Refrigerant recommendation ........10-7
Registering a vehicle in another
country .....................10-10
Remote keyless entry system ......3-8,3-9
Reporting safety defects (US only) . . . .10-19
S
Safety Child safety rear door lock ........3-8
Childseatbelts......1-20, 1-27, 1-33, 1-38
Reporting safety defects (US only) . .10-19
Seat adjustment Front manual seat adjustment ......1-3
Rear seat adjustment ...........1-4
Seatback pockets ...............2-31
Seat belt Childsafety................ .1-18Infants and small children
........1-19
InjuredPerson............... .1-13
Largerchildren.............. .1-19
Precautionsonseatbeltusage.....1-10
Pregnant women ..............1-13
Seat belt extenders ............1-17
Seat belt maintenance ..........1-17
Seatbelts................1-10, 7-7
Shoulder belt height adjustment . . . .1-16
Three-pointtypewithretractor.....1-13
Seat belt extenders ..............1-17
Seatbeltwarninglight.........1-13, 2-18
Seats Adjustment .................
.1-2
Frontseats..................1-2
Manual front seat adjustment ......1-3
Rearseat...................1-4
Security indicator light ............2-21
Security system (NISSAN Vehicle Immobilizer
System), engine start ..........2-22,5-14
Security systems Vehicle security system .........2-22
Self-adjustingbrakes.............8-18
Service manual order form .........10-21
Servicing air conditioner ...........4-23
Shif ting Continuously Variable Transmission
(CVT) .....................5-18
Manual transmission ...........5-21
Shoulder belt height adjustment ......1-16
Side air bag system (See supplemental
side air bag, curtain and rollover air bag
systems).....................1-58
Siri® Eyes-Free .................4-44
Spark plug replacement ...........8-15
Spark plugs ...................8-15
11-5
