2019 NISSAN VERSA SEDAN Owner´s Manual

Lockout protection
To prevent the Intelligent Key from being
accidentally locked in the trunk, lockout
protection is equipped with the Intelligent
Key.
When all doors are locked and the trunk lid
is closed with the Intelligent Key inside the
trunk, the outside buzzer will sound and the
trunk will open.
HOW TO USE THE REMOTE
KEYLESS ENTRY FUNCTION
The remote keyless entry function can op-
erate all door locks using the remote key-
less function of the Intelligent Key. The re-
mote keyless function can operate at a
distance of 33 f t (10 m) away from the ve-
hicle. The operating distance depends
upon the conditions around the vehicle.
The remote keyless entry function may not
function under the following conditions:∙ When the Intelligent Key is not within the operational range.
∙ When the doors or the trunk are open or not closed securely.
∙ When the Intelligent Key battery is dis- charged.
CAUTION
When locking the doors using the Intel-
ligent Key, be sure not to leave the key in
the vehicle.
Locking doors
1. Place the ignition switch in the LOCK
position.
2. Close all doors.
3. Press the
button on the Intelli-
gent Key.
4. The hazard indicator lights flash twice and the horn beeps once.
5. All doors will be locked.
WPD0359
Pre-driving checks and adjustments3-19

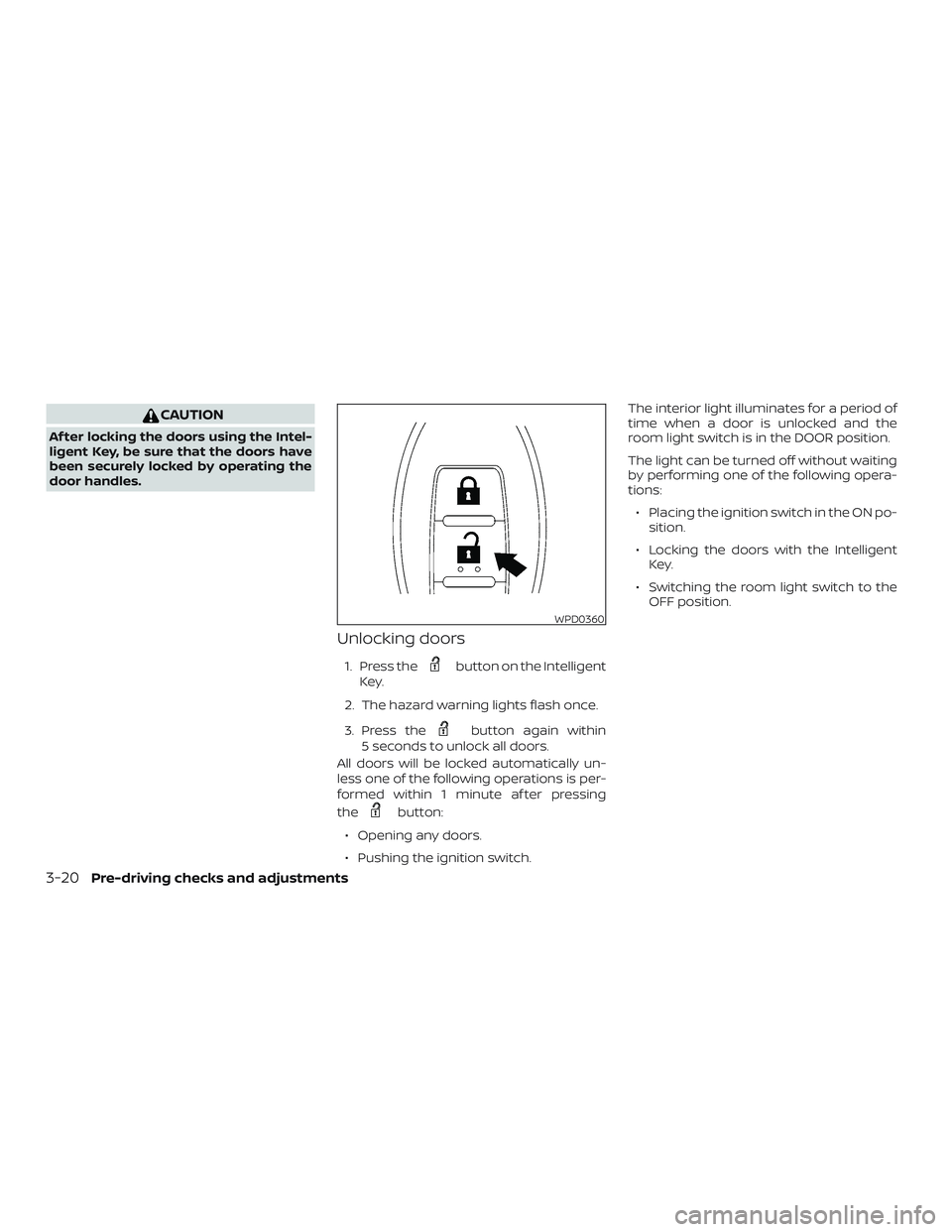

CAUTION
Af ter locking the doors using the Intel-
ligent Key, be sure that the doors have
been securely locked by operating the
door handles.
Unlocking doors
1. Press thebutton on the Intelligent
Key.
2. The hazard warning lights flash once.
3. Press the
button again within
5 seconds to unlock all doors.
All doors will be locked automatically un-
less one of the following operations is per-
formed within 1 minute af ter pressing
the
button:
∙ Opening any doors.
∙ Pushing the ignition switch. The interior light illuminates for a period of
time when a door is unlocked and the
room light switch is in the DOOR position.
The light can be turned off without waiting
by performing one of the following opera-
tions:
∙ Placing the ignition switch in the ON po- sition.
∙ Locking the doors with the Intelligent Key.
∙ Switching the room light switch to the OFF position.
WPD0360
3-20Pre-driving checks and adjustments

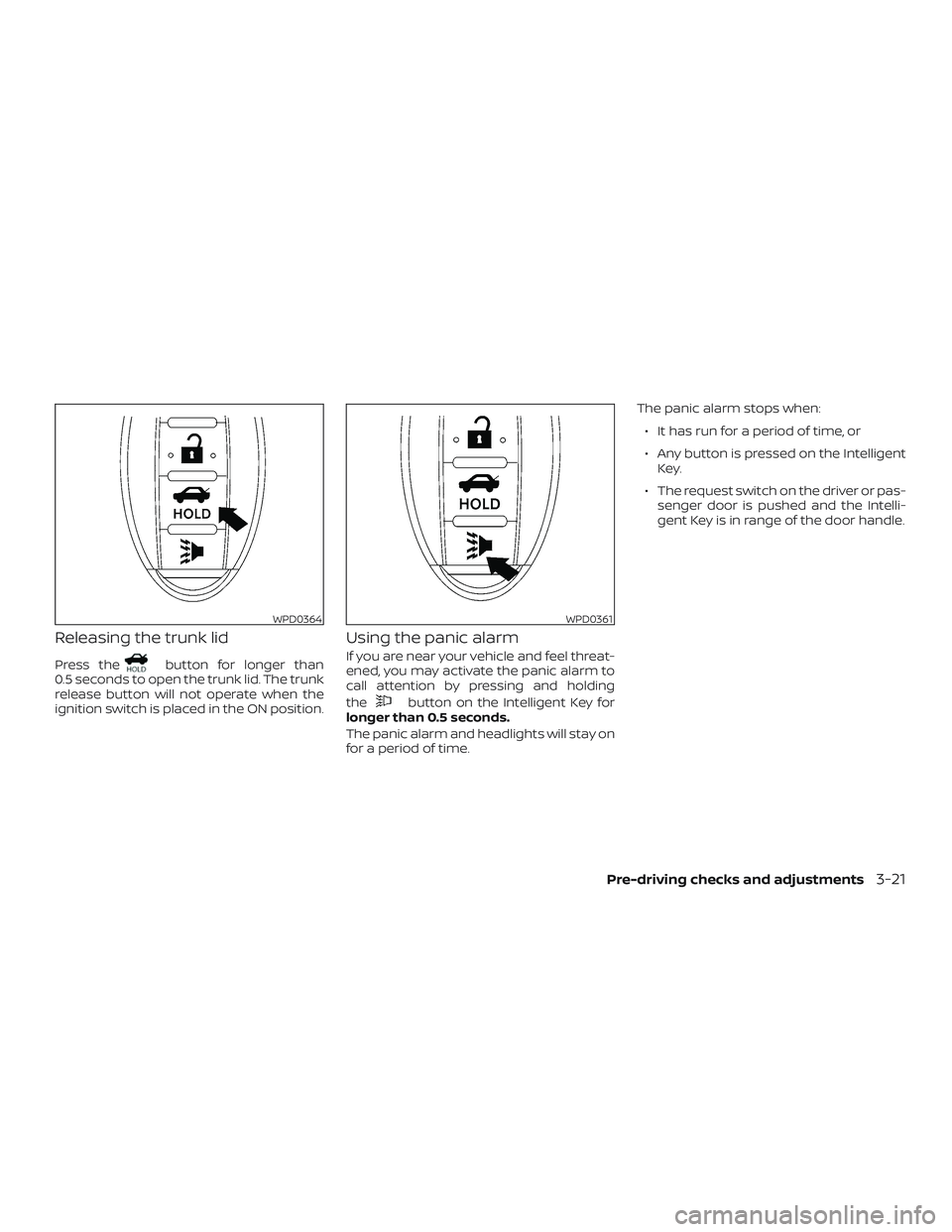

Releasing the trunk lid
Press thebutton for longer than
0.5 seconds to open the trunk lid. The trunk
release button will not operate when the
ignition switch is placed in the ON position.
Using the panic alarm
If you are near your vehicle and feel threat-
ened, you may activate the panic alarm to
call attention by pressing and holding
the
button on the Intelligent Key for
longer than 0.5 seconds.
The panic alarm and headlights will stay on
for a period of time. The panic alarm stops when:
∙ It has run for a period of time, or
∙ Any button is pressed on the Intelligent Key.
∙ The request switch on the driver or pas- senger door is pushed and the Intelli-
gent Key is in range of the door handle.
WPD0364WPD0361
Pre-driving checks and adjustments3-21

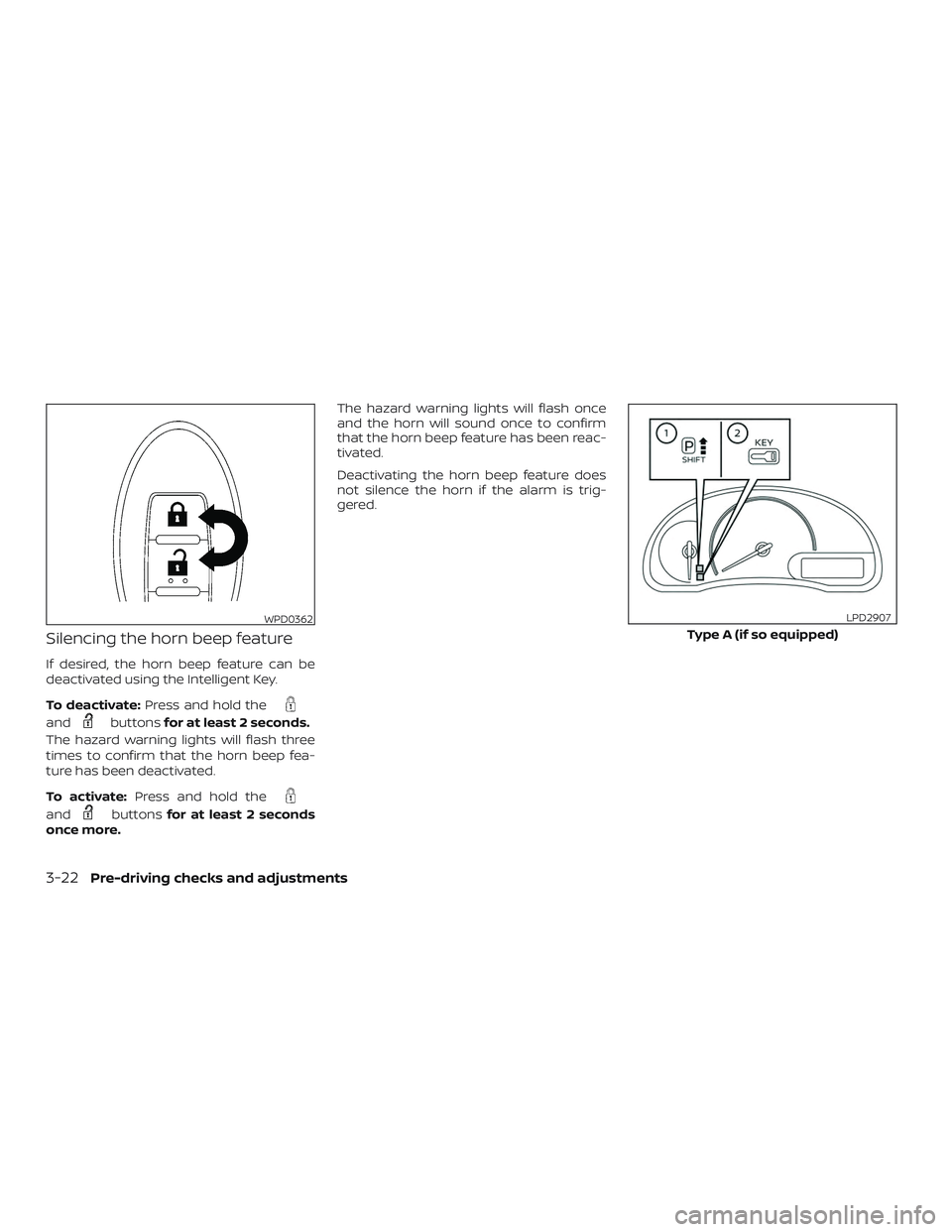

Silencing the horn beep feature
If desired, the horn beep feature can be
deactivated using the Intelligent Key.
To deactivate:Press and hold the
andbuttonsfor at least 2 seconds.
The hazard warning lights will flash three
times to confirm that the horn beep fea-
ture has been deactivated.
To activate: Press and hold the
andbuttonsfor at least 2 seconds
once more. The hazard warning lights will flash once
and the horn will sound once to confirm
that the horn beep feature has been reac-
tivated.
Deactivating the horn beep feature does
not silence the horn if the alarm is trig-
gered.
WPD0362
Type A (if so equipped)
LPD2907
3-22Pre-driving checks and adjustments

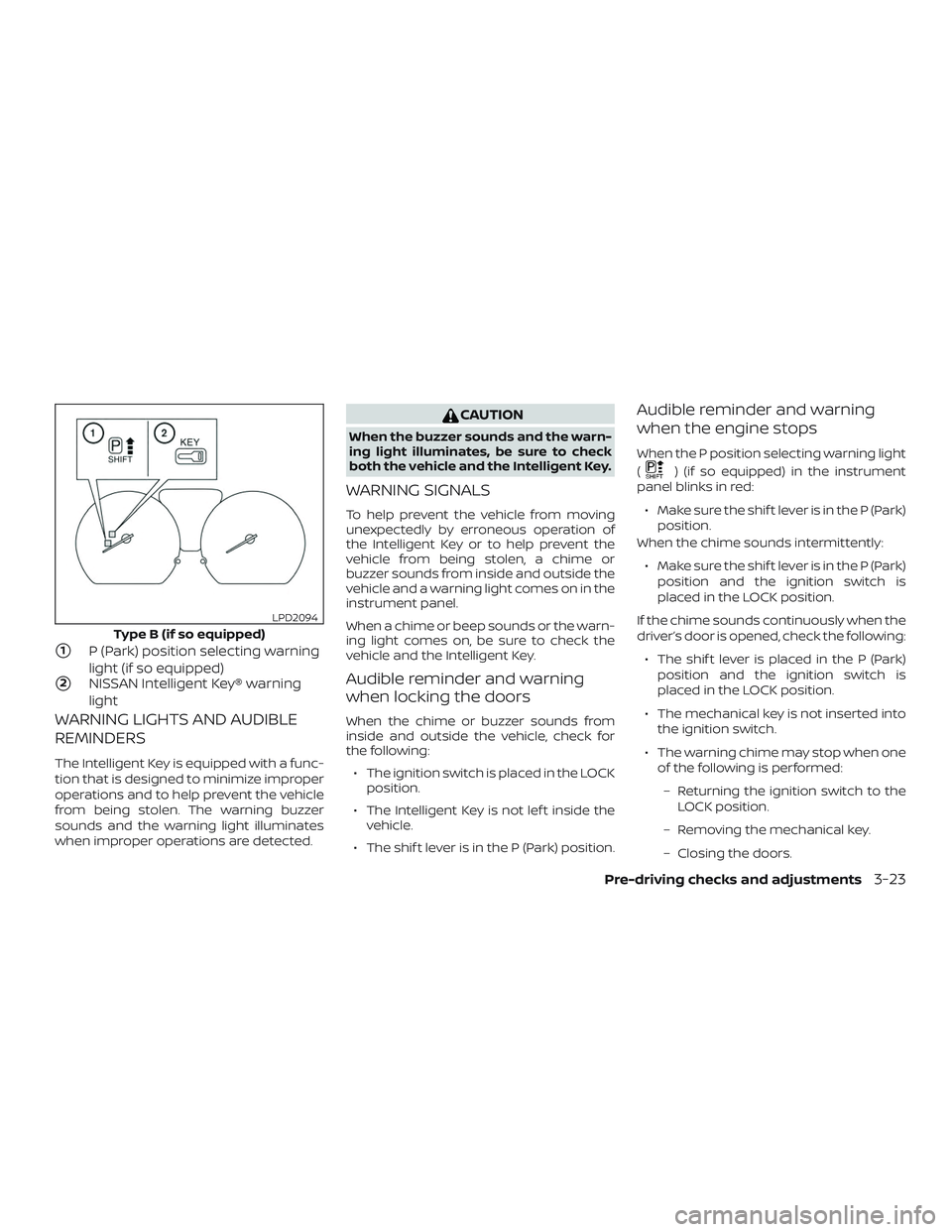

1P (Park) position selecting warning
light (if so equipped)
2NISSAN Intelligent Key® warning
light
WARNING LIGHTS AND AUDIBLE
REMINDERS
The Intelligent Key is equipped with a func-
tion that is designed to minimize improper
operations and to help prevent the vehicle
from being stolen. The warning buzzer
sounds and the warning light illuminates
when improper operations are detected.
CAUTION
When the buzzer sounds and the warn-
ing light illuminates, be sure to check
both the vehicle and the Intelligent Key.
WARNING SIGNALS
To help prevent the vehicle from moving
unexpectedly by erroneous operation of
the Intelligent Key or to help prevent the
vehicle from being stolen, a chime or
buzzer sounds from inside and outside the
vehicle and a warning light comes on in the
instrument panel.
When a chime or beep sounds or the warn-
ing light comes on, be sure to check the
vehicle and the Intelligent Key.
Audible reminder and warning
when locking the doors
When the chime or buzzer sounds from
inside and outside the vehicle, check for
the following:∙ The ignition switch is placed in the LOCK position.
∙ The Intelligent Key is not lef t inside the vehicle.
∙ The shif t lever is in the P (Park) position.
Audible reminder and warning
when the engine stops
When the P position selecting warning light
(
) (if so equipped) in the instrument
panel blinks in red:
∙ Make sure the shif t lever is in the P (Park) position.
When the chime sounds intermittently:
∙ Make sure the shif t lever is in the P (Park) position and the ignition switch is
placed in the LOCK position.
If the chime sounds continuously when the
driver’s door is opened, check the following: ∙ The shif t lever is placed in the P (Park) position and the ignition switch is
placed in the LOCK position.
∙ The mechanical key is not inserted into the ignition switch.
∙ The warning chime may stop when one of the following is performed:
– Returning the ignition switch to the LOCK position.
– Removing the mechanical key.
– Closing the doors.
Type B (if so equipped)
LPD2094
Pre-driving checks and adjustments3-23

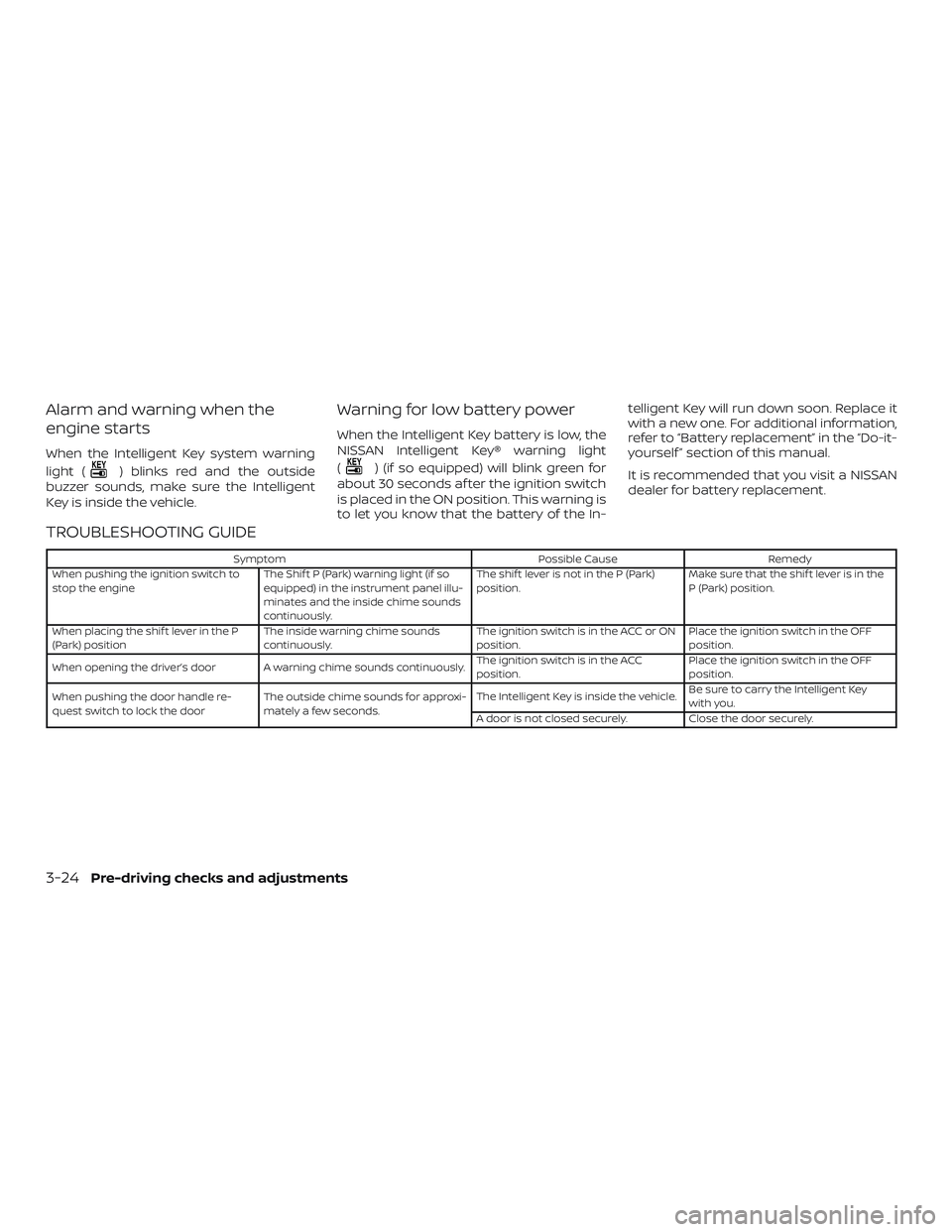

Alarm and warning when the
engine starts
When the Intelligent Key system warning
light (
) blinks red and the outside
buzzer sounds, make sure the Intelligent
Key is inside the vehicle.
Warning for low battery power
When the Intelligent Key battery is low, the
NISSAN Intelligent Key® warning light
(
) (if so equipped) will blink green for
about 30 seconds af ter the ignition switch
is placed in the ON position. This warning is
to let you know that the battery of the In- telligent Key will run down soon. Replace it
with a new one. For additional information,
refer to “Battery replacement” in the “Do-it-
yourself ” section of this manual.
It is recommended that you visit a NISSAN
dealer for battery replacement.
TROUBLESHOOTING GUIDE
Symptom
Possible CauseRemedy
When pushing the ignition switch to
stop the engine The Shif t P (Park) warning light (if so
equipped) in the instrument panel illu-
minates and the inside chime sounds
continuously. The shif t lever is not in the P (Park)
position.
Make sure that the shif t lever is in the
P (Park) position.
When placing the shif t lever in the P
(Park) position The inside warning chime sounds
continuously. The ignition switch is in the ACC or ON
position.Place the ignition switch in the OFF
position.
When opening the driver’s door A warning chime sounds continuously. The ignition switch is in the ACC
position.Place the ignition switch in the OFF
position.
When pushing the door handle re-
quest switch to lock the door The outside chime sounds for approxi-
mately a few seconds. The Intelligent Key is inside the vehicle.
Be sure to carry the Intelligent Key
with you.
A door is not closed securely. Close the door securely.
3-24Pre-driving checks and adjustments

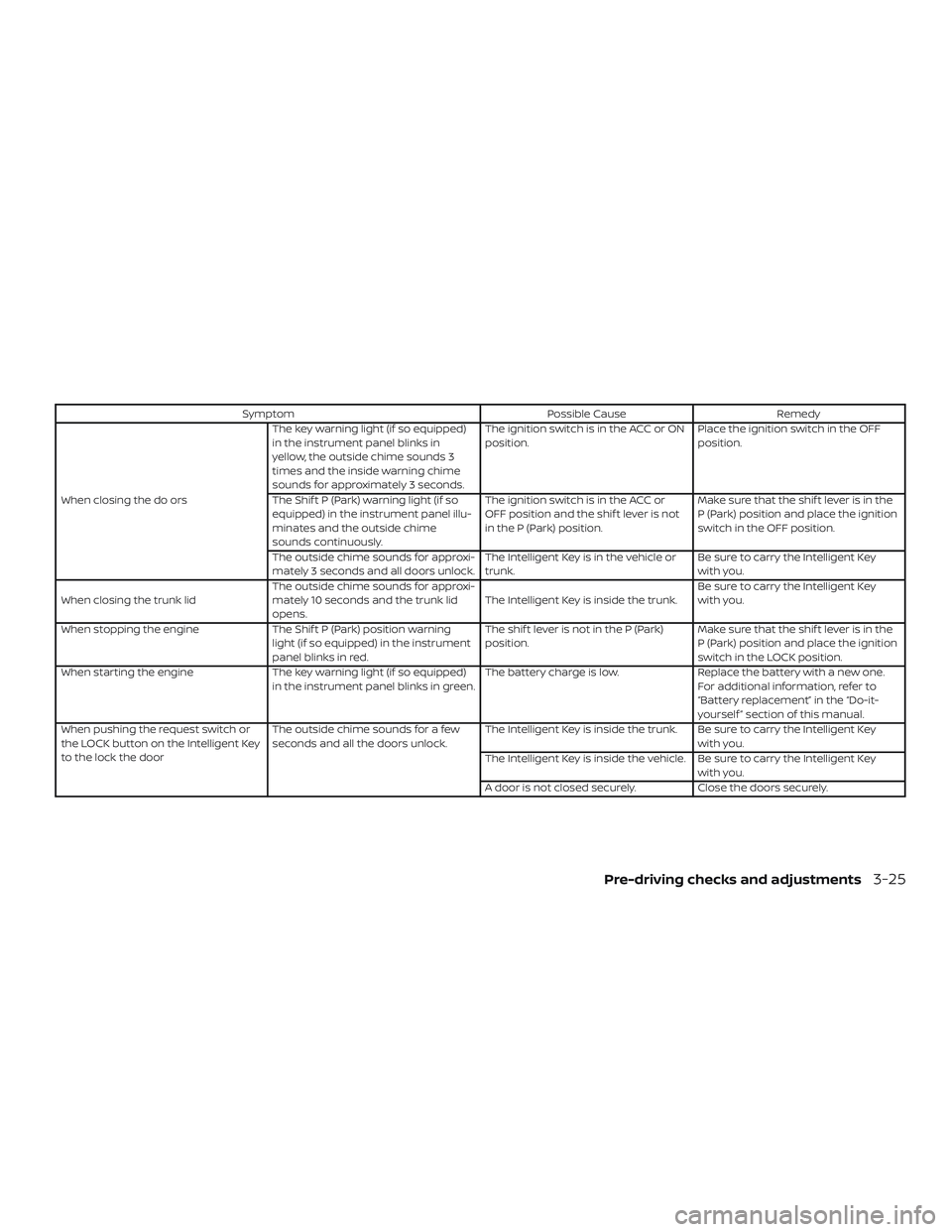

SymptomPossible CauseRemedy
When closing the do ors The key warning light (if so equipped)
in the instrument panel blinks in
yellow, the outside chime sounds 3
times and the inside warning chime
sounds for approximately 3 seconds.
The ignition switch is in the ACC or ON
position.
Place the ignition switch in the OFF
position.
The Shif t P (Park) warning light (if so
equipped) in the instrument panel illu-
minates and the outside chime
sounds continuously. The ignition switch is in the ACC or
OFF position and the shif t lever is not
in the P (Park) position.
Make sure that the shif t lever is in the
P (Park) position and place the ignition
switch in the OFF position.
The outside chime sounds for approxi-
mately 3 seconds and all doors unlock. The Intelligent Key is in the vehicle or
trunk.Be sure to carry the Intelligent Key
with you.
When closing the trunk lid The outside chime sounds for approxi-
mately 10 seconds and the trunk lid
opens. The Intelligent Key is inside the trunk.Be sure to carry the Intelligent Key
with you.
When stopping the engine The Shif t P (Park) position warning
light (if so equipped) in the instrument
panel blinks in red. The shif t lever is not in the P (Park)
position.
Make sure that the shif t lever is in the
P (Park) position and place the ignition
switch in the LOCK position.
When starting the engine The key warning light (if so equipped)
in the instrument panel blinks in green. The battery charge is low.
Replace the battery with a new one.
For additional information, refer to
“Battery replacement” in the “Do-it-
yourself ” section of this manual.
When pushing the request switch or
the LOCK button on the Intelligent Key
to the lock the door The outside chime sounds for a few
seconds and all the doors unlock.
The Intelligent Key is inside the trunk. Be sure to carry the Intelligent Key
with you.
The Intelligent Key is inside the vehicle. Be sure to carry the Intelligent Key with you.
A door is not closed securely. Close the doors securely.
Pre-driving checks and adjustments3-25

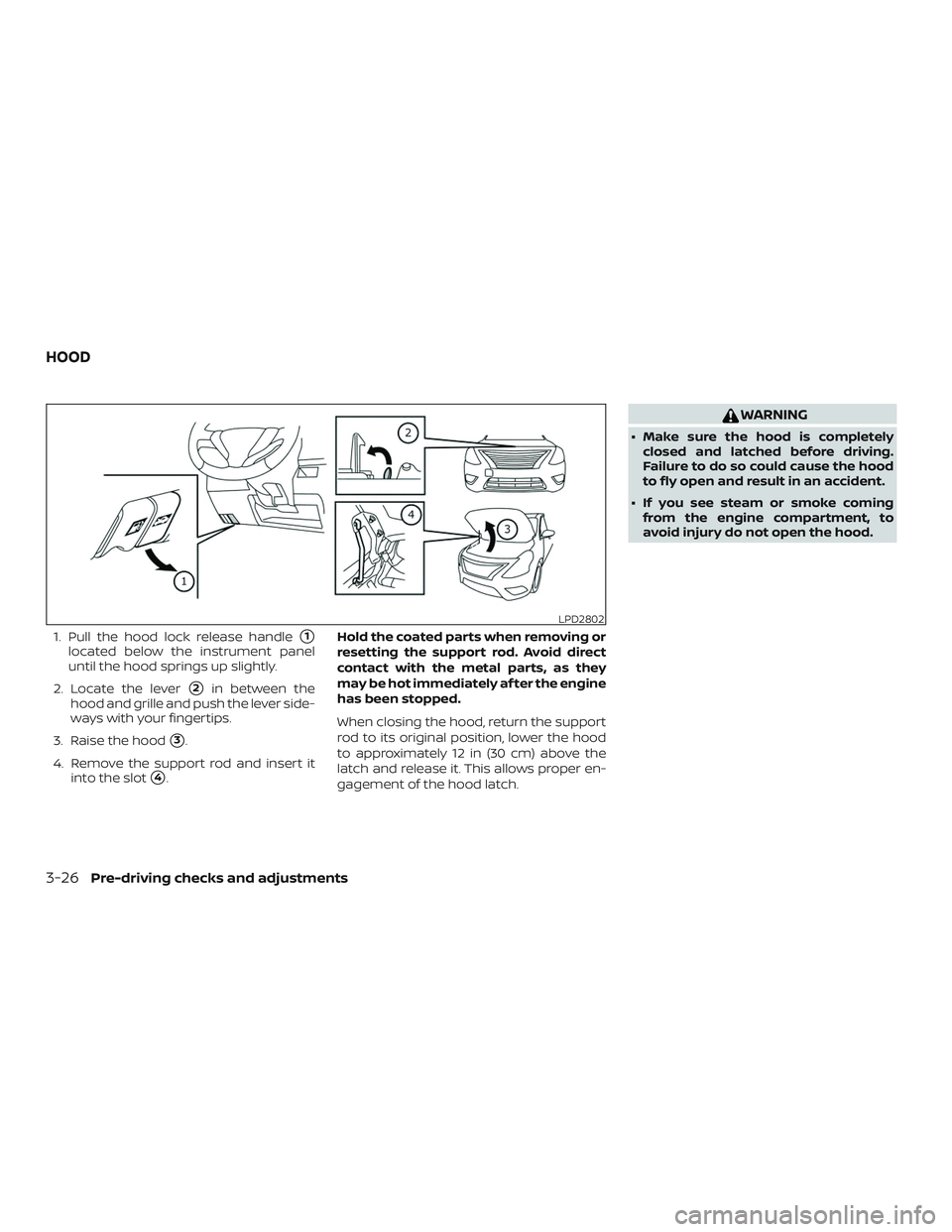

1. Pull the hood lock release handle1
located below the instrument panel
until the hood springs up slightly.
2. Locate the lever
2in between the
hood and grille and push the lever side-
ways with your fingertips.
3. Raise the hood
3.
4. Remove the support rod and insert it into the slot
4. Hold the coated parts when removing or
resetting the support rod. Avoid direct
contact with the metal parts, as they
may be hot immediately af ter the engine
has been stopped.
When closing the hood, return the support
rod to its original position, lower the hood
to approximately 12 in (30 cm) above the
latch and release it. This allows proper en-
gagement of the hood latch.
WARNING
∙ Make sure the hood is completely
closed and latched before driving.
Failure to do so could cause the hood
to fly open and result in an accident.
∙ If you see steam or smoke coming from the engine compartment, to
avoid injury do not open the hood.
LPD2802
HOOD
3-26Pre-driving checks and adjustments
