2019 NISSAN VERSA door lock

1. Engine hood (P. 3-27)
2. Windshield (P. 8-17)
3. Wiper and washer switch (P. 2-23)
4. Power windows (if so equipped)(P. 2-32)
5. Door locks (P. 3-6) Key fob (if so equipped) (P. 3-9)
Keys (P. 3-2)
6. Mirrors (P. 3-34)
7. Tire pressure (P. 8-33) Flat tire (P. 6-2)
Tire chains (P. 8-33)
8. Headlight and turn signal switch
(P. 2-24)
Replacing bulbs (P. 8-26)
9. Fog light switch (if so equipped)
(P. 2-24)
Refer to the page number indicated in
parentheses for operating details.
LII2461
EXTERIOR FRONT
Illustrated table of contents0-3

1. Antenna (P. 4-42)
2. Rear window defroster switch(P. 2-24)
3. Trunk lid release (P. 3-28)
4. Rearview camera (P. 4-8)
5. Replacing bulbs (P. 8-26)
6. Fuel-filler door (P. 3-30) Fuel-filler cap (P. 3-30)
Fuel recommendation (P. 10-2)
7. Child safety rear door locks (P. 3-6)
Refer to the page number indicated in
parentheses for operating details.
LII2462
EXTERIOR REAR
0-4Illustrated table of contents

Warninglight Name Page
or
Anti-lock Braking
System (ABS)
warning light 2-13
or
Brake warning
light
2-13
Charge warning
light2-14
Door open warn-
ing light2-14
Engine oil pres-
sure warning light2-14
High temperature
warning light (red)
(if so equipped)2-14
Warning
light Name Page
or
Low fuel warning
light 2-15
Low tire pressure
warning light2-15
NISSAN Intelligent
Key® warning light
(if so equipped) 2-17
Power steering
warning light
2-17
Seat belt warning
light and chime2-17
Shif t P (Park)
warning light (if so
equipped)2-18
Supplemental air
bag warning light
2-18
Indicator
light Name Page
Continuously
Variable Trans-
mission (CVT) po-
sition indicator
light 2-18
CRUISE indicator
light (if so
equipped)
2-18
Front fog light in-
dicator light (if so
equipped) 2-19
Front passenger
air bag status
light2-19
High beam indi-
cator light (blue)
2-19
Malfunction Indi-
cator Light (MIL)2-19
WARNING AND INDICATOR LIGHTS
Illustrated table of contents0-9

orAnti-lock Braking System
(ABS) warning lightPower steering warning lightMalfunction Indicator Light (MIL)
orBrake warning lightSeat belt warning light and chimeOverdrive OFF indicator light
(if so equipped)
Charge warning lightShif t P (park) warning light
(if so equipped)Security indicator light (if so equipped)
Door open warning lightSupplemental air bag warning lightSide light and headlight indicator light
(green) (if so equipped)
Engine oil pressure warning lightContinuously Variable Transmission (CVT)
position indicator lightSlip indicator light
High temperature warning light (red)
(if so equipped)CRUISE indicator light (if so equipped)Turn signal/hazard indicator lights
orLow fuel warning lightFront fog light indicator light
(if so equipped)Vehicle Dynamic Control (VDC) OFF
indicator light
Low tire pressure warning lightFront passenger air bag status light
NISSAN Intelligent Key®warning light
(if so equipped)High beam indicator light (blue)
WARNING LIGHTS, INDICATOR LIGHTS
AND AUDIBLE REMINDERS
2-12Instruments and controls

CHECKING LIGHTS
With all doors closed, apply the parking
brake, fasten the seat belts and place the
ignition switch in the ON position without
starting the engine. The following lights (if
so equipped) will come on:
or,,,,
The following lights (if so equipped) will
come on briefly and then go off:
or,(red) ,,,
,,,,
If any light does not come on or operate in
a way other than described, it may indicate
a burned out bulb and/or a system mal-
function. Have the system checked. It is
recommended that you visit a NISSAN
dealer for this service.
WARNING LIGHTS
This vehicle has various warning lights that
may illuminate to indicate a potential prob-
lem. For additional information, refer to the
specific light in this section.
orAnti-lock BrakingSystem (ABS)
warning light
When the ignition switch is placed in the ON
position, the ABS warning light illuminates
and then turns off. This indicates the ABS is
operational.
If the ABS warning light illuminates while
the engine is running or while driving, it
may indicate the ABS is not functioning
properly. Have the system checked. It is
recommended that you visit a NISSAN
dealer for this service.
If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system
then operates normally but without anti-
lock assistance. For additional information,
refer to “Brake system” in the “Starting and
driving” section of this manual.
orBrake warninglight
This light functions for both the parking
brake and the foot brake systems. Parking brake indicator
When the ignition switch is placed in the ON
position, this light comes on when the
parking brake is applied.
Low brake fluid warning light
When the ignition switch is placed in the ON
position, the light warns of a low brake fluid
level. If the light comes on while the engine
is running with the parking brake not ap-
plied, stop the vehicle and perform the fol-
lowing:
1. Check the brake fluid level. Add brake fluid as necessary. For additional infor-
mation, refer to “Brake fluid” in the “Do-
it-yourself ” section of this manual.
2. If the brake fluid level is correct, have the warning system checked. It is rec-
ommended that you visit a NISSAN
dealer for this service.
Instruments and controls2-13

CAUTION
∙ Do not use bottle holder for any otherobjects that could be thrown about in
the vehicle and possibly injure people
during sudden braking or an accident.
∙ Do not use bottle holder for open liq- uid containers.
POWER WINDOWS (if so equipped)
WARNING
∙ Make sure that all passengers havetheir hands, etc., inside the vehicle
while it is in motion and before closing
the windows. Use the window lock
switch to prevent unexpected use of
the power windows.
∙ To help avoid risk of injury or death through unintended operation of the
vehicle and/or its systems, including
entrapment in windows or inadver-
tent door lock activation, do not leave
children, people who require the as-
sistance of others or pets unattended
in your vehicle. Additionally, the tem-
perature inside a closed vehicle on a
warm day can quickly become high
enough to cause a significant risk of
injury or death to people and pets.
The power windows operate when the ig-
nition switch is placed in the ON position or
for a period of time af ter the ignition switch
is placed in the OFF position. If the driver’s
or passenger’s door is opened during this
period of time, the power to the windows is
canceled.
1. Window lock button
2. Power door lock switch
3. Front passenger’s side window switch
4. Right rear passenger’s window
switch
5. Lef t rear passenger’s window
switch
6. Driver’s side automatic switchBottle holder
LIC2158WIC1100
WINDOWS
2-32Instruments and controls

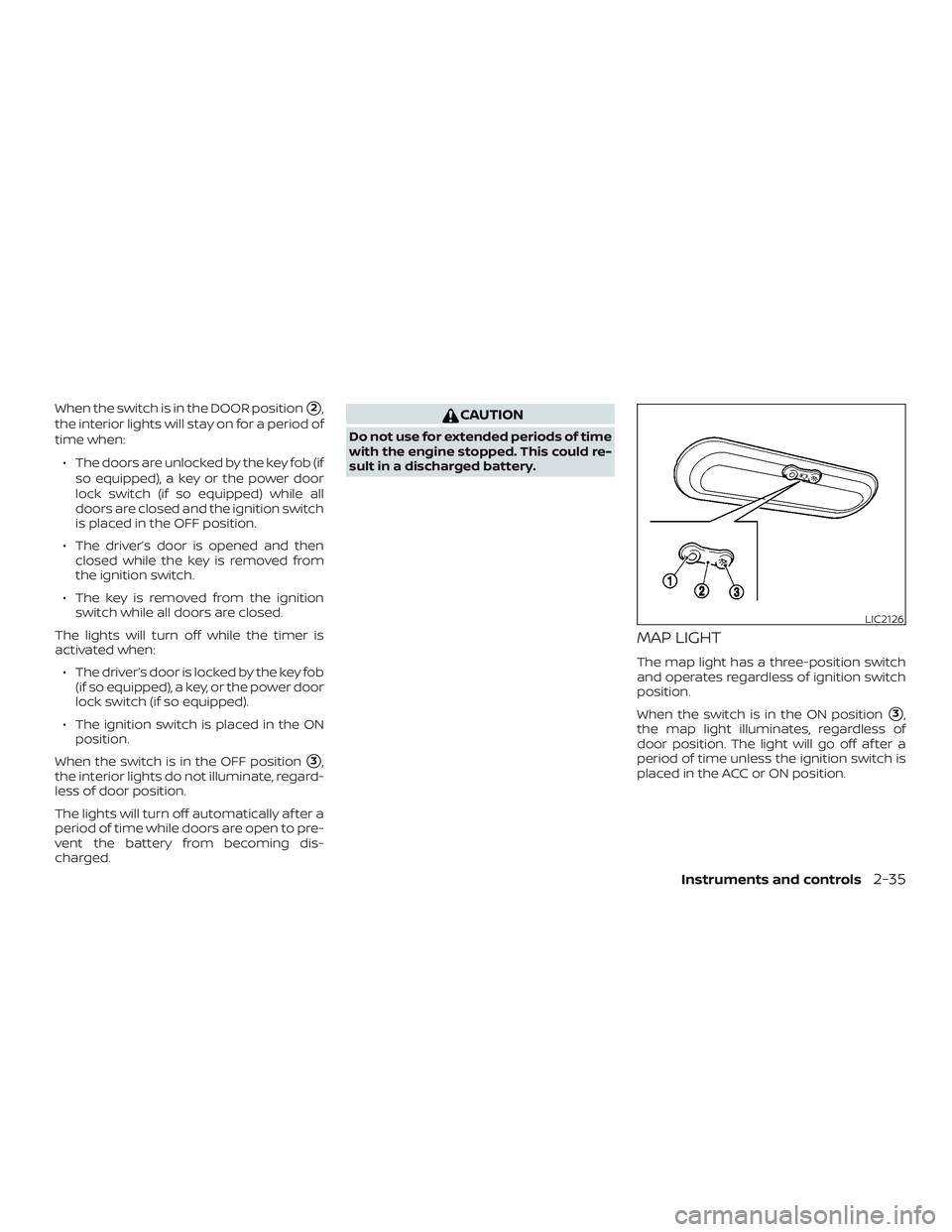

When the switch is in the DOOR position2,
the interior lights will stay on for a period of
time when:
∙ The doors are unlocked by the key fob (if so equipped), a key or the power door
lock switch (if so equipped) while all
doors are closed and the ignition switch
is placed in the OFF position.
∙ The driver’s door is opened and then closed while the key is removed from
the ignition switch.
∙ The key is removed from the ignition switch while all doors are closed.
The lights will turn off while the timer is
activated when: ∙ The driver’s door is locked by the key fob (if so equipped), a key, or the power door
lock switch (if so equipped).
∙ The ignition switch is placed in the ON position.
When the switch is in the OFF position
3,
the interior lights do not illuminate, regard-
less of door position.
The lights will turn off automatically af ter a
period of time while doors are open to pre-
vent the battery from becoming dis-
charged.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could re-
sult in a discharged battery.
MAP LIGHT
The map light has a three-position switch
and operates regardless of ignition switch
position.
When the switch is in the ON position
3,
the map light illuminates, regardless of
door position. The light will go off af ter a
period of time unless the ignition switch is
placed in the ACC or ON position.
LIC2126
Instruments and controls2-35

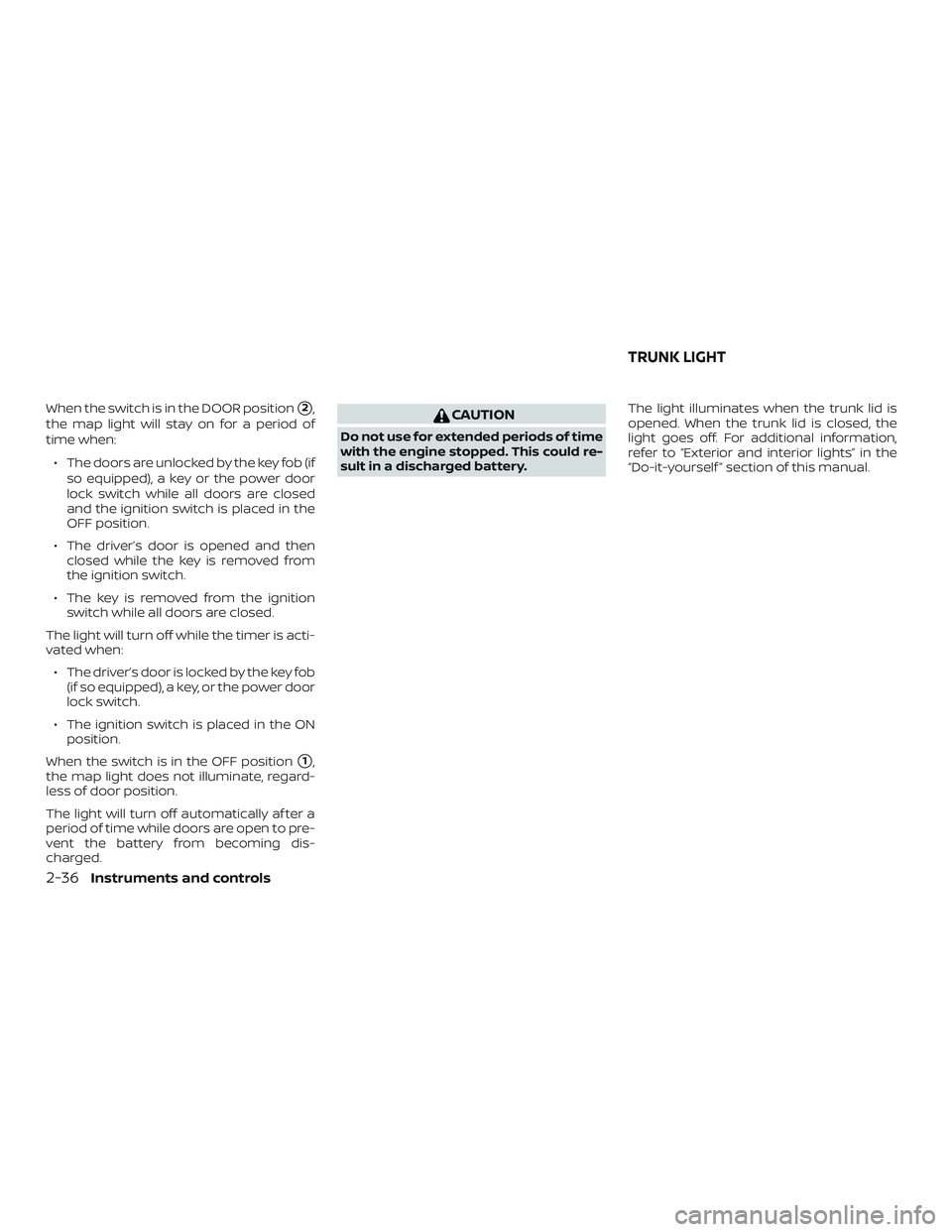

When the switch is in the DOOR position2,
the map light will stay on for a period of
time when:
∙ The doors are unlocked by the key fob (if so equipped), a key or the power door
lock switch while all doors are closed
and the ignition switch is placed in the
OFF position.
∙ The driver’s door is opened and then closed while the key is removed from
the ignition switch.
∙ The key is removed from the ignition switch while all doors are closed.
The light will turn off while the timer is acti-
vated when: ∙ The driver’s door is locked by the key fob (if so equipped), a key, or the power door
lock switch.
∙ The ignition switch is placed in the ON position.
When the switch is in the OFF position
1,
the map light does not illuminate, regard-
less of door position.
The light will turn off automatically af ter a
period of time while doors are open to pre-
vent the battery from becoming dis-
charged.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could re-
sult in a discharged battery. The light illuminates when the trunk lid is
opened. When the trunk lid is closed, the
light goes off. For additional information,
refer to “Exterior and interior lights” in the
“Do-it-yourself ” section of this manual.
TRUNK LIGHT
2-36Instruments and controls
