2019 NISSAN VERSA rear view mirror

1. Interior light (P. 2-34)
2. Sun visors (P. 3-33)
3. Map light (P. 2-34)
4. Rearview mirror (P. 3-34)
5. Glove box (P. 2-29)
6. Parking brake (P. 5-23)
Refer to the page number indicated in
parentheses for operating details.
LII2463
PASSENGER COMPARTMENT
Illustrated table of contents0-5

17. Ignition switch (if so equipped)(P. 5-9)
Push-button ignition switch
(if so equipped) (P. 5-11)
18. Cruise control switches
(if so equipped) (P. 5-24)
19. Tilt steering (P. 3-32)
20. Audio control switches (P. 4-42) Bluetooth® Hands-Free Phone
System switches (P. 4-46)
21. Vehicle Dynamic Control (VDC) OFF
switch (P. 2-28)
22. Fuel-filler door release lever
(P. 3-30)
Hood release lever (P. 3-27)
23. Electronic outside rearview mirror
control switch (P. 3-34)
Refer to the page number indicated in
parentheses for operating details.
Illustrated table of contents0-7

17. Ignition switch (if so equipped)(P. 5-9)
Push-button ignition switch
(if so equipped) (P. 5-11)
18. Cruise control switches
(if so equipped) (P. 5-24)
19. Tilt steering (P. 3-32)
20. Audio control switches (P. 4-42) Bluetooth® Hands-Free Phone
System switches (P. 4-46)
21. Vehicle Dynamic Control (VDC) OFF
switch (P. 2-28)
22. Fuel-filler door release lever
(P. 3-30)
Hood release lever (P. 3-27)
23. Electronic outside rearview mirror
control switch (P. 3-34)
Refer to the page number indicated in
parentheses for operating details.
1. Tachometer
2. Speedometer
3. Fuel gauge
4. OdometerTwin trip odometer
Trip computer 5. Continuously Variable Transmission
(CVT) position indicator
6. Instrument brightness control
knob
7. Change/reset button
Type A (if so equipped)
LIC3131
METERS AND GAUGES
Instruments and controls2-3

3 Pre-driving checks and adjustments
Keys.............................................3-2NISSAN Intelligent Key® (if so equipped) .......3-4
NISSAN Vehicle Immobilizer System
keys (if so equipped) ..........................3-5
Doors ...........................................3-6
Locking with key .............................. 3-7
Locking with inside lock knob ................. 3-7
Locking with power door lock switch
(if so equipped) ...............................3-8
Automatic door locks (if so equipped) ........3-8
Child safety rear door lock ....................3-8
Remote keyless entry system (if so equipped) . . . 3-9 How to use remote keyless entry
system ...................................... 3-10
NISSAN Intelligent Key® (if so equipped) .........3-13
Operating range ............................. 3-14
Door locks/unlocks precaution ..............3-15
NISSAN Intelligent Key® Operation ...........3-16
How to use the remote keyless entry
function ..................................... 3-19Warning lights and audible reminders
.......3-23
Warning signals ............................. 3-23
Troubleshooting guide ......................3-25
Hood ........................................... 3-27
Trunk lid ........................................ 3-28
Key operation ............................... 3-28
Opener operation ........................... 3-28
Interior trunk lid release .....................3-29
Fuel-filler door .................................. 3-30
Opener operation ........................... 3-30
Fuel-filler cap ................................ 3-30
Steering wheel ................................. 3-32
Tilt operation ................................ 3-32
Sun visors ...................................... 3-33
Vanity mirror ................................ 3-33
Mirrors ......................................... 3-34
Rearview mirror ............................. 3-34
Outside mirrors ............................. 3-34

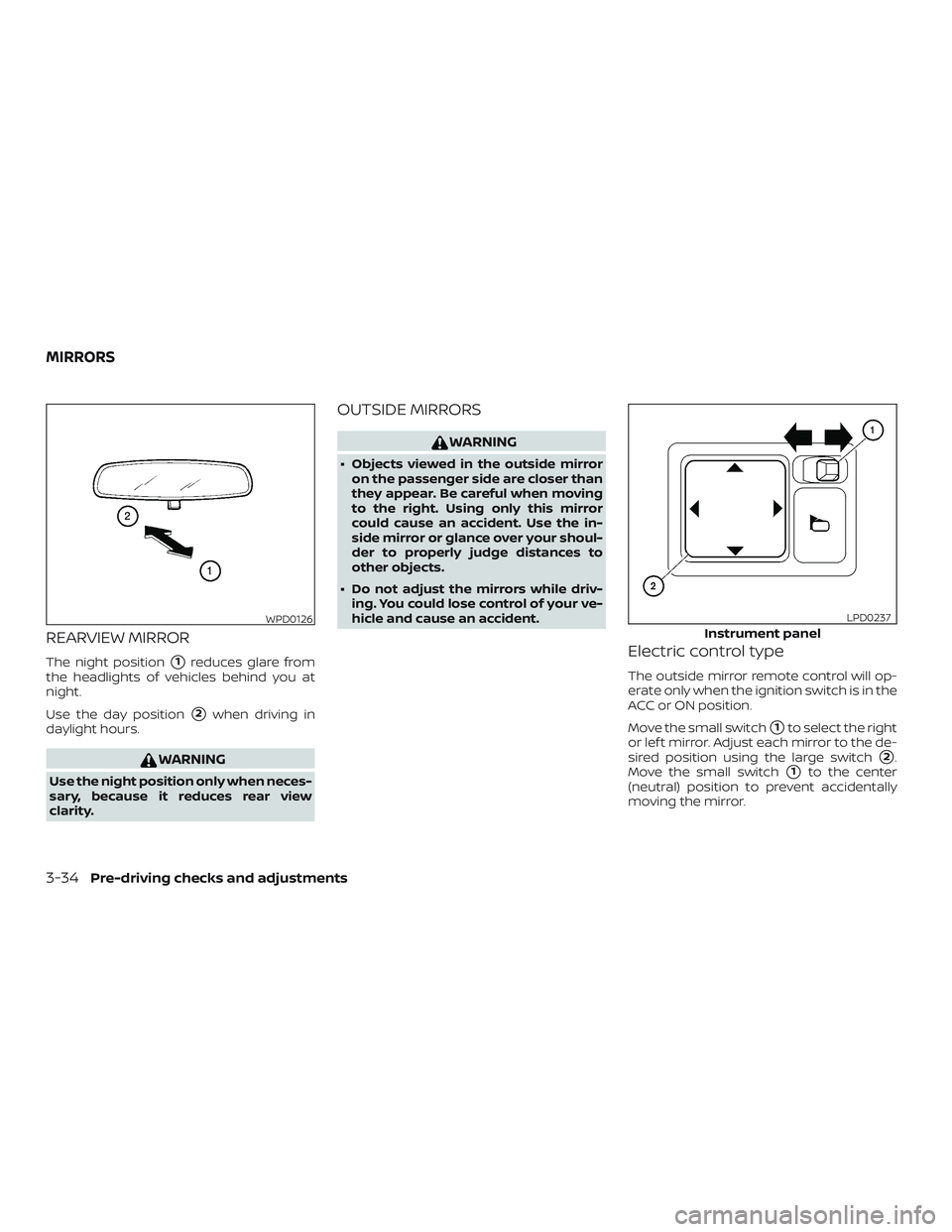

REARVIEW MIRROR
The night position1reduces glare from
the headlights of vehicles behind you at
night.
Use the day position
2when driving in
daylight hours.
WARNING
Use the night position only when neces-
sary, because it reduces rear view
clarity.
OUTSIDE MIRRORS
WARNING
∙ Objects viewed in the outside mirror on the passenger side are closer than
they appear. Be careful when moving
to the right. Using only this mirror
could cause an accident. Use the in-
side mirror or glance over your shoul-
der to properly judge distances to
other objects.
∙ Do not adjust the mirrors while driv- ing. You could lose control of your ve-
hicle and cause an accident.
Electric control type
The outside mirror remote control will op-
erate only when the ignition switch is in the
ACC or ON position.
Move the small switch
1to select the right
or lef t mirror. Adjust each mirror to the de-
sired position using the large switch
2.
Move the small switch
1to the center
(neutral) position to prevent accidentally
moving the mirror.
WPD0126Instrument panel
LPD0237
MIRRORS
3-34Pre-driving checks and adjustments

WARNING
∙ Failure to follow the warnings and in-structions for proper use of the Rear-
View Monitor system could result in
serious injury or death. ∙
RearView Monitor is a convenience fea-
ture and is not a substitute for proper
backing. Always turn and look out the
windows and check mirrors to be sure
that it is safe to move before operating
the vehicle. Always back up slowly.∙ The system is designed as an aid to
the driver in showing large stationary
objects directly behind the vehicle, to
help avoid damaging the vehicle.
LHA4752

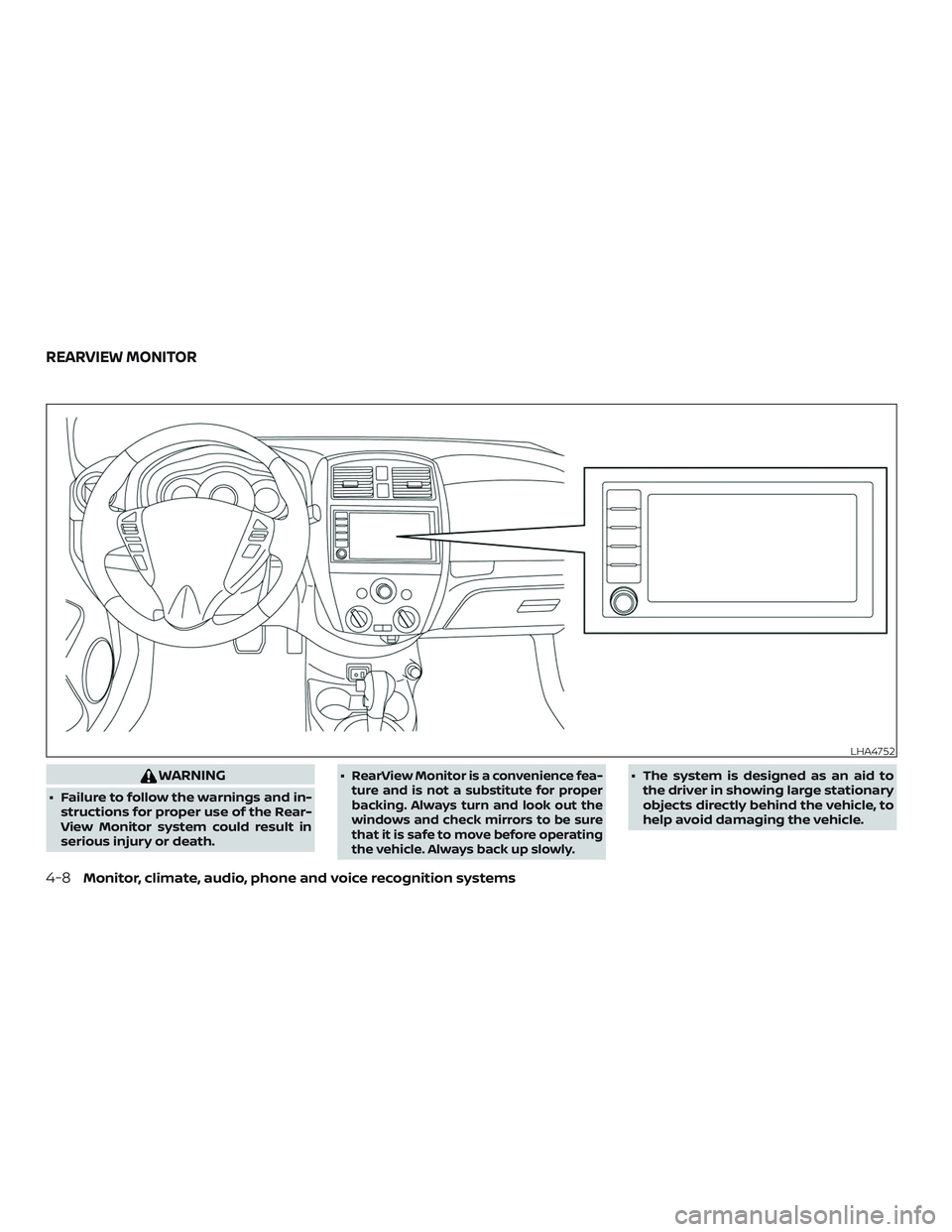

REARVIEW MONITOR
4-8Monitor, climate, audio, phone and voice recognition systems

ADJUSTING THE SCREEN
1. While on the main menu screen, touchthe “Settings” key.
2. Touch the “Camera” key.
3. Touch the “Brightness”, “Contrast”, Tint”, “Color”, or “Black Level” key.
4. Adjust the item by touching the “+” or “–” key on the touch-screen display.
NOTE:
Do not adjust any of the display settings
of the RearView Monitor while the ve-
hicle is moving.
REARVIEW MONITOR SYSTEM
LIMITATIONS
WARNING
Listed below are the system limitations
for RearView Monitor. Failure to operate
the vehicle in accordance with these
system limitations could result in seri-
ous injury or death.
∙ The system cannot completely elimi- nate blind spots and may not show
every object.
∙ Underneath the bumper and the cor- ner areas of the bumper cannot be
viewed on the RearView Monitor be-
cause of its monitoring range limita-
tion. The system will not show small
objects below the bumper, and may
not show objects close to the bumper
or on the ground.
∙ Objects viewed in the RearView Moni- tor differ from actual distance be-
cause a wide-angle lens is used.
∙ Objects in the RearView Monitor will appear visually opposite compared to
when viewed in the rearview and out-
side mirrors. ∙ Use the displayed lines as a reference.
The lines are highly affected by the
number of occupants, fuel level, ve-
hicle position, road conditions and
road grade.
∙ Make sure that the trunk is securely closed when backing up.
∙ Do not put anything on the rearview camera. The rearview camera is in-
stalled above the license plate.
∙ When washing the vehicle with high pressure water, be sure not to spray it
around the camera. Otherwise, water
may enter the camera unit causing
water condensation on the lens, a
malfunction, fire or an electric shock.
∙ Do not strike the camera. It is a preci- sion instrument. Otherwise, it may
malfunction or cause damage result-
ing in a fire or an electric shock.
The following are operating limitations and
do not represent a system malfunction: ∙ When the temperature is extremely high or low, the screen may not clearly
display objects.
LHA3522
4-12Monitor, climate, audio, phone and voice recognition systems

L
Labels Air conditioner specification label . . .10-13
Emission control information label . .10-12
Engine serial number ..........10-12
F.M.V.S.S. certification label .......10-12
Tire and Loading Information label . .10-13
Vehicle identification number (VIN) . .10-11
Vehicle identification number (VIN)
plate.....................10-11
Warning labels (for SRS) .........1-60
LATCH (Lower Anchors and Tethers for
CHildren)System............... .1-23
Launch bar menu ................4-7
License plate Installing the license plate .......10-13
Light Airbagwarninglight ........1-61, 2-18
Brakelight(Seestoplight)........8-28
Bulb check/instrument panel ......2-13
Bulb replacement .............8-28
Charge warning light ...........2-14
ExteriorandInteriorlights........8-28
Foglights..................8-27
Foglightswitch ..............2-27
Headlight and turn signal switch ....2-24
Headlightcontrolswitch.........2-24
Headlights .................8-26
Interiorlight.............2-34,2-35
Lightbulbs.................8-26
Low tire pressure warning light .....2-15
Passenger air bag and status light. . .1-52
Security indicator light ..........2-20
Trunklight..................2-36 Warning/indicator lights and audible
reminders
..................2-18
Lights......................8-26 Maplights..................2-35
Lock Child safety rear door lock ........3-8
Door locks ................3-6,3-7
Fuel-filler door lock opener lever ....3-30
Power door locks ..............3-8
Trunk lid lock opener lever ........3-28
Loose fuel cap warning ............2-7
Lowfuelwarninglight ............2-15
Low tire pressure warning light .......2-15
Luggage
(See vehicle loading information) .....10-14
M
Maintenance General maintenance ...........9-2
Insidethevehicle..............9-3
Maintenance precautions .........8-2
Outsidethevehicle.............9-2
Seat belt maintenance ..........1-17
Under the hood and vehicle .......9-4
Maintenance log ................9-13
Maintenance requirements ..........9-2
Maintenance schedules ............9-7
Maintenance under severe operation
conditions....................9-12
Malfunctionindicatorlight..........2-19
Manual front seat adjustment ........1-3
Manual windows ................2-34
Maplights....................2-35
Menu button ...................4-5 Meters and gauges
...............2-3
Instrument brightness control .....2-26
Mirror Outsidemirrorcontrol..........3-34
Outsidemirrors..............3-34
Rearview...................3-34
Vanitymirror................3-33
Mirrors......................3-34
N
NissanConnect® Owner's Manual ......4-2
NISSAN Intelligent Key® .........3-4,3-13
NISSAN Intelligent Key® battery discharge
indicator.....................5-13
NISSAN Vehicle Immobilizer
System...................2-21, 5-14
O
Octane rating (See fuel octane rating) . .10-6
Odometer ....................2-6
Oil Capacities and recommended
fu

el/lubricants...............10-2
Changing engine oil ............8-8
Changing engine oil filter .........8-9
Checking engine oil level .........8-7
Engine oil ...................8-7
Engine oil and oil filter
recommendation .............10-7
Engine oil viscosity .............10-7
Outsidemirrorcontrol............3-34
Outsidemirrors................3-34
11-4
