2019 NISSAN TITAN fold seats

Front center bench seat
adjustment
The front center bench seat folds down by
pulling on the strap. It does not have ad-
justments in between the upright and the
folded down positions. It is either in seating
position or armrest position.
FRONT MANUAL CAPTAIN’S CHAIR
SEAT ADJUSTMENT (if so equipped
for passenger seat for King Cab®
and Crew Cab models)
Your vehicle seats can be adjusted manu-
ally. For additional information about ad-
justing the seats, refer to the steps outlined
in this section.
Forward and backward
Pull the lever up and hold it while you slide
the seat forward or backward to the de-
sired position. Release the lever to lock the
seat in position.
LRS2787LRS2559
1-4Safety—Seats, seat belts and supplemental restraint system

FRONT ARMRESTS (if so equipped)
To use the center armrest on the front
bench seat, pull on the strap in between
the front passenger and center seats and
fold it down to the resting position.
REAR ARMRESTS (Crew Cab
models and if so equipped for
King Cab® models)
To use the center armrest on the bench
seats, pull on the tab in the center of the
seat and fold it down as shown.
FLEXIBLE SEATING
WARNING
∙ Never allow anyone to ride in thecargo area or on the rear seats (if so
equipped) when they are in the fold-
down position. In a collision, people
riding in these areas without proper
restraints are more likely to be seri-
ously injured or killed.
∙ Do not allow people to ride in any area of your vehicle that is not equipped
with seats and seat belts. Be sure ev-
eryone in your vehicle is in a seat and
using a seat belt properly.
∙ Do not allow more than one person to use the same seat belt.
∙ Do not fold down the rear seats when the occupants are in the rear seat area
or any luggage is on the rear seats.
– Make sure that the seat path is clear before moving the seat.
– Be careful not to allow hands or feet to get caught or pinched in the
seat.
LRS0425LRS2748
Safety—Seats, seat belts and supplemental restraint system1-7

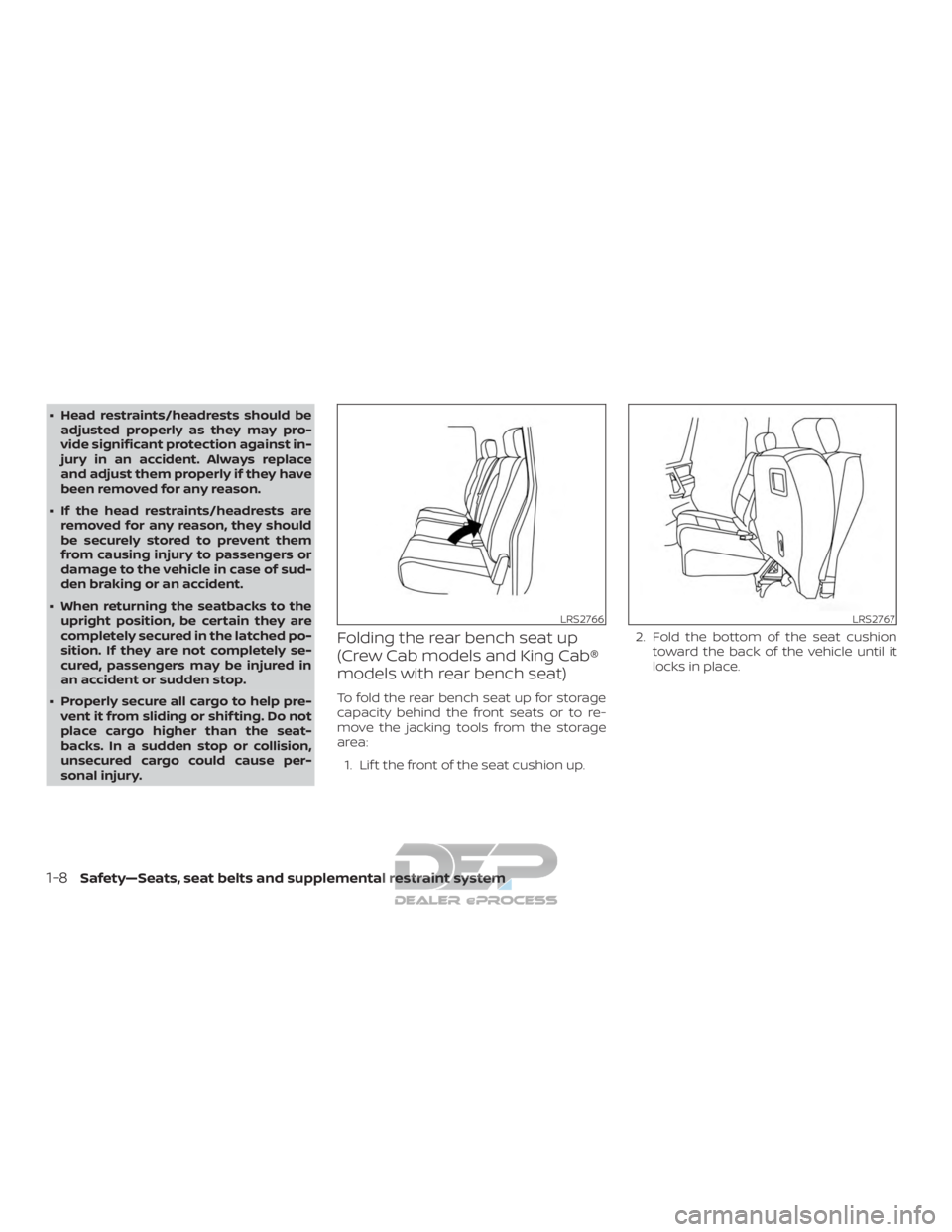

∙ Head restraints/headrests should beadjusted properly as they may pro-
vide significant protection against in-
jury in an accident. Always replace
and adjust them properly if they have
been removed for any reason.
∙ If the head restraints/headrests are removed for any reason, they should
be securely stored to prevent them
from causing injury to passengers or
damage to the vehicle in case of sud-
den braking or an accident.
∙ When returning the seatbacks to the upright position, be certain they are
completely secured in the latched po-
sition. If they are not completely se-
cured, passengers may be injured in
an accident or sudden stop.
∙ Properly secure all cargo to help pre- vent it from sliding or shif ting. Do not
place cargo higher than the seat-
backs. In a sudden stop or collision,
unsecured cargo could cause per-
sonal injury.
Folding the rear bench seat up
(Crew Cab models and King Cab®
models with rear bench seat)
To fold the rear bench seat up for storage
capacity behind the front seats or to re-
move the jacking tools from the storage
area:
1. Lif t the front of the seat cushion up. 2. Fold the bottom of the seat cushion
toward the back of the vehicle until it
locks in place.
LRS2766LRS2767
1-8Safety—Seats, seat belts and supplemental restraint system

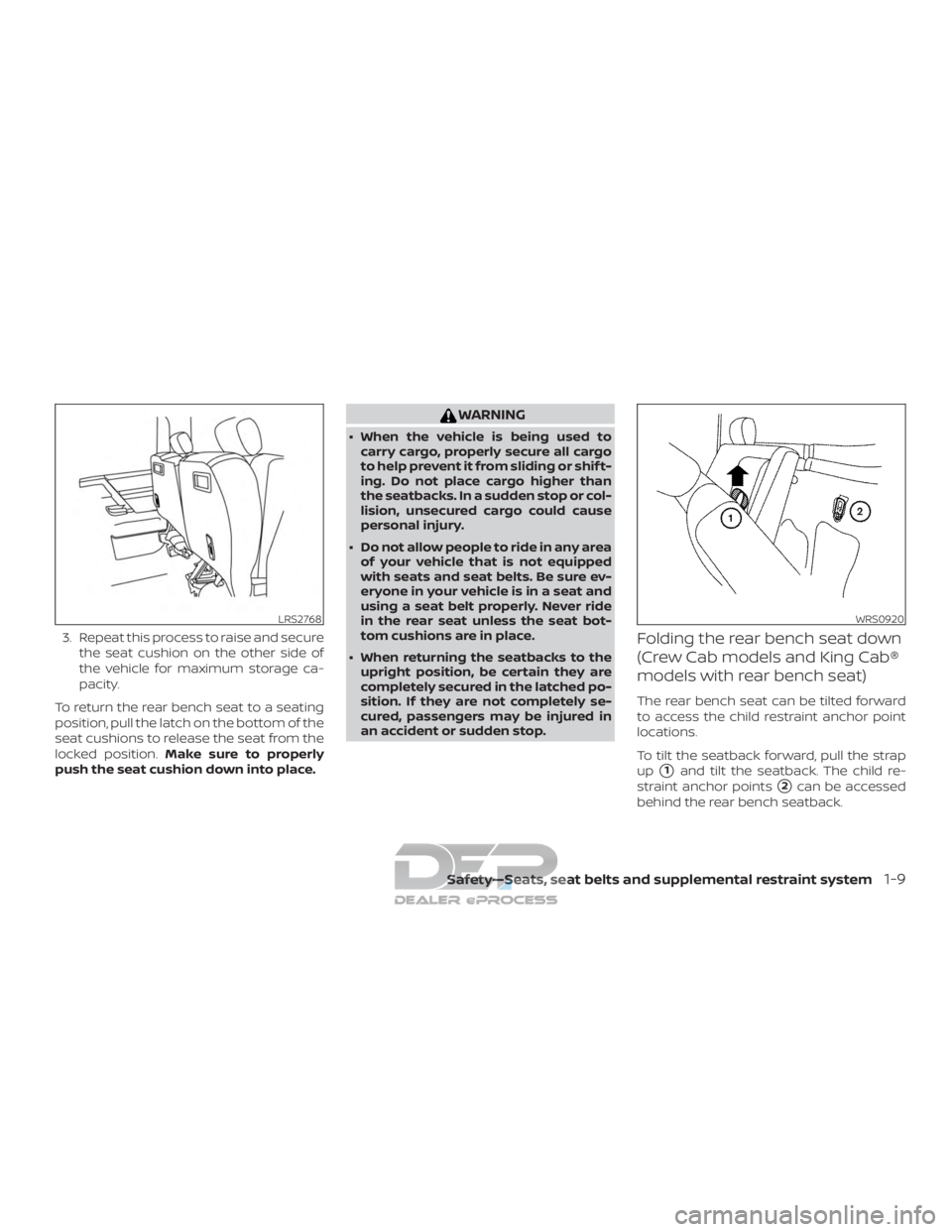

3. Repeat this process to raise and securethe seat cushion on the other side of
the vehicle for maximum storage ca-
pacity.
To return the rear bench seat to a seating
position, pull the latch on the bottom of the
seat cushions to release the seat from the
locked position. Make sure to properly
push the seat cushion down into place.
WARNING
∙ When the vehicle is being used to carry cargo, properly secure all cargo
to help prevent it from sliding or shif t-
ing. Do not place cargo higher than
the seatbacks. In a sudden stop or col-
lision, unsecured cargo could cause
personal injury.
∙ Do not allow people to ride in any area of your vehicle that is not equipped
with seats and seat belts. Be sure ev-
eryone in your vehicle is in a seat and
using a seat belt properly. Never ride
in the rear seat unless the seat bot-
tom cushions are in place.
∙ When returning the seatbacks to the upright position, be certain they are
completely secured in the latched po-
sition. If they are not completely se-
cured, passengers may be injured in
an accident or sudden stop.
Folding the rear bench seat down
(Crew Cab models and King Cab®
models with rear bench seat)
The rear bench seat can be tilted forward
to access the child restraint anchor point
locations.
To tilt the seatback forward, pull the strap
up
1and tilt the seatback. The child re-
straint anchor points
2can be accessed
behind the rear bench seatback.
LRS2768WRS0920
Safety—Seats, seat belts and supplemental restraint system1-9

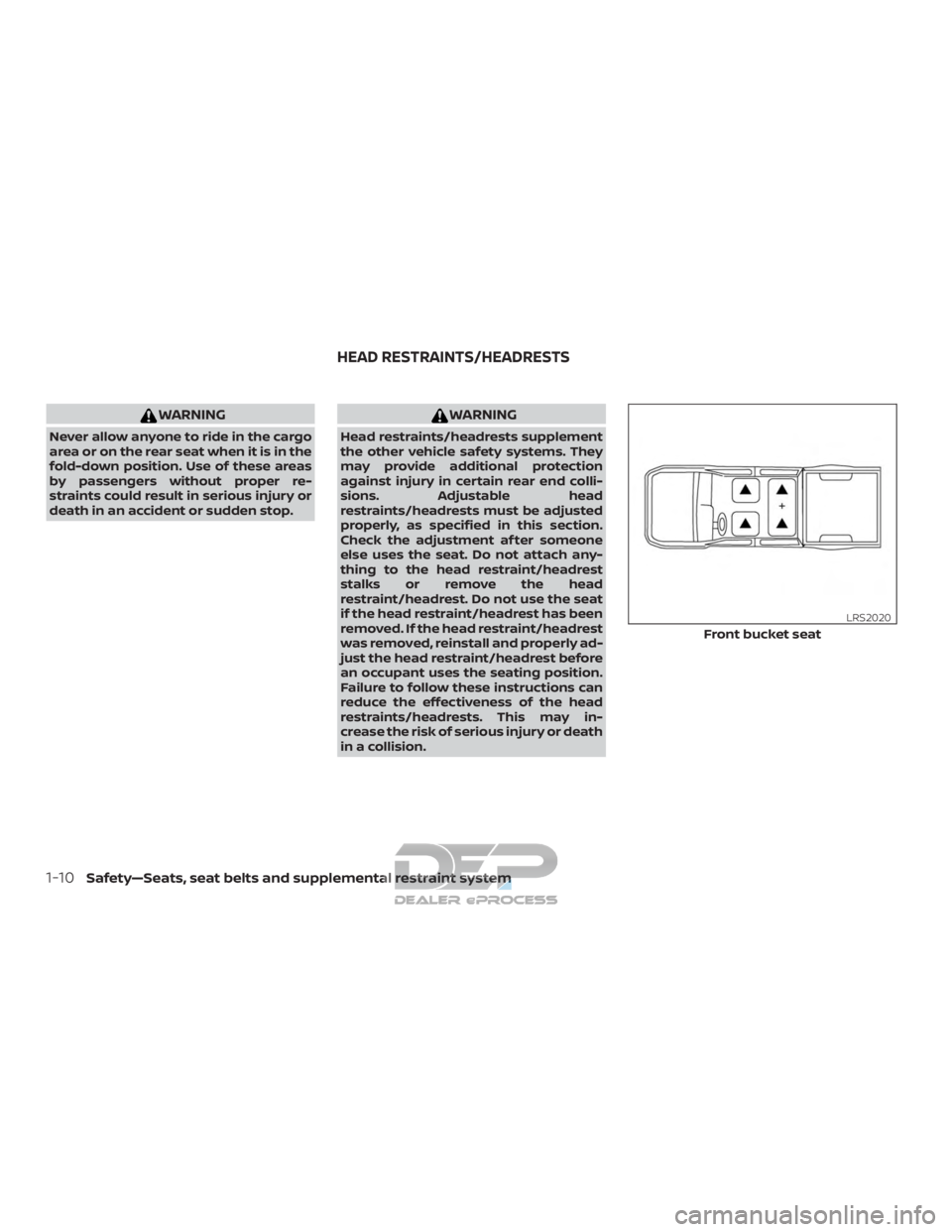

WARNING
Never allow anyone to ride in the cargo
area or on the rear seat when it is in the
fold-down position. Use of these areas
by passengers without proper re-
straints could result in serious injury or
death in an accident or sudden stop.
WARNING
Head restraints/headrests supplement
the other vehicle safety systems. They
may provide additional protection
against injury in certain rear end colli-
sions. Adjustable head
restraints/headrests must be adjusted
properly, as specified in this section.
Check the adjustment af ter someone
else uses the seat. Do not attach any-
thing to the head restraint/headrest
stalks or remove the head
restraint/headrest. Do not use the seat
if the head restraint/headrest has been
removed. If the head restraint/headrest
was removed, reinstall and properly ad-
just the head restraint/headrest before
an occupant uses the seating position.
Failure to follow these instructions can
reduce the effectiveness of the head
restraints/headrests. This may in-
crease the risk of serious injury or death
in a collision.
Front bucket seat
LRS2020
HEAD RESTRAINTS/HEADRESTS
1-10Safety—Seats, seat belts and supplemental restraint system

GROCERY HOOKS (if so equipped)
The grocery hooks allow for standard size
plastic grocery bags to hang side by side.
To access the grocery hooks, fold up the
rear bench seat. For additional information,
refer to “Folding the rear bench seat up” in
the “Safety — Seats, seat belts and supple-
mental restraint system” section of this
manual.
CAUTION
Do not apply a total load of more than
18 lbs. (8 kg) to a single grocery hook.
BED LINER STORAGE BINS (if so
equipped)
To open the bed liner storage bins on the
top of the wheel wells, unlock the bin and
lif t the lid toward the inside of the truck bed.
To close, replace the lid and lock the bin.To open the bed liner storage bins on the
tail gate end of the bed liner, lif t the tab
away from the truck bed, pull the lid up and
away from the truck.
LIC3389LIC3449LIC3450
Instruments and controls2-81

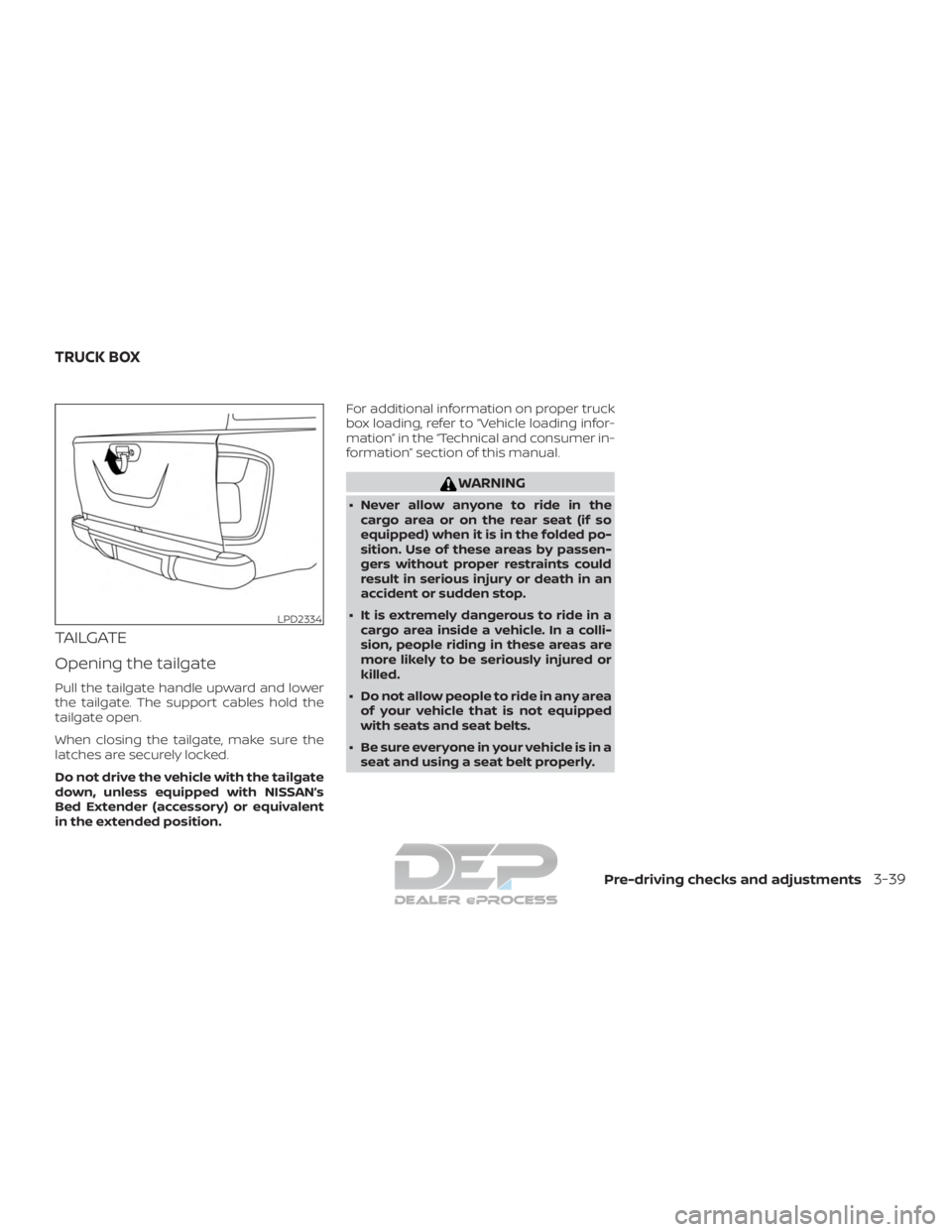

TAILGATE
Opening the tailgate
Pull the tailgate handle upward and lower
the tailgate. The support cables hold the
tailgate open.
When closing the tailgate, make sure the
latches are securely locked.
Do not drive the vehicle with the tailgate
down, unless equipped with NISSAN’s
Bed Extender (accessory) or equivalent
in the extended position.For additional information on proper truck
box loading, refer to “Vehicle loading infor-
mation” in the “Technical and consumer in-
formation” section of this manual.
WARNING
∙ Never allow anyone to ride in the
cargo area or on the rear seat (if so
equipped) when it is in the folded po-
sition. Use of these areas by passen-
gers without proper restraints could
result in serious injury or death in an
accident or sudden stop.
∙ It is extremely dangerous to ride in a cargo area inside a vehicle. In a colli-
sion, people riding in these areas are
more likely to be seriously injured or
killed.
∙ Do not allow people to ride in any area of your vehicle that is not equipped
with seats and seat belts.
∙ Be sure everyone in your vehicle is in a seat and using a seat belt properly.
LPD2334
TRUCK BOX
Pre-driving checks and adjustments3-39

Getting the spare tire and tools
(Crew and King Cab® models)
1. Fold up the right rear bench seat. Foradditional information, refer to “Folding
the rear bench seat up” in the “Safety—
Seats, seat belts and supplemental re-
straint system” section of this manual.
2. Remove the tire stopper bag
A.
3. Release the straps
B.
4. Collapse the jack to remove it from the storage location. Loosen the jack with
your fingers until the jack is free.
5. Remove the jack and tool kit. 6. Assemble the pieces of the jack rod.
Find the oval-shaped opening above
the license plate, slightly to the lef t of
the middle (driver’s side). Pass the
T-shaped end of the jack rod through
the opening and direct it toward the
spare tire winch, located directly above
the spare tire.
CAUTION
Do not insert the jack rod straight as it is
designed to be inserted at an angle as
shown.
LCE2374WCE0150
In case of emergency6-5
