Changing the display
Press the
button on the steering
wheel to change the display as follows:
Accel guide/Average fuel economy →In-
stant fuel economy/Average fuel economy
→ Average fuel economy →Average speed
→ Distance to empty →Trip A →Trip B
Resetting the trip odometer
Press the
button on the steering
wheel for more than 1 second to reset the
currently displayed trip odometer to zero.
LOOSE FUEL CAP warning
message
For vehicles without a vehicle informa-
tion display: Push the reset button
Afor
more than 1 second to reset the LOOSE
FUEL CAP warning message in the trip
computer
Baf ter the fuel cap has been
tightened. For additional information, refer
to “Fuel-filler cap” in the “Pre-driving checks
and adjustments” section of this manual.
For vehicles with a vehicle information
display: For additional information, refer to
“Vehicle information display warnings and
indicators” in the section.
Check tire pressure warning
message (if so equipped)
The CHECK TIRE PRES (pressure) warning
message is displayed when the low tire
pressure warning light is illuminated and
low tire pressure is detected. Check and
adjust the tire pressure to the recom-
mended COLD tire pressure shown on the
Tire and Loading Information label. The
CHECK TIRE PRES warning message turns
off when the low tire pressure warning light
turns off.
LPD2124LIC2678
2-6Instruments and controls

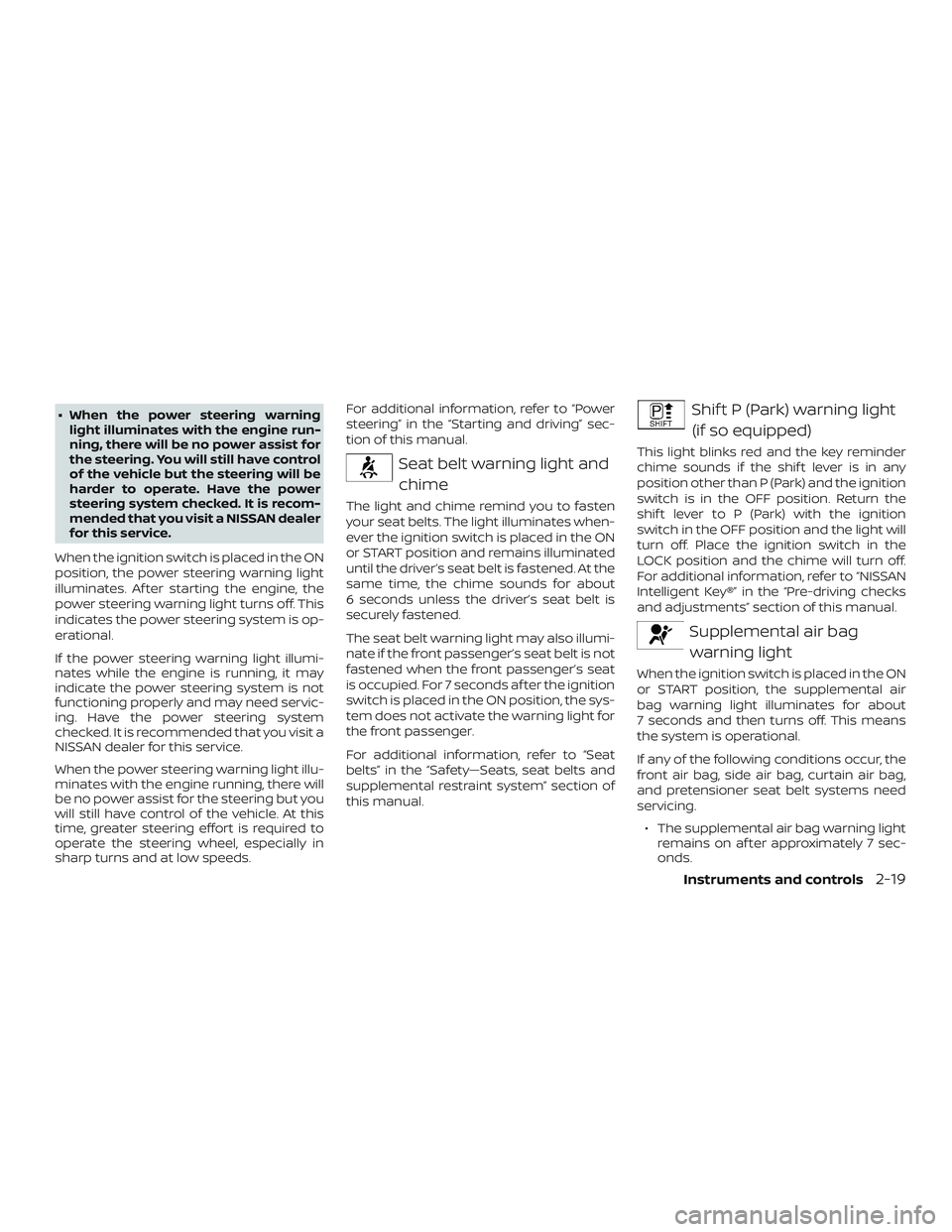

∙ When the power steering warninglight illuminates with the engine run-
ning, there will be no power assist for
the steering. You will still have control
of the vehicle but the steering will be
harder to operate. Have the power
steering system checked. It is recom-
mended that you visit a NISSAN dealer
for this service.
When the ignition switch is placed in the ON
position, the power steering warning light
illuminates. Af ter starting the engine, the
power steering warning light turns off. This
indicates the power steering system is op-
erational.
If the power steering warning light illumi-
nates while the engine is running, it may
indicate the power steering system is not
functioning properly and may need servic-
ing. Have the power steering system
checked. It is recommended that you visit a
NISSAN dealer for this service.
When the power steering warning light illu-
minates with the engine running, there will
be no power assist for the steering but you
will still have control of the vehicle. At this
time, greater steering effort is required to
operate the steering wheel, especially in
sharp turns and at low speeds. For additional information, refer to “Power
steering” in the “Starting and driving” sec-
tion of this manual.
Seat belt warning light and
chime
The light and chime remind you to fasten
your seat belts. The light illuminates when-
ever the ignition switch is placed in the ON
or START position and remains illuminated
until the driver’s seat belt is fastened. At the
same time, the chime sounds for about
6 seconds unless the driver’s seat belt is
securely fastened.
The seat belt warning light may also illumi-
nate if the front passenger’s seat belt is not
fastened when the front passenger’s seat
is occupied. For 7 seconds af ter the ignition
switch is placed in the ON position, the sys-
tem does not activate the warning light for
the front passenger.
For additional information, refer to “Seat
belts” in the “Safety—Seats, seat belts and
supplemental restraint system” section of
this manual.
Shif t P (Park) warning light(if so equipped)
This light blinks red and the key reminder
chime sounds if the shif t lever is in any
position other than P (Park) and the ignition
switch is in the OFF position. Return the
shif t lever to P (Park) with the ignition
switch in the OFF position and the light will
turn off. Place the ignition switch in the
LOCK position and the chime will turn off.
For additional information, refer to “NISSAN
Intelligent Key®” in the “Pre-driving checks
and adjustments” section of this manual.
Supplemental air bagwarning light
When the ignition switch is placed in the ON
or START position, the supplemental air
bag warning light illuminates for about
7 seconds and then turns off. This means
the system is operational.
If any of the following conditions occur, the
front air bag, side air bag, curtain air bag,
and pretensioner seat belt systems need
servicing.
∙ The supplemental air bag warning light remains on af ter approximately 7 sec-
onds.
Instruments and controls2-19

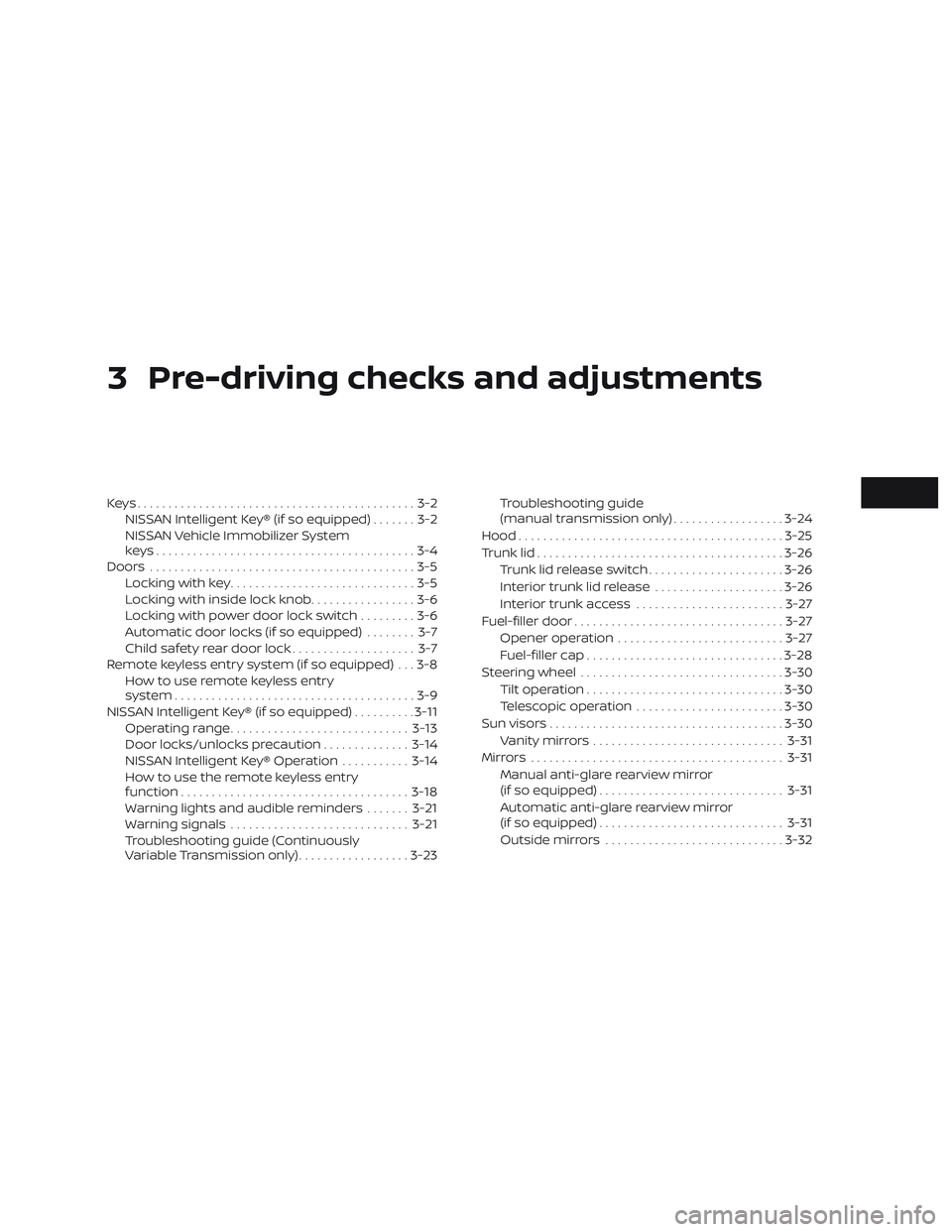

3 Pre-driving checks and adjustments
Keys.............................................3-2NISSAN Intelligent Key® (if so equipped) .......3-2
NISSAN Vehicle Immobilizer System
keys..........................................3-4
Doors ...........................................3-5
Locking with key ..............................3-5
Locking with inside lock knob .................3-6
Locking with power door lock switch .........3-6
Automatic door locks (if so equipped) ........ 3-7
Child safety rear door lock .................... 3-7
Remote keyless entry system (if so equipped) . . . 3-8 How to use remote keyless entry
system .......................................3-9
NISSAN Intelligent Key® (if so equipped) ..........3-11
Operating range ............................. 3-13
Door locks/unlocks precaution ..............3-14
NISSAN Intelligent Key® Operation ...........3-14
How to use the remote keyless entry
function ..................................... 3-18
Warning lights and audible reminders .......3-21
Warning signals ............................. 3-21
Troubleshooting guide (Continuously
Variable Transmission only) ..................3-23Troubleshooting guide
(manual transmission only)
..................3-24
Hood ........................................... 3-25
Trunk lid ........................................ 3-26
Trunk lid release switch ......................3-26
Interior trunk lid release .....................3-26
Interior trunk access ........................ 3-27
Fuel-filler door .................................. 3-27
Opener operation ........................... 3-27
Fuel-filler cap ................................ 3-28
Steering wheel ................................. 3-30
Tilt operation ................................ 3-30
Telescopic operation ........................ 3-30
Sun visors ...................................... 3-30
Vanity mirrors ............................... 3-31
Mirrors ......................................... 3-31
Manual anti-glare rearview mirror
(if so equipped) .............................. 3-31
Automatic anti-glare rearview mirror
(if so equipped) .............................. 3-31
Outside mirrors ............................. 3-32

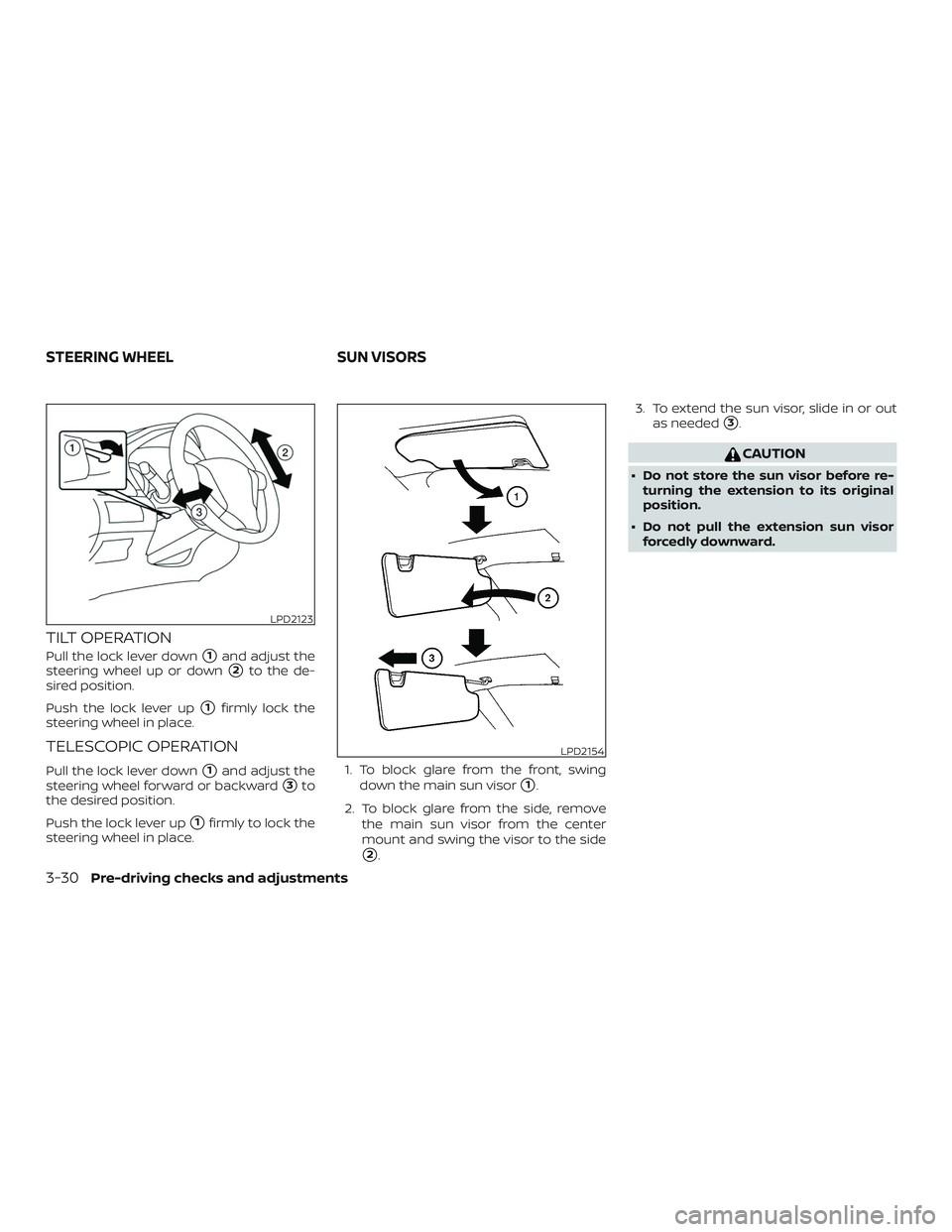

TILT OPERATION
Pull the lock lever down1and adjust the
steering wheel up or down
2to the de-
sired position.
Push the lock lever up
1firmly lock the
steering wheel in place.
TELESCOPIC OPERATION
Pull the lock lever down1and adjust the
steering wheel forward or backward
3to
the desired position.
Push the lock lever up
1firmly to lock the
steering wheel in place. 1. To block glare from the front, swing
down the main sun visor
1.
2. To block glare from the side, remove the main sun visor from the center
mount and swing the visor to the side
2. 3. To extend the sun visor, slide in or out
as needed
3.
CAUTION
∙ Do not store the sun visor before re-turning the extension to its original
position.
∙ Do not pull the extension sun visor forcedly downward.
LPD2123
LPD2154
STEERING WHEEL SUN VISORS
3-30Pre-driving checks and adjustments

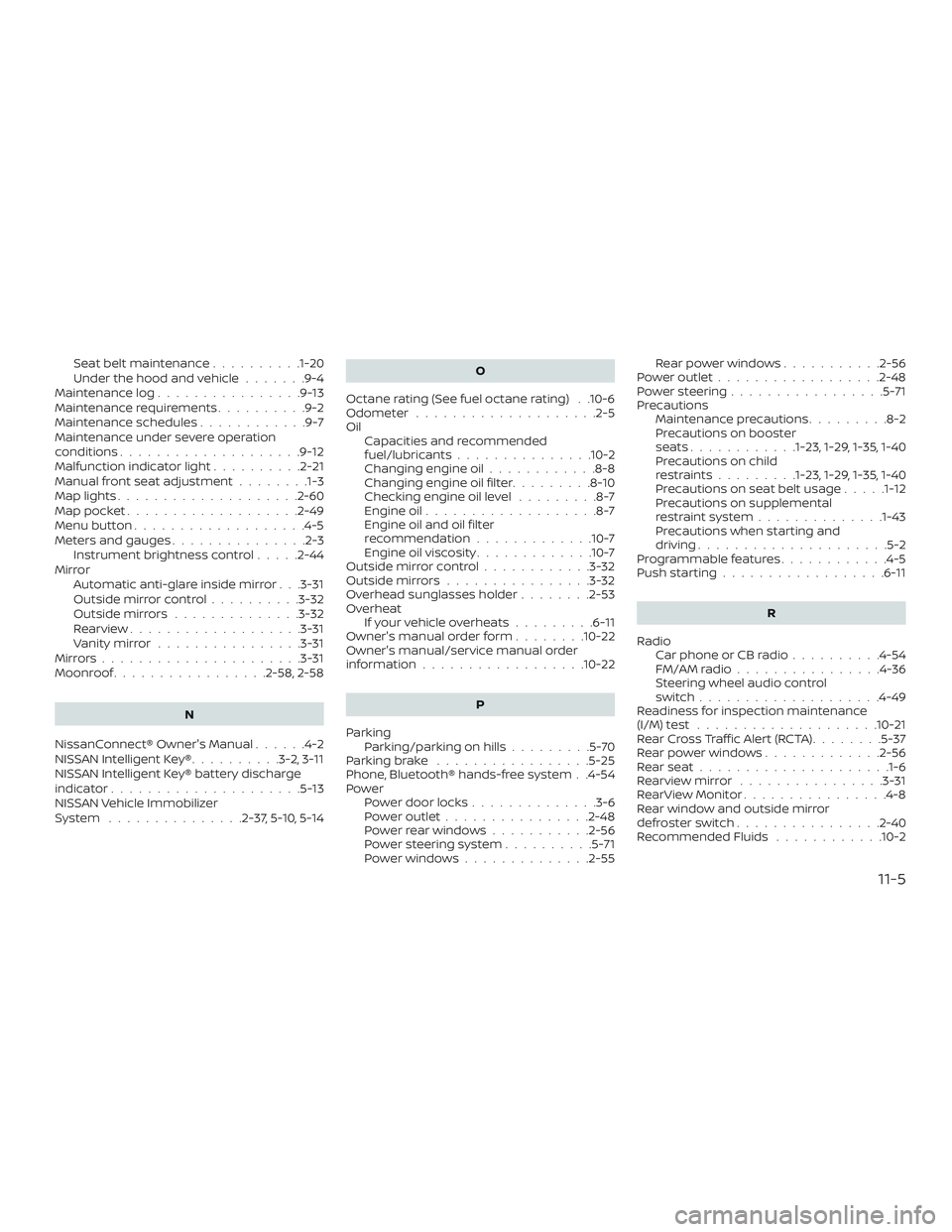

Seat belt maintenance..........1-20
Under the hood and vehicle .......9-4
Maintenance log ................9-13
Maintenance requirements ..........9-2
Maintenance schedules ............9-7
Maintenance under severe operation
conditions....................9-12
Malfunctionindicatorlight..........2-21
Manual front seat adjustment ........1-3
Maplights....................2-60
Map pocket ...................2-49
Menu button ...................4-5
Meters and gauges ...............2-3
Instrument brightness control .....2-44
Mirror Automatic anti-glare inside mirror . . .3-31
Outsidemirrorcontrol..........3-32
Outsidemirrors..............3-32
Rearview...................3-31
Vanitymirror................3-31
Mirrors......................3-31
Moonroof .................2-58,2-58
N
NissanConnect® Owner's Manual ......4-2
NISSAN Intelligent Key® ..........3-2,3-11
NISSAN Intelligent Key® battery discharge
indicator.....................5-13
NISSAN Vehicle Immobilizer
System ...............2-37,5-10,5-14 O
Octane rating (See fuel octane rating) . .10-6
Odometer ....................2-5
Oil Capacities and recommended
fuel/lubricants...............10-2
Changing engine oil ............8-8
Changing engine oil filter .........8-10
Checking engine oil level .........8-7
Engine oil ...................8-7
Engine oil and oil filter
recommendation .............10-7
Engine oil viscosity .............10-7
Outsidemirrorcontrol............3-32
Outsidemirrors................3-32
Overhead sunglasses holder ........2-53
Overheat Ifyourvehicleoverheats.........6-11
Owner's manual order form ........10-22
Owner's manual/service manual order
information..................10-22
P
Parking Parking/parkingonhills.........5-70
Parkingbrake .................5-25
Phone, Bluetooth® hands-free system . .4-54
Power Power door locks ..............3-6
Poweroutlet................2-48
Powerrearwindows...........2-56
Power steering system ..........5-71
Powerwindows..............2-55 Rearpowerwindows...........2-56
Poweroutlet..................2-48
Powersteering.................5-71
Precautions Maintenance precautions .........8-2
Precautions on booster
seats............1-23, 1-29, 1-35, 1-40
Precautions on child
restraints.........1-23, 1-29, 1-35, 1-40
Precautionsonseatbeltusage.....1-12
Precautions on supplemental
restraintsystem..............1-43
Precautions when starting and
driving .....................5-2
Programmable features ............4-5
Push starting ..................6-11
R
Radio Car phone or CB radio ..........4-54
FM/AMradio................4-36
Steering wheel audio control
switch....................4-49
Readiness for inspection maintenance
(I/M) test ....................10-21
RearCrossTrafficAlert(RCTA)........5-37
Rearpowerwindows.............2-56
Rearseat.................... .1-6
Rearviewmirror ................3-31
RearViewMonitor................4-8
Rear window and outside mirror
d
efrosterswitch................2-40
Recommended Fluids ............10-2
11-5
RecordersEventData.................10-22
Refrigerant recommendation ........10-8
Registering a vehicle in another
country .....................10-11
Remote keyless entry system ........3-8
Reporting safety defects (US only) . . . .10-20
S
Safety Child safety rear door lock ........3-7
Childseatbelts .....1-23, 1-29, 1-35, 1-40
Reporting safety defects (US only) . .10-20
Seat adjustment Front manual seat adjustment ......1-3
Front power seat adjustment ......1-5
Rear seat adjustment ...........1-6
Seatback pockets ...............2-50
Seat belt Childsafety................ .1-20
Infants and small children ........1-21
InjuredPerson............... .1-15
Largerchildren.............. .1-21
Precautions on seat belt usage .....1-12
Pregnant women ..............1-15
Seat belt extenders ............1-19
Seat belt maintenance ..........1-20
Seatbelts................1-12, 7-7
Shoulder belt height adjustment . . . .1-19
Three-pointtypewithretractor.....1-15
Seat belt extenders ..............1-19
Seatbeltwarninglight.........1-15, 2-19
Seats Adjustment ..................1-2 Armrests ...................1-7
Frontseats..................1-2
Heatedseats................2-46
Manual front seat adjustment
......1-3
Rearseat.................. .1-6
Security indicator light ............2-22
Security system
(NISSAN Vehicle Immobilizer System),
engine start.............2-37,5-10,5-14
Security systems Vehicle security system ......2-35,2-35
Self-adjustingbrakes.............8-21
Service manual order form .........10-22
Servicing air conditioner ...........4-31
Shif ting Continuously Variable Transmission
(CVT) .....................5-18
Manual transmission ...........5-23
Shiftlockrelease................5-21
Shoulder belt height adjustment ......1-19
Side air bag system (See supplemental
side air bag and curtain side-impact
airbagsystem)................ .1-58
Siri® Eyes-Free .................4-51
Spark plug replacement ...........8-17
Spark plugs ...................
8-17
Specifications ..................10-9
Speedometer ................2-4,2-5
SPORT mode switch .............5-26
Spotlights(Seemaplight)..........2-60
SRS warning label ...............1-61
Stability control .................5-74
Standard maintenance ............9-8
Starting Before starting the engine ........5-14
Jumpstarting.............6-9,8-15 Precautions when starting and
driving
.....................5-2
Push starting ................6-11
Starting the engine ............5-14
Starting the engine ..............5-14
Starting the engine (models with NISSAN
Intelligent Key® system) ...........5-16
Steering Power steering system ..........5-71
Steering wheel .................3-30
Steering wheel audio control switch . . .4-49
Stoplight....................8-32
Storage.....................2-49
Storagetray...................2-51
Sunglasses case ................2-53
Sunglasses holder ...............2-53
Sunroof ..................2-58, 2-58
Sunvisors....................3-30
Supplemental air bag warning labels . . .1-61
Supplemental air bag warning
light.................... .1-62, 2-19
Supplemental front impact air bag
system..................... .1-50
Supplemental restraint system Information and warning labels .....1-61
Precautions on supplemental
restraintsystem..............1-43
Supplemental restraint system
(Supplemental air bag system) .......1-43
Supplemental side and curtain
side-impact air bag system .........1-58
Switch Autolightswitch..............2-41
Automatic power window switch . . .2-56
Foglightswitch..............2-45
Hazard warning flasher switch ......6-2
11-6
