2019 NISSAN ROGUE fuse box

QR25DE engine
1. Engine coolant reservoir (P. 8-4)
2. Engine oil filler cap (P. 8-6)
3. Brake fluid reservoir (P. 8-11)
4. Battery (P. 8-13)
5. Air cleaner (P. 8-18)
6. Fuse/Fusible link box (P. 8-23)
7. Radiator cap (P. 8-4)
8. Engine oil dipstick (P. 8-6)
9. Drive belt location (P. 8-17)
10. Windshield-washer fluid reservoir(P. 8-11)
Engine cover removed for clarity.
Refer to the page number indicated in
parentheses for operating details.
LDI2809
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents

The extended storage switch is used when
shipping the vehicle. It is located in the fuse
panel on the driver’s side of the instrument
panel. If any electrical equipment does not
operate, ensure the extended storage
switch is pushed fully in place, as shown.
To inspect the extended storage switch,
ensure the ignition switch and headlight
switch are off, remove the fuse box cover
Ausing a suitable tool in combination
with a cloth to avoid damaging the trim.
FRONT-DOOR POCKETS SEATBACK POCKETS
There is a pocket located on the back of the
driver and passenger seats. These pockets
can be used to store maps.
WARNING
To ensure proper operation of the pas-
senger’s advanced air bag system,
please observe the following items:
∙ Do not allow a passenger in the 2nd
row to push or pull on the seatback
pocket.
ON position
LIC3268LIC2308LIC2618
STORAGE
Instruments and controls2-63

QR25DE engine
1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake fluid reservoir
4. Battery
5. Air cleaner
6. Fuse/Fusible link box
7. Radiator cap
8. Engine oil dipstick
9. Drive belt location
10. Windshield-washer fluid reservoir
* Engine cover removed for clarity.
LDI2809
ENGINE COMPARTMENT CHECK
LOCATIONS
Do-it-yourself8-3

If any electrical equipment does not oper-
ate, check for an open fuse.
Fuses are used in the passenger and en-
gine compartment. Spare fuses are pro-
vided and can be found in the passenger
compartment fuse box.
When installing a fuse make sure the fuse is
installed in the fuse box securely.ENGINE COMPARTMENT
WARNING
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or electronic con-
trol units or cause a fire
If any electrical equipment does not come
on, check for an open fuse.
For checking and replacing fuses, it is rec-
ommended that you visit a NISSAN dealer
for this service.
Fusible links
If the electrical equipment does not oper-
ate and fuses are in good condition, check
the fusible links. If any of these fusible links
are melted, replace with only Genuine
NISSAN parts.
LDI2385LDI2840
FUSES
Do-it-yourself8-23

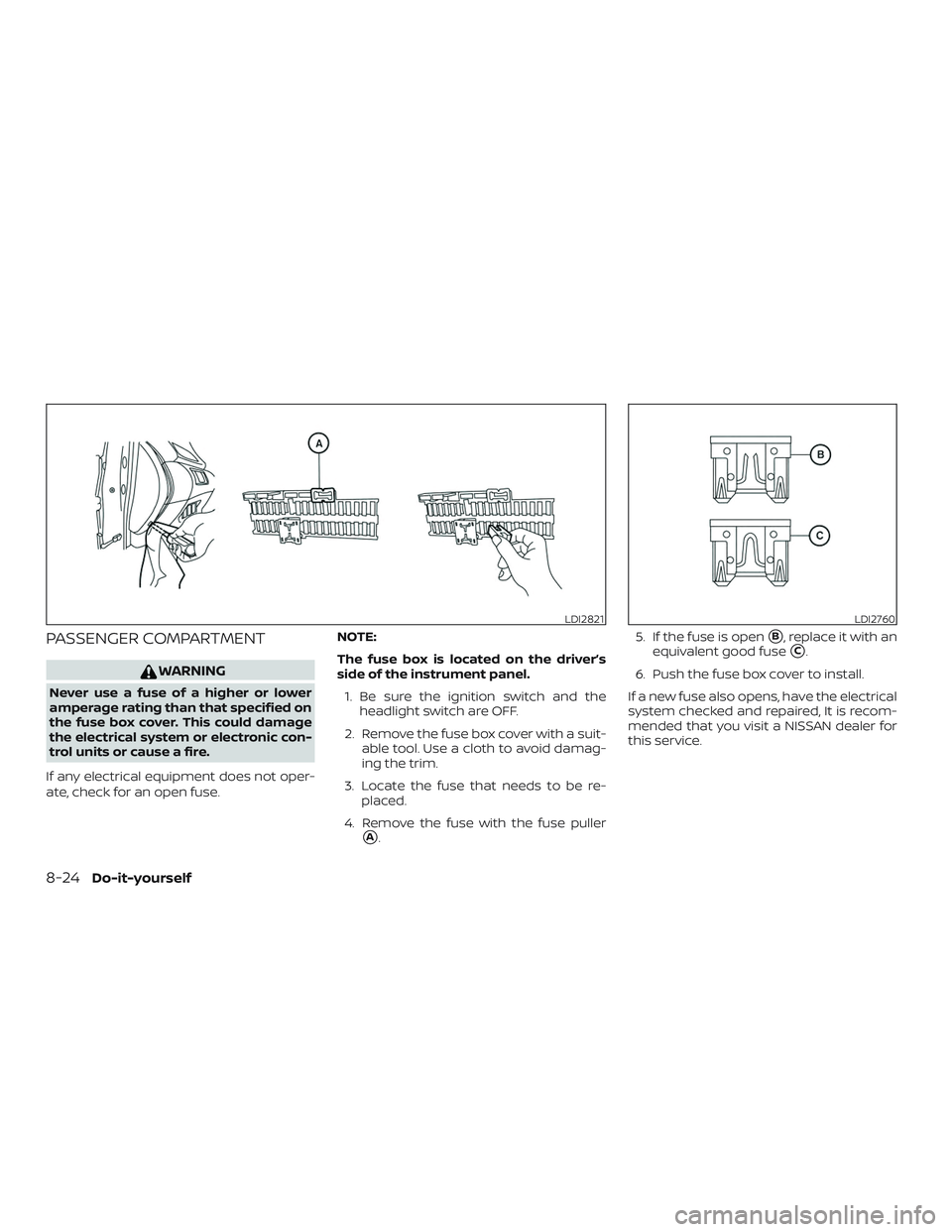

PASSENGER COMPARTMENT
WARNING
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or electronic con-
trol units or cause a fire.
If any electrical equipment does not oper-
ate, check for an open fuse. NOTE:
The fuse box is located on the driver’s
side of the instrument panel.
1. Be sure the ignition switch and the headlight switch are OFF.
2. Remove the fuse box cover with a suit- able tool. Use a cloth to avoid damag-
ing the trim.
3. Locate the fuse that needs to be re- placed.
4. Remove the fuse with the fuse puller
A. 5. If the fuse is open
B, replace it with an
equivalent good fuse
C.
6. Push the fuse box cover to install.
If a new fuse also opens, have the electrical
system checked and repaired, It is recom-
mended that you visit a NISSAN dealer for
this service.
LDI2821LDI2760
8-24Do-it-yourself
