2019 NISSAN FRONTIER key

3 Pre-driving checks and adjustments
Keys.............................................3-2NISSAN Vehicle Immobilizer System
keys (if so equipped) ..........................3-2
Doors ...........................................3-3
Locking with key ..............................3-3
Locking with inside lock knob .................3-4
Locking with power door lock switch
(if so equipped) ...............................3-4
Rear doors (King Cab® models) ...............3-5
Automatic door locks (if so equipped) ........3-6
Child safety rear door lock
(if so equipped) ...............................3-6
Remote keyless entry system (if so equipped) . . . 3-6 How to use remote keyless entry
system ....................................... 3-7
Hood ........................................... 3-10Fuel-filler door
................................... 3-11
Fuel-filler cap ................................. 3-11
Steering wheel ................................. 3-14
Tilt operation (if so equipped) ................3-14
Sun visors ...................................... 3-15
Vanity mirrors (if so equipped) ...............3-15
Mirrors ......................................... 3-16
Manual anti-glare rearview mirror
(if so equipped) .............................. 3-16
Automatic anti-glare rearview mirror
(if so equipped) .............................. 3-16
Outside mirrors ............................. 3-17
Truck box ....................................... 3-18
Tailgate...................................... 3-18
Bed extender (if so equipped) ................3-22
Tie down hooks (if so equipped) .............3-24

1. Two master keys
2. Valet key
3. Key number plate
4. Transponder chip (if so equipped)
A key number plate is supplied with your
keys. Record the key number and keep the
plate in a safe place (such as your wallet),
not in the vehicle. If you lose your keys, it is
recommended that you visit a NISSAN
dealer for duplicates by using the key num-
ber. NISSAN does not record key numbers
so it is very important to keep track of your
key number plate. A key number is only necessary when you
have lost all your keys. If you still have a key,
it can duplicated without knowing the key
number.
NISSAN VEHICLE IMMOBILIZER
SYSTEM KEYS (if so equipped)
You can only drive your vehicle using the
master key which is registered to the
NISSAN Vehicle Immobilizer System com-
ponents in your vehicle. This key has a tran-
sponder chip in the key head.
The master key can be used for all the
locks.
Never leave these keys in the vehicle.
Additional or replacement keys:
If you still have a key, the key number is not
necessary when you need extra NISSAN
Vehicle Immobilizer System keys. A NISSAN
dealer can duplicate your existing key. As
many as five NISSAN Vehicle Immobilizer
System keys can be used with one vehicle.
You should bring all NISSAN Vehicle Immo-
bilizer System keys that you have to the
NISSAN dealer for registration. This is be-
cause the registration process will erase
the memory of all key codes previously reg-
istered into the NISSAN Vehicle ImmobilizerSystem. Af ter the registration process,
these components will only recognize keys
coded into the NISSAN Vehicle Immobilizer
System during registration. Any key that is
not given to the dealer at the time of regis-
tration will no longer be able to start your
vehicle.CAUTION
Do not allow the immobilizer system
key, which contains an electrical tran-
sponder, to come into contact with wa-
ter or salt water. This could affect sys-
tem function.
WPD0128
KEYS
3-2Pre-driving checks and adjustments

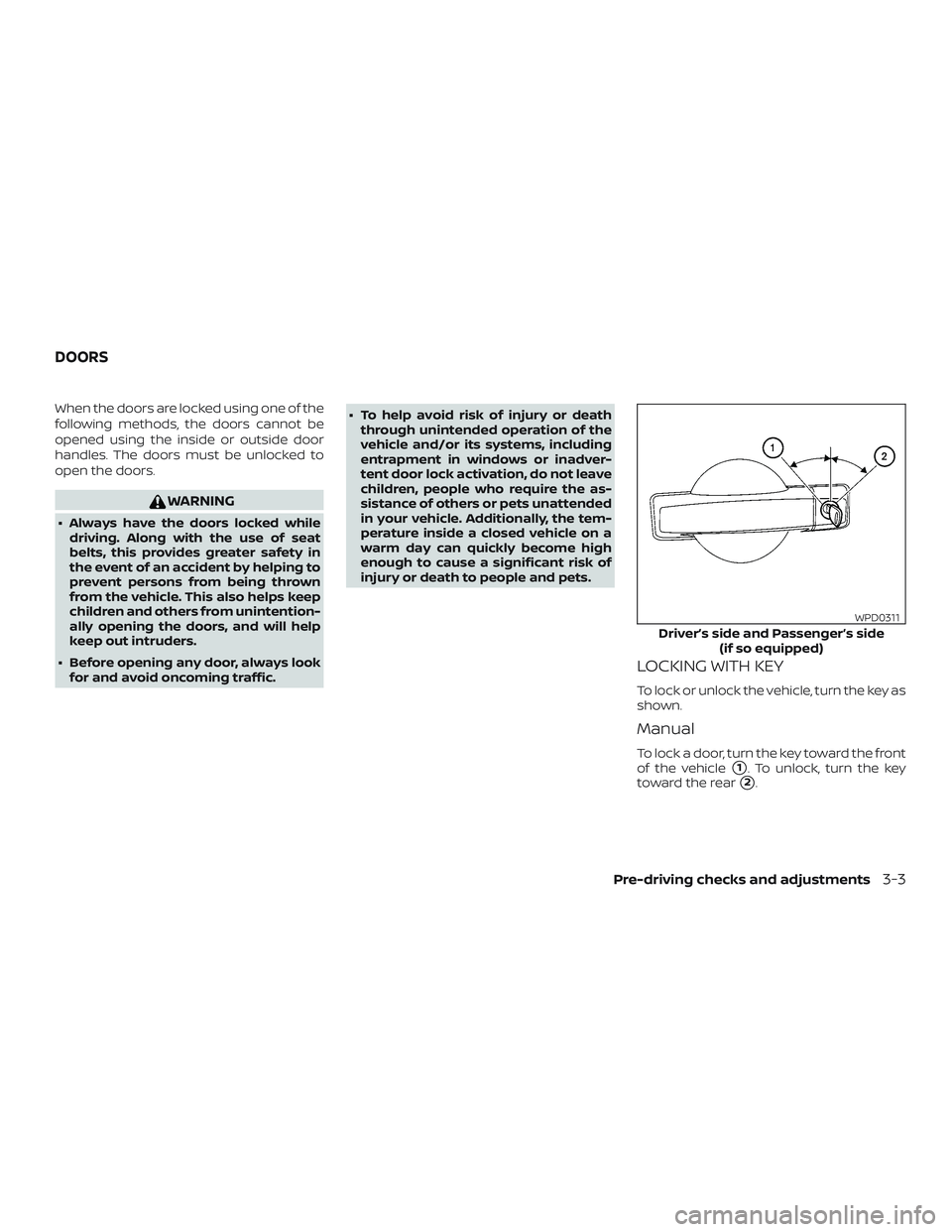

When the doors are locked using one of the
following methods, the doors cannot be
opened using the inside or outside door
handles. The doors must be unlocked to
open the doors.
WARNING
∙ Always have the doors locked whiledriving. Along with the use of seat
belts, this provides greater safety in
the event of an accident by helping to
prevent persons from being thrown
from the vehicle. This also helps keep
children and others from unintention-
ally opening the doors, and will help
keep out intruders.
∙ Before opening any door, always look for and avoid oncoming traffic. ∙ To help avoid risk of injury or death
through unintended operation of the
vehicle and/or its systems, including
entrapment in windows or inadver-
tent door lock activation, do not leave
children, people who require the as-
sistance of others or pets unattended
in your vehicle. Additionally, the tem-
perature inside a closed vehicle on a
warm day can quickly become high
enough to cause a significant risk of
injury or death to people and pets.
LOCKING WITH KEY
To lock or unlock the vehicle, turn the key as
shown.
Manual
To lock a door, turn the key toward the front
of the vehicle
1. To unlock, turn the key
toward the rear
2.
Driver’s side and Passenger’s side (if so equipped)
WPD0311
DOORS
Pre-driving checks and adjustments3-3

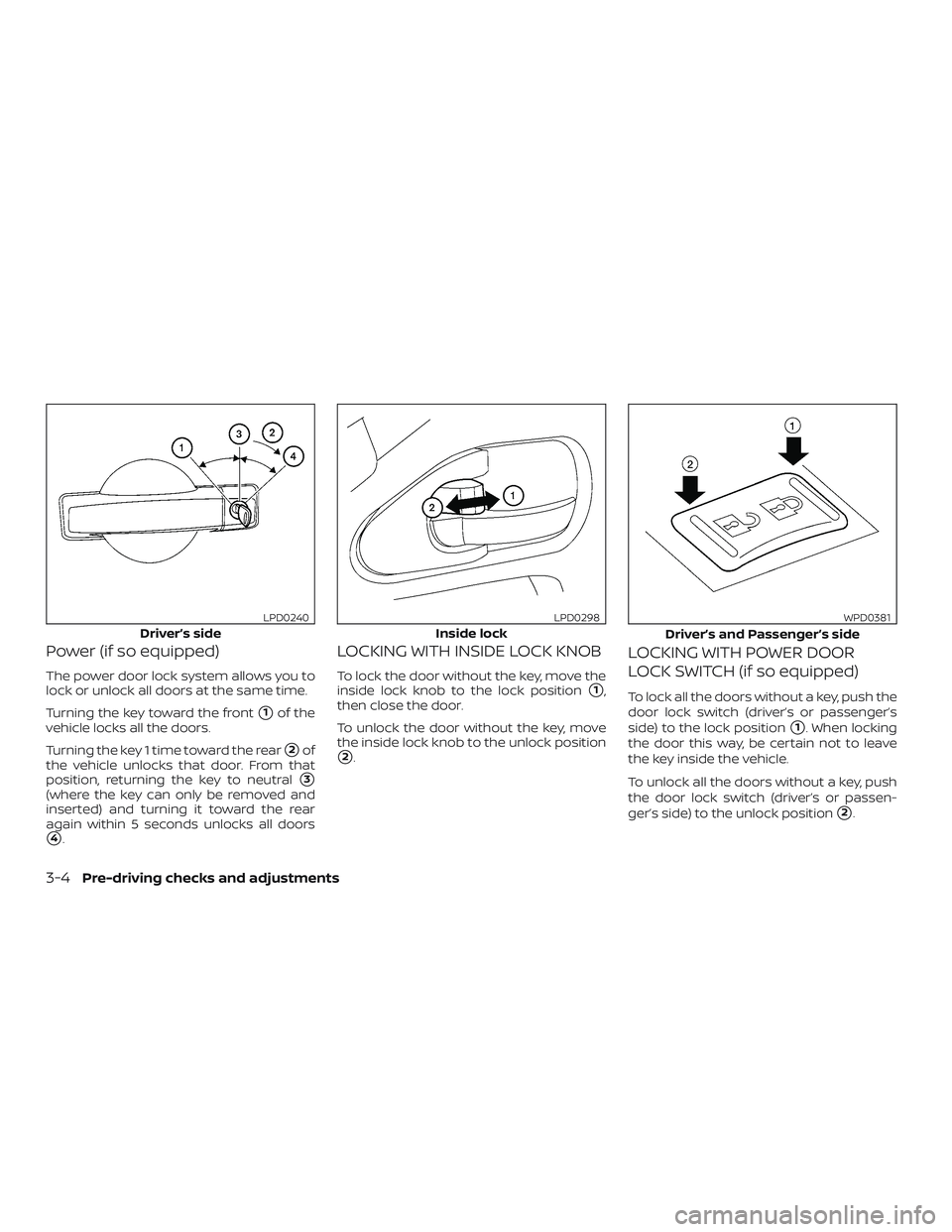

Power (if so equipped)
The power door lock system allows you to
lock or unlock all doors at the same time.
Turning the key toward the front
1of the
vehicle locks all the doors.
Turning the key 1 time toward the rear
2of
the vehicle unlocks that door. From that
position, returning the key to neutral
3
(where the key can only be removed and
inserted) and turning it toward the rear
again within 5 seconds unlocks all doors
4.
LOCKING WITH INSIDE LOCK KNOB
To lock the door without the key, move the
inside lock knob to the lock position
1,
then close the door.
To unlock the door without the key, move
the inside lock knob to the unlock position
2.
LOCKING WITH POWER DOOR
LOCK SWITCH (if so equipped)
To lock all the doors without a key, push the
door lock switch (driver’s or passenger’s
side) to the lock position
1. When locking
the door this way, be certain not to leave
the key inside the vehicle.
To unlock all the doors without a key, push
the door lock switch (driver’s or passen-
ger’s side) to the unlock position
2.
Driver’s side
LPD0240
Inside lock
LPD0298
Driver’s and Passenger’s side
WPD0381
3-4Pre-driving checks and adjustments

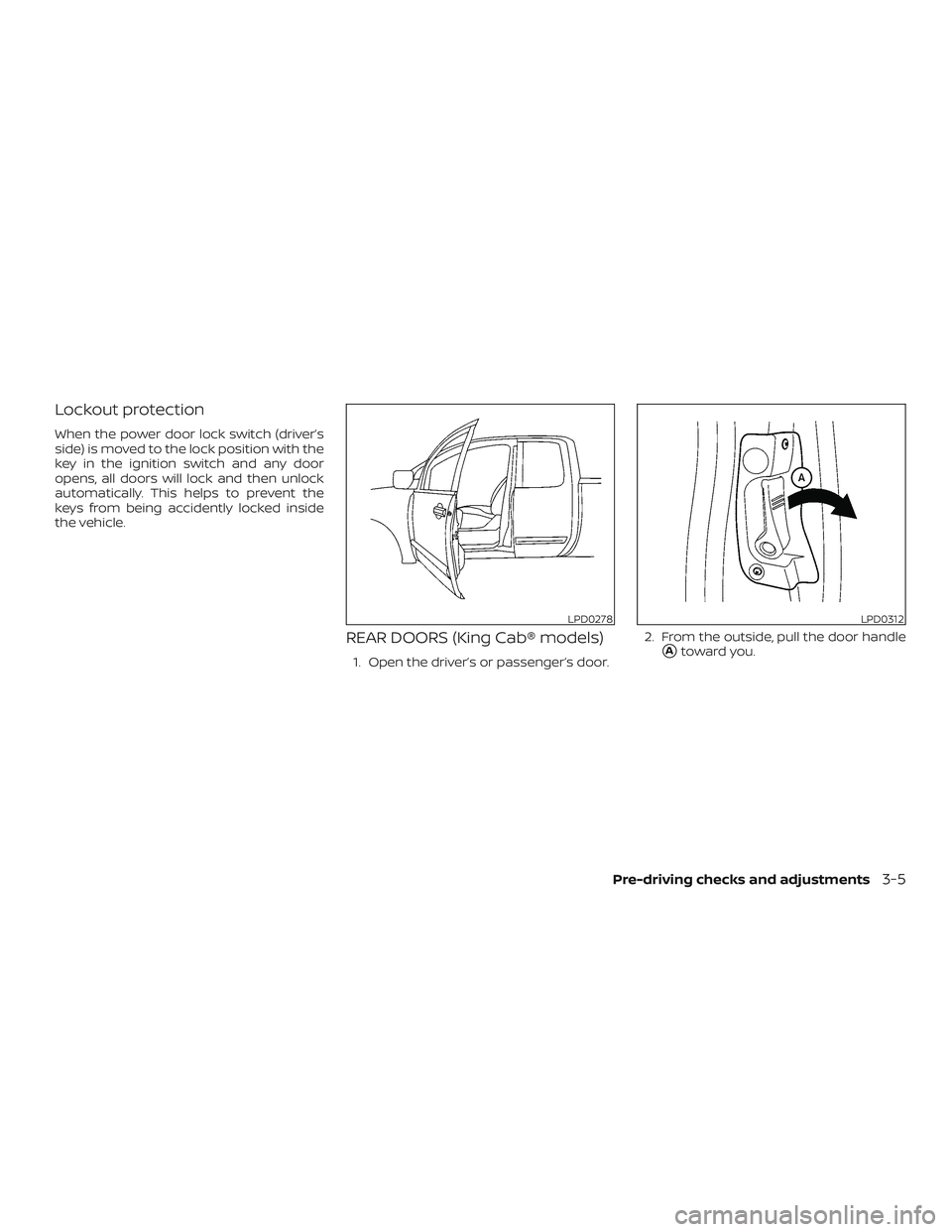

Lockout protection
When the power door lock switch (driver’s
side) is moved to the lock position with the
key in the ignition switch and any door
opens, all doors will lock and then unlock
automatically. This helps to prevent the
keys from being accidently locked inside
the vehicle.
REAR DOORS (King Cab® models)
1. Open the driver’s or passenger’s door.2. From the outside, pull the door handleAtoward you.
LPD0278LPD0312
Pre-driving checks and adjustments3-5

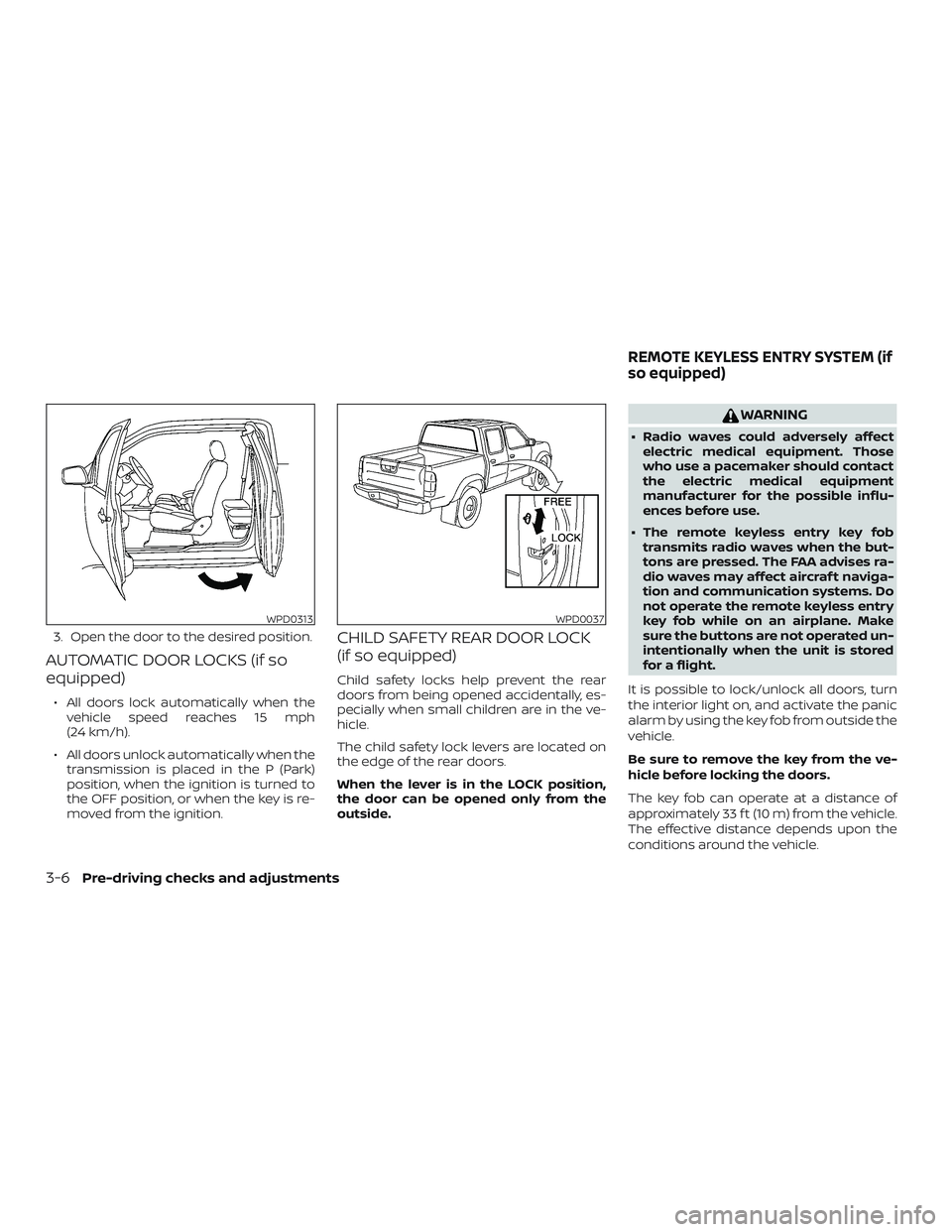

3. Open the door to the desired position.
AUTOMATIC DOOR LOCKS (if so
equipped)
∙ All doors lock automatically when thevehicle speed reaches 15 mph
(24 km/h).
∙ All doors unlock automatically when the transmission is placed in the P (Park)
position, when the ignition is turned to
the OFF position, or when the key is re-
moved from the ignition.
CHILD SAFETY REAR DOOR LOCK
(if so equipped)
Child safety locks help prevent the rear
doors from being opened accidentally, es-
pecially when small children are in the ve-
hicle.
The child safety lock levers are located on
the edge of the rear doors.
When the lever is in the LOCK position,
the door can be opened only from the
outside.
WARNING
∙ Radio waves could adversely affectelectric medical equipment. Those
who use a pacemaker should contact
the electric medical equipment
manufacturer for the possible influ-
ences before use.
∙ The remote keyless entry key fob transmits radio waves when the but-
tons are pressed. The FAA advises ra-
dio waves may affect aircraf t naviga-
tion and communication systems. Do
not operate the remote keyless entry
key fob while on an airplane. Make
sure the buttons are not operated un-
intentionally when the unit is stored
for a flight.
It is possible to lock/unlock all doors, turn
the interior light on, and activate the panic
alarm by using the key fob from outside the
vehicle.
Be sure to remove the key from the ve-
hicle before locking the doors.
The key fob can operate at a distance of
approximately 33 f t (10 m) from the vehicle.
The effective distance depends upon the
conditions around the vehicle.
WPD0313WPD0037
REMOTE KEYLESS ENTRY SYSTEM (if
so equipped)
3-6Pre-driving checks and adjustments

As many as five key fobs can be used with
one vehicle. For information concerning
the purchase and use of additional key
fobs, it is recommended that you visit a
NISSAN dealer.
The key fob will not function when:∙ The battery is discharged.
∙ The distance between the vehicle and the key fob is over 33 f t (10 m).
The panic alarm will not activate when
the key is in the ignition switch.
CAUTION
Listed below are conditions or occur-
rences which will damage the key fob:
∙ Do not allow the key fob, which con- tains electrical components, to come
into contact with water or salt water.
This could affect the system function.
∙ Do not drop the key fob.
∙ Do not strike the key fob sharply against another object.
∙ Do not change or modif y the key fob.
∙ Wetting may damage the key fob. If the key fob gets wet, immediately
wipe until it is completely dry. ∙ Do not place the key fob for an ex-
tended period in an area where tem-
peratures exceed 140°F (60°C)
∙ Do not attach the key fob with a key holder that contains a magnet.
∙ Do not place the key fob near equip- ment that produces a magnetic field,
such as a TV, audio equipment and
personal computers.
If a key fob is lost or stolen, NISSAN rec-
ommends erasing the ID code of that
key fob. This will prevent the key fob
from unauthorized use to unlock the
vehicle. For information regarding the
erasing procedure, it is recommended
that you visit a NISSAN dealer.HOW TO USE REMOTE KEYLESS
ENTRY SYSTEM
Locking doors
1. Close all windows.
2. Remove the key from the ignition switch.
3. Close the hood and all doors.
4. Press the
button on the key fob.
All the doors lock. The hazard warning
lights flash twice and the horn beeps
once to indicate all doors are locked.
LPD0209
Pre-driving checks and adjustments3-7

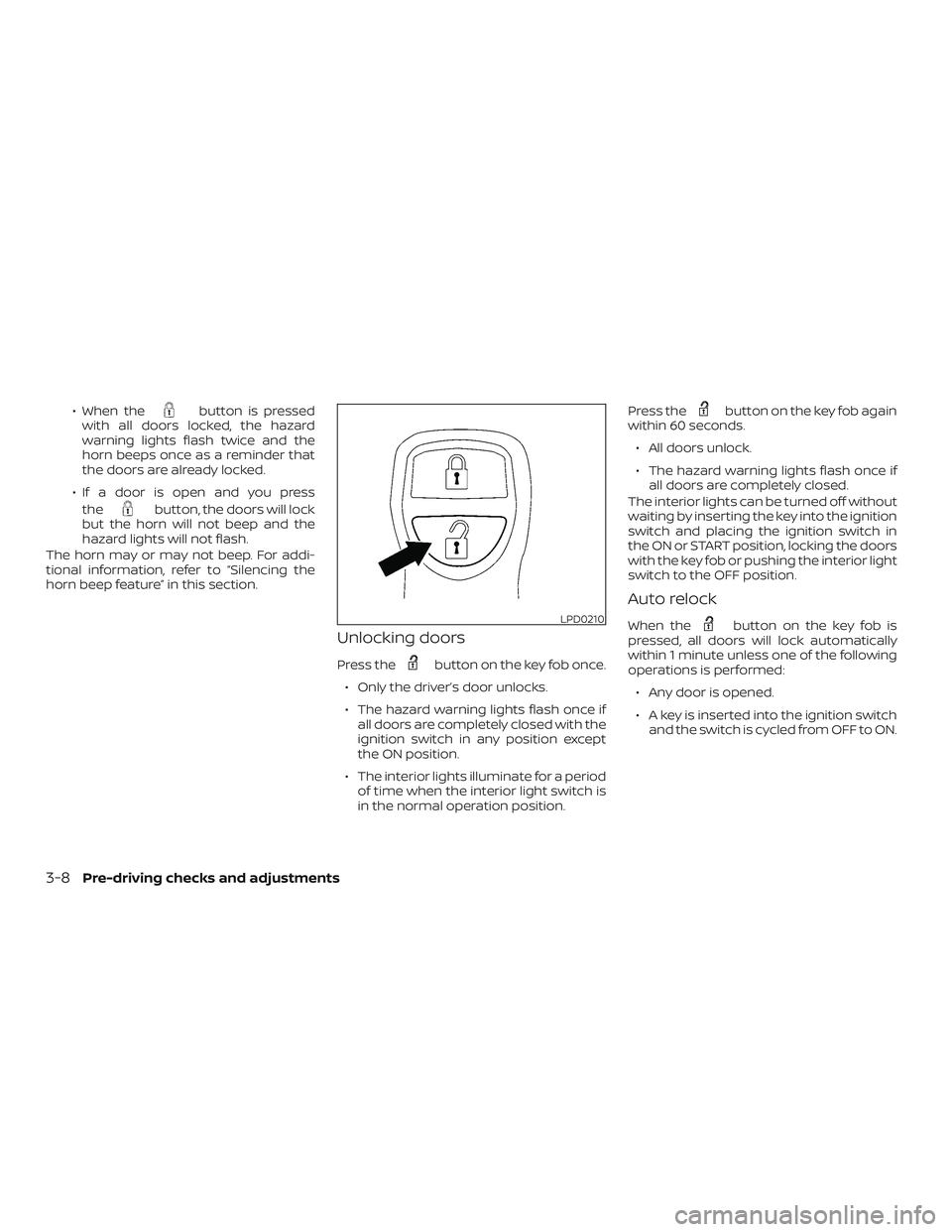

∙ When thebutton is pressed
with all doors locked, the hazard
warning lights flash twice and the
horn beeps once as a reminder that
the doors are already locked.
∙ If a door is open and you press the
button, the doors will lock
but the horn will not beep and the
hazard lights will not flash.
The horn may or may not beep. For addi-
tional information, refer to “Silencing the
horn beep feature” in this section.
Unlocking doors
Press thebutton on the key fob once.
∙ Only the driver’s door unlocks.
∙ The hazard warning lights flash once if all doors are completely closed with the
ignition switch in any position except
the ON position.
∙ The interior lights illuminate for a period of time when the interior light switch is
in the normal operation position. Press the
button on the key fob again
within 60 seconds.
∙ All doors unlock.
∙ The hazard warning lights flash once if all doors are completely closed.
The interior lights can be turned off without
waiting by inserting the key into the ignition
switch and placing the ignition switch in
the ON or START position, locking the doors
with the key fob or pushing the interior light
switch to the OFF position.
Auto relock
When thebutton on the key fob is
pressed, all doors will lock automatically
within 1 minute unless one of the following
operations is performed:
∙ Any door is opened.
∙ A key is inserted into the ignition switch and the switch is cycled from OFF to ON.LPD0210
3-8Pre-driving checks and adjustments
