2019 NISSAN FRONTIER display

Trip computer reset
Pressing the change/reset button for
more than 3 seconds will reset all modes
except distance to empty.This unit has the following functions:
∙ Measures terrestrial magnetism and in- dicates the heading direction of the ve-
hicle
∙ Indicates outside air temperature
With the ignition switch in the ON position,
press the
orbutton as de-
scribed in the charts below to activate vari-
ous features of the automatic anti-glare
rearview mirror.
Type A (if so equipped)
Press and hold
the
button for
about: Feature:
(Press button again for about
1 second to change settings)
1 second Compass toggles on/off
8 seconds Automatic anti-glare/indicator
light toggles on/off
11 seconds Compass zone can be changed
to correct false compass read-
ings
13 seconds Compass enters calibration
mode
Type B (if so equipped)
Press and hold
the
button for
about:Feature:
(Press button again for about
1 second to change settings)
1 second Compass toggles on/off
8 seconds Compass zone can be changed
to correct false compass read-
ings
10 seconds Compass enters calibration
mode
For additional information, refer to “Auto-
matic anti-glare rearview mirror” in the
“Pre-driving checks and adjustments” sec-
tion of this manual.
COMPASS AND OUTSIDE
TEMPERATURE DISPLAY (if so
equipped)
2-10Instruments and controls

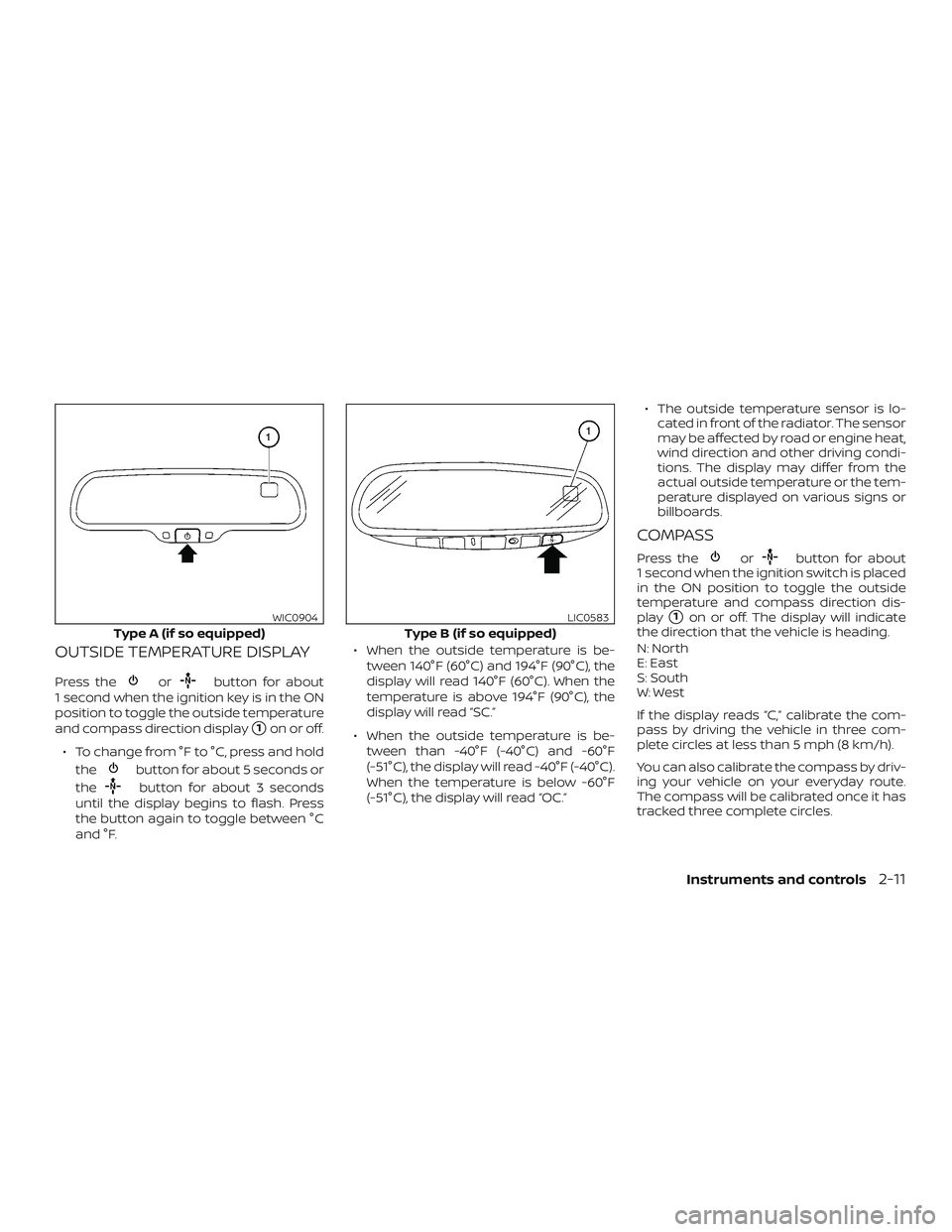

OUTSIDE TEMPERATURE DISPLAY
Press theorbutton for about
1 second when the ignition key is in the ON
position to toggle the outside temperature
and compass direction display
1on or off.
∙ To change from °F to °C, press and hold the
button for about 5 seconds or
the
button for about 3 seconds
until the display begins to flash. Press
the button again to toggle between °C
and °F. ∙ When the outside temperature is be-
tween 140°F (60°C) and 194°F (90°C), the
display will read 140°F (60°C). When the
temperature is above 194°F (90°C), the
display will read “SC.”
∙ When the outside temperature is be- tween than -40°F (-40°C) and -60°F
(-51°C), the display will read -40°F (-40°C).
When the temperature is below -60°F
(-51°C), the display will read “OC.” ∙ The outside temperature sensor is lo-
cated in front of the radiator. The sensor
may be affected by road or engine heat,
wind direction and other driving condi-
tions. The display may differ from the
actual outside temperature or the tem-
perature displayed on various signs or
billboards.
COMPASS
Press theorbutton for about
1 second when the ignition switch is placed
in the ON position to toggle the outside
temperature and compass direction dis-
play
1on or off. The display will indicate
the direction that the vehicle is heading.
N: North
E: East
S: South
W: West
If the display reads “C,” calibrate the com-
pass by driving the vehicle in three com-
plete circles at less than 5 mph (8 km/h).
You can also calibrate the compass by driv-
ing your vehicle on your everyday route.
The compass will be calibrated once it has
tracked three complete circles.
Type A (if so equipped)
WIC0904
Type B (if so equipped)
LIC0583
Instruments and controls2-11

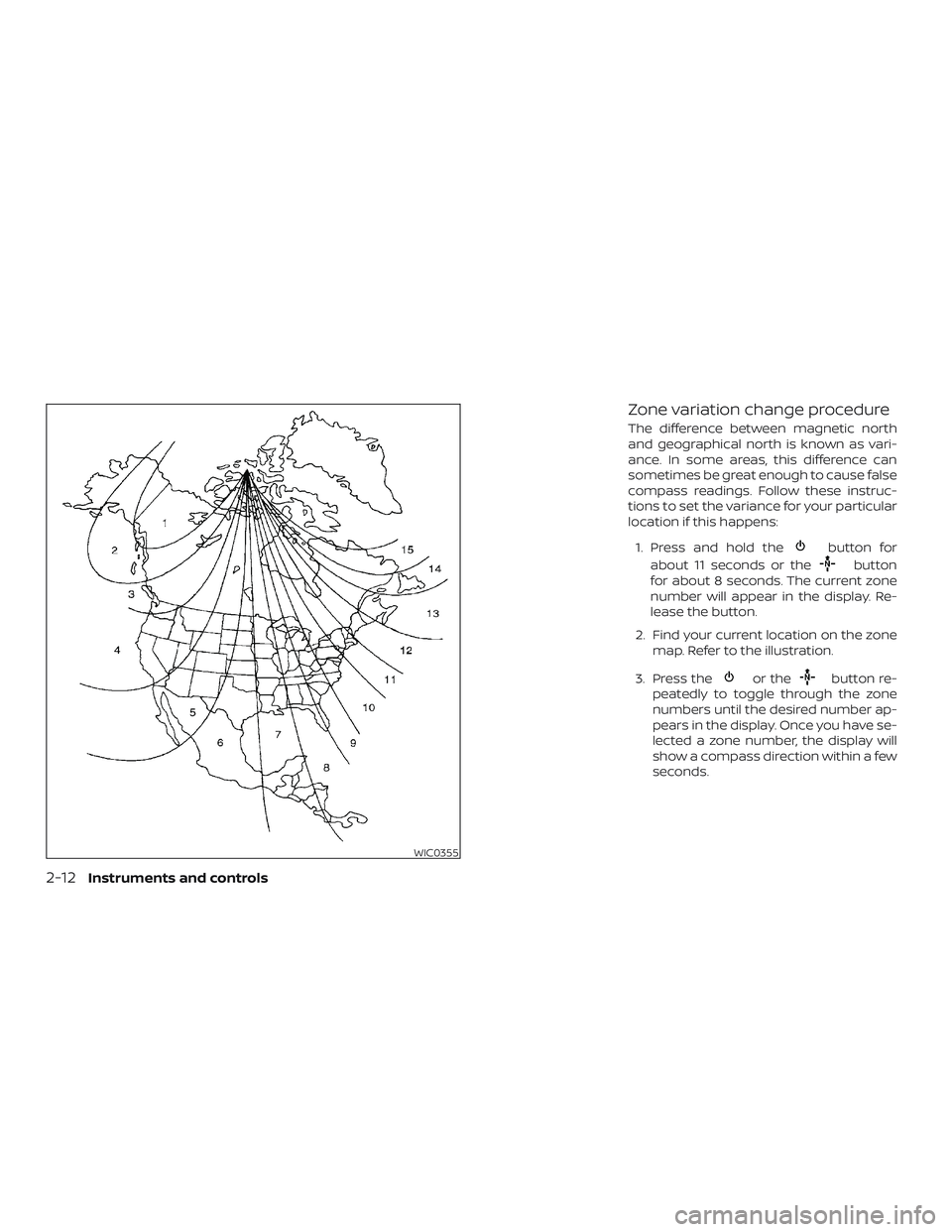

Zone variation change procedure
The difference between magnetic north
and geographical north is known as vari-
ance. In some areas, this difference can
sometimes be great enough to cause false
compass readings. Follow these instruc-
tions to set the variance for your particular
location if this happens:1. Press and hold the
button for
about 11 seconds or the
button
for about 8 seconds. The current zone
number will appear in the display. Re-
lease the button.
2. Find your current location on the zone map. Refer to the illustration.
3. Press the
or thebutton re-
peatedly to toggle through the zone
numbers until the desired number ap-
pears in the display. Once you have se-
lected a zone number, the display will
show a compass direction within a few
seconds.
WIC0355
2-12Instruments and controls

NOTE:
Use zone number 5 for Hawaii.
Inaccurate compass direction
The compass display is equipped with au-
tomatic correction function. If the correct
direction is not shown, follow this proce-
dure.1. With the display turned on, press and hold the
button for about 13 sec-
onds or the
button for about
10 seconds. The “C” icon in the compass
display will illuminate.
2. Calibrate the compass by driving the vehicle in three complete circles at a
maximum speed of 5 mph (8 km/h).
3. Af ter completing the circles, the display should return to normal.
CAUTION
∙ Do not install a ski rack, antenna, etc.,which are attached to the vehicle by
means of a magnet. They affect the
operation of the compass.
∙ When cleaning the mirror, use a paper towel or similar material dampened
with glass cleaner. Do not spray glass
cleaner directly on the mirror as it
may cause the liquid cleaner to enter
the mirror housing.
Instruments and controls2-13

Low fuel warning light
This light comes on when the fuel level in
the fuel tank is getting low. Refuel as soon
as it is convenient, preferably before the
fuel gauge reaches E (Empty).There will be
a small reserve of fuel in the tank when
the fuel gauge needle reaches E (Empty).
Low tire pressure warning
light
Your vehicle is equipped with a Tire Pres-
sure Monitoring System (TPMS) that moni-
tors the tire pressure of all tires except the
spare.
The low tire pressure warning light warns
of low tire pressure or indicates that the
TPMS is not functioning properly.
Af ter the ignition switch is placed in the ON
position, this light illuminates for about
1 second and turns off.
Low tire pressure warning
If the vehicle is being driven with low tire
pressure, the warning light will illumi-
nate. A CHECK TIRE PRES (pressure)
warning message is also displayed in the
odometer. When the low tire pressure warning light
illuminates, you should stop and adjust
the tire pressure of all four tires to the
recommended COLD tire pressure shown
on the Tire and Loading Information la-
bel located in the driver’s door opening.
The low tire pressure warning light does
not automatically turn off when the tire
pressure is adjusted. Af ter the tire is in-
flated to the recommended pressure,
the vehicle must be driven at speeds
above 16 mph (25 km/h) to activate the
TPMS and turn off the low tire pressure
warning light. Use a tire pressure gauge
to check the tire pressure.
The low tire pressure warning light remains
illuminated until the tires are inflated to the
recommended COLD tire pressure. The
CHECK TIRE PRES warning message is dis-
played each time the ignition switch is
placed in the ON position as long as the low
tire pressure warning light remains illumi-
nated.
For additional information, refer to “Check
tire pressure warning message” in this sec-
tion and “Tire Pressure Monitoring System
(TPMS)” in the “Starting and driving” section
and in the “In case of emergency” section of
this manual.TPMS malfunction
If the TPMS is not functioning properly, the
low tire pressure warning light will flash for
approximately 1 minute when the ignition
switch is placed in the ON position. The
light will remain on af ter 1 minute. Have the
system checked. It is recommended that
you visit a NISSAN dealer for this service.
The "CHECK TIRE PRES" warning does not
appear if the low tire pressure warning light
illuminates to indicate a TPMS malfunction.
For additional information, refer to “Tire
Pressure Monitoring System (TPMS)” in the
“Starting and driving” section and “Tire
pressure” in the “Do-it-yourself ” section of
this manual.
WARNING
∙ Radio waves could adversely affect
electric medical equipment. Those
who use a pacemaker should contact
the electric medical equipment
manufacturer for the possible influ-
ences before use.
2-18Instruments and controls

– Keep the pump nozzle in contactwith the container while you are
filling it.
– Use only approved portable fuel containers for flammable liquid.
CAUTION
∙ The LOOSE FUEL CAP warning mes-sage will be displayed if the fuel-filler
cap is not properly tightened. It may
take a few driving trips for the mes-
sage to be displayed. Failure to
tighten the fuel-filler cap properly af-
ter the LOOSE FUEL CAP warning mes-
sage is displayed may cause the
Malfunction Indicator Light (MIL) to
illuminate. ∙ Failure to tighten the fuel-filler cap
properly may cause the
Mal-
function Indicator Light (MIL) to illumi-
nate. If the
light illuminates be-
cause the fuel-filler cap is loose or
missing, tighten or install the cap and
continue to drive the vehicle.
The
light should turn off af ter a
few driving trips. If the
light does
not turn off af ter a few driving trips,
have the vehicle inspected. It is rec-
ommended that you visit a NISSAN
dealer for this service.
∙ For additional information, refer to the “Malfunction Indicator Light (MIL)”
in the “Instruments and Controls” sec-
tion in this manual.
∙ If fuel is spilled on the vehicle body, flush it away with water to avoid paint
damage.
Fuel recommendation (for VQ40DE
models):
∙ Do not use E-15 or E-85 fuel in your vehicle. For additional information,
refer to “Fuel recommendation (for
VQ40DE models)” in the “Technical
and consumer information” section of
this manual. Flexible Fuel Vehicle (FFV) fuel recom-
mendation (if so equipped):
∙ Only vehicles with the E-85 filler door
label can operate on up to E-85 fuel.
Fuel system or other damage can oc-
cur if up to E-85 fuel is used in vehicles
that are not designed to run on E-85
fuel. For additional information, refer
to “Flexible Fuel Vehicle (FFV) fuel rec-
ommendation” in the “Technical and
consumer information” section of this
manual.
Fuel recommendation (for QR25DE
models):
∙ Do not use a fuel containing more than 15% ethanol in your vehicle. For
additional information, refer to “Fuel
recommendation (for QR25DE mod-
els)” in the “Technical and consumer
information” section of this manual.
For additional information, refer to “Fuel
recommendation (for QR25DE models),”
“Fuel recommendation (for VQ40DE mod-
els)” or “Flexible Fuel Vehicle (FFV) fuel rec-
ommendation” in the “Technical and con-
sumer information” section of this manual.
3-12Pre-driving checks and adjustments

NOTE:
Changing ignition switch status during
the refueling process may cause a delay
in fuel gauge response.To remove the fuel-filler cap:1. Turn the fuel-filler cap counterclock- wise to remove.
2. Loop the tether strap around the hook
1while refueling.
To install the fuel-filler cap: 1. Insert the fuel-filler cap straight into the fuel-filler tube.
2. Turn the fuel-filler cap clockwise until a single click is heard.
LOOSE FUEL CAP warning
message
The LOOSE FUEL CAP warning message
displays in the odometer when the fuel-
filler cap is not tightened correctly af ter the
vehicle has been refueled. It may take a few
driving trips for the message to be dis-
played. To turn off the warning message,
perform the following:
1. Remove and install the fuel-filler cap as described above as soon as possible.
2. Tighten the fuel-filler cap until it clicks.
LPD2699LRS2004
Pre-driving checks and adjustments3-13

4 Monitor, climate, audio, phone and
voice recognition systems
Control panel buttons — models without
Navigation System (if so equipped)..............4-4
How to use the touch-screen .................4-5
How to use the
MENU button ...........4-7
(brightness control) button .............4-9
How to use the VOL (volume) knob /
PUSH
(power)button ...................4-9
Selecting menu from launch bar .............4-9
Control panel buttons — models with
Navigation System (if so equipped) .............4-10
How to use the touch-screen .................4-11
HowtousetheBACKbutton ................ 4-13
How to use the
button................ 4-13
button................................. 4-15
How to use the ON-OFF button/VOL
(volume) control knob ....................... 4-15
How to use the CAMERA button .............4-15
RearView Monitor .............................. 4-16
RearView Monitor system operation .........4-17
How to read the displayed lines ..............4-18
Difference between predicted and
actual distances ............................. 4-18
Adjusting the screen ........................ 4-20RearView Monitor system limitations
........4-21
System maintenance ........................ 4-22
Vents ........................................... 4-23
Heater and air conditioner (manual)
(if so equipped) ................................. 4-23
Controls ..................................... 4-24
Controls ..................................... 4-25
Heater operation ............................ 4-26
Air conditioner operation ....................4-27
Air flow charts ............................... 4-28
Heater and air conditioner (automatic)
(if so equipped) ................................. 4-32
Automatic operation ........................ 4-35
Manual operation ........................... 4-36
Operating tips ............................... 4-37
Servicing air conditioner ........................4-37
Audio system ................................... 4-37
Radio ........................................ 4-37
FM radio reception .......................... 4-38
AM radio reception .......................... 4-38
Satellite radio reception (if so equipped) .....4-38
Audio operation precautions ................4-39
FM/AM radio (if so equipped) ................4-46
