2019 MITSUBISHI MIRAGE G4 turn signal

Replacement of light bulbs
Vehicle care and maintenance 9-27
9
N00943001230
N00950302043
CAUTION Do not install commercially available LED- type bulbs. Commercially availa
ble LED-type bulbs
could adversely affect
the operation of the
vehicle, such as by preventing the lights and other vehicle equipm
ent from operating
properly.NOTE
 If you are unsure of how to carry out the work as required, it is recommended that these procedures be carried out by an autho- rized Mitsubishi Motors dealer or a repairfacility of your choice.  Be careful not to scratch the vehicle body when removing a light and lens.
 When it rains, or wh
en the vehicle has been
washed, the inside of the lens sometimesbecomes temporarily foggy. This is the samephenomenon as when window glass mists up on a humid day, and does not indicate a func- tional problem.When the light is switched on, the heat will remove the fog. However, if water gathers inside the light, please
have it checked by an
authorized Mitsubishi
Motors dealer or a
repair facility
of your choice.
Bulb location and capacity
CAUTIONWhen replacing a bulb, be sure to use a new bulb of the same type, wattage, and color. If you install a different bulb, the bulb could malfunction or fail to
come on and could
lead to a vehicle fire.NOTE
Outside
Description
Watt- age
ANSI Tr a d e N o . or Bulb type
1
Front turn signal light/Parking light
32/3 cp #1157NA
2
Headlight/Day- time running light (if so equipped)
—
9007 HB5
3
Front fog light (if so equipped)
55 W H11
4
Front side-marker light
5 W W5W
5
Side turn signal light (on fender, if so equipped)
5 W —
Front
BK0267800US.book 27 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Replacement of light bulbs 9-28 Vehicle care and maintenance
9
N00950401715
6
Side turn signal light (on outside rearview mirror, if so equipped)
——
NOTE
 It is not possible to re
pair or replace only the
bulb for the side turn signal light (on fender).Check with an authorized Mitsubishi Motors dealer or a repair fa
cility of your choice
when the light needs to be repaired orreplaced.  The side turn signal light (on outside rear- view mirror) uses an LED rather than the bulb. For repair and re
placement, contact an
authorized Mitsubishi Motors dealer or arepair facility of your choice.Description
Wa t t- age
ANSI Tr a d e N o . or Bulb type
Rear
Item
Wattage
ANSI trade No. or bulb type
1
High-mounted stop light
——
2
License plate light
5 W W5W
3 Back-up light 21 W P21W4
Rear turn signal light
21 W PY21W
5
Tail and stop light
21/5 W P21/5W
6
Rear side-marker light
5 W W5W
NOTE
 The high-mounted stop light uses an LED rather than the bulbs.
For repair and replace-
ment, contact an au
thorized Mitsubishi
Motors dealer or a repair facility of your choice.
Inside
Item
Wattage
1 Dome light 8 W 2 Trunk room light 5 W
BK0267800US.book 28 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Replacement of light bulbs
Vehicle care and maintenance 9-29
9
N00901801203
1. While pressing the tab (A), pull out the connector (B). 2. Remove the locking cap (C) by turning it counterclockwise, and then pull the bulb (D).
3. To install the bulb, perform the removal steps in reverse.
N00943200352
The alignment of th
e headlights should be
checked by an authorized Mitsubishi Motorsdealer or a repair facility of your choice.
N00917301681
1. Turn the socket (A) counterclockwise to remove it.
2. Pull the bulb out of the socket. 3. To install the bulb, perform the removal steps in reverse.
N00943401478
1. Turn the socket (A
) counterclockwise to
remove it.
Headlights/Daytime running lights
(if so equipped)
*- Front of the vehicle
Headlight aim adjustment Front side-marker lights *- Front of the vehicle
Front turn signal lights/Parking lights *- Front of the vehicle
BK0267800US.book 29 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Replacement of light bulbs
Vehicle care and maintenance 9-31
9
N00943701572

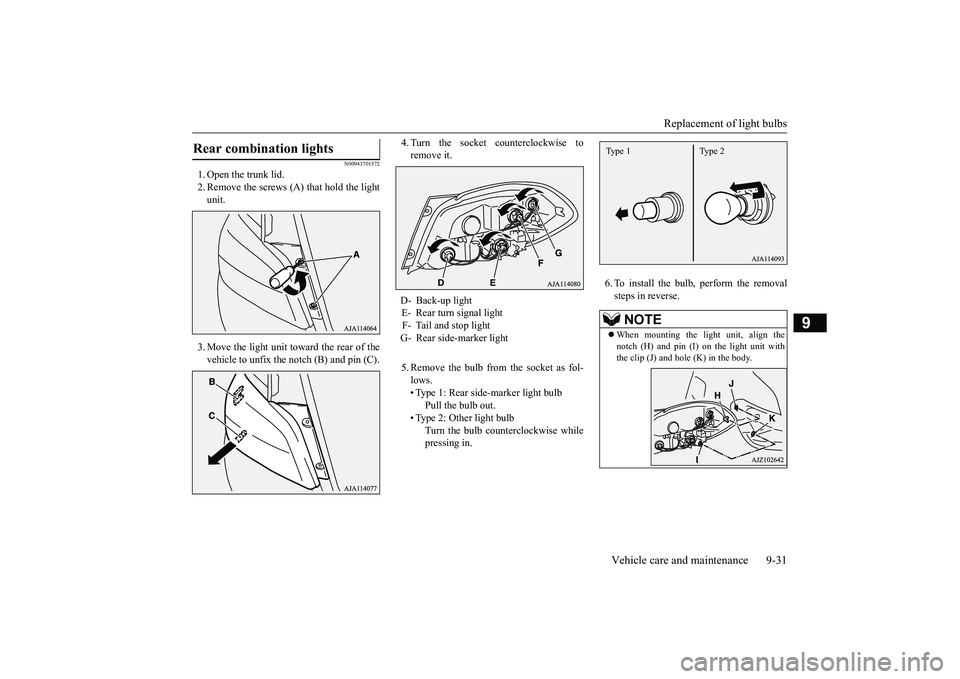

1. Open the trunk lid. 2. Remove the screws (A) that hold the light unit. 3. Move the light unit toward the rear of the vehicle to unfix the notch (B) and pin (C).
4. Turn the socket counterclockwise to remove it. 5. Remove the bulb from the socket as fol- lows. • Type 1: Rear side-marker light bulb
Pull the bulb out.
• Type 2: Other light bulb
Turn the bulb counterclockwise while pressing in.
6. To install the bulb, perform the removal steps in reverse.
Rear combination lights
D- Back-up lightE- Rear turn signal lightF- Tail and stop light G- Rear side-marker light
