2019 MITSUBISHI MIRAGE G4 key

Keyless entry system (if so equipped) 5-8 Features and controls
5
If you lose the remote control transmitter, you can order a remote control transmitter fromyour authorized Mitsubishi Motors dealer by referring to the key number. To prevent vehicle theft, the ID code for theremote control transmitter must be changed. Take your vehicle and all remote control transmitters to your authorized MitsubishiMotors dealer to have your ID code changed.
N00543900078
To add a remote control transmitter, you mustalready have 1 registered remote controltransmitter. Registering the ID code can be done by your authorized Mitsubishi Motors dealer.Take your vehicle and any remaining keys to your authorized Mitsub
ishi Motors dealer.
N00546100114
Your keyless entry syst
em operates on a radio
frequency subject to
Federal Communica-
tions Commission (FCC)
Rules (For vehicles
sold in U.S.A.) and Industry Canada Rules(For vehicles sold in Canada). This device complies with Part 15 of FCC Rules and Industry Canada licenc
e-exempt RSS stan-
dard(s). Operation is subject to the following two con- ditions.  This device may not
cause harmful inter-
ference.  This device must ac
cept any interference
received, including interference that may cause undesired operati
on of this device.
N00544101191
1. Before replacing the battery, remove static electricity from your body by touching a metal grounded object.2. Remove the screw (A) from the remote control transmitter.
3. With the Mitsubishi mark facing you, insert the cloth-cov-ered tip of a flat bladescrewdriver into the notch in the remote control transmitter case and use it to open the case.
Additional remote control transmitters

NOTE
 You are provided with 2 remote control transmitters, but you may register up to 4remote control transmitters.
General information

WA R N I N G Changes or modifica
tions not expressly
approved by the party responsible forcompliance could void the user’s authority to operate the equipment.
Procedure for replacing the remote control transmitter bat- tery

BK0267800US.book 8 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-9
5
4. Remove the old battery. 5. Install a new battery
with the + side (B)
up.
6. Close the remote control transmitter firmly.7. Attach the screw (A) removed in step 2. 8. Check the keyless entry system to see that it works.
N00503101150
The Free-hand Advanced
Security Transmit-
ter (F.A.S.T.-key) enables the doors to belocked and unlocked, the trunk lid to be opened, and the engine to be started and the operation mode to be
changed simply by car-
rying it. The F.A.S.T.-key can also be used as theremote control transmitter of the keyless entry system. Refer to “Free-hand
Advanced Security
Transmitter (F.A.S.T.-key): Keyless entry system” on page 5-22.
NOTE
 Be sure to perform the procedure with the Mitsubishi mark facing you. If theMitsubishi mark is not facing you when youopen the remote control transmitter case, the buttons may come out.  The Federal Communications Commission (FCC) ID number, the Industry Canada (IC) number and the model
number (radio certifi-
cation) are indicated in
the illustrated posi-
tion.
CAUTION When the remote control transmitter case is opened, be careful to
keep water, dust, etc.
out. Also, do not touch the internal compo-nents.NOTE
 You may purchase a replacement battery at an electric appliance store.  An authorized Mitsubishi Motors dealer can replace the battery for you if you prefer.
+ side - side Coin type battery CR1620
Free-hand Advanced Secu- rity Transmitter (F.A.S.T.-key)
(if so equipped)
The F.A.S.T.-key must be carried by the driver. The F.A.S.T.-key is required forvehicle operations su
ch as locking and
unlocking the doors, starting the engine, and changing the operation mode. When leaving the vehicle, make sure you are carrying the F.A.S.T.-key and then lockthe vehicle.
BK0267800US.book 9 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5-10 Features and controls
5
The operations possible with the F.A.S.T.- key can be modified
as stated below.
(Keyless entry operations are possible.) For details, contact an authorizedMitsubishi Motors dealer. • Enabling only the locking and unlocking of the doors and the opening of the trunklid • Enabling only the starting of the engine • Deactivating the F.A.S.T.-key
WA R N I N G Individuals who use
implantable pace-
makers or implanta
ble cardiovascular-
defibrillators should
keep away from the
external and internal
transmitters. The
electromagnetic wa
ves used in the
F.A.S.T.-key may affe
ct the operation of
implantable pacemakers and implantable cardiovascular-
defibrillators.
A- External transmitter B- Internal transmitter
WA R N I N G Individuals using ot
her electro-medical
apparatus besides implantable pacemak-ers and implantable
cardiovascular-defi-
brillators should
check with the
manufacturer of the apparatus to confirm the effect of the el
ectromagnetic waves
used by the F.A.S.T.-key. The electromag- netic waves may affect
the operations of
the electro-medical apparatus.NOTE
 The F.A.S.T.-key uses weak electromagnetic waves. In cases such as the following, operation may be imprope
r or unstable.
• The vehicle is near a facility that emits strong electroma
gnetic waves, such as a TV
transmitting tower, a pow
er station, a radio
station or an airport
• The key is carried together with other com- munication devices such
as cellular phones
or radios, or electrical appliances such ascomputers • The F.A.S.T.-key touches or is covered by a metal object • A keyless entry system is being used nearby • The battery of the F.A.S.T.-key is run down• The vehicle is in
a location with strong
electromagnetic
waves or noise
Use the emergency key in such circum- stances.Refer to “To operate
without using the
F.A.S.T.-key” on page 5-20.  The F.A.S.T.-key is constantly performing reception operations
in its communication
with the vehicle. This means that the batteryis always running down, regardless of how often the F.A.S.T.-key is used. The battery life is about 1 to 2 years, depending on theusage conditions.  Since the F.A.S.T.-key is constantly perform- ing reception operati
ons, the reception of
strong electrom
agnetic waves
can accelerate
the running down of the
battery. Do not place
near to electrical appliances such as televi- sions or computers.NOTE
BK0267800US.book 10 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)

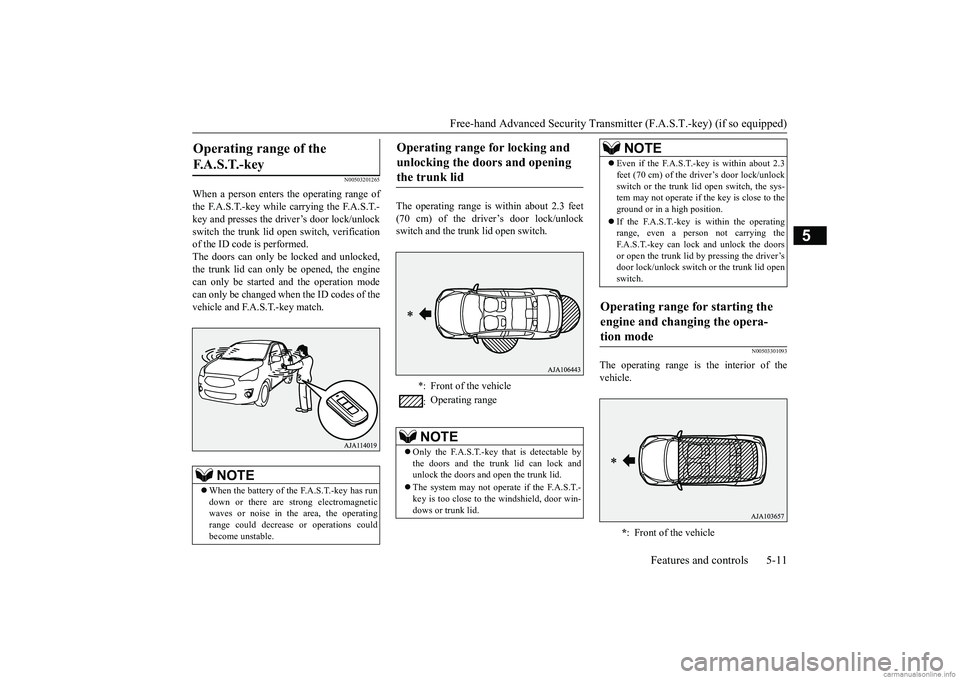

Features and controls 5-11
5
N00503201265
When a person enters the operating range of the F.A.S.T.-key while carrying the F.A.S.T.-key and presses the driver’s door lock/unlock switch the trunk lid ope
n switch, verification
of the ID code is performed.The doors can only be locked and unlocked, the trunk lid can only be opened, the engine can only be started and the operation mode can only be changed when the ID codes of the vehicle and F.A.S.T.-key match.
The operating range is
within about 2.3 feet
(70 cm) of the driver’s door lock/unlockswitch and the trunk lid open switch.
N00503301093
The operating range is the interior of the vehicle.
Operating range of the F. A . S . T. - k e y

NOTE
 When the battery of the F.A.S.T.-key has run down or there are st
rong electromagnetic
waves or noise in the area, the operating range could decrease
or operations could
become unstable.
Operating range for locking and unlocking the doors and opening the trunk lid

*: Front of the vehicle : Operating rangeNOTE
 Only the F.A.S.T.-key that is detectable by the doors and the trunk lid can lock and unlock the doors and open the trunk lid.  The system may not operate if the F.A.S.T.- key is too close to the windshield, door win-dows or trunk lid.
 Even if the F.A.S.T.-key is within about 2.3 feet (70 cm) of the driver’s door lock/unlockswitch or the trunk lid open switch, the sys-tem may not operate if the key is close to the ground or in a high position.  If the F.A.S.T.-key is within the operating range, even a person not carrying the F.A.S.T.-key can lock and unlock the doorsor open the trunk lid by pressing the driver’s door lock/unlock switch
or the trunk lid open
switch.
Operating range for starting the engine and changing the opera- tion mode

* : Front of the vehicleNOTE
BK0267800US.book 11 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5-12 Features and controls
5
N00503401430
While carrying the F.A.S.T.-key, press the driver’s door lock/unlock switch (A) within the operating range to lock all the doors and trunk lid.The turn signal lights will blink once and the buzzer will sound once. Also refer to “Doors locks”, “Power door locks” and “Trunk lid” on pages 5-25, 5-26and 5-28 respectively.
While carrying the F.A.S.T.-key within the operating range, you can unlock the doors by using the F.A.S.T.-key.The dome light will turn on for 30 seconds. The turn signal lights will blink twice and the buzzer will
sound twice.
Also refer to “Door locks”, “Power door locks” on pages 5-25 and 5-26 respectively. Press the driver’s door lock/unlock switch (A) to unlock only the driver’s door. Within about 2 seconds, press the driver’s door lock/unlock switch
one more time to
unlock all the doors.
: Operating rangeNOTE
 Even if the F.A.S.T.-key is within the operat- ing range, it may not be
possible to start the
engine and change the
operation mode if the
key is in a storage space such as the glove compartment, on top of the instrument panel, or in the door pocket or luggage compart-ment.  Even if the F.A.S.T.-key is inside the vehicle, it may not be possible to
start the engine and
change the operation mode if the key is too close to a door or door window.
To operate using the F.A.S.T.- key

To l o c k

NOTE
 In cases such as the following, the F.A.S.T.- key does not operate. • There is a F.A.S.T.-key in the passenger compartment • A door is open or ajar • The operation mode is not in OFF. The time within which locking confirmation is possible can be adjusted. See an autho-rized Mitsubishi Motors
dealer for details.
To u n l o c k

Driver’s door lock/unlock switch
NOTE
Settings can be changed so that all the doors are unlocked automati
cally by pressing the
driver’s door lock/unlock switch once. See an authorized Mi
tsubishi Motors dealer
for details.  If the doors are unlocked using the driver’s door lock/unlock switch
when all doors are
locked and no doors are opened within about 30 seconds, the doors wi
ll automatically re-
lock.Driver’s door lock/unlock switch
BK0267800US.book 12 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-13
5
N00590900030
Press the trunk lid open switch (B) to open the trunk lid.
N00513501186
To prevent vehicle theft, no F.A.S.T.-keysother than those regist
ered in advance can be
used to start the engine. (Electronic immobi- lizer function)While carrying the F.A.S.T.-key, the engine switch can be used
to start the engine.
The amount of time after unlocking until the vehicle relocks automatically can beadjusted. See an authorized MitsubishiMotors dealer for details.  In cases such as the following, the F.A.S.T.- key does not operate. • The operation mode is not in OFF. Functions settings can
be modified as stated
below.See an authorized Mitsubishi Motors dealer for details. • Activating the operation confirmation func- tion (blinking of the turn signal lights) only during locking, or only during unlocking. • Deactivating the operation confirmation function (blinking of the turn signal lights)and buzzer. • Modifying the number of blinks in the operation confirmati
on function (blinking
of the turn signal lights). • Making the buzzer sound when the F.A.S.T.-key is removed from the passenger compartment when all
the doors are closed.
NOTE
To open the trunk lid

Engine switch

Trunk lid open switch
CAUTIONThe indicator light (A
) will flash orange
when there is a problem or malfunction inFree-hand Advanced Se
curity Transmitter.
Never drive if the indicator light on the engine switch is fl
ashing orange. Immedi-
ately contact your au
thorized Mitsubishi
Motors dealer. If the engine switch
operation is not smooth
and feels like it is st
icking, do not operate the
switch.Immediately contac
t an authorized
Mitsubishi Motors dealer.NOTE
 When operating the engi
ne switch, press the
switch all the way in. If the switch is not fully pressed, the engine may not start or theoperation mode may
not change. If the
engine switch is presse
d correctly, there is no
need to hold the e
ngine switch down.
BK0267800US.book 13 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5-14 Features and controls
5
The indicator light on th
e engine switch turns
off.On vehicles equipped
with continuously vari-
able transmission (CVT), the operation mode cannot be put in OFF wh
en the selector lever
is in any position other than the “P” (PARK) position. Allows operation of some electrical accesso- ries.
The indicator light on th
e engine switch illu-
minates orange. All electrical accessories can be used. The indicator light on th
e engine switch illu-
minates green. The indicator light turns off when the engineis running.
N00568001110
If you press the engine
switch without press-
ing the brake pedal {continuously variable transmission (CVT)} or the clutch pedal (manual transaxle) while the vehicle is sta-tionary, you can change the operation mode in the order of OFF, ACC, ON, OFF.
 When the battery in the F.A.S.T.-key has worn out, or the F.A.S.T.-key is out of thevehicle, a warning lamp
will blink for 5 sec-
onds.
Operation mode of the engine switch and its function

OFF ACC
NOTE
ON
NOTE
 Your vehicle is equippe
d with an electronic
immobilizer. To start the engine, the ID codewhich the F.A.S.T.-key sends must match the one registered to the immobilizer computer. (Refer to “Electronic immobilizer (Anti-theftstarting system)” on page 5-20)
Changing the operation mode

CAUTION When the engine is not running, put the oper- ation mode in OFF. Leaving the operationmode in ON or ACC for a long time when the engine is not r
unning may cause the bat-
tery to be discharged, making it impossibleto start the engine.  When the battery is disconnected, the current operation mode is memorized. After recon- necting the battery, the memorized mode is selected auto
matically. Before disconnect-
ing the battery for repair or replacement, make sure to put the
operation mode in OFF.
Be careful if you are not sure which opera-tion mode the vehicle is
in when the battery
is run down. The operation mode cannot be changed from OFF to ACC or ON if the F.A.S.T.-key is not detected to be in the
vehicle. Refer to “Oper-
ating range for starting the engine and changing the operation mode” on page 5-11.
BK0267800US.book 14 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-15
5
N00568101049
When the vehicle is in ACC operation mode for approximately 30 minutes, the ACC power auto-cutout f
unction automatically
cuts power to the audio system and otherelectronic devices that
can be used during
ACC operation mode. To enable power after ACC power auto-cut-out function, press the
engine switch while in
ACC.
N00503501284
With the F.A.S.T.-key, warnings are giventhrough buzzers and displayed symbols in order to prevent mistake
n operations or vehi-
cle theft. When a warning operates, be sure to check the vehicle and the F.A.S.T.-key. A warning isalso shown if there is a problem in the F. A . S . T. - k e y. If the following warning shows, contact an authorized Mitsubishi Motors dealer.
If the following warnings show, the light goes off if the correct action is taken.  The ID codes of the F.A.S.T.-key and the vehicle cannot
be verified
 All the doors cannot be locked even when the driver’s door lock/unlock switch ispressed.
NOTE
 If the operation mode
cannot be changed to
OFF, perform the following procedure. 1. Move the selector lever to the “P” (PARK) position, and then change the operation mode to
OFF.(For vehicles
with CVT) 2. One of the other causes could be low bat- tery voltage. If this occurs, the keyless entry system and the F.A.S.T.-key opera- tion will also not
operate. C
ontact an
authorized Mitsubish
i Motors dealer.
ACC power auto-cutout function

NOTE
It is possible to modify the functions as fol- lows: • The time until the power cuts out can be changed to approxi
mately 60 minutes.
• The ACC power auto
-cutout function can
be deactivated. For details, we reco
mmend you to consult an
authorized Mitsubishi Motors dealer.
Warning activation

There is a problem in the F. A . S . T. - k e y
NOTE
Put the operation mode in OFF and then start the engine again. If the warning is not can-celled, there is a fault in the electronic immobilizer (Anti- theft starting system).Please contact an authorized Mitsubishi Motors dealer. Someone may be carrying a F.A.S.T.-key with a different ID code, or the F.A.S.T.-key may not be within the operat- ing range Refer to “F.A.S.T.-key take- out monitoring system” on page 5-16. The battery of the F.A.S.T.- key is run down
BK0267800US.book 15 ページ ２０１８年５月３０日　水曜日　午後４時２４分
