2019 MERCEDES-BENZ CLA bulb

XInsert the new bulb into bulb holderD.
XInsert bulb holderDand turn it clockwise.
XPress on housing coverCand turn it to theright.
XReplace the cover in the front wheel housing(Ypage 106).
High-beam headlamps/daytime run-
ning lamps/parking lamps and stand-
ing lamps (halogen headlamps)
XSwitch off the lights.
XOpen the hood.
XTurn housing coverCcounter-clockwise andremove it.
XTurn bulb holderDcounter-clockwise andpull out.
XInsert the new bulb and engage it to the stop.
XPress on housing coverCand turn it to theright.
Turn signals (halogen headlamps)
XSwitch off the lights.
XOpen the hood.
XTurn bulb holderCcounter-clockwise andpull out.
XTurn the bulb counter-clockwise and pull itout of bulb holderC.
XInsert the new bulb into bulb holderC.
XInsert bulb holderCand turn it clockwiseuntil it engages.
Replacing rear bulbs
Opening and closing the side trim pan-
els
View of right-hand side trim panel
You must open the side trim panel in the trunkbefore you can replace the bulbs in the taillamps.
XTo open:release right or left side trimpanelCat the top and fold it down in thedirection of the arrow.
XTo close:insert side panelC.
Tail lamps
XSwitch off the lights.
XOpen the trunk.
XOpen the side trim panel (Ypage 107).
Replacing bulbs107
Lights and windshield wipers
Z

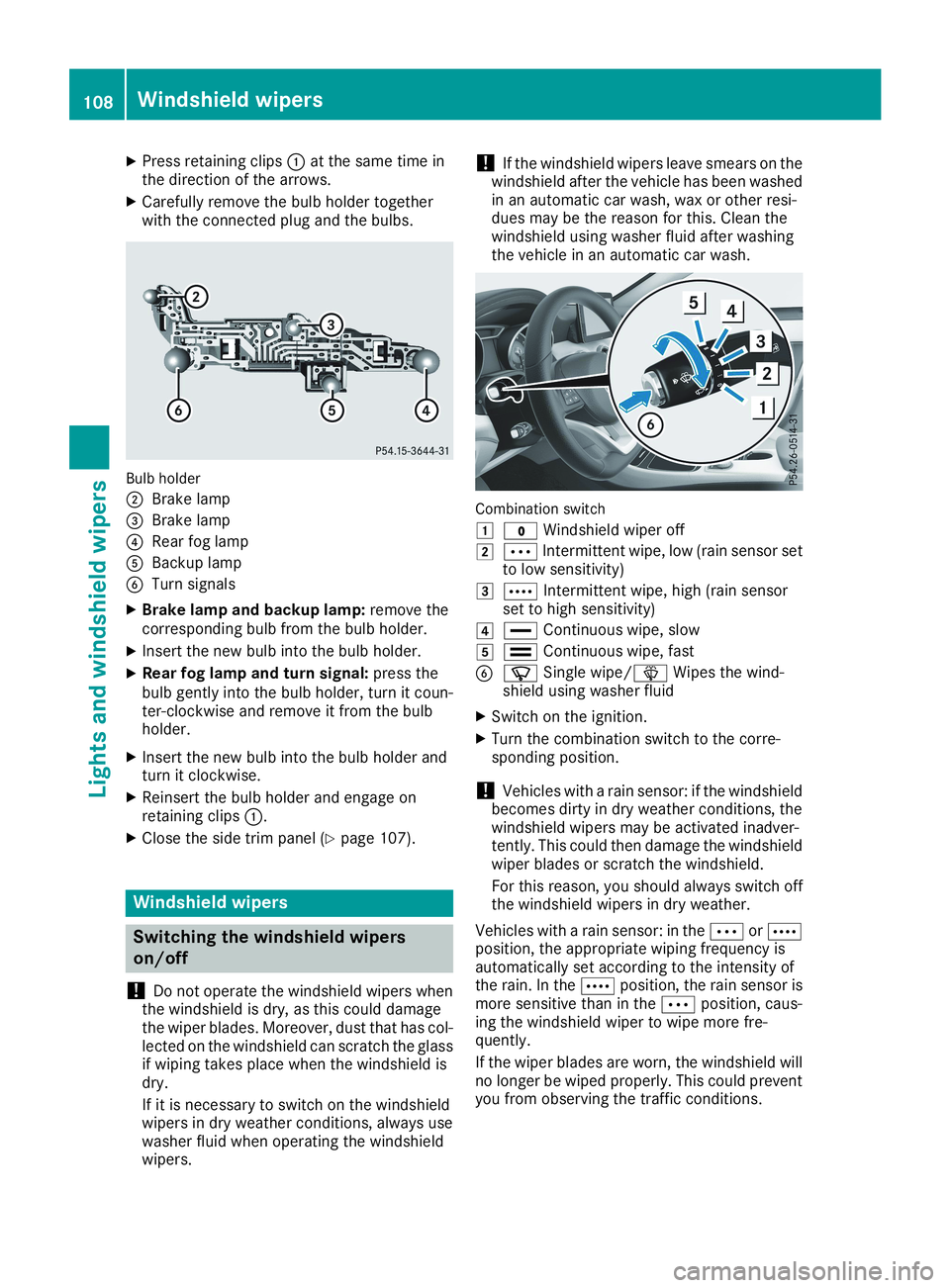

XPress retaining clipsCat the same time inthe direction of the arrows.
XCarefully remove the bulb holder togetherwith the connected plug and the bulbs.
Bulb holder
DBrake lamp

Display messagesPossible causes/consequences andPPSolutions
If the conditions are not fulfilled, the system is not operating correctly.
XVisit a qualified specialist workshop immediately.
Further information about the Occupant Classification System(Ypage 48).
Lights
iVehicles with LED bulbs in the light clusters:
The display message for the corresponding lamp only appears when all of the LEDs in the lamphave failed.
Display messagesPossible causes/consequences andPPSolutions
I
Check Left Corner‐Check Left Corner‐ing Lighting LightorCheckCheckRight CorneringRight CorneringLightLight
The left or right-hand cornering light is defective.
XCheck whether you are permitted to replace the bulb yourself(Ypage 105).
or
XVisit a qualified specialist workshop.
I
CheckCheckLeftLeftLowLowBeamBeamorCheck Right LowCheck Right LowBeamBeam
The left or right-hand low-beam headlamp is defective.
XCheck whether you are permitted to replace the bulb yourself(Ypage 105).
or
XVisit a qualified specialist workshop.
I
Check Rear LeftCheck Rear LeftTurn SignalTurn SignalorCheck Rear RightCheck Rear RightTurn SignalTurn Signal
The rear left-hand or rear right-hand turn signal is defective.
XCheck whether you are permitted to replace the bulb yourself(Ypage 105).
or
XVisit a qualified specialist workshop.
I
Check Front LeftCheck Front LeftTurn SignalTurn SignalorCheck Front RightCheck Front RightTurn SignalTurn Signal
The front left-hand or front right-hand turn signal is defective.
XCheck whether you are permitted to replace the bulb yourself(Ypage 105).
or
XVisit a qualified specialist workshop.
I
Check Left MirrorCheck Left MirrorTurn SignalTurn SignalorCheck Right MirrorCheck Right MirrorTurn SignalTurn Signal
The turn signal in the left-hand or right-hand exterior mirror is defec-tive.
XVisit a qualified specialist workshop.
I
Check Center BrakeCheck Center BrakeLampLamp
The high-mounted brake lamp is faulty.
XVisit a qualified specialist workshop.
204Displaymessages
On-b oard computer and displays

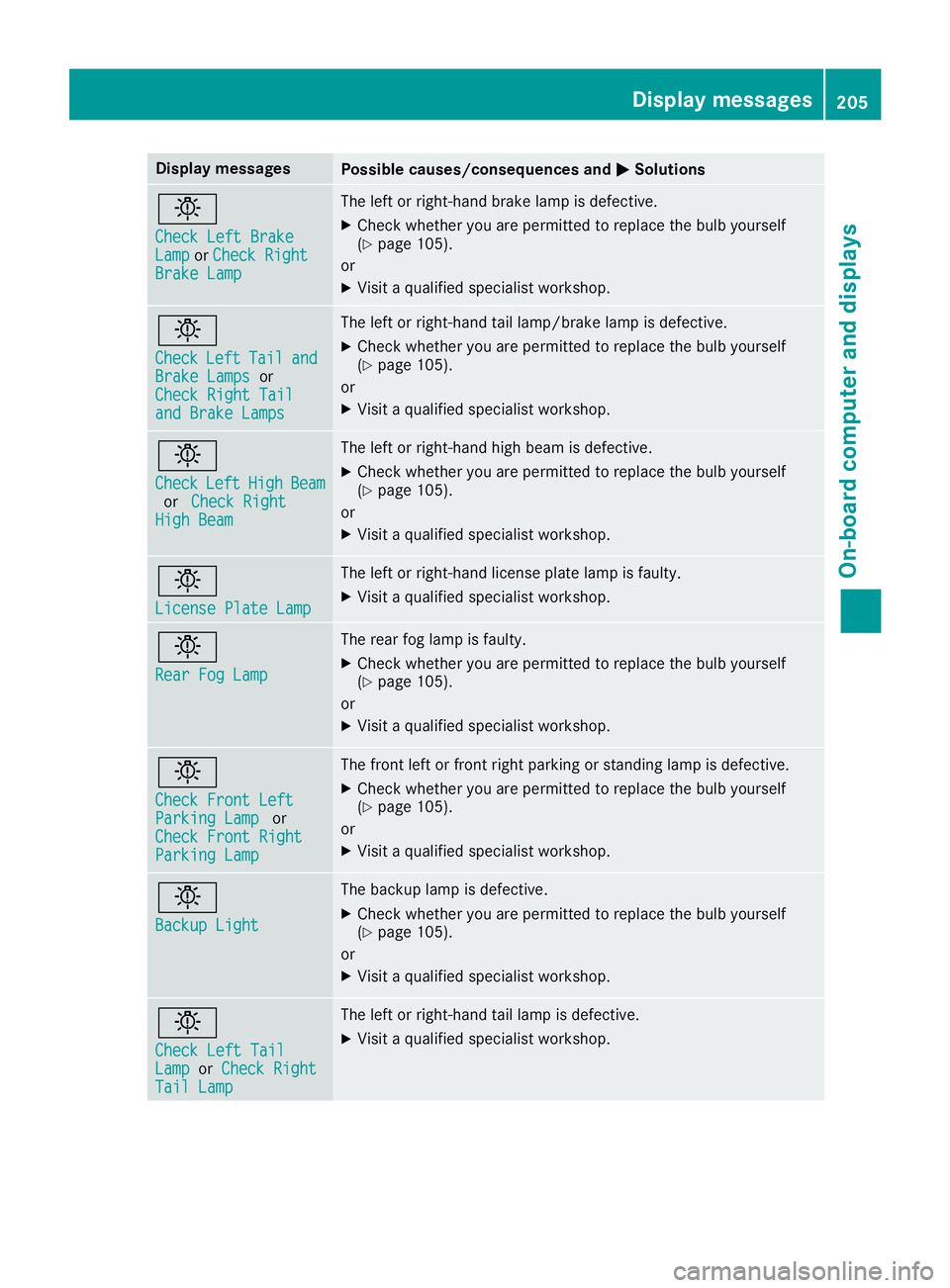

Display messagesPossible causes/consequences andPPSolutions
I
Check Left BrakeCheck Left BrakeLampLamporCheck RightCheck RightBrake LampBrake Lamp
The left or right-hand brake lamp is defective.
XCheck whether you are permitted to replace the bulb yourself(Ypage 105).
or
XVisit a qualified specialist workshop.
I
CheckCheckLeftLeftTailTailandandBrake LampsBrake LampsorCheck Right TailCheck Right Tailand Brake Lampsand Brake Lamps
The left or right-hand tail lamp/brake lamp is defective.
XCheck whether you are permitted to replace the bulb yourself(Ypage 105).
or
XVisit a qualified specialist workshop.
I
CheckCheckLeftLeftHighHighBeamBeamorCheck RightCheck RightHigh BeamHigh Beam
The left or right-hand high beam is defective.
XCheck whether you are permitted to replace the bulb yourself(Ypage 105).
or
XVisit a qualified specialist workshop.
I
License Plate LampLicense Plate Lamp
The left or right-hand license plate lamp is faulty.
XVisit a qualified specialist workshop.
I
Rear Fog LampRear Fog Lamp
The rear fog lamp is faulty.
XCheck whether you are permitted to replace the bulb yourself(Ypage 105).
or
XVisit a qualified specialist workshop.
I
Check Front LeftCheck Front LeftParking LampParking LamporCheck Front RightCheck Front RightParking LampParking Lamp
The front left or front right parking or standing lamp is defective.
XCheck whether you are permitted to replace the bulb yourself(Ypage 105).
or
XVisit a qualified specialist workshop.
I
Backup LightBackup Light
The backup lamp is defective.
XCheck whether you are permitted to replace the bulb yourself(Ypage 105).
or
XVisit a qualified specialist workshop.
I
Check Left TailCheck Left TailLampLamporCheck RightCheck RightTail LampTail Lamp
The left or right-hand tail lamp is defective.
XVisit a qualified specialist workshop.
Displaymessages205
On-b oard computer and displays
Z

Display messagesPossible causes/consequences andPPSolutions
I
Check Front LeftCheck Front LeftSidemarker LampSidemarker LamporCheck Front RightCheck Front RightSidemarker LampSidemarker Lamp
The front left-hand or front right-hand side marker lamp is faulty.
XVisit a qualified specialist workshop.
I
Check Rear LeftCheck Rear LeftSidemarker LampSidemarker LamporCheck Rear RightCheck Rear RightSidemarker LampSidemarker Lamp
The rear left-hand or rear right-hand side marker lamp is faulty.
XVisit a qualified specialist workshop.
I
Check Left DaytimeCheck Left DaytimeRunning LightRunning LightorCheckCheckRightRightDaytimeDaytimeRunning LightRunning Light
The left or right-hand daytime running lamp is faulty.
XCheck whether you are permitted to replace the bulb yourself(Ypage 105).
or
XVisit a qualified specialist workshop.
I
Malfunction SeeMalfunction SeeOperator's ManualOperator's Manual
The exterior lighting is malfunctioning.
XVisit a qualified specialist workshop.
I
Auto Lamp FunctionAuto Lamp FunctionInoperativeInoperative
The light sensor is defective.
XVisit a qualified specialist workshop.
I
Switch Off LightsSwitch Off Lights
The lights are still switched on when you leave the vehicle. A warningtone also sounds.
XTurn the light switch to theXposition.
I
Switch On HeadlampsSwitch On Headlamps
You are driving with low-beam headlamps switched off.
XTurn the light switch to theXorXposition.
Adaptive HighbeamAdaptive HighbeamAssist CurrentlyAssist CurrentlyUnavailable SeeUnavailable SeeOperator's ManualOperator's Manual
Adaptive Highbeam Assist is deactivated and temporarily inoperative.
Possible causes are:
RThe windshield in the camera's field of vision is dirty.
RVisibility is impaired due to heavy rain, snow or fog.
XClean the windshield.
If the system detects that the camera is fully operational again, theAdaptiveAdaptiveHighbeamHighbeamAssistAssistNowNowAvailableAvailablemessage is displayed.
Adaptive Highbeam Assist is operational again.
Adaptive HighbeamAdaptive HighbeamAssist InoperativeAssist InoperativeAdaptive Highbeam Assist is faulty.
XVisit a qualified specialist workshop.
206Displaymessages
On-b oard computer and displays

RPlug-type couplings
RLight bulbs
RSeals
RTrim elements
RVentilation slots
Damaged seals or electrical components canlead to leaks or failures.
Cleaning the paintwork
!Do not affix:
Rstickers
Rfilms
Rmagnetic plates or similar items
to painted surfaces. You could otherwisedamage the paintwork.
Scratches, corrosive deposits, areas affected bycorrosion and damage caused by inadequatecare cannot always be completely repaired. Insuch cases, visit a qualified specialist workshop.
XRemove dirt immediately, where possible,while avoiding rubbing too hard.
XSoak insect remains with insect remover andrinse off the treated areas afterwards.
XSoak bird droppings with water and rinse offthe treated areas afterwards.
XRemove tree resin, oils, fuels and greases byrubbing gently with a cloth soaked in petro-leum ether or lighter fluid
XRemove coolant and brake fluid with a moistcloth and clear water.
XUse tar remover to remove tar stains.
XUse silicone remover to remove wax.
If water no longer forms "beads" on the paintsurface, use the paint care products recommen-ded and approved by Mercedes-Benz. This is thecase approximately every three to five months,depending on the climate conditions and thecare product used.
If dirt has penetrated the paint surface or if thepaint has become dull, the paint cleaner recom-mended and approved by Mercedes-Benzshould be used.
Do not use these care products in the sun or onthe hood while the hood is hot.
XUse a suitable touch-up stick, e.g. MB Touch-Up Stick, to repair slight damage to the paint-work quickly and provisionally.
Matte finish care
!Never polish the vehicle or the light alloywheels. Polishing causes the finish to shine.
!The following can give the paint a glossyappearance and thus reduce the matt effect:
RRubbing hard with unsuitable agents
RWashing the vehicle in direct sunlight
!Never use paint cleaner, buffing or polishingproducts, or gloss preserver, e.g. wax, for thepurpose of paintwork care. These productsare only suitable for high-gloss surfaces. Theiruse on vehicles with matte paintwork leads toconsiderable surface damage or, more spe-cifically, to shiny, spotted areas.
Always have paintwork repairs carried out at aqualified specialist workshop.
!Only use automatic car washes which cor-respond to the latest technological stand-ards. Never use wash programs which finishby treating the vehicle with hot wax.
Observe these notes if your vehicle has a clearmatte finish. This will help you to avoid damageto the paintwork due to incorrect treatment.
These notes also apply to light alloy wheels witha clear matte finish.
Use only insect remover and car shampoo fromthe range of care products approved byMercedes-Benz.
Cleaning the decorative film
!The following may have an effect on the ser-vice life and color of decorative film:
Rsunlight
Rtemperature, e.g. hot-air fan
Rweather conditions
Rstone impacts and dirt
Rchemical cleaning agents
Rgreasy substances
!Do not use any types of polish on matt dec-orative film. Polishing surfaces covered withfilm gives it a shiny finish.
!Do not treat matt or structured decorativefilm with wax. This may lead to marks thatcannot be removed.
Observe the notes in the section on the care andtreatment of matte paintwork (Ypage 267),these notes also apply to matte decorative film.
Care267
Maintenance and care
Z
