2019 MAZDA MODEL CX-3 odometer

Meters and Gauges

Some models.
Type A
Type B
Type C
Steering Switch (Digital Speed Meter Type)
(Analog Speed Meter Type (With Tachometer))
(Analog Speed Meter Type (Without Tachometer))
Instrument Cluster
ƒ
Speedometer.......................................................................................................... page 4-12
„ Odometer, Trip Meter and Tri p Meter Selector.................................................... page 4-12
… Tachometer............................................................................................................ page 4-1 6
† Fuel Gauge............................................................................................................ page 4-1 6
‡ Dashboard Illumination.........................................................................................page 4-17
ˆ Outside Temperature Display.................................... ............................................ page 4-18
‰ Cruise Control Set Vehicle Speed Display....................... ..................................... page 4-18
When Driving
Instrument Cluster and Display
4-11
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

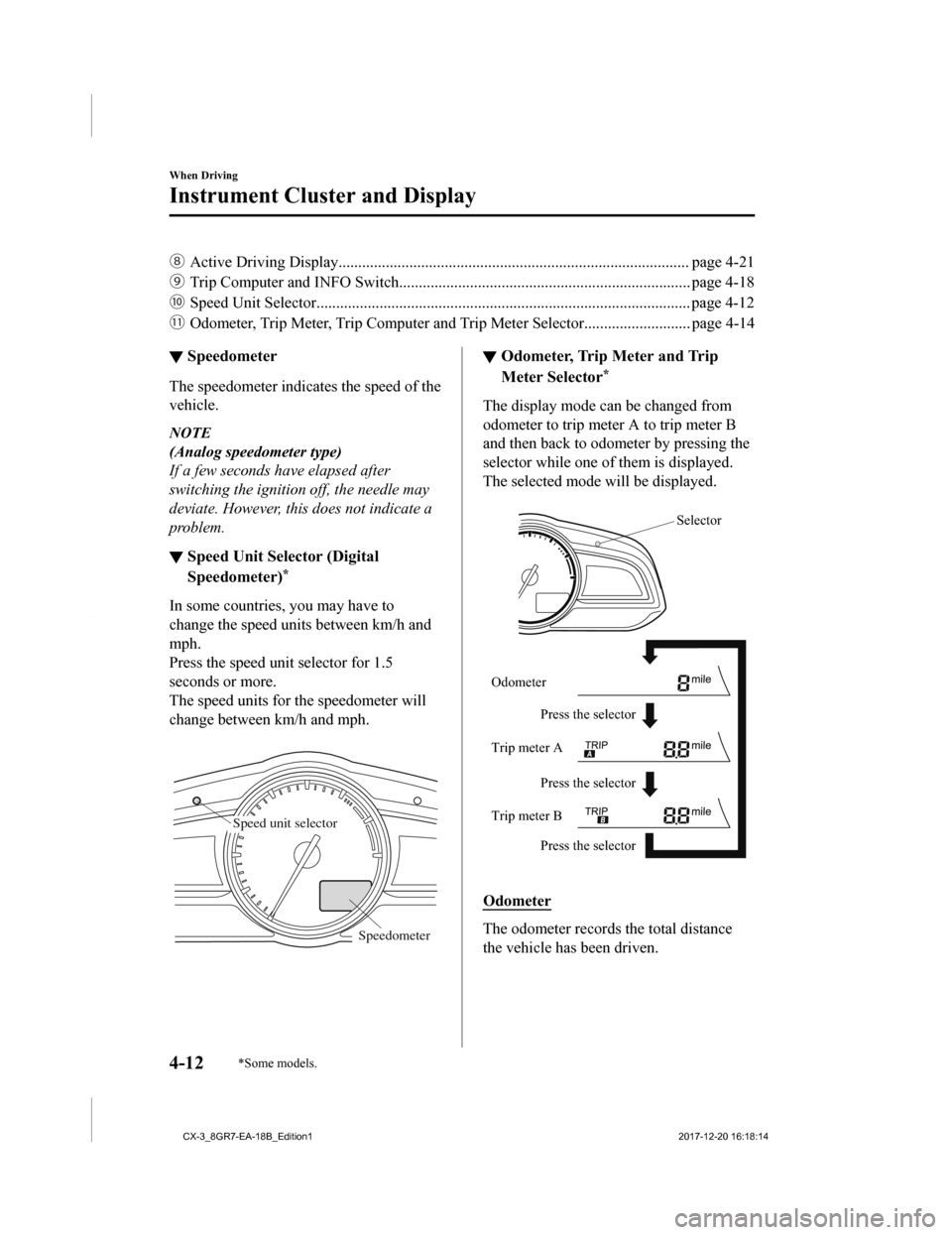

ŠActive Driving Display......................................... ................................................ page 4-21
‹ Trip Computer and INFO Switch.......................................................................... page 4-18
ΠSpeed Unit Selector............................................................................................... page 4-12
 Odometer, Trip Meter, Trip Computer and Trip Meter Selector.... ....................... page 4-14
▼Speedometer
The speedometer indicates the speed of the
vehicle.
NOTE
(Analog speedometer type)
If a few seconds have elapsed after
switching the ignition off, the needle may
deviate. However, this does not indicate a
problem.
▼Speed Unit Sel
ector (Digital
Speedometer)*
In some countries, you may have to
change the speed units between km/h and
mph.
Press the speed unit selector for 1.5
seconds or more.
The speed units for the speedometer will
change between km/h and mph.

Speedometer
Speed unit selector
▼ Odometer, Trip Meter and Trip
Meter Selector*
The display mode can be changed from
odometer to trip meter A to trip meter B
and then back to odometer by pressing the
selector while one of them is displayed.
The selected mode will be displayed.

Press the selector Press the selector
Press the selector
Odometer
Trip meter A
Trip meter B Selector

Odometer
The odometer records the total distance
the vehicle has been driven.
When Driving
Instrument Cluster and Display
4-12*Some models.
CX-3_8GR7-EA-18B_Edition1
2017-12-20 16:18:14

▼Odometer, Trip Meter, Trip
Computer and Trip
Meter Selector*
The display mode can be changed between
trip meter A and trip meter B by pressing
the selector while one of them is
displayed. The selected mode will be
displayed.
Selector
Current fuel economy mode Distance-to-empty mode Trip meter B Trip meter AOdometer
NOTE
When the ignition is switched to ACC or
off, the odometer or trip meters cannot be
displayed, however, pressing the selector
can inadvertently switch the trip meters or
reset them during an approximate
ten-minute period in the following cases:
•After the ignition is switched to off from
ON.
•After the driver's door is opened.
Odometer
The odometer records the total distance
the vehicle has been driven.
Tr i p m e t e r
The trip meter can record the total distance
of two trips. One is r ecorded in trip meter
A, and the other is recorded in trip meter B.
For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from where
the fuel tank is filled.
When trip meter A is s elected, pressing the
selector again within one second will
change to trip meter B mode.
When trip meter A is selected, TRIP A
will be displayed. Wh en trip meter B is
selected, TRIP B will be displayed.
The trip meter records the total distance the
vehicle is driven until the meter is again
reset. Return it to “0.0” by holding the
selector depressed for 1 second or more.
Use this meter to meas ure trip distances and
to compute fuel consumption.
NOTE
•(Vehicles with type B audio)
If the fuel economy data is reset using
the fuel economy monitor, or trip A is
reset using the trip meter when the
function which synchronizes the fuel
economy monitor and the trip meter is
on, the fuel economy data and trip A are
reset simultaneously.
Refer to Fuel Economy Monitor on page
4-71.
•Only the trip meters record tenths of
kilometers (miles).
•The trip record will be erased when:
•The power supply is interrupted
(blown fuse or the battery is
disconnected).
•The vehicle is driven over 9999.9 km
(mile).
When Driving
Instrument Cluster and Display
4-14*Some models.
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

▼California Customers
1. Mazda North American Operations
participates in BBB AUTO LINE , a mediation/
arbitration program administered by the Council of Better Busin ess Bureaus [4200
Wilson Boulevard, Arlington, Virginia 22203] through local Bett er Business Bureaus.
BBB AUTO LINE and Mazda have been certified by the Arbitration Certification
Program of the California Depa rtment of Consumer Affairs.
2. If you have a problem arisi ng under a Mazda written warranty, we encourage you to
bring it to our attention. If we are unable to resolve it, you may file a claim with BBB
AUTO LINE. Claims must be filed with BBB AUTO LINE within six (6) months after
the expiration of the warranty.
3. To file a claim with BBB AUTO LINE, call 1-800-955-5100. Ther e is no charge for the
call.
4. In order to file a claim with BBB AUTO LINE, you will have to provide your name and
address, the brand name and vehicle identification number (VIN) of your vehicle, and a
statement of the nature of your problem or complaint. You will also be asked to provide:
the approximate date of your acqui sition of the vehicle, the vehicle's current mileage, the
approximate date and mileage at t he time any problem(s) were first brought to the
attention of Mazda or one of our dealers, and a statement of the relief you are seeking.
5. BBB AUTO LINE staff may try to help resolve your dispute thro ugh mediation. If
mediation is not successful, or if you do not wish to participate in mediation, claims
within the program's jurisdictio n may be presented to an arbitrator at an informal
hearing. The arbitrator's decision should ordinarily be issued within 40 days from the
time your complaint is filed; there may be a delay of 7 days if you did not first contact
Mazda about your problem, or a delay of up to 30 days if the ar bitrator requests an
inspection/report by an impartial technical expert or further i nvestigation and report by
BBB AUTO LINE.
6. You are required to use BBB AUTO LINE before asserting in cou rt any rights or
remedies conferred by California Civil Code Section 1793.22. Yo u are also required to
use BBB AUTO LINE before exercising rights or seeking remedies created by Title I of
the Magnuson-Moss Warranty Act, 15 U.S.C. sec. 2301 et seq. If you choose to seek
redress by pursuing rights and remedies not created by Californ ia Civil Code Section
1793.22 or Title I of the Magnuson-Moss Warranty Act, resort to BBB AUTO LINE is
not required by those statutes.
7. California Civil Code Section 1793.2 (d) requires that, if Ma zda or its representative is
unable to repair a new motor vehicle to conform to the vehicle' s applicable express
warranty after a reasonable number of attempts, Mazda may be re quired to replace or
repurchase the vehicle. Califor nia Civil Code Section 1793.22 ( b) creates a presumption
that Mazda has had a reasonable number of attempts to conform t he vehicle to its
applicable express warranties if, within 18 months from deliver y to the buyer or 18,000
miles on the vehicle's odometer, whichever occurs first, one or more of the following
occurs:
Customer Information and Reporting Safety Defects
Customer Assistance
8-5
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Customer Assistance (Canada)
▼Satisfaction Review Process
Your complete and permanent satisfaction is of primary concern
to Mazda. All Authorized
Mazda Dealers have both the knowledge and tools to keep your Ma zda in top condition. In
our experience, any questions, pro blems, or complaints regarding the operation of your
Mazda or any other general service transactions are most effect ively resolved by your
dealer. If the cause of your dissatisfaction cannot adequately be addressed by normal
dealership procedures, we recommend that you take the following steps:
▼STEP 1: Contact the Mazda Dealer
Discuss the matter with a member of dealership management. If t
he Service Manager has
already reviewed your concerns, contact the owner of the dealership or its General Manager.
▼STEP 2: Contact the
Mazda Regional Office
If you feel that you still requ ire assistance, ask the dealer S ervice Manager to arrange for
you to meet the local Mazda Service Representative. If more exp edient, contact Mazda
Canada Inc. Regional Office nearest you for such arrangements. Regional Office address
and phone numbers are shown (page 8-9).
▼ STEP 3: Contact the Mazda Cu
stomer Relations Department
If still not substantially satisfied, contact the Customer Rela tions Department, Mazda
Canada Inc., 55 Vogell Road, Richmond Hill, Ontario, L4B 3K5 Ca nada TEL: 1 (800)
263-4680.
Provide the Department wit h the following information:

1. Your name, address and telephone number
2. Year and model of vehicle
3. Vehicle Identification Number ( VIN). Refer to the Vehicle Identification Number on
page 9-2 for the location of the VIN.
4. Purchase date
5. Present odometer reading
6. Your dealer's name and location
7. The nature of your problem and/or cause of dissatisfaction

The Department, in cooperation wi th the local Mazda Service Representative, will review
the case to determine if everything possible has been done to e nsure your satisfaction.

Please recognize that the resolution of service problems in mos t cases requires the use of
your Mazda dealer's service facilities, personnel and equipment . We urge you to follow the
above three steps in sequenc e for most effective results.
Customer Information and Reporting Safety Defects
Customer Assistance
8-7
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Index
i-ACTIV AWD Operation.................4-75
J
Jack...................................................... 7-5
Jump-Starting.................................... 7-18
K
Keyless Entry System......................... 3-3
Keys.....................................................3-2Key suspend function.................... 3-8
Transmitter..................................... 3-4
Key left-in-luggage compartment
warning beep (With the advanced keyless
function)............................................ 7-45
Key left-in-vehicle warning beep (With
the advanced keyless function)......... 7-45
Key removed from vehicle warning
beep................................................... 7-44
Key Suspend Function........................ 3-8
L
Label Information............................... 9-2
Lane Departure Warning sound........ 7-46
Lane Departure Warning System
(LDWS)............................................. 4-84 LDWS switch.............................. 4-87
Lane-Change Signals........................ 4-49
Leaving Home Light......................... 4-47
Liftgate.............................................. 3-20 Luggage compartment................. 3-22
When Liftgate Cannot be
Opened......................................... 7-48
Lighting Control................................4-43
Lights-on reminder............................7-43
Light Bulbs Replacement................................ 6-41
Specifications.................................9-6
Lubricant Quality................................ 9-4
Luggage Compartment Light.......... 5-126
M
Maintenance
Information.................................... 6-2
Scheduled.......................................6-4
Maintenance Monitor........................ 6-15
Manual Transaxle Operation............. 4-30
Map Lights...................................... 5-126
Mazda Radar Cruise Control with Stop &
Go function (MRCC with Stop & Go
function).......................................... 4-107 Close proximity warning........... 4-109
Cruise control function.............. 4-116
Display indication......................4-109
Setting the system......................4-110
Stop hold control....................... 4-115
Mazda Radar Cruise Control with Stop &
Go function (MRCC with Stop & Go
function) System Warnings............... 7-47
Message Indicated on Display.......... 7-41
Meters and Gauges............................4-11
Mirrors Outside mirrors............................ 3-31
Rearview mirror.......................... 3-32
Mirror Defogger.......... ...................... 4-54
Moonroof...........................................3-36
O
Odometer and Trip Meter................. 4-12
Outside Mirrors................................. 3-31
Outside Temperature Display............4-18
Overhead Console........................... 5-131
Overhead Lights......... ..................... 5-126
Overheating....................................... 7-22
Overloading....................................... 3-48
Owner Maintenance Closing the Hood.........................6-20
Engine Compartment
Overview..................................... 6-21
Key battery replacement..............6-34
10-6
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14
