Adjusting the Pre-Collision AssistSettings
You can adjust the following settings byusing the information display controls. SeeGeneral Information (page 120).
•You can adjust the Alert and DistanceAlert sensitivity to one of three possiblesettings.
•You can switch the Distance Indicationand Alert function on or off.
•If required, you can switch Active Brakingon or off.
Note:Active braking automatically turns onevery time you switch the ignition on.
Blocked Sensors
If a message regarding a blocked sensor orcamera appears in the information display,the radar signals or camera images areobstructed. The radar sensor is locatedbehind a fascia cover near the passengerside of the lower grille. With an obstructedradar, the Pre-Collision Assist system doesnot function and cannot detect a vehicleahead. With the front camera obstructed, thePre-Collision Assist system does not respondto pedestrians or stationary vehicles and thesystem performance on moving vehiclesreduces. The following table lists possiblecauses and actions for when this messagedisplays.
ActionCause
Clean the grille surface in front of the radar or remove the objectcausing the obstruction.The surface of the radar in the grille is dirty or obstructed in someway.
Wait a short time. It may take several minutes for the radar to detectthat there is no obstruction.The surface of the radar in the grille is clean but the message remainsin the display.
The Pre-Collision Assist system is temporarily disabled. Pre-CollisionAssist should automatically reactivate a short time after the weatherconditions improve.Heavy rain, spray, snow, or fog is interfering with the radar signals.
283
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing
Driving AidsE253503

ActionCause
The Pre-Collision Assist system is temporarily disabled. Pre-CollisionAssist should automatically reactivate a short time after the weatherconditions improve.
Swirling water, or snow or ice on the surface of the road may interferewith the radar signals.
Contact an authorized dealer to have the radar checked for propercoverage and operation.Radar is out of alignment due to a front end impact.
Clean the outside of the windshield in front of the camera.The windshield in front of the camera is dirty or obstructed in someway.
Wait a short time. It may take several minutes for the camera to detectthat there is no obstruction.The windshield in front of the camera is clean but the message remainsin the display.
Note:Proper system operation requires aclear view of the road by the camera. Haveany windshield damage in the area of thecamera's field of view repaired.
Note:If something hits the front end of yourvehicle or damage occurs, the radar sensingzone may change. This could cause missedor false vehicle detections. Contact anauthorized dealer to have the radar checkedfor proper coverage and operation.
Note:If your vehicle detects excessive heatat the camera or a potential misalignmentcondition, a message may display in theinformation display indicating temporarysensor unavailability. When operationalconditions are correct, the messagedeactivates. For example, when the ambienttemperature around the sensor decreasesor the sensor automatically recalibratessuccessfully.
DRIVE MODE CONTROL (IF EQUIPPED)
Lincoln Drive Modes
Lincoln Drive Modes deliver a drivingexperience through a suite of sophisticatedelectronic vehicle systems. These systemsoptimize steering, handling and powertrainresponse. You can control performancesettings for multiple systems from this singlelocation.
284
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing
Driving Aids

You have to set up each trailer you use withyour vehicle. You must accurately follow thesetup process to make sure you correctlyplace the sticker.
Contact your dealership if you needassistance in setting up your trailer.
Setting Up Pro Trailer Backup Assist
Note:Once you enter a trailer's information,the system stores it for easy recall. You canadd a maximum of 10 trailers to the system.
Step 1: Position your Vehicle and Trailer
Hitch the conventional trailer to your vehicle.See Essential Towing Checks (page 311).
Park your vehicle and trailer on a levelsurface.
For best results, make sure that your trailerrides level with the ground when you hitchyour vehicle. More information on selectingyour tow bar is available in the Towingsection. See Towing (page 297).
Make sure your vehicle and the trailer are inline with each other. You can do this bydriving straight forward.
Step 2: Follow the Information DisplayPrompts
Press the button to turn the system on.
1. Select the option to add a trailer in theinformation display using the steeringwheel control. See General Information(page 120).
299
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing
TowingE247482 E247481 E246984

2. Add a personalized name for the trailerusing the screen prompts. Use the downarrow to scroll to the desired letter andthen press the toggle switch to advanceto the next letter. Press OK to continue.
3.Select the type of trailer brake system forthe trailer you are adding.
4.Select the brake effort level for the trailer.
Note:The default option is low. Werecommend this for most trailers. If thetrailer's brakes require more initial voltage,or if you prefer more aggressive braking,then select the other options as required.
Some examples of conventional type trailersare below.
Note:You cannot use the system with thetypes of trailers marked with the cross.
The system only works with conventionaltrailers. It does not work with other typesincluding goose neck and fifth wheel.
Follow the information display prompts.
Step 3: Place the Sticker on the TrailerFrame
You must place the supplied sticker in anarea visible by the rear view camera.
Note:An assistant can help to carry out thefollowing procedure.
Note:Make sure nothing can obstruct therear view cameras view of the sticker. Forexample, items such as a jack handle orwiring.
Note:Position the sticker on a flat, dry andclean horizontal surface. For best resultsapply the sticker when temperatures areabove 32°F (0°C).
Note:Do not move stickers after you positionthem. Do not re-use any stickers if removed.
Note:You can purchase additional stickersthrough your authorized dealer.
300
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing
TowingE209766 E209805

Use the supplied measurement card, a tapemeasure and pen to carefully mark the areawhere to attach the sticker (supplied in theback cover pocket of your quick start guide).Make sure the whole sticker is within thezone between the two arcs or distancemarkers on the diagram, and is also visiblein the rear view camera display.
Step 4: Take Measurements
After you correctly place the sticker on thetrailer, you must take some keymeasurements.
Note:You must take accuratemeasurements for the system to operateproperly.
Note:When rounding in inches, roundupward if the measured length is a quarterinch or greater. Round downward if themeasured length is less than a quarter inch.For example 12.25 in (31.11 cm) would berounded up to 12.50 in (31.75 cm). 12.13 in(30.8 cm) would be rounded down to 12.00 in(30.48 cm).
Note:When rounding in centimeters, roundto the nearest whole centimeter. If themeasurement is less than 0.2 in (0.5 cm)round downward. If the measurement ismore than or equal to 0.2 in (0.5 cm) roundupward. For example, 11.9 in (30.3 cm) wouldbe rounded down to 11.8 in (30 cm). 12.0 in(30.5 cm) would be rounded up to 12.2 in(31 cm).
Note:Use consistent metric or imperial unitsas required by your country or vehicle.
Record the four key distances (A, B, C, D) asrequired by the measurement card. Recordthe trailer name for these measurements.Distance A
The horizontal distance from the bumper tothe center of the ball hitch on the trailer.
Distance B
The horizontal distance from the center ofthe ball hitch to the center of the sticker.
Distance C
The distance from the rear view camera tothe center of the sticker.
301
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing
TowingE247545

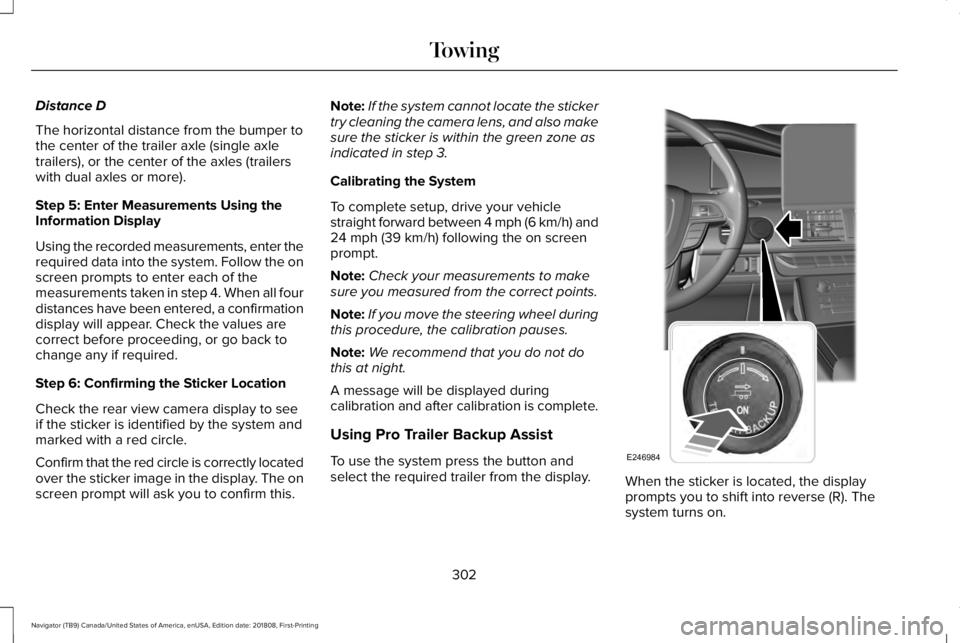

Distance D
The horizontal distance from the bumper tothe center of the trailer axle (single axletrailers), or the center of the axles (trailerswith dual axles or more).
Step 5: Enter Measurements Using theInformation Display
Using the recorded measurements, enter therequired data into the system. Follow the onscreen prompts to enter each of themeasurements taken in step 4. When all fourdistances have been entered, a confirmationdisplay will appear. Check the values arecorrect before proceeding, or go back tochange any if required.
Step 6: Confirming the Sticker Location
Check the rear view camera display to seeif the sticker is identified by the system andmarked with a red circle.
Confirm that the red circle is correctly locatedover the sticker image in the display. The onscreen prompt will ask you to confirm this.
Note:If the system cannot locate the stickertry cleaning the camera lens, and also makesure the sticker is within the green zone asindicated in step 3.
Calibrating the System
To complete setup, drive your vehiclestraight forward between 4 mph (6 km/h) and24 mph (39 km/h) following the on screenprompt.
Note:Check your measurements to makesure you measured from the correct points.
Note:If you move the steering wheel duringthis procedure, the calibration pauses.
Note:We recommend that you do not dothis at night.
A message will be displayed duringcalibration and after calibration is complete.
Using Pro Trailer Backup Assist
To use the system press the button andselect the required trailer from the display.When the sticker is located, the displayprompts you to shift into reverse (R). Thesystem turns on.
302
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing
TowingE246984

either too far below or too close to thecamera to properly recognize the sticker.In order for the system to operatecorrectly the sticker height must belowered if you receive the minimumwarning or the sticker height must beraised if you receive the maximumwarning.
•Only one sticker can be placed on thetrailer for correct system function. Theprevious sticker must be removed orcovered so only one sticker is visible tothe camera.
•Measurement B and C must be measuredagain if a new sticker is placed on thetrailer.
Measurement D has reached maximum orminimum value:
•Make sure that the measurement beingmade is the horizontal distance only fromthe bumper to the center of the singleaxle or the center of all the axles on thetrailer. See step 4 of the setup foradditional measurement instructions. TheTBA system does not support trailerlengths outside the range allowed by theinformation display.
System is circling something beside thesticker or system cannot find the sticker:
•Make sure the rear camera is clean andthe sticker is clearly visible in the cameraimage. Clean the camera and sticker ifnecessary.
•The camera system uses the enteredmeasurements to help locate the sticker.Inaccurate sticker measurements willdegrade the system’s ability to locate thesticker. Verify the measurements enteredinto the system are accurate.
•Remove the incorrectly circled label ordecal if possible.
•If you cannot resolve the issue a newsticker location should be tried. Thesticker location must still meet therequirements noted in step 3 of the setupinstructions. Only one sticker can beplaced on the trailer for correct systemfunction. The previous sticker must beremoved or covered so only one stickeris visible to the camera.
Calibration
The system monitors various vehicleparameters to ensure your vehicle is beingdriven straight and the trailer straight behindyour vehicle. Any steering input or trailermovement will pause the calibration.
For best results:
•Use a long, straight, smooth and levelroad when attempting to calibrate.
•Drive straight forward.
•Drive between 4 mph (6 km/h) and24 mph (39 km/h).
System Operation
The following warnings or difficulties mayoccur during feature operation. Tips toresolve them are listed below.
305
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing
Towing

The system is not available:
•The system relies on many sub-systemsin your vehicle to operate correctly. Ifthose sub-systems are not operatingcorrectly the system may not beavailable.
•Low battery voltage is a condition whichwill prevent the system from operating.Please make sure the battery is correctlycharged if the system is not available.
•You may need to drive your vehiclestraight forward above 25 mph (40 km/h)before the system is available again.
•If the message still displays take yourvehicle to an authorized dealer forservice.
Sticker lost:
•If the system cannot initially find thesticker, it may be necessary for you tochange the lighting conditions by movingthe vehicle and trailer or waiting untilconditions change.
•Check for the following if you receive thelost sticker message while using thesystem.
•Stop your vehicle as soon as themessage displays.
•Make sure the sticker is visible and thepattern is discernable in the rear viewcamera image.
•Clean the sticker and camera to makesure they are unobstructed.
•Clean the lens with a soft, lint-free clothand water.
•Clean the sticker with isopropyl rubbingalcohol sprayed directly onto the sticker,and then wipe clean with a soft cloth.
•Remove any items that may be blockingthe view of the sticker. Depending onyour trailer configuration and anyequipment mounted to your trailer it ispossible for the sticker to be blockedfrom view of the camera as it rotates onthe hitch ball but not be blocked duringsetup. Remove the obstruction ifpossible. It will be necessary to removethe sticker from it’s current location if theobstruction cannot be cleared and placea new sticker that will be visible to thecamera in all positions of the trailerbehind your vehicle.
•Placing the sticker on a surface angledaway from the vehicle reducesperformance. Use a drawbar thatpositions the trailer level to the groundwhen attached to vehicle. This typicallyprovides a level surface to mount thesticker. Place the sticker on a bracket orother object when no level surface isavailable.
•Make sure the entire sticker is on a flatsurface that is completely visible to thecamera. Do not fold the sticker over anedge on the trailer frame. This candegrade performance.
•Shadows on the sticker may effecttracking performance under somelighting conditions. Moving the sticker toanother location within the allowedplacement area may improveperformance. Use the change stickeroption in your Towing menu if you movethe sticker.
306
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing
