2019 LINCOLN MKC Owners Manual

Wheel Lug Nut Torque Specifications
WARNING: When you install a wheel, always remove any corrosion, dirt or foreign materials present on the mounting surfaces of thewheel or the surface of the wheel hub, brake drum or brake disc that contacts the wheel. Make sure to secure any fasteners that attach therotor to the hub so they do not interfere with the mounting surfaces of the wheel. Installing wheels without correct metal-to-metal contact atthe wheel mounting surfaces can cause the wheel nuts to loosen and the wheel to come off while your vehicle is in motion, resulting in lossof vehicle control, personal injury or death.
Ib-ft (Nm)*Bolt size
100 (135)M12 x 1.5
*Torque specifications are for nut and bolt threads free of oil, dirt and rust. Use only Ford recommended replacement fasteners.
Retighten the lug nuts to the specified torque within 100 miles (160 kilometers) after any wheel disturbance (such as tire rotation, changing aflat tire, wheel removal).
342
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Wheels and Tires

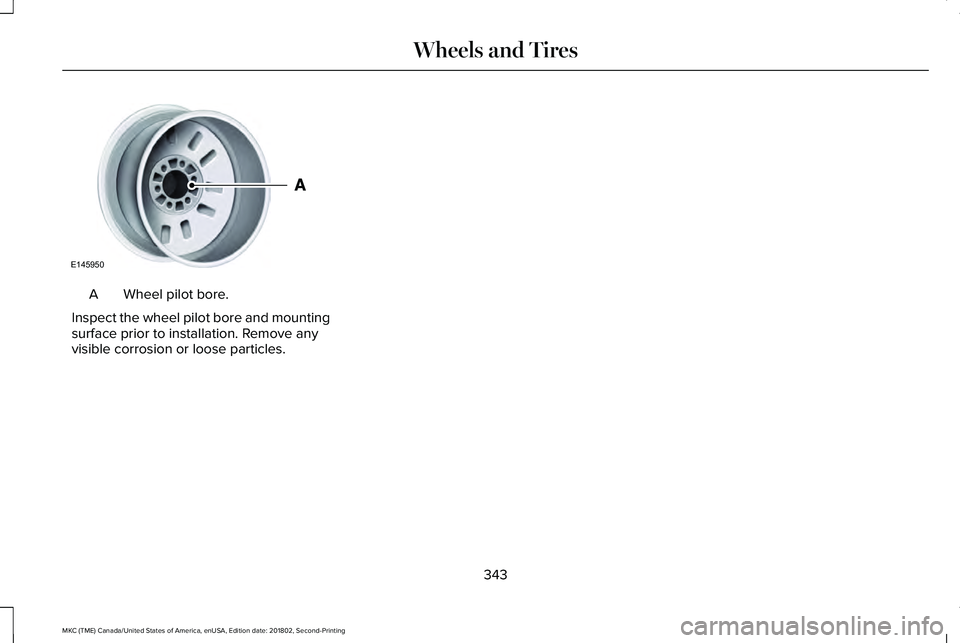

Wheel pilot bore.A
Inspect the wheel pilot bore and mountingsurface prior to installation. Remove anyvisible corrosion or loose particles.
343
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Wheels and TiresE145950

ENGINE SPECIFICATIONS - 2.0L
SpecificationMeasurement
122Cubic inches.
1-3-4-2Firing order.
Coil on plugIgnition system.
0.027-0.031 in. (0.70-0.80 mm)Spark plug gap.
9.7:1Compression ratio.
Drivebelt RoutingA. The long drivebelt is on the first pulleygroove closest to the engine.
B. The short drivebelt is on the secondpulley groove farthest from the engine.
344
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Capacities and SpecificationsE161383
A
B

ENGINE SPECIFICATIONS - 2.3L
SpecificationMeasurement
138Cubic inches.
1-3-4-2Firing order.
9.5:1Compression ratio.
0.027-0.031 in. (0.70-0.80 mm)Spark plug gap.
Drivebelt RoutingA. The long drivebelt is on the first pulleygroove closest to the engine.
B. The short drivebelt is on the secondpulley groove farthest from the engine.
345
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Capacities and SpecificationsE161383
A
B

MOTORCRAFT PARTS - 2.0L
Motorcraft part numberComponent
FA-1908Air filter element
FL-910-SOil filter
BXT-48H6-610Battery (without start/stop)
BAGM-48H6-760Battery (with start/stop)
SP-527Spark plugs
FP70Cabin air filter
WW-2550 (driver side)Windshield wiper bladeWW-1575 (passenger side)WW-1106 (rear window)
We recommend Motorcraft replacement parts available at your Ford dealer or at fordparts.com for scheduled maintenance. These parts meetor exceed Ford Motor Company’s specifications and are engineered for your vehicle. Use of other parts may impact vehicle performance,emissions and durability. Your warranty may be void for any damage related to use of other parts.
If a Motorcraft oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the spark plugs at the appropriate intervals. See Scheduled Maintenance(page 487).
346
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Capacities and Specifications

MOTORCRAFT PARTS - 2.3L
Motorcraft part numberComponent
FA-1908Air filter element
FL-910-SOil filter
BXT-48H6-610Battery
SP-537Spark plugs
FP70Cabin air filter
WW-2550 (driver side)Windshield wiper bladeWW-1575 (passenger side)WW-1106 (rear window)
We recommend Motorcraft replacement parts available at your Ford dealer or at fordparts.com for scheduled maintenance. These parts meetor exceed Ford Motor Company’s specifications and are engineered for your vehicle. Use of other parts may impact vehicle performance,emissions and durability. Your warranty may be void for any damage related to use of other parts.
If a Motorcraft oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the spark plugs at the appropriate intervals. See Scheduled Maintenance(page 487).
347
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Capacities and Specifications

VEHICLE IDENTIFICATION
NUMBER
The vehicle identification number is locatedon the left-hand side of the instrument panel.
Please note that in the graphic, XXXX isrepresentative of your vehicle identificationnumber.
The Vehicle Identification Number containsthe following information:
World manufacturer identifierA
Brake system, Gross VehicleWeight Rating, Restraint Devicesand their locations
B
Make, vehicle line, series, bodytypeC
Engine typeD
Check digitE
Model yearF
Assembly plantG
Production sequence numberH
VEHICLE CERTIFICATION LABEL
The National Highway Traffic SafetyAdministration Regulations require that aSafety Compliance Certification Label beaffixed to a vehicle and prescribe where theSafety Compliance Certification Label maybe located. The Safety ComplianceCertification Label shall be affixed to eitherthe door hinge pillar, the door latch post, orthe edge of the door near the door latch,next to the driver's seating position.
348
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Capacities and SpecificationsE142476 E142477 E167469

TRANSMISSION CODE
DESIGNATION
The transmission code is on the SafetyCompliance Certification Label. The followingtable shows the transmission code alongwith the transmission description.
CodeDescription
6Six-speed automatic transmission 6F35
349
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Capacities and SpecificationsE167814
